TLP Round tTaper Interlocks,Slide Taper Interlocks

Product Overview

Description

TLP Round tTaper Interlocks,Slide Taper Interlocks



1.Quick Details for round taper interlock

Product Name	Locating Block Set
Material	SKD11,YK30,SUJ2,D2 tool steel ,S45C(42~45HRC) etc.
Hardness	58~62 HRC
Shape Mold	Die Casting
Grinding Precision	0.002mm
Surface roughness	RA0.4
Verticality	0.002mm
Dia Tolenrance	0.0002
Specifications and Variables	1)Highly polished finish 6-8 micro finish. 2)Precision form ground to close diameter tolerance +.0002/-.000. 3)Common fractional sizes are available 4)M2 high speed steel 60-62 Rockwell C. 5)Custom sizes can be made to order up to 1" diameter. 6)Custom hardness RC 64 65 and triple drawn available on request.
Sizes	Can be customizes





2.Features&Usage of round taper interlock

1)Suitable for positioning in precision molds such as connectors and electronic devices.
2)It is capable of preventing wear and damage in core pins, since it can be positioned before core pins are inlayed.
3)Makes the maintenance easier because it can be installed and removed from PL side.

4)Contacting the pin and bushing when mold is closed may cause damage. Please leave a clearance of about 1mm on PL.
5)Use precision leader pins since clearance is fairly small.

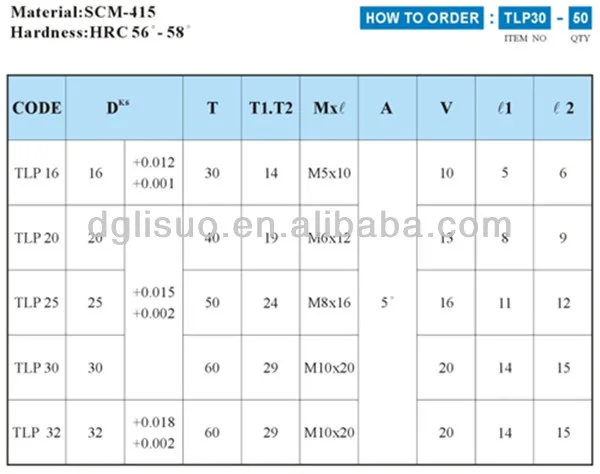

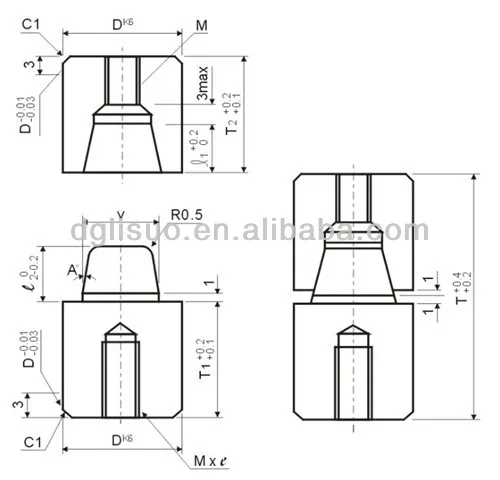

3.Specification of round taper interlock

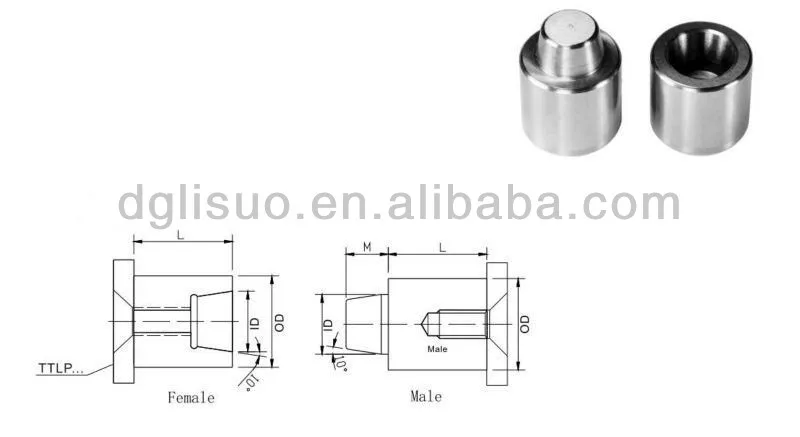

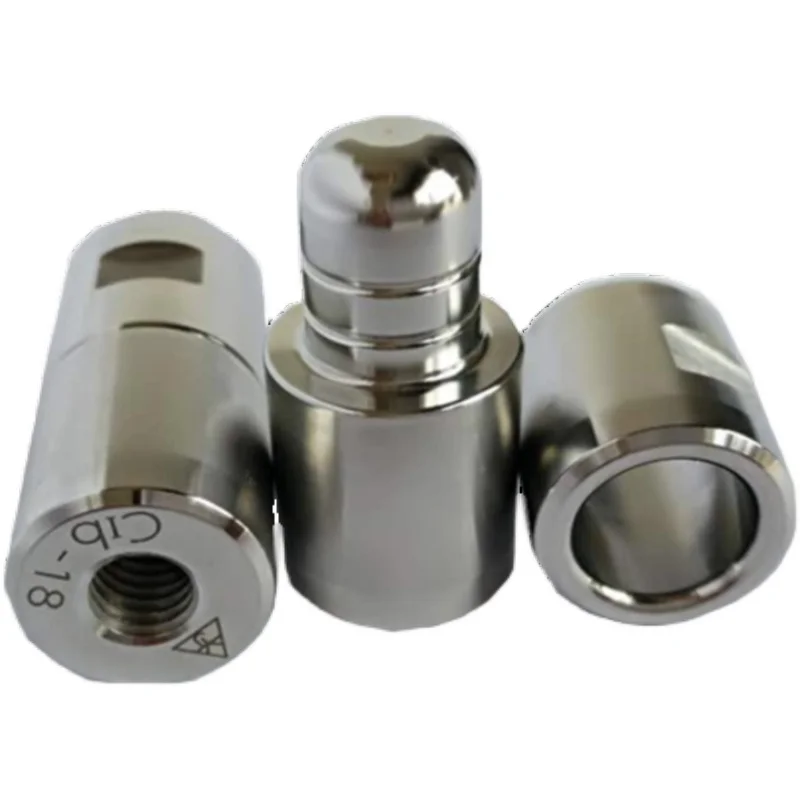

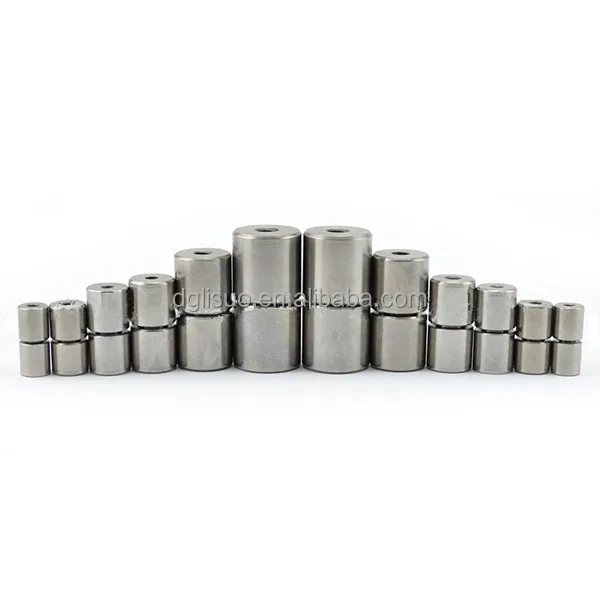

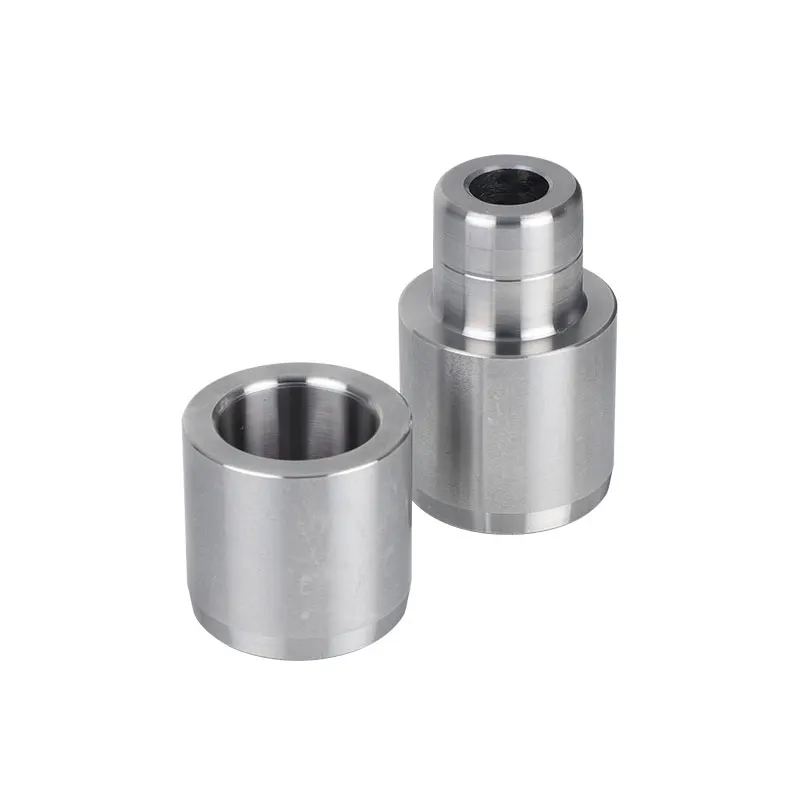

4.Pictures show of round taper interlock







5.We supply various kinds of locating block set include round block set,taper block set,square block set etc.





6.Delivery & Payment & After-sale Service:
Delivery:	1.Express by air (UPS,DHL,FedEx,TNT,EMS etc.) 2.Ship by sea. 3.Customer's requirement is welcome.
Payment:	1.T/T payment,L/C,D/A,D/P, 2.Paypal,Escrow. 3.Western Union,MoneyGram.
After-sale Service	Nice after-sale service will be offered and it is a good tradition in our factory.



7.Service We Can Offer You:
♣Quick Response	Your inquiry will be replied within 24 hours.
♣High Quality	Well-trained workers and more than 10 years experience.
♣Competitive Price	Directly from factory to save your money.
♣Short Lead Time	Being efficient:3-7 days for samples and 10-35 days for quantity orders.
♣Flexibility	Small orders are acceptable for quick delivery and to help you reduce stock cost.
♣OEM	Custom fabrication according to your drawings ,samples or designs.



8.About us



1. Lishuo Hardware Mould Components company was established in 2000 and Located at Chang'An town,DongGuan City,GuangDong Province.

2.  Range of our products:

     We produce the economic products and also the top quality products for the plastric mould, hardware mould and die mould,or special manufacture on the request of the customer.
