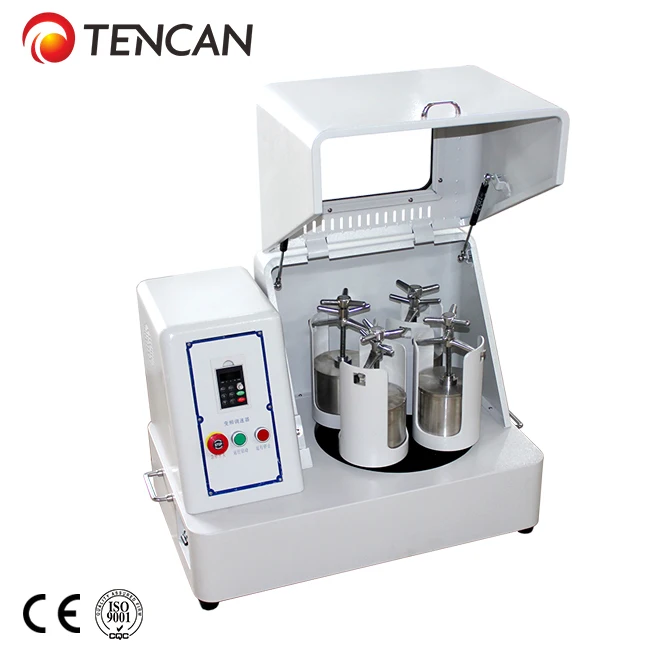

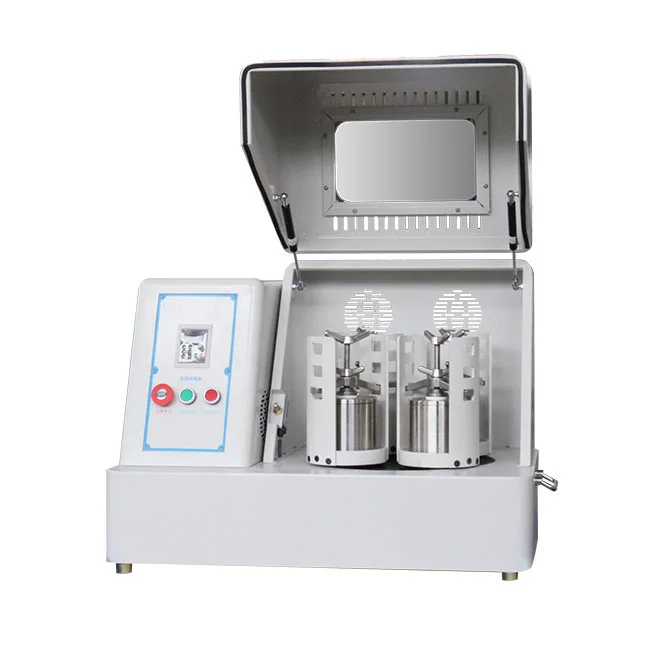

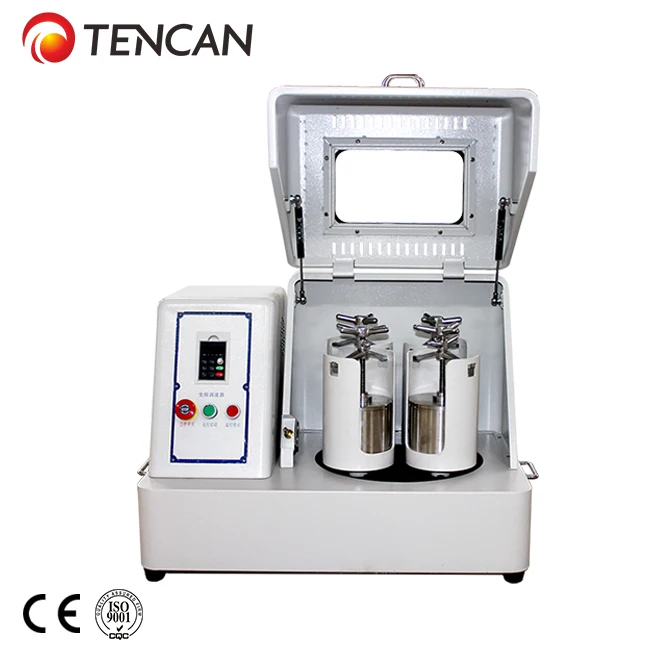

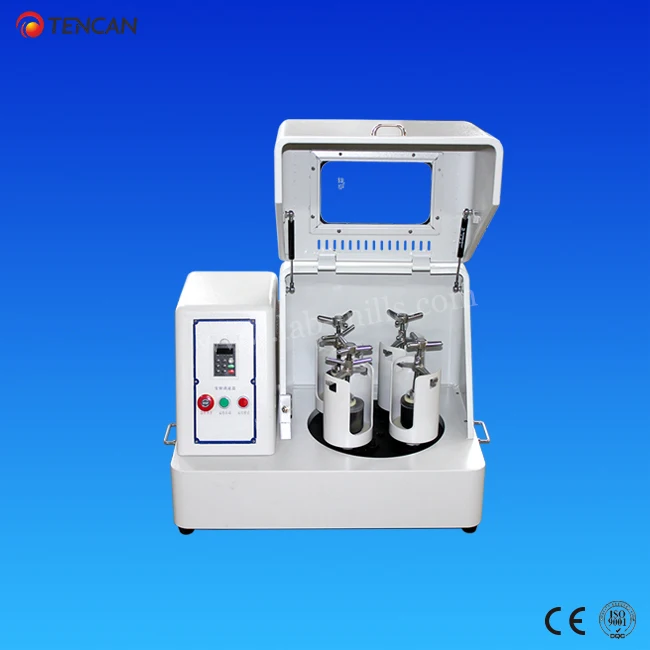

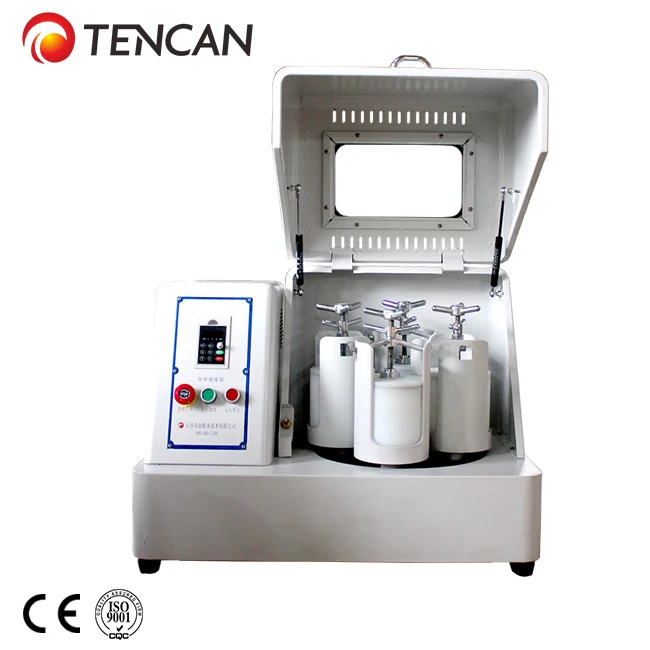

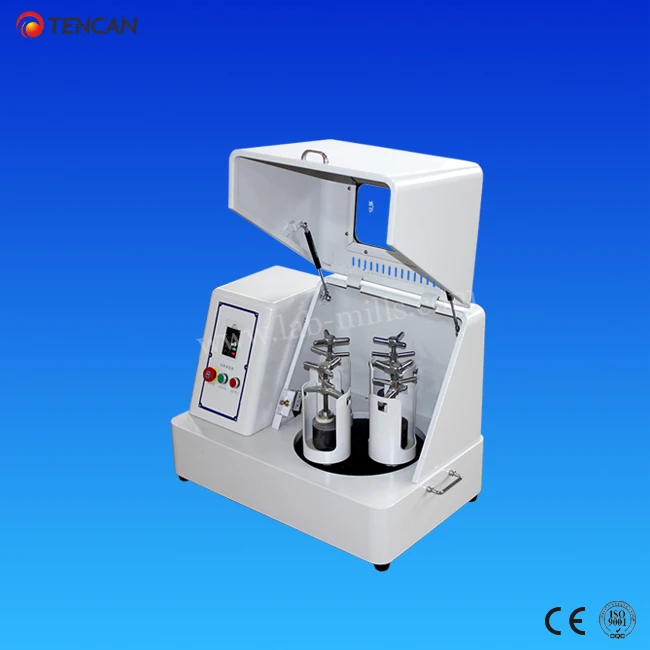

China Tencan 4L Nano Scale Ultrafine Grinding Vertical Bench top Lab Planetary Ball Mill

Product Overview

Description

Efficiency lab grinder for powder coating ,with high speed and low noise



 Laboratory powder mill introduction:



 Tencan planetary ball mill has the advantages as small volume, high efficiency, low noise and functional features , which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples

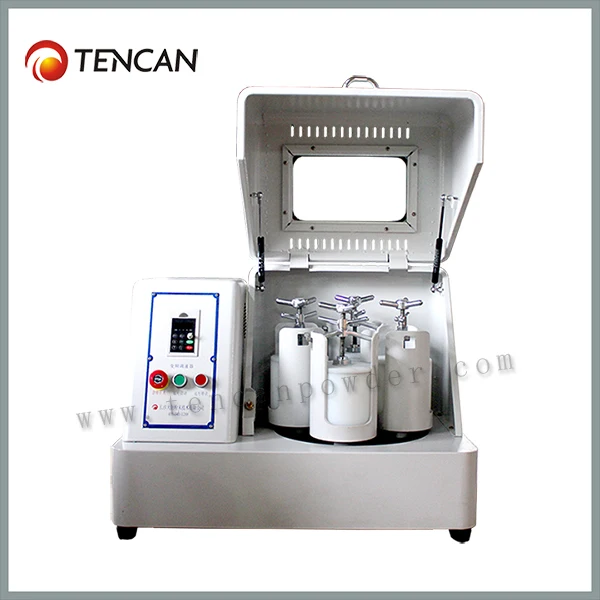

 Our machine has four ball mill jars in a turnplate. The ball mill jars rotate with the turnplate when the turnplate rotates. And under the gear drive, the planetary ball mill jars do planetary motion  by central axis drive. The high speed movement of the milling media ball in the jar produces impact, shear, grinding force which can grind and mix the sample.





  Laboratory powder mill technical features:



• Stable revolving speed of the gear transmission ensure the consistency and repeatability of the experience.


• Four different size, different material samples can be produced at the same time.


• The speed can be adjusted as per the experience result. The frequency converter has undervoltage and over-current protection function to protect the motor.


• The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, timing and untiming operation.


• Our planetary ball mill is functional which has low barycenter, stable performance, compact structure, easy operation, reliable safety, low noise, low wastage.


• Safety switch is installed to avoid machine run when the  cover open

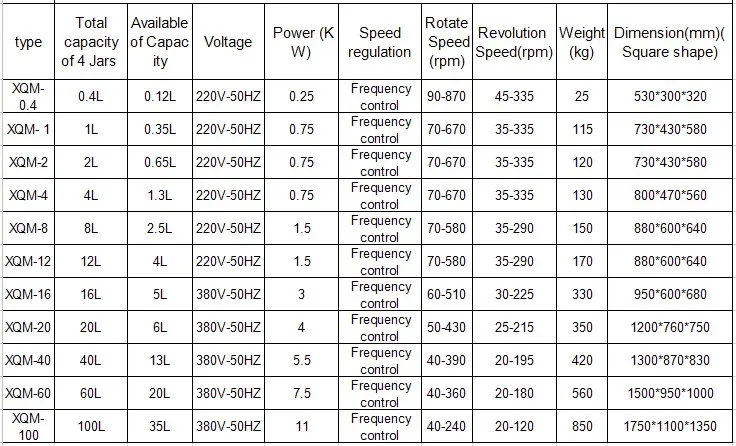

Ball mill jar volume	0.05L-5L/pc, totally 0.2L-20L
Feeding particle size	soft ≤10mm, other material ≤3mm
Discharge particle size	Min. As 0.1um
Speed ratio (revolution: rotation)	1:2 (20-200L productive planetary ball mill can be 1:1.5)
Rotating speed	0-870rpm( normal), 0-1400rpm (high-speed)
Speed regulation	stepless speed regulation, 0.2rpm
Program control	Our ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable for cooling or intermittent operation.
Max. Continuous working time (full load)	72 hours( timer 0-9999h)
Motor power	main power is 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW as per the model and ball mill loading weight. The motor is made by pure cupper.
Ball mill environments	Vacuum, inert gas, low temperature, high temperature























 Quality warranty & service promise for laboratory planetary ball mill





 Laboratory Planetary Ball Mill Certificate



ISO9001:2008 Quality Management System Certificate















Product Quality Warranty:
Oneyear warranty period shall be provided to any client who buys our products and related accessories.

The following promises are valid within the warranty period which is calculated from time or date

when the client or consumer takes delivery of machine, opens case, inspects machine and receives

with signature. We promise to guarantee free replacement within one month, and guarantee free

repair within one year



Client may enjoy free replacement within one month if any of following occurs:
1) The machine is broken in course of transportation;
2) Motor and frequency converter are burnt out;
3) The key part or main disk of the machine is seriously in failure.



Items	Name of Parts	Quality Warranty Period (Month)
Electric Parts	frequency converter	12
	motor	12
	fan	12
	keys	6
	travel switch	12
	air switch	12
	power line	6
	socket	6
Machinery Parts	main assembly parts	12
	belt pulley	6
Others	stay bar	12
	cage-supported	12
	top rod	6
Fragile and Easy-consumed Parts	belt	0
	pot/jar/tank	0
	mill balls	0

We shall promise to provide most favorable policy and best services after expiration of quality

 warranty period.
