TPUCO Automated machinery, coating machinery polyurethane PU pneumatic air hose
- Category: >>>
- Supplier: TAIWAN POLY-URETHANE INDUSTRIAL CO. LTD.
Share on (60072717986):
Product Overview
Description
Product Description

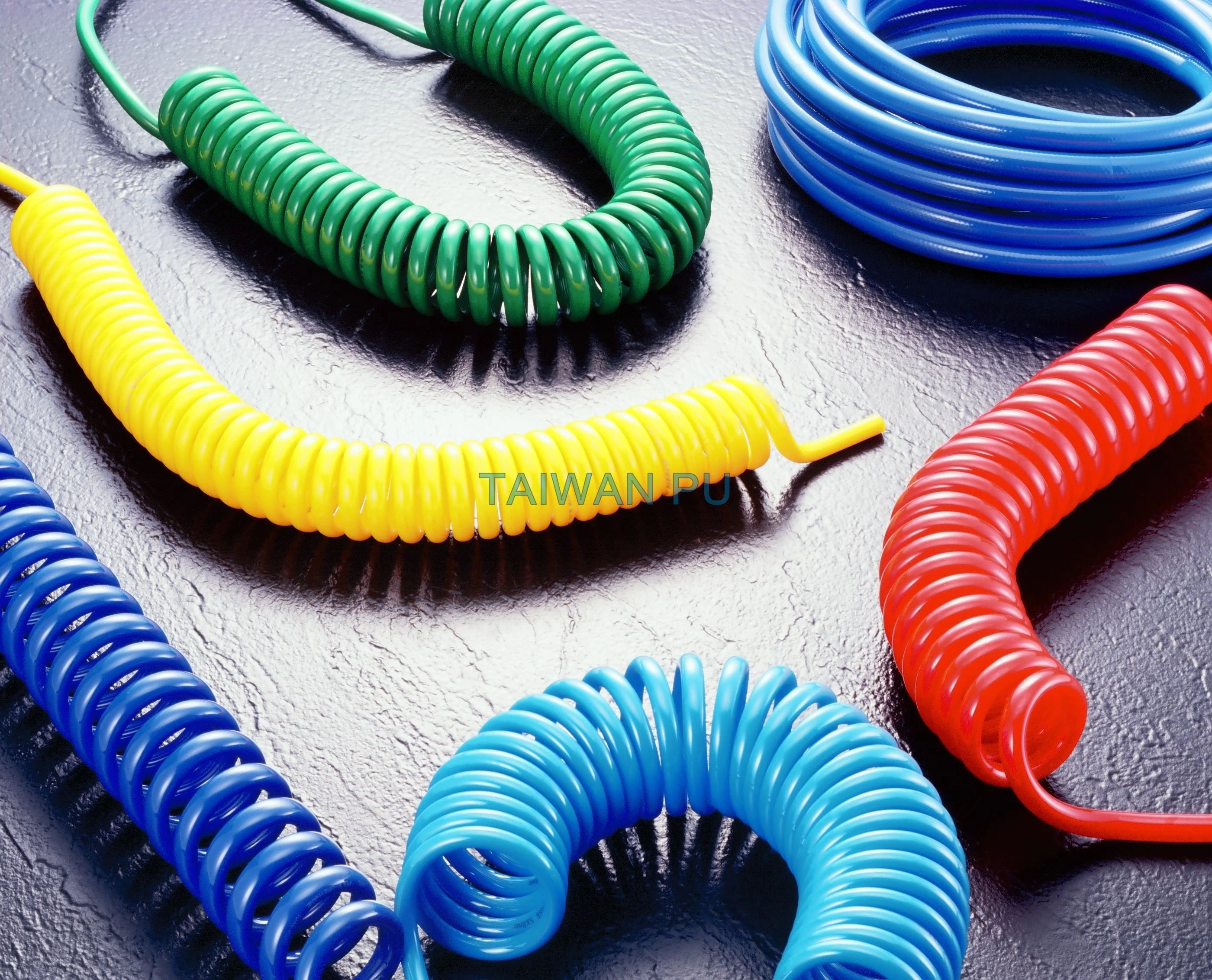

Automated machinery, coating machinery polyurethane PU Pneumatic air hose
Taiwan PU Corporation is a professional maker of widely used in many applications Automated machinery For PU Spiral Tube.
We can manufacture various kinds of widely used in many applications Automated machinery For PU Spiral Tube according to any client's special requirement
We can offer widely used in many applications Automated machinery For PU Spiral Tube
We are good at widely used in many applications Automated machinery For PU Spiral Tube . Our widely used in many applications Automated machinery For PU Spiral Tube are the best.
Advantage
- High flexibility
- Small bending radius
- Widely used in many applications
- Available in ether and ester types
- Optimum abrasion resistance
- High tensile strength
- Low temperature flexibility
Application
Automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based PU Tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes.
Description
| ITEM No. | Size ID x OD | Total Tube Length M | A mm | B mm | C mm | D mm | E mm | Max working Pressure BAR/PSI |
| TBC080502 | 5.0 x8.0 | 2.0 | 740 | 500 | 140 | 100 | 42 | 10/145 |
| TBC080504 | 5.0 x8.0 | 4.0 | 930 | 500 | 330 | 100 | 42 | 10/145 |
| TBC080506 | 5.0 x8.0 | 6.0 | 1120 | 500 | 520 | 100 | 42 | 10/145 |
| TBC080508 | 5.0 x8.0 | 8.0 | 1300 | 500 | 700 | 100 | 42 | 10/145 |
| TBC106502 | 6.5 x10.0 | 2.0 | 740 | 500 | 140 | 100 | 42 | 10/145 |
| TBC106504 | 6.5 x10.0 | 4.0 | 930 | 500 | 330 | 100 | 42 | 10/145 |
| TBC106506 | 6.5 x10.0 | 6.0 | 1120 | 500 | 520 | 100 | 42 | 10/145 |
| TBC106508 | 6.5 x10.0 | 8.0 | 1310 | 500 | 710 | 100 | 42 | 10/145 |
| TBC120802 | 8.0 x12.0 | 2.0 | 740 | 500 | 140 | 100 | 60 | 10/145 |
| TBC120804 | 8.0 x12.0 | 4.0 | 920 | 500 | 320 | 100 | 60 | 10/145 |
| TBC120806 | 8.0 x12.0 | 6.0 | 1100 | 500 | 500 | 100 | 60 | 10/145 |
| TBC120808 | 8.0 x12.0 | 8.0 | 1280 | 500 | 680 | 100 | 60 | 10/145 |
| TBC161102 | 11.0 x16.0 | 2.0 | 720 | 500 | 120 | 100 | 75 | 10/145 |
| TBC161104 | 11.0 x16.0 | 4.0 | 880 | 500 | 280 | 100 | 75 | 10/145 |
| TBC161106 | 11.0 x16.0 | 6.0 | 1040 | 500 | 440 | 100 | 75 | 10/145 |
| TBC161108 | 11.0 x16.0 | 8.0 | 1210 | 500 | 610 | 100 | 75 | 10/145 |
Physical Properties
| HARDNESS SHORE A | 98A | ASTM D-2240 |
| TENSILE STRENGTH (Kg/cm2) | 600 | ASTM D-638 |
| ULTIMATE ELONGATION (%) | 440-540 | ASTM D-638 |
| TABER ABRASION (mg) | 30-40 | ASTM D-1044 |
| TEAR STRENGTH (Kg/cm2) | 165 | ASTM D-732 |
| PU TYPE | POLYESTER & POLYETHER BASE |
**More information, please access our website:
Notice: These values are based on the test of our present laboratory test specimens.
Company Information
1986 | Taiwan PU Corporation, known as TPUCO was founded in Taipei, Taiwan to start Polyurethane business |
1987 | Established “TPU Extrusion Molding Factory” in Kaohsung, Taiwan, to start production of PU pneumatic tubes, PU spiral tubes, PU round belts, Nylon tubes, Teflon tubes, PU pentagon belts, PU film, PU rough belts and so on. |
1990 | Established “Pingtung Plant” for production of CPU Casting PU material and PU finished products such as PU rod, PU pipe, PU sheet, PU forklift wheel, etc.. |
1999 | Certified by ISO 9001. We have demonstrated our dedication to the continuous improvement of our Quality Management System to offer the best quality products to customers. |
2001 | Established “Wuxi plant” in Jiangsu, China. New production plant to increase our production capacity for extruded products. |
2003 | Our foreign office was founded at North America in California, U.S.A. to better serve America market for market expansion. |
2004 | Certified by 14001 for advocating the management responsibility of loving our earth and protecting the environment. |
2006 | Established “Dongtai plant” in North Jiangsu, China. |
2011 | Total polyurethane production of TPUCO reached 2400 tons per year. |
