ETL 600x600mm CRI 95 frameless led panel light
- Category: >>>
- Supplier: Shenzhen Anyhope Technology Limited
Share on (60072958039):
Product Overview
Description
Product Description

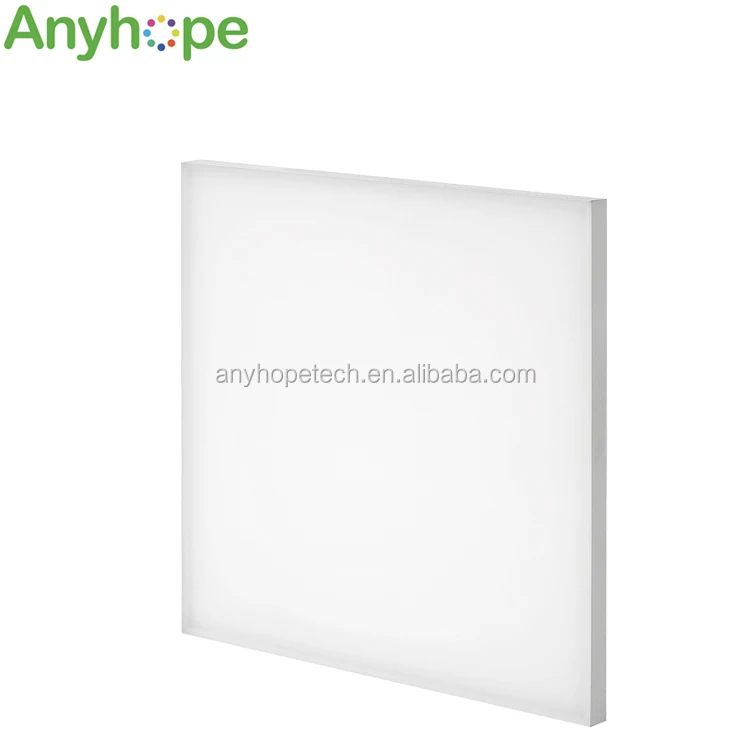

ETL 600x600mm CRI 95 frameless led panel light
Model: AH-LP3528-FL-66
Patent design, Invisible frame, seamless joint.
Mitsubishi Light Guide Plate (LGP), Higher Transmission optical diffuser plate
Fine polished powder coating housing by utilizing extruded Aluminum-Alloy Die 6063
Back cover: 1070 Aluminum, Corrosion Resistance, High Plasticity and Thermal conductivity.
Accurate Binning LED used, keep uniform color consistency in different project.
IC rated for direct contact with insulation.
Allows to recessed into drop ceilings, suspension mounting or direct surface mount to ceilings, typically used to replace fluorescent troffer lighting fixtures. Low maintenance and constructed without hazardous materials.
Applications: Residential and Commercial Suspended Grid Ceilings.
Constant Voltage Type | ||||||
Product Number | Dimension | Wattage | Lumen | Efficacy | Voltage | Current |
| AH-LP3030F-12 | 295x295mm | 12Watt | 1200lm | 100lm/w | DC24V | 500mA |
| (300x300mm/1x1ft) | ||||||

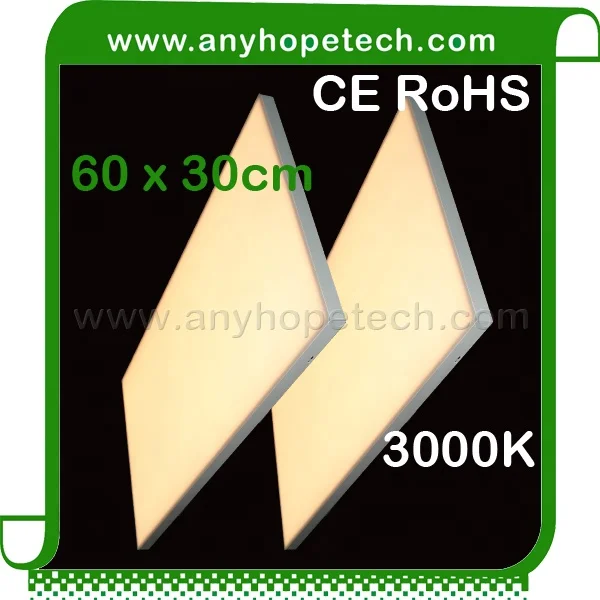

| AH-LP6030F-24 | 595x295mm | 24Watt | 2400lm | 1000mA | 1000mA | |
| (600x300mm/2x1ft) | ||||||
| AH-LP6060F-40 | 595x595mm | 40Watt | 4000lm | 1666mA | 1666mA | |
| (600x600mm/2x2ft) | ||||||
| AH-LP6262F-40 | 620x620mm | 40Watt | 4000lm | 1666mA | 1666mA | |
| AH-LP1230F-40 | 1195x295mm | 40Watt | 4000lm | 1666mA | 1666mA | |
| (1200x300mm/4x1ft) | ||||||
Constant Current Type | ||||||
| AH-LP3030F-12CC | 295x295mm | 12Watt | 1200lm | 100lm/w | DC26-31V | 300mA |
| (300x300mm/1x1ft) | ||||||
| AH-LP6030F-24CC | 595x295mm | 24Watt | 2400lm | DC26-31V | 600mA | |
| (600x300mm/2x1ft) | ||||||
| AH-LP6060F-40CC | 595x595mm | 40Watt | 4000lm | DC33-38V | 1000mA | |
| (600x600mm/2x2ft) | ||||||
| AH-LP6262F-40CC | 620x620mm | 40Watt | 4000lm | DC33-38V | 1000mA | |
| AH-LP1230F-40CC | 1195x295mm | 40Watt | 4000lm | DC33-38V | 1200mA | |
| (1200x300mm/4x1ft) | ||||||
- Green environmental protection, lead-free material ,conforming to RoHS.
- It's can be widely installed at home and public areas: Lliving room, bedroom, kitchen, hotel, meeting room ,show room, shop, telephone booth ,etc.
Shell Material: Aluminium Alloy

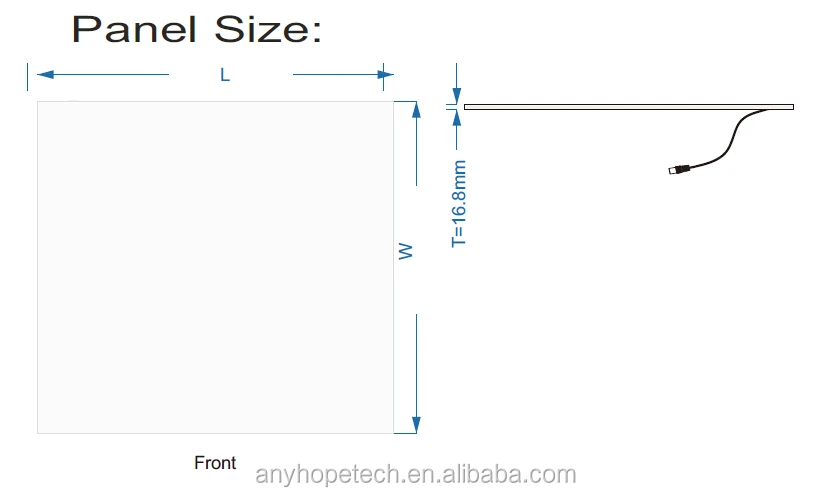

Thickness: 16.8mm / ( 0.66inches )
LED Type: 2835SMD ( Epistar 10*23 )
Max Lumens per LED: 21~23Lm (White), 20~22Lm (Warm White)
Beam Angle: 120 degree
CRI > 90
CRI: >95 are available.
Certification: CE (EMC, LVD) RoHS
Warranty: 3 years
IP Protection: IP52, Indoor Use
Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)
Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)
LED Lumen Attenuation:
Operating time | Lumen Decrease |
5,000 | 2.3 |
10,000 | 5.4 |
20,000 | 11.5 |
50,000 | 25.2 |
Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hr
Installation way: Suspending / Embedded / Wall hung

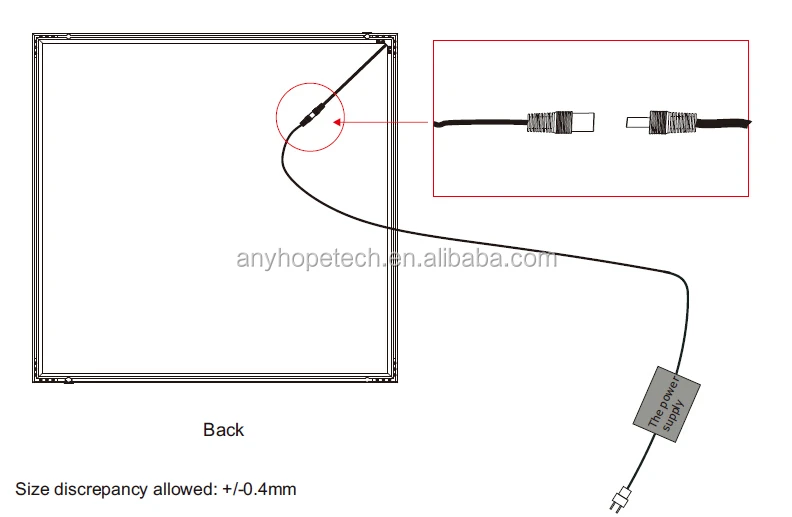

- Both Power cord connectors of the panel light to be connected and electrified. Turn off the power supply after the products lighten up

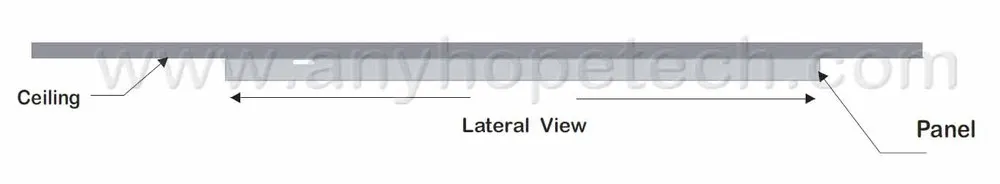

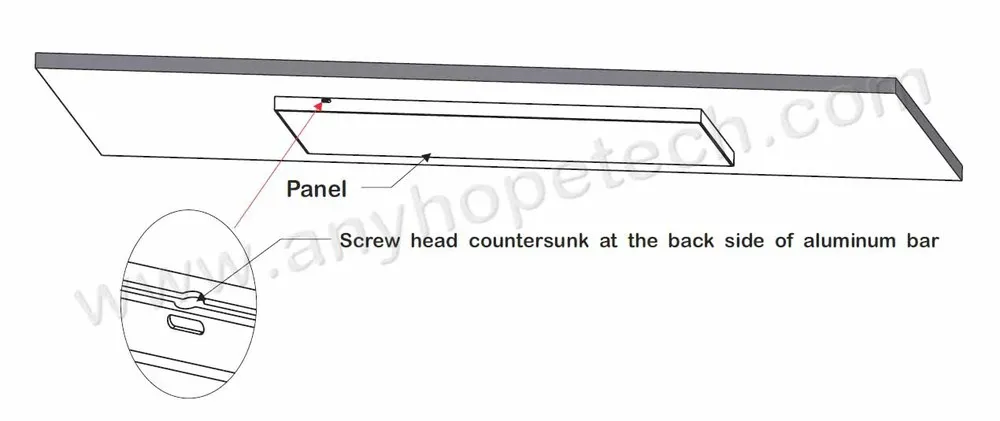

- The four convex screw heads of the ceiling sink into the four holes of the back side of the aluminum bar separately as the directions, The back side of the panel light goes smoothly with the outside of the oeiling
- The panel light can slide to the either side of the arrows, slide distance 15mm.

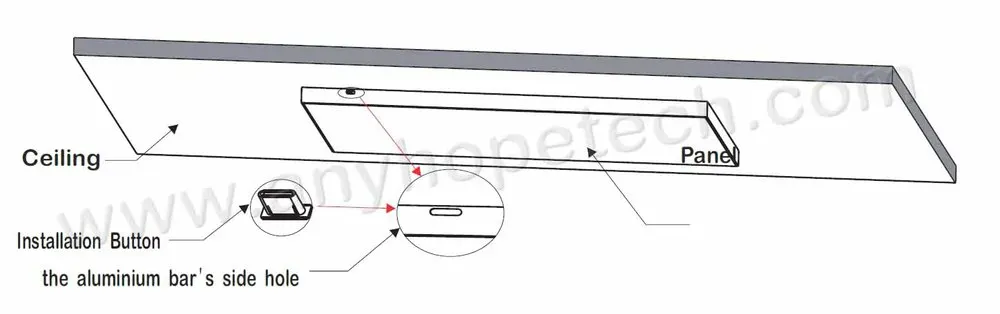

- Take out the installation button from the accessories; buckle the installation button into the aluminum bar's side hole, each panel light buckle two installation buttons. Buckle two sides of panel light separately.
Company Information
Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300
employees, specialized engineers and designers, advanced auto-machines with LED package, assembly
lines.
Our Services
Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.
Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,
FedEx, bank information and terms & conditions for detailed check.
Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)
Step (4): Production Process
Step (5): Package and Shipping
Step (6): Air Way Bill Number
FAQ
Why you should use LED lighting?
Some basic advantages of LEDs:
1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.
You and our environment will be able to benefit in many ways with this type of lighting.

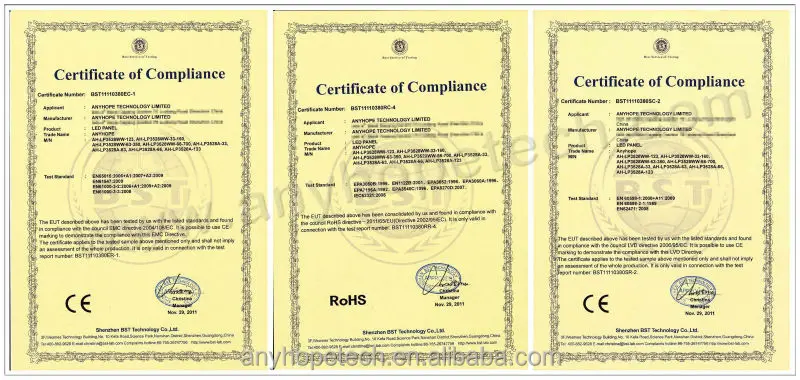

Certificate:
