STEC Roller Blind Fabric Cutting Machine

Product Overview

Description

SPECIFICATION DATAS:

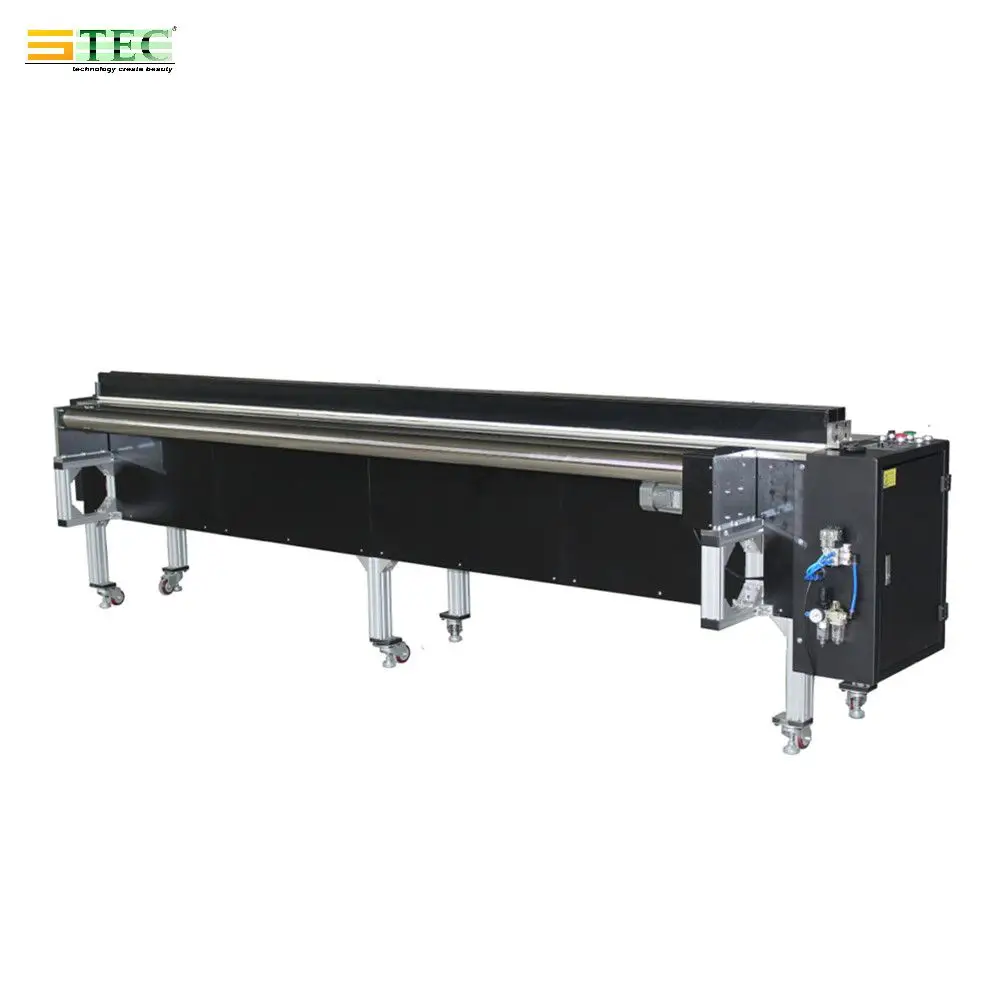

Electric roller Blind Fabric Cutting machine
Voltage	110/220V AC 50/60HZ
Rate power	0.75KW
Working air pressure	0.4~0.5PMA
Max fabric cutting width	2700mm/3000mm(standard)/3500mm/4000mm
Cutting system	Rotary blade cutting
Blade	Tungsten blade
Dimension	L3900mm*W900mm*H1100mm
Packing size	4100mm*1000mm*1250mm
N.W	680KG
G.W	760KG
Package	Steel frame with poly wood board cover



FUNCTION FEATURES:



1.Use individual speed rotary blade cutter
2.Blade will come up when cutting,and cutting process finish in the close condition,safe for operating.
2.Use linear guide track to guide the cutter, with good cutting precision
3.Electric rolling fabric roll feeding system
4.Tungsten steel blade,be durable for one year cutting at least

5.Aluminum profile frame







APPLICATION:



1.Sunscreen fabric cutting

2.Shagri la fabric cutting

3.Zebra fabric cutting

4.Project roller blind fabric cutting

5.Awning fabric cutting



Packing:

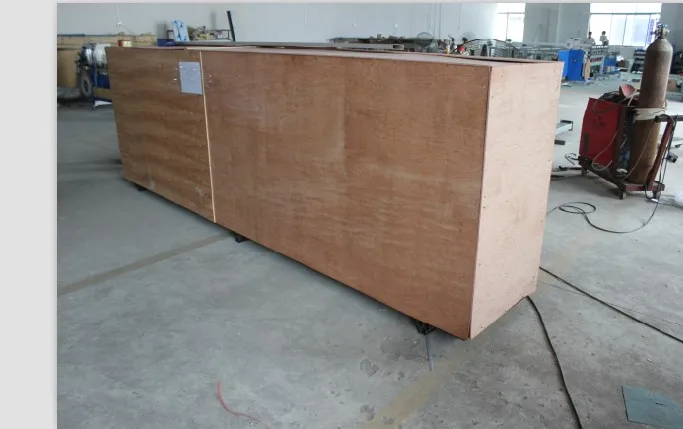

Machine package is steel frame with poly wood bord cover,to make sure machine be in good condition when it arrive at customer's location
