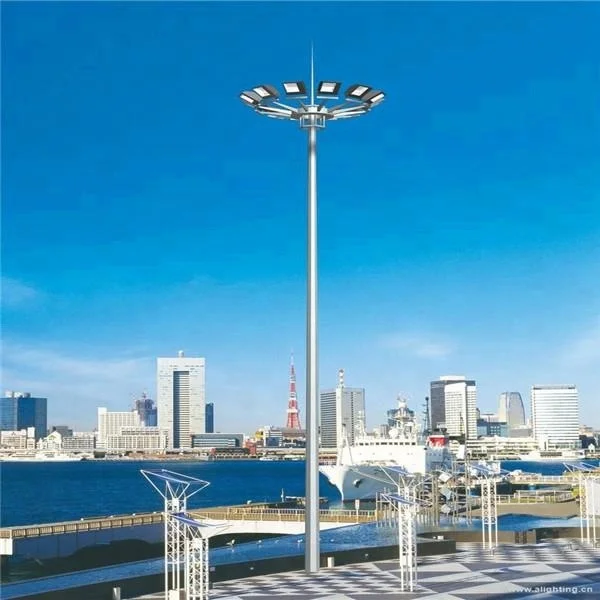

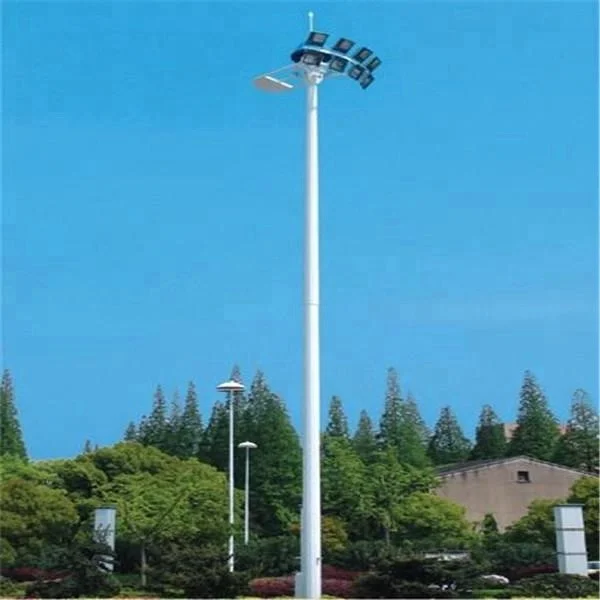

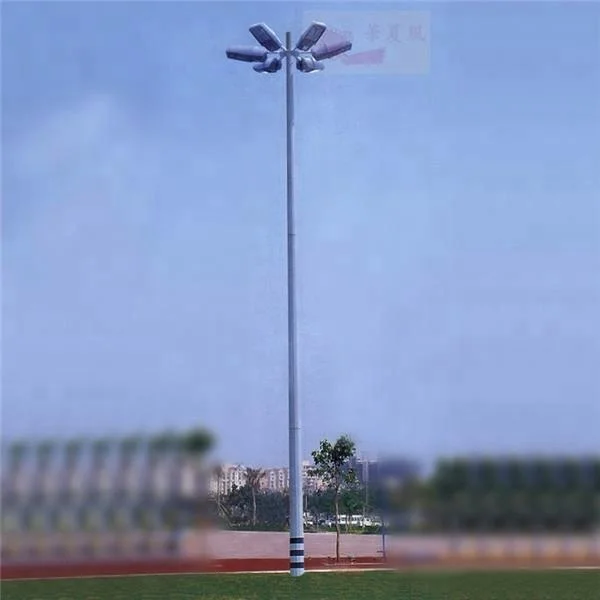

20M,25M,30M,35M pole with auto lifting system High Mast light

Product Overview

Description



Specifications

Height options: 15m, 18m, 20m, 25m, 30m, 35m
Pole type: conical, polygonal high mast lighting
Wall thickness: 6, 8, 10, 12mm

20m, 25m, 30m, 35m high mast lighting price of high mast lighting pole tower 15m, 18m, 20m, 25m, 30m, 35m



We Are Manufacturer Since 1998



We have over 15 years experience of manufacturing High Mast Lighting. We are one of THREE manufacturers that own AIRPORT EQUIPMENT CERTIFICATION in China. You can find our high mast lights in tens of airports in China, and they are also installed in Kenya Airport, Bangladesh airport and etc.



Ÿ We manufacture of High Mast Lighting poles with height from 18M-50M

Ÿ Our production capacity: 1000 pcs per month for High Mast Lighting Poles



Specifications



Height	From 18 m to 50m
Suit for	Airport ,seaport, plaza, stadium, square, highway station, street way ,etc
Shape	Round, Multi-pyramidal, Column form, polygonal or conical
Material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
Torrance of dimension	+- 2%
Lighting Source	400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²
Light plate	Various figure of selection ,material with hot dip galvanization steel frame
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Equipped e; ant ferromagnetism brake and break –proof device, manual operation applied under power cut
Electric appliance control device	Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode, inner flange mode, face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	80 Km/Hour
Welding	We has past flaw testing. Internal and external double welding makes the welding in shape
Thickness	6 mm to 20 mm
Production Process	Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required



High Mast Lighting Pole Details





Lifting system



Ÿ Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.



Ÿ Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.



Ÿ The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.



Ÿ The leveling device for luminary support bracket is easy to operate and convenient to adjust level.



Ÿ Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.





Testing





Applications



Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower



Packages:



Bulb wrappings for high mast lighting poles, individual cartons for lamps and controlling equipments, etc. A 40' HP loads 7-20M/ 6-25M/ 5-30M/ 4-35M high mast lights.



Our projects:





Lead Time
20 days on receipt of payment for 10 high mast lighting poles



Payment Terms
30% in advance and 70% before shipment for our products





Why Us



One-stop Service

You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.



Vertically Integrated Production System

You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.



15 Years Manufacturing Experience

Since 1998, we have started manufacturing street lighting. The 15 years’ experiences have been a persuasive insurance for us to offer reliable products.



Large Factory with Complete Facility

We have 400 staffs with factory area 6000 m². We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .



Advanced Technology

Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.



Cost Efficiency

Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.



Factory outlet. There’s no middleman between the manufacturer BAODE and domestic and oversea buyers.







FAQ:



5M, 18M, 20M, 25M 30M, 35M High Mast Lighting Price with flood light
