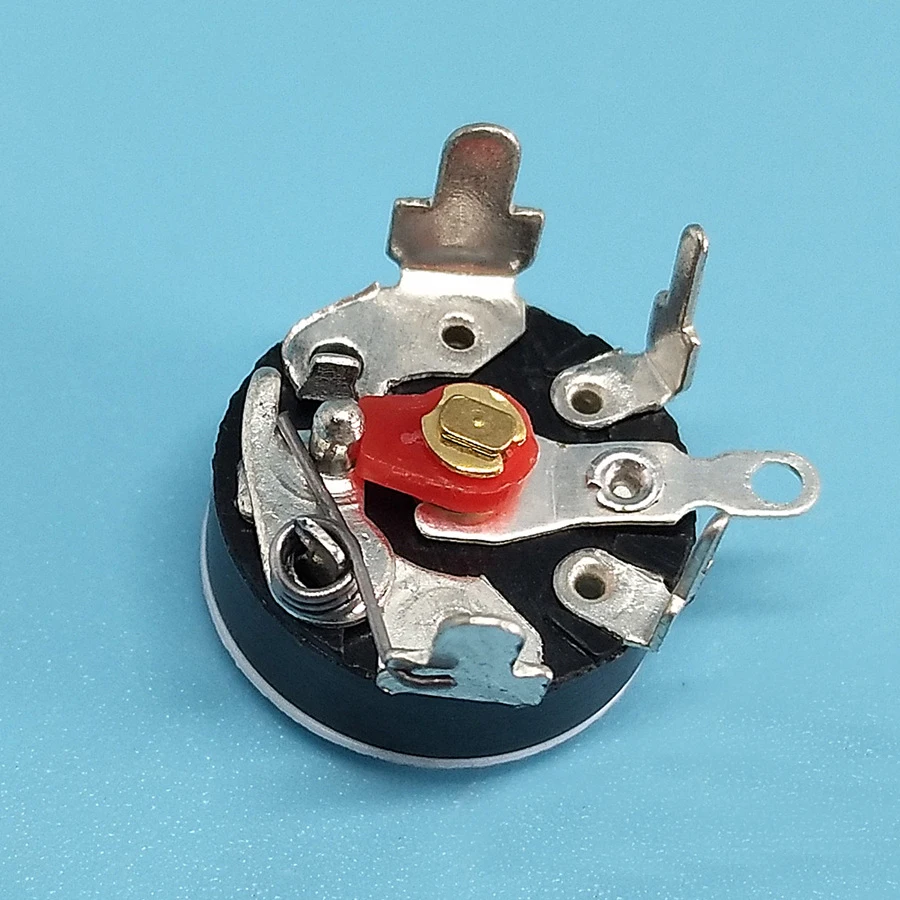

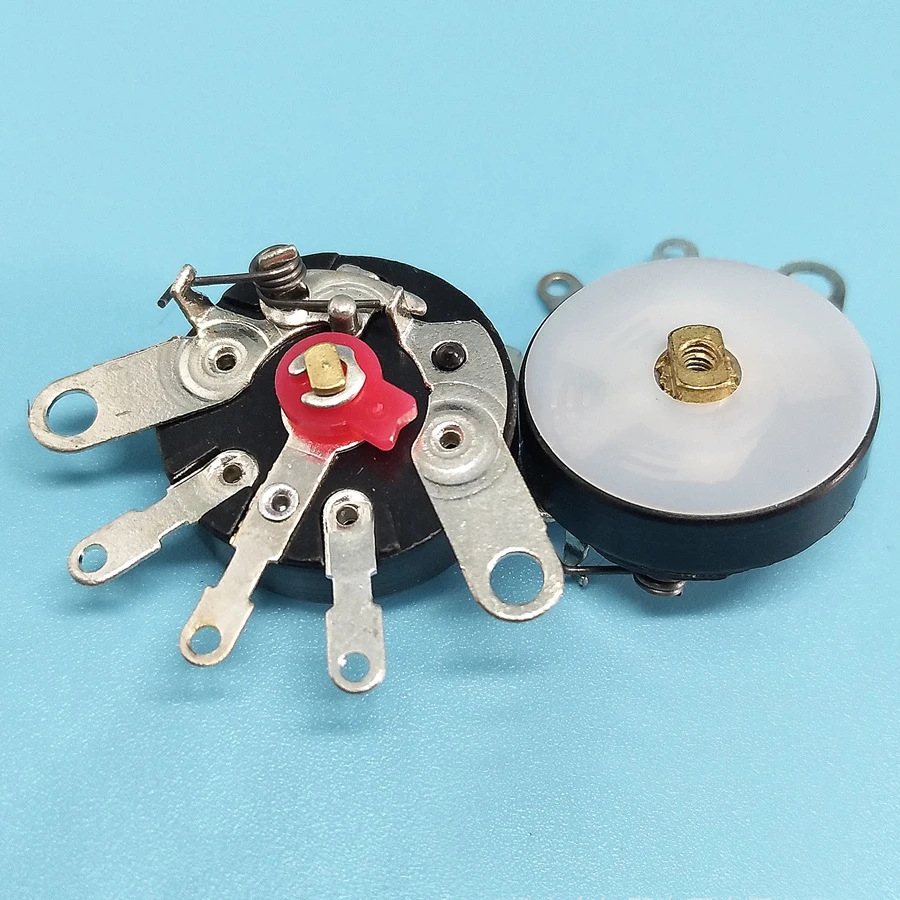

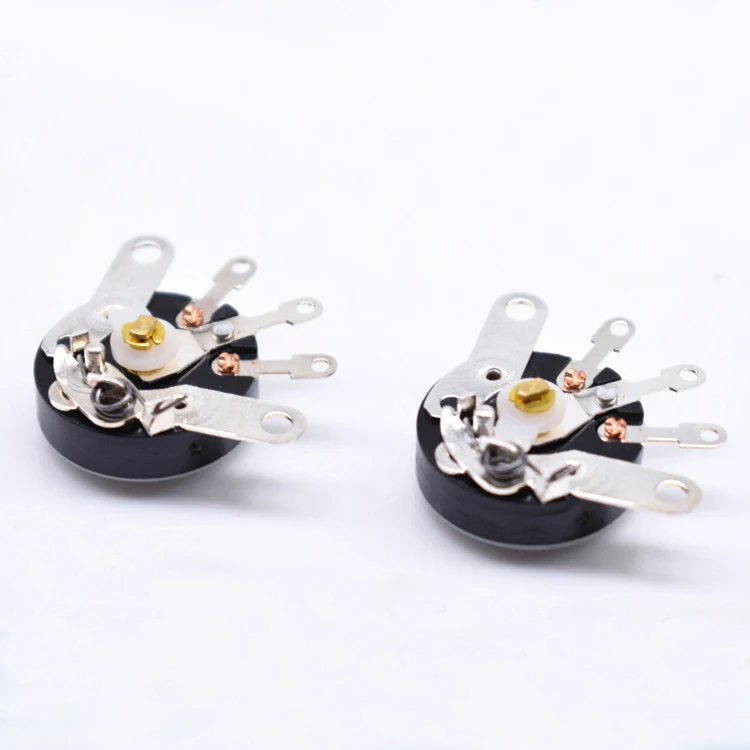

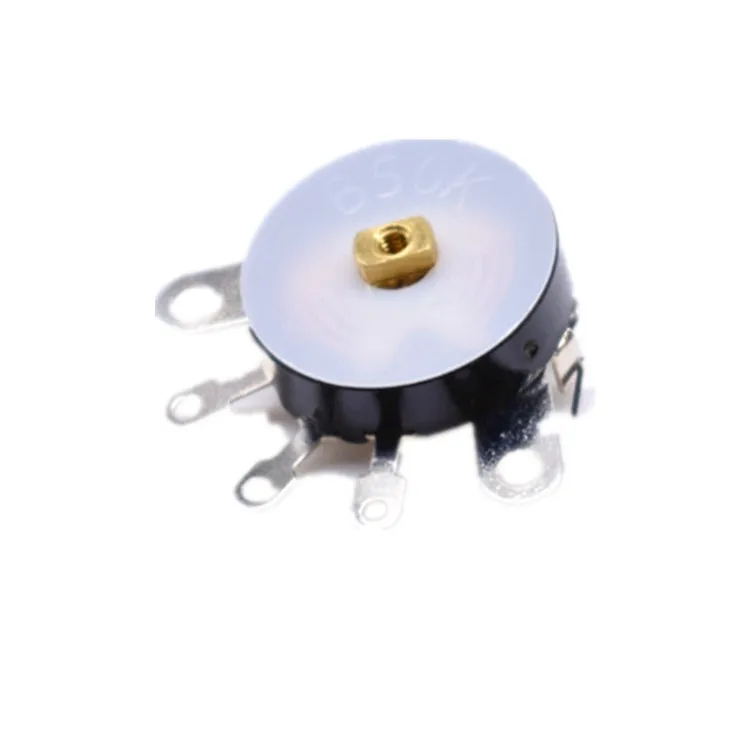

10k 50k 100k 200k thumb wheel potentiometer with switch

Product Overview

Description

10k 50k 100k 200k  thumb wheel potentiometer with switch

Electronical Characteristics	Total Resistance	100-1MΩ
	Total Resistance Tolerance	±20%
	Resistance of temperature change character	20°C~-75°C:ΔR/R≤±5%R -25°C~-20°C:ΔR/R≤±4.5%R
	Resistance taper	B
	Residual resistance	Term 1~2: less than 10Ω Term 2~3: less than 20Ω
	Rated power	0.1 W
	Max. operating voltage	AC 200V
	Rotational noise	Less than 47mV
	Insulation resistance	More than 50MΩ at DC500V
	Withstand voltage	1 minute at: AC500V
	Switch contact resistance	/
	Switch rated power	/
Mechanical Characteristics	Rotation angle	260 °±10°
	Rotation torque	20~150gf. Cm
	Pull-push strength	1Kgf,cm
	Rotational stop-end torque	2Kgf,cm
	Resistance or soldering heat	260 ±5°C and less than 3 seconds
	Switch rotational angle	/
	Switch action	/
Durability	Rotation life	10.000cycles
