IP65 RFID High quality UHF/HF long range rugged handheld computer Windows/Android for inventory FCC CE ROHS
- Category: >>>
- Supplier: Hyin Technology Co. Ltd.
Share on (60074519691):
Product Overview
Description
Product Description

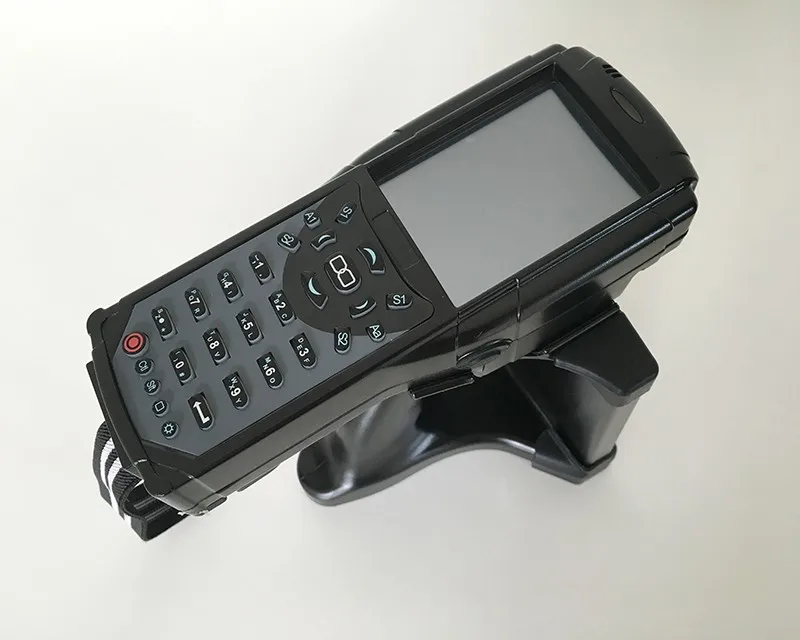

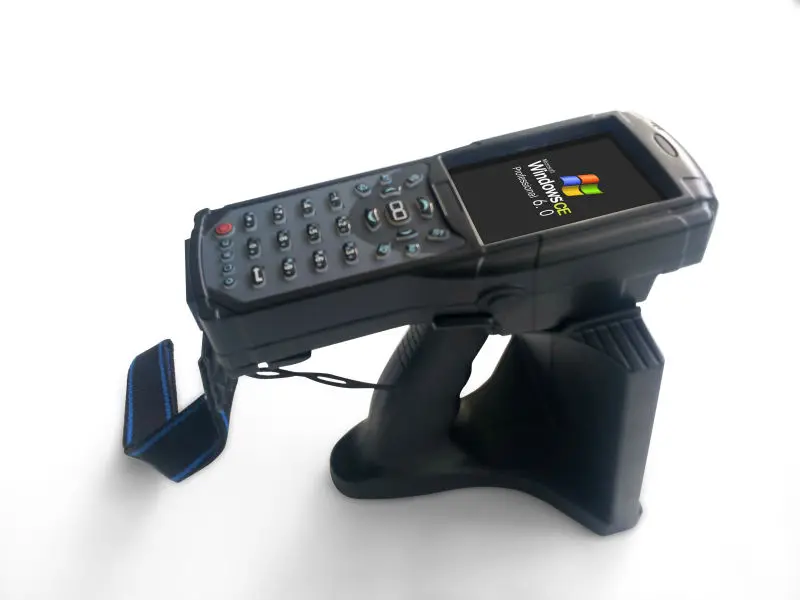

HY3800W
Industrial Handheld Computer with Handle
Video download link
//www.hyintech.com/en/download.asp?pid=1&cid=23
Introduction
Compact structure design, multi internal plastic buffer.
Super Power Battery 7.4V,2600MAH/3.7V,5200MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.
Stable PXA3XX CPU,efficiency data processing
Readable under sun-shine 3.5 inch LCD
Multi-Thread WinCE 6.0 R3 System
Hardware extendable functions
High capability Barcode(1D/2D) scanner engine, Designed for 10 years using
Sensitive RFID (/HF/UHF) Module
Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional
Support further software development, SDK(Software Development Kit ) provided.
Specification
CPU |
| PXA3XX (624MHZ) |
OS |
| Windows CE 6.0 R3 Android 4.4.2 (Language Customizable) |
Memory | RAM | 128MB |
F-ROM | 128MB/256MB | |
Barcode Scan engine | Scanner | 1D /2D Laser Barcode Scanner |
Module | Opticon /Moto | |
Scan Speed | 100 times per second +-2 times | |
Scan Distance | 60-650mm | |
Angle | 54±5 | |
Width | 60-360mm At Max Reading Distance | |
Resolution | 0.127-1.00mm | |
Code | UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; | |
RFID
| HF 13.56MHZ | Max Reading 40cm |
UHF 860-928M | Max Reading above 15m | |
LCD | Type | TFT-LED QVGA Touch Screen |
Resolution | QVGA(240X320)Readable Under Sun | |
Size | 3.5 inch | |
Input | Soft Keyboard | English, Chinese Input(Multi Language Customizable) |
Hard Keyboard | 30 Key | |
ScanKey | At the Middle | |
Function Module | Standard | WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5 |
Optional
| BT V2.1+EDR | |
Internal 3M camera | ||
Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s | ||
Internal LF/HF/UHF RFID Reader | ||
Internal GPRS/3G WCDMA | ||
Power | Main Power | 7.4V,2600mah/3.7V 5200mah Li-ion |
RTC Battery | Chargeable Button battery | |
Standby | 10 days | |
Working | Above 20 hours depends on specific situation | |
Extension |
| Micro SD/TF Slot |
Size | 190(L)*100(W)*120(T) mm | |
Weight |
| 700g( Including Battery) |
Environment | Operating Temp. | -15~+50°C |
Storage Temp. | -20~+60°C | |
Working Humidity |
5-95%
| |
Storage Humidity |

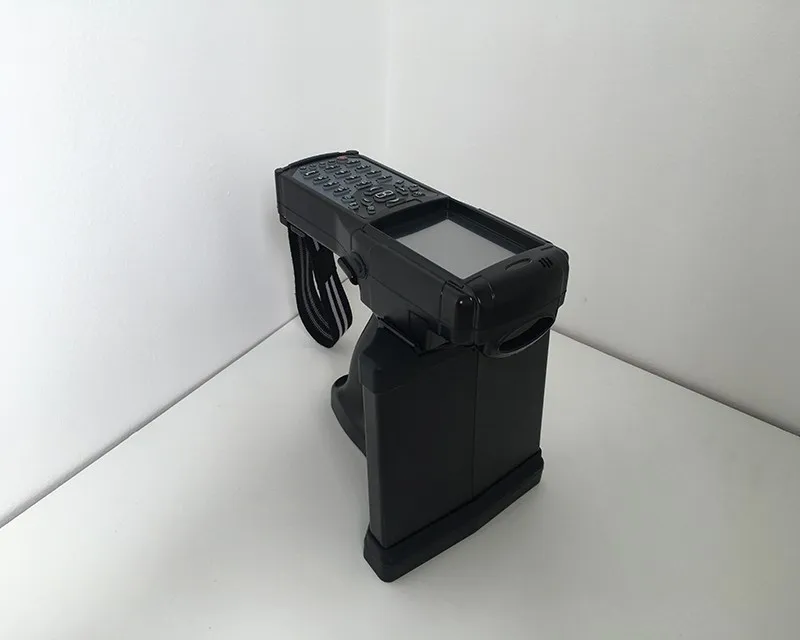

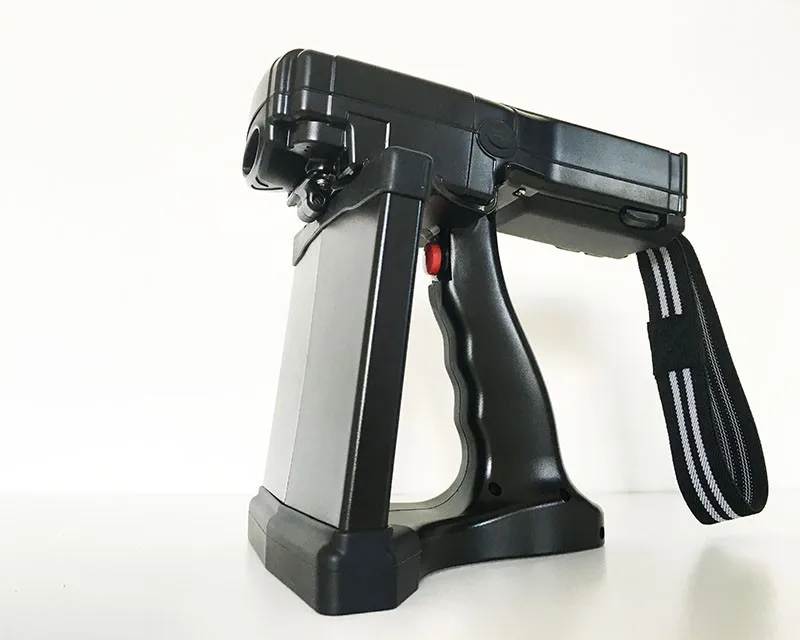

Detailed Pictures
Application
15M Long Range Handheld Computer
with RFID Software Solutions
Inventory/ Warehouse/ Animals/ Attendance/ Laundry/ Jewelley Management

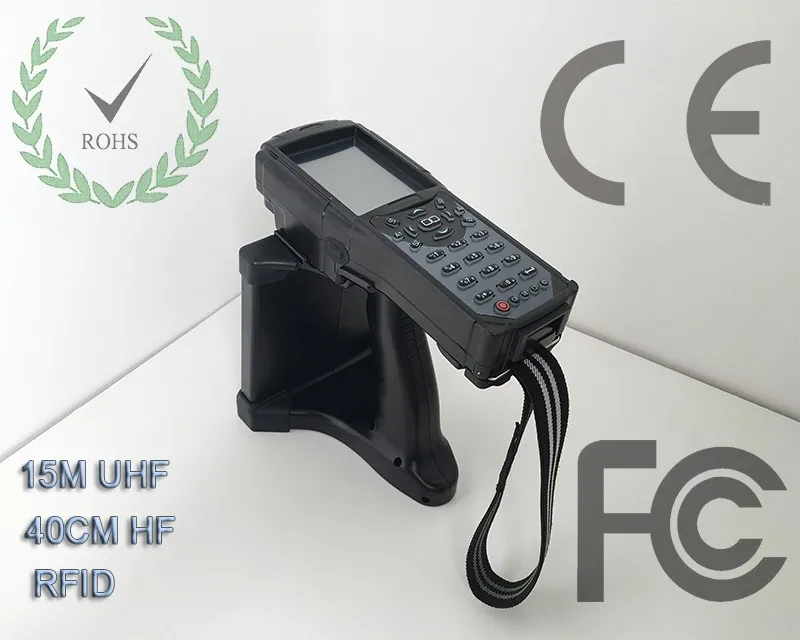

Certifications
CE
FCC
RoHS
Company Information
HYINTECH, Since 2003,8th year Trustpass Golden Supplier in Alibaba, is the leading Industrial Rugged Handheld Computer , RFID Reader & Tag Manufacturer.
HY3800W handheld, with world leading technology, UHF 15 meters, HF(ISO15693 13.56MHZ)40CM, multi tag reading.
FCC, CE, IEC60950, RoHS certified.
More information, please visit our website:
//www.hyintech.com/
