(DMB 9591) Full HD 1080p H DMI DVB T RF Modulator for Home theater
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (60074599235):
Product Overview
Description

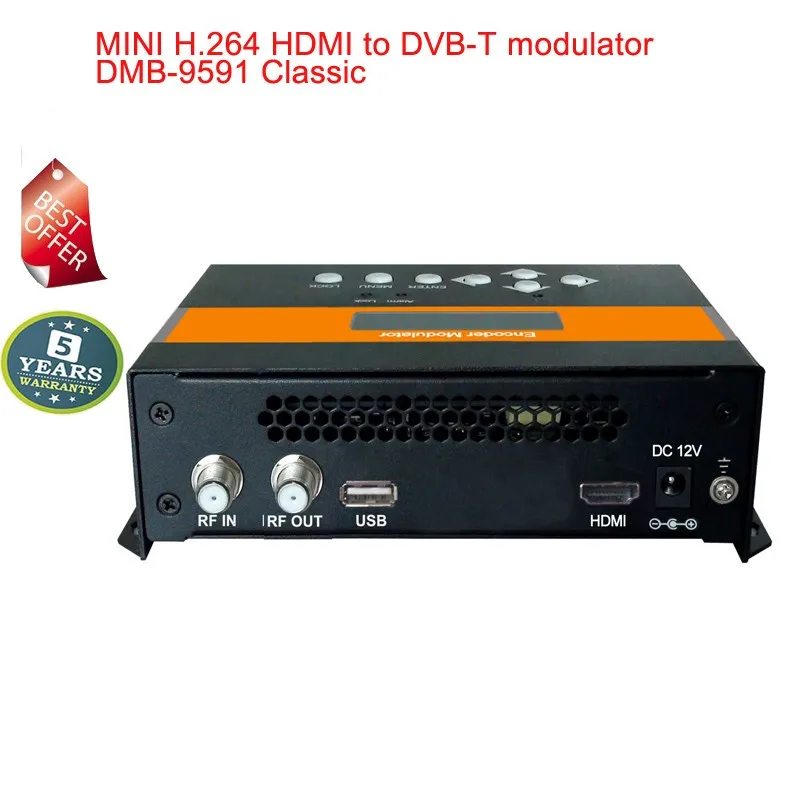

(DMB-9591) Full HD 1080p HD MI DVB-T RF Modulator for Home theater
Product Description
Main Feature
- Smart structure with powerful functions
- Advanced compression for H.264 HD
- DVB-T/DVB-C/ATSC/ISDB-T/DTMB modulation mode
- Insertable LCN(Logic Channel Number)
- Insertable NIT table.
- Configurable program name&number, service ID, Audio&Video PID, PMT&PCR PID etc.
- Mounted flexible-anywhere you need.
- Keyboard on front panel and LCD display, convenient and easy for operation
- Network upgrading via JTAG interface, convenient for maintenance
- USB 3.0 for Save,play,record
- Support both web management and front panel control
Specifications
ENCODING MODULES | |
H.264 HD Encoding Module | Video input: 1*HD MI, Video compression standard: H.264 HD Video resolution: HD MI: 1920*1080_60P, 1920*1080_50P; 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P. CVBS&S-video: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P Audio input: analog audio (stereo/mono) Audio compression standard: MPEG-1, Layer II(default), (MPEG-2 AAC, MPEG-4 AAC optional) Audio sample rate: 48KHz Audio bit rate: 64~384 Kbps |
MODULATION MODULES (optional) | |
DVB-T Modulation | Modulation standard: EN300 744, EN304 744 Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM FET mode: 2K, 8K Guard interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42dB RF output frequency range: 30~960MHz, in 1KHz steps RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps Out-of-band rejection: 55dB |
ATSC-T Modulation | Modulation standard: ATSC A/53 Constellation: 8VSB RF output level: -30~-10dbm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30~960MHz, in 1KHz steps |
DVB-C Modulation | Modulation standard: J.83A, J.83B, J.83C Constellation: J.83A-6/32/64/128/256QAM; J.83A-64/256QAM; J.83C-64/256QAM RF output level: -30~-10dbm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30 ~ 960MHz, in 1KHz steps Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed Out-of-band rejection: 55dB Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M |
ISDB-T Modulation Specifications | Modulation standard: ARIB STD-B31 Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k) Constellation: DQPSK, QPSK, 16QAM, 64QAM ISN: convolutional coding (1/2, 2/3, 3/4, 5/6, 7/8) Outer code: RS (204, 188) Guard interval: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6MHz RF output frequency range: 30 ~ 960MHz, in 1KHz steps MER: ≥42dB RF output level: -26dbm ~ -10dbm, in 0.1dB steps |
GENERAL OPTIONS | |
Management
| Local operation: keyboard and LCD display Operation language: English Software upgrading: JTAG
|
Physical and Power
| Voltage: DC 12V Dimensions: 140mm(W)*110mm(D)*43mm(H) Operating temperature: 0~50°C Storage temperature: -10~60°C Humidity: 10%~90% (non-condensing)
|
Hot Selling New
Encoder modulator with following Option

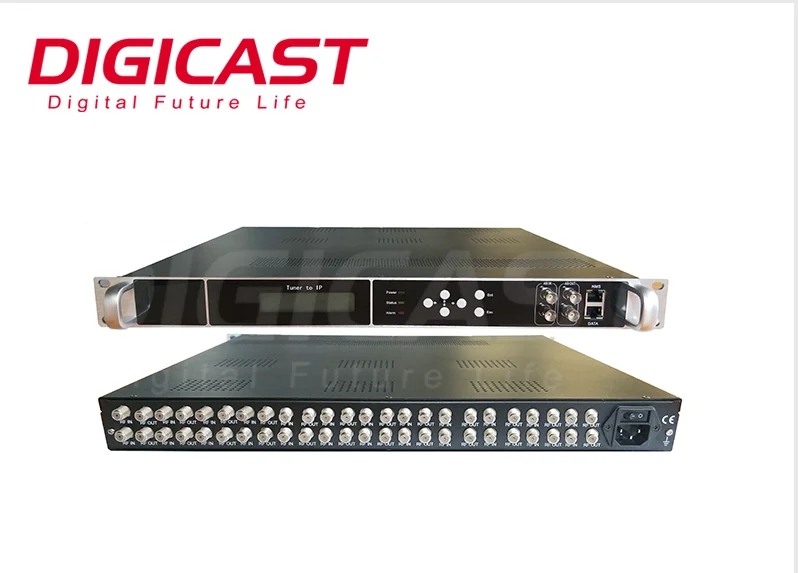

| DMB-90E Series 4/8/12/16/20/24 Tuners to IP Receiver/Gateway | DMB-24E 4/8/12/16/20/24 Tuners to RF out | IP to RF Modulator Series | |

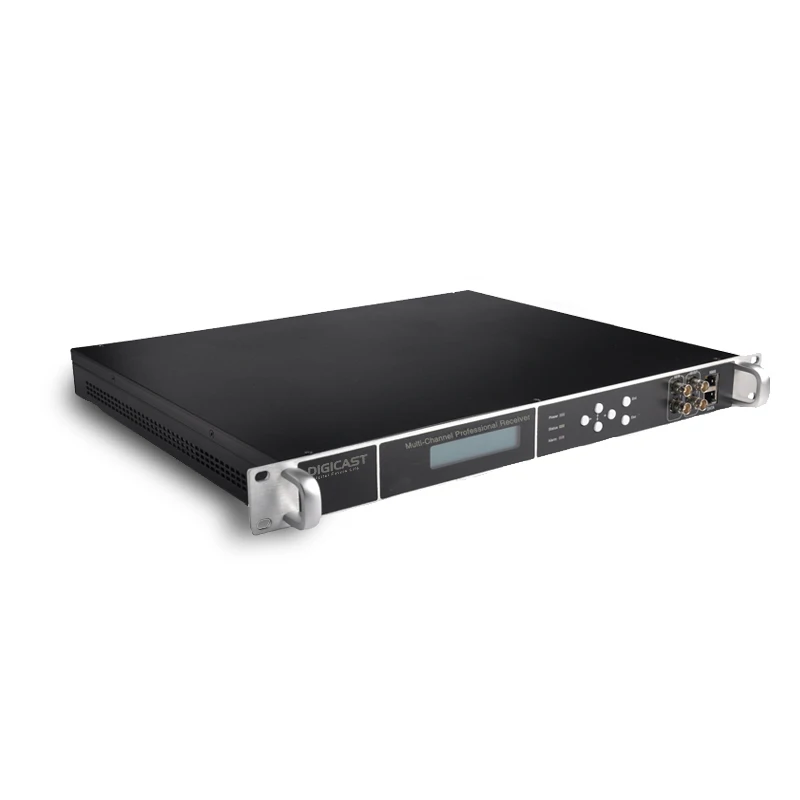

| Tuner Input | FTA up to 24 Tuners to 256*IP Receiver
| FTA 4/8/12/16/20/24 Tuners to RF out

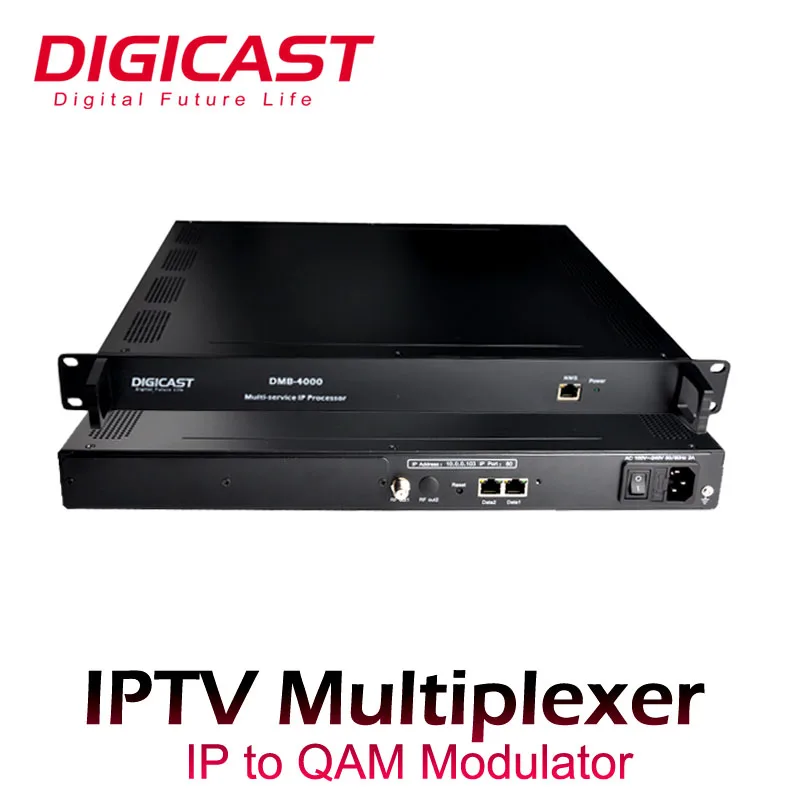

| IP TO QAM/ATSC/ISDB-T/DVB-T modulator
|
| HDMI input | DMB-9581E 24*HDMI to RF modulator
| DMB-8820E 24 HDMI to RF Encoder

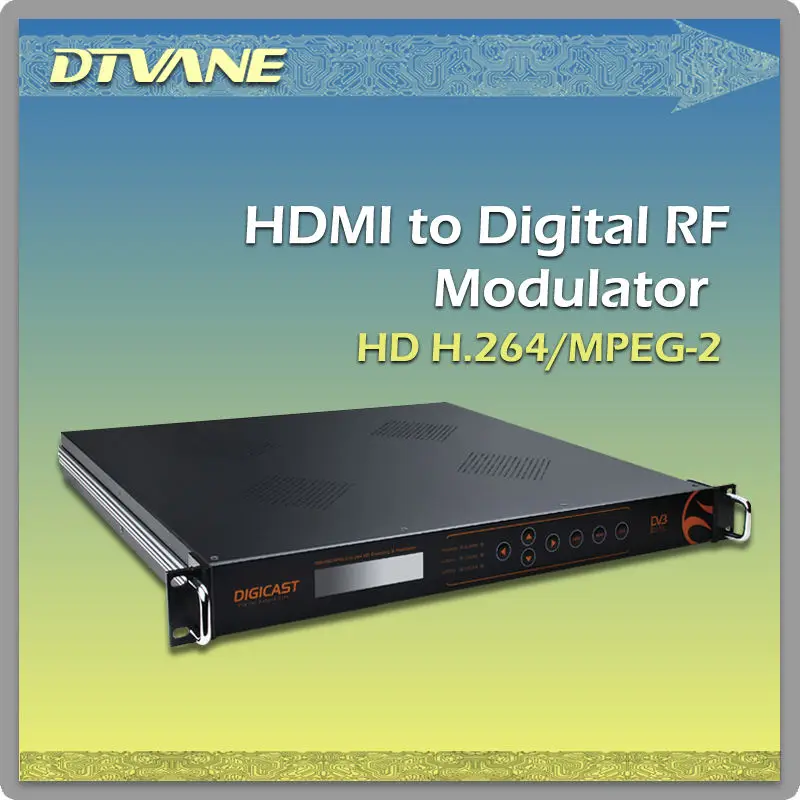

| DMB-9582 Mpeg2/H.264 1/2/4 HDMI/HD-SDI to RF out
|

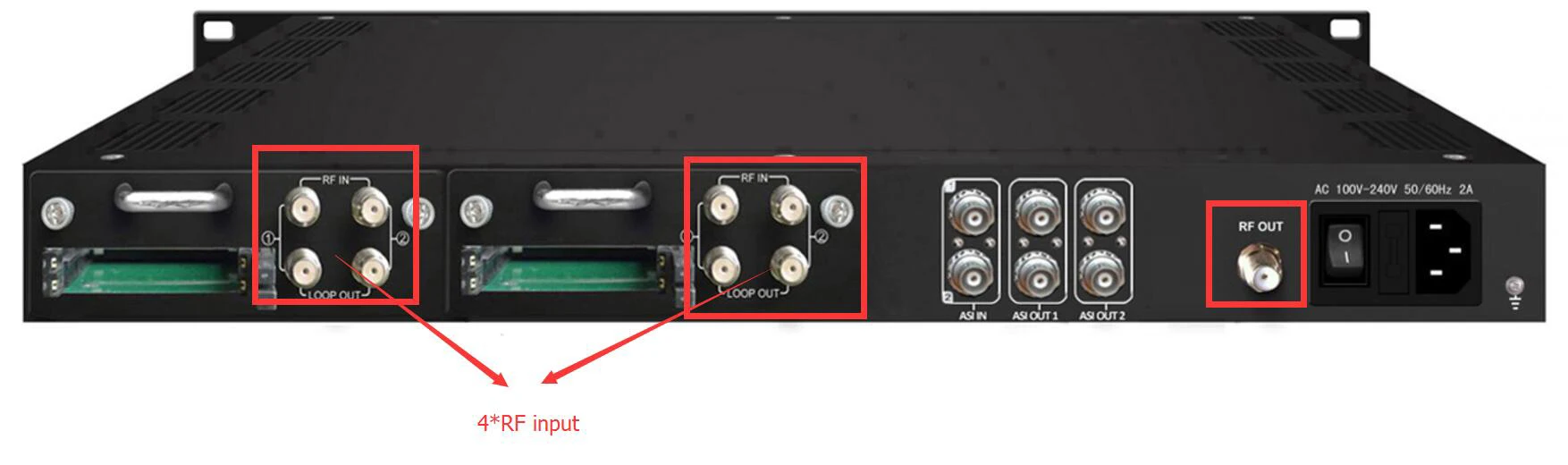

| Transmodulator | DMB-2400 INPUT:4 tuners with 4 Cl slots OUTPUT:4*DVB-C/2*ATSC/2*DVB-T out

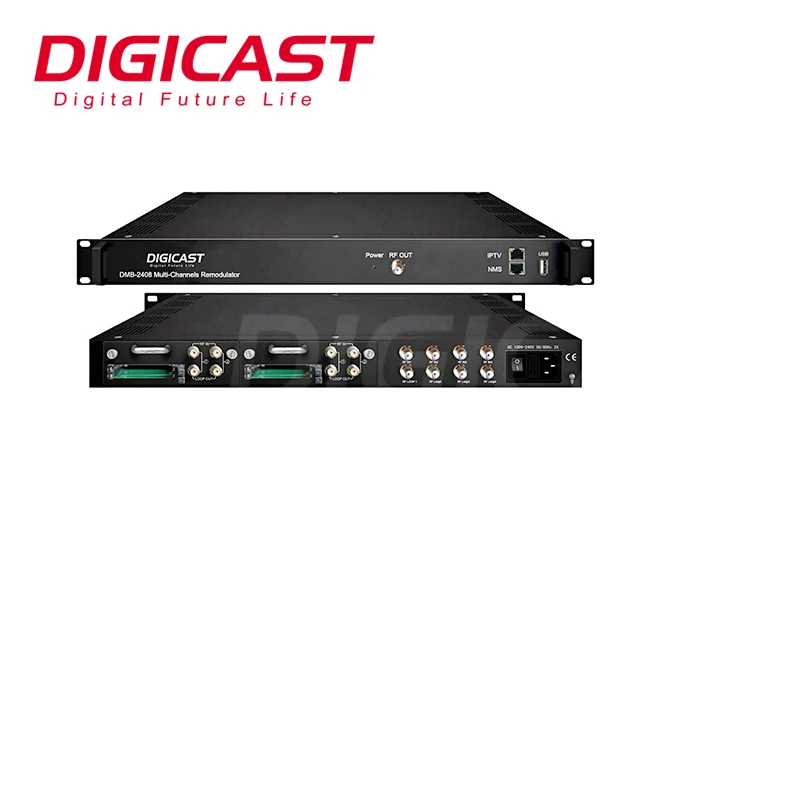

| DMB-2408 INPUT:4*Tuners FTA+4*Tuners with CAM OUTPUT: 4*DVB-T/ DVB-C

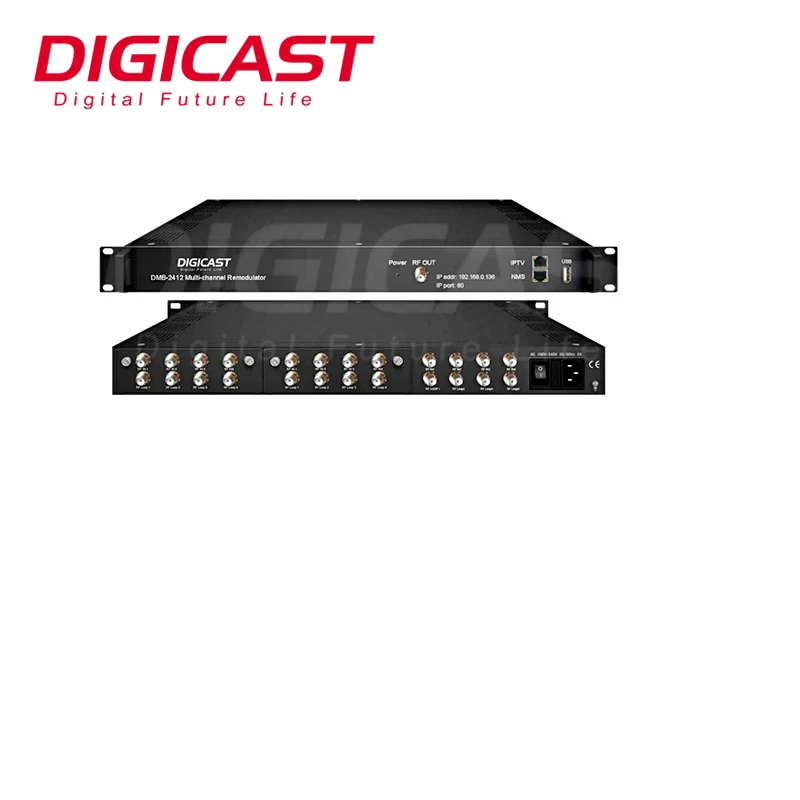

| DMB-2412 Input: FTA 12*Tuners(DVB-S/S2) output: 4*DVB-T/C
|
Why Choose Dtvane
FAQ
Q1: Where is your Factory located? How can I visit your company?
A1: Our factory is located in Zhejiang, Hangzhou City, China, about 1.5 hours distance from Shanghai by Train, and about 30 minutes by intercity high-speed rail.
All our clients, from home or abroad, are warmly welcome to take a visit here!

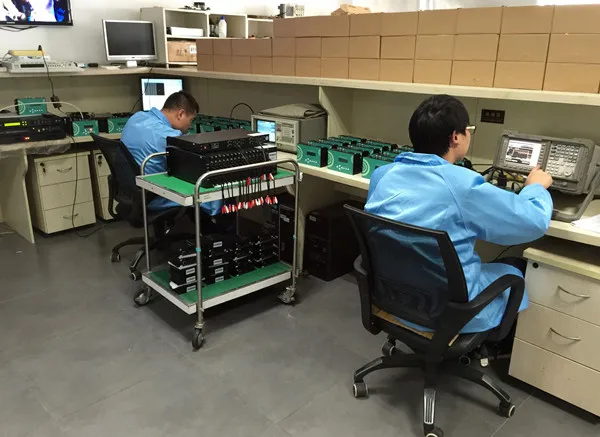

Q2: How does your factory do regarding Quality Control?
