KR125A сваечная гидравлическая роторная буровая установка
- Category: Pile Driver >>>
- Supplier: TYSIM PILING EQUIPMENT CO. LTD
Share on (60074626167):
Product Overview
Description
Products Description
Technical Specification
Technical Specification of KR125A Rotary Drilling Rig | ||
Type | KR125A | |
Torque | 125 KN.m | |
Max. diameter | 1300 mm | |
Max. drilling depth | 37 m(Lock)/ 43 m(Friction kelly bar) | |
Speed of rotation | 8~30 rpm | |
Max. crowd pressure | 100 kN | |
Max. crowd pull | 150 kN | |
Main winch line pull | 110 kN | |
Main winch line speed | 78 m/min | |
Auxiliary winch line pull | 60 kN | |
Auxiliary winch line speed | 60 m/min | |
Stroke(crowd system) | 3200 mm | |
Mast inclination(lateral) | ±3° | |
Mast inclination(forward) | 5° | |
Max. operating pressure | 34.3 MPa | |
Pilot pressure | 3.9 MPa | |
Travel speed | 3 km/h | |
Traction force | 220 kN | |
Operating height | 14980 mm | |
Operating width | 3000mm | |
Transport height | 3580 mm | |
Transport width | 3000 mm | |
Transport length | 13830mm | |
Overall weight | 35 t | |

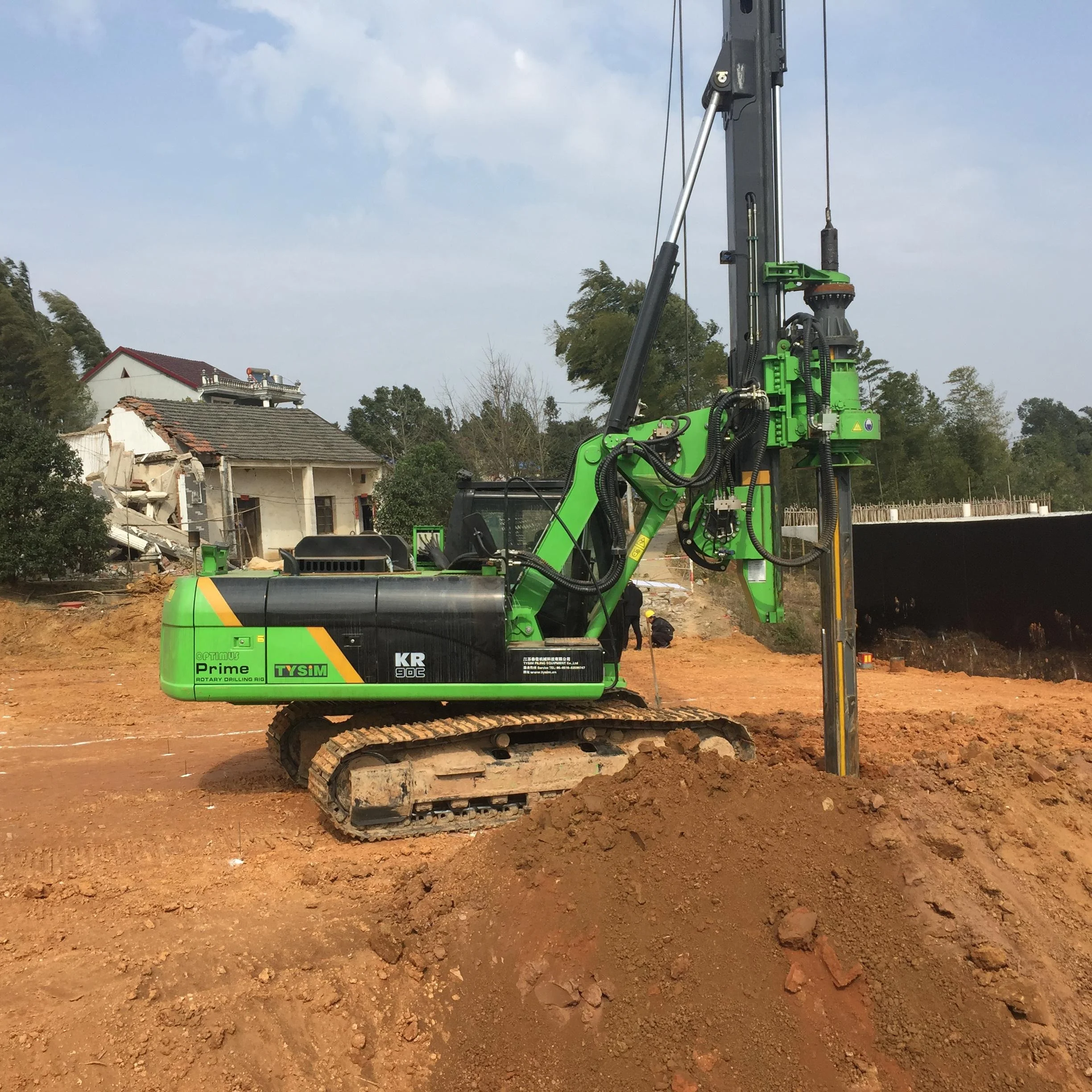

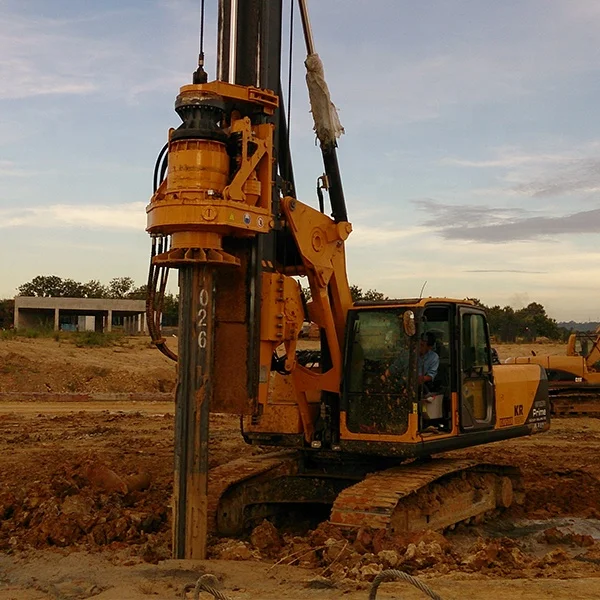

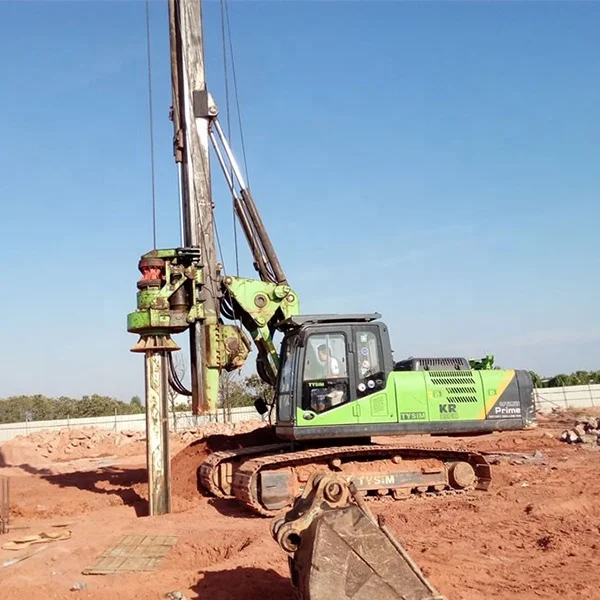

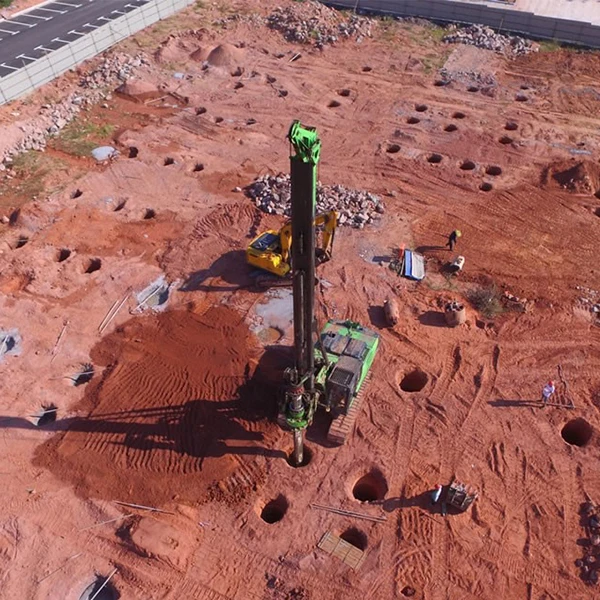

Construction Photos

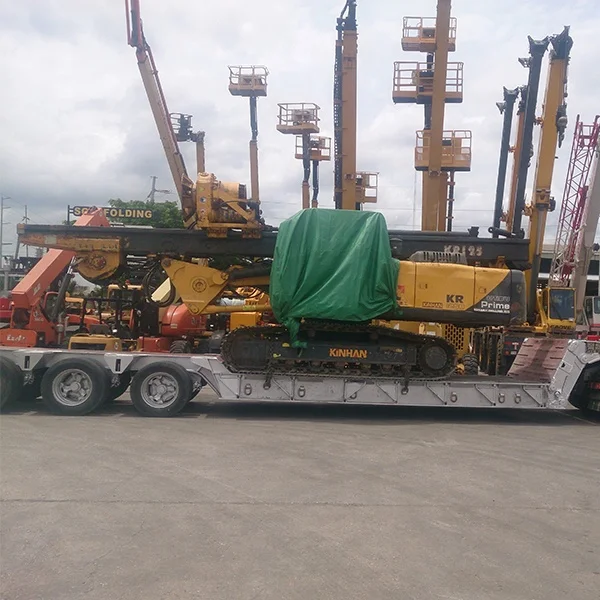

Packing & Shipping
Our Advantages
Our Advantages
Obtained more than 40 patents and exported to more than 40 countries.
A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.
Customer Visit
Exhibition
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is an year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
