Fish Finder 20M Cable Underwater Fishing Video Camera With 24 LEDs CCD Sensor Waterproof Camera used in ocean and Fresh water

Product Overview

Description

Fish Finder 20M Cable Underwater Fishing Video Camera With 24 LEDs CCD Sensor Waterproof Camera used in ocean and Fresh water

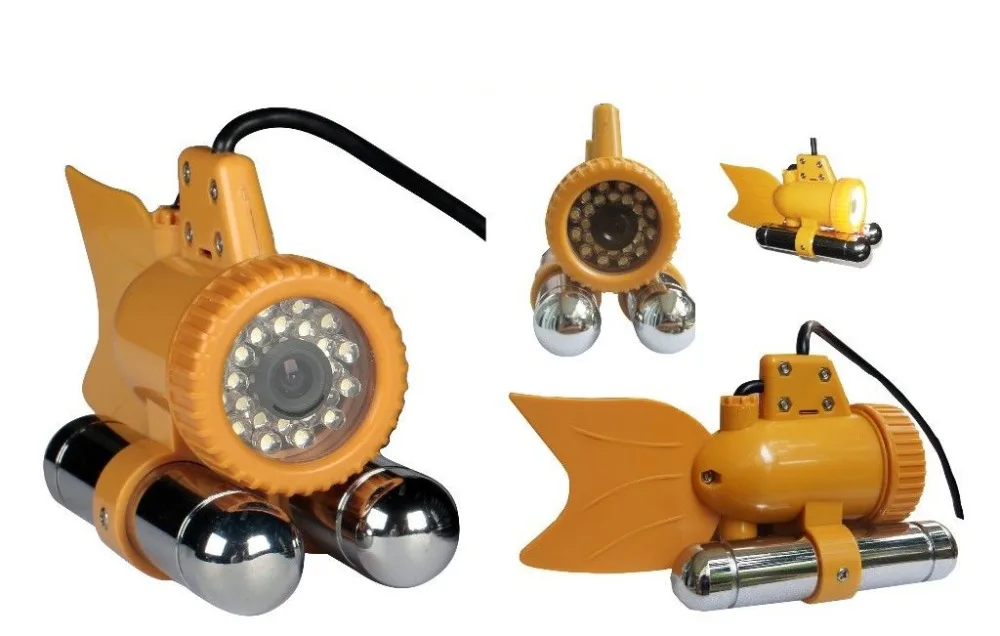

  This is a Underwater Video Camera with 24 pcs high-light White LED lights to have high light and nightvision. It is a 1/3SONY CCD camera not CMOS, very sharp image. It is specially designed for underwater activities such as sea bottom exploration, ocean fishing and ice fishing, well inspection, etc. Typical applications are:
1.Underwater exploration
2.Ocean/Ice/Lake fishing
3.Swimming/diving/snorkeling
4.Well/pipe inspection

An excellent item for Marine Biologists, Marine Engineers, fisherman, scuba divers, plumbers and over all water enthusiasts.

Camera Features:

TYPE: COLOR CCD SONY 1/3

POWER CONSUMPTION(W): 2.5W

SYSTEM: PAL/NTSC OPTIONAL

NIGHT VISIBILITY: 24PCS WHITE LED 5-6M UNDER WATER

FOCUS(mm): 3.6mm

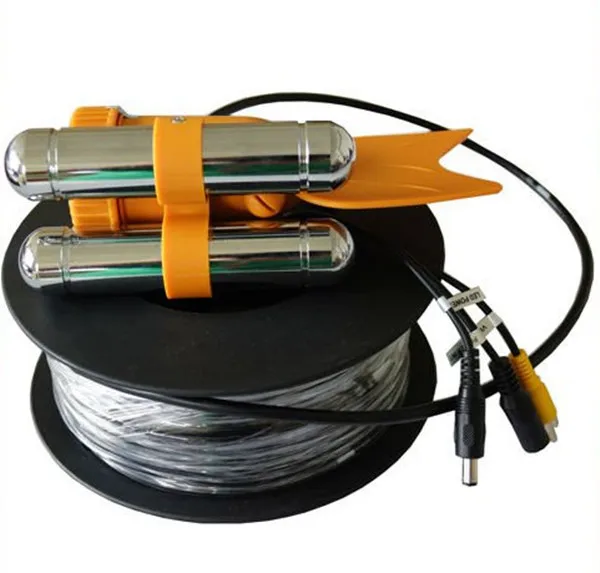

CABLE:20M STEEL MESH CABLE

VIEWING ANGLE: 92 DEGREE

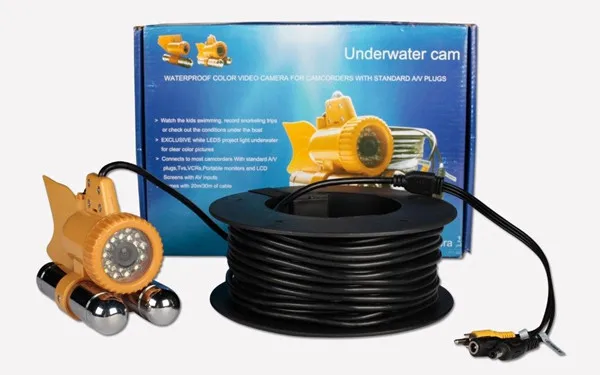

ACCESSORIES :CAMERA/CABLE/CONNECTION CABLE/INSTRUCTION MANUAL

Camera Specifications:

Images Sensors	1/3COLOR CCD SONY
TV System	PAL/NTSC
Effective Pixels	PAL:537*597/NTSC:537*505
Sensing Area(mm)	3.6*2.7
Resolution(TV Lines)	420 TVL
Horizontal Sync.Frequency(KHZ)	15.625/15.734
Vertical Sync. Frequency (Hz)	50/60
Video Output	1.0Vp-p 75
S/N Ratio	Better than 45dB
Gamma Consumption:	0.45
Lens	3.6mm
Lens Angle(Deg)	92
Current Consumption(mA)	260mA
Power Supply(DC)	12V
IR Leds	10Leds
IR Distance	10m
Minimum illumination	1Lux/F1.2
Underwater visual distance(M)	3-6
Ip rating	IP68
Operating Temperature(Deg. C):	-20~+70 (RH95%Max)
Storage Temperature(Deg. C):	-40~+80 (RH95%Max)
