Product Description
1.Production Description:
We supply a full line of AC electric top drives from 250 to 1,000 tons. Our model TD-250AC top drive is specifically designed for mobile drilling rigs. We know that short lead time is important for the drilling contractors. Most of our top drives can be delivered to the customers in a timely manner so that their drilling needs are met in time.
Drilling efficiency and safety are our primary objectives. The use of a top drive system provides the operator substantial benefits over traditional Kelly drilling.
• Drilling with 90 ft triple stands means fewer drill pipe connections, decreasing drilling time by up to 30%.
• Greater control of directional drilling tools provides quicker tool orientation.
• Reaming with triple drill pipe lengths leads to faster overall reaming.
• Ability to circulate mud and rotate while tripping reduces the risks of stuck drill pipe.
• Accurate tool joint make-up extends the life of the drill pipe.
• Ability to stab and close IBOP at any time.
• Fewer connections and no Kelly bushing at the floor means safer, more efficient drill floors.
2.The Details:
Item
Metric
British
4,500 kN
500 tons(US)
Rated Load Capacities
7,000 m (114 mm Drill Pipe)
Rated Drilling Depth
600 VAC / 50 HZ
Drive Mode
350 kW ×2
470 HP ×2
Rated Power
55 kN.m
40,500 lbf.ft
Drilling Torque (continuous)
82 kN.m
60,480 lbf.ft
Max.Torque of Break Out
87-216 mm
3-1/2~6-5/8 in.
Backup Wrench Range
Hydraulic System Working Pressure
13 MPa
1,850 psi
75 mm
3 in
Mud Circulating Diameter
35 Mpa
500 psi
Mud Circulating Pressure
5.6 m
18.3 ft
Main Body Height
1.7 m
5.5 ft
Main Body Width
967 mm
3.17 ft
Distance Between Rail Centre and the Well
0~120 hz
Frequency Range
0~180 rpm
Rotary speed Range
150%
Over Load Capacity of Zero Rotary Speed
-45~60 ℃
Working ambient Temperature

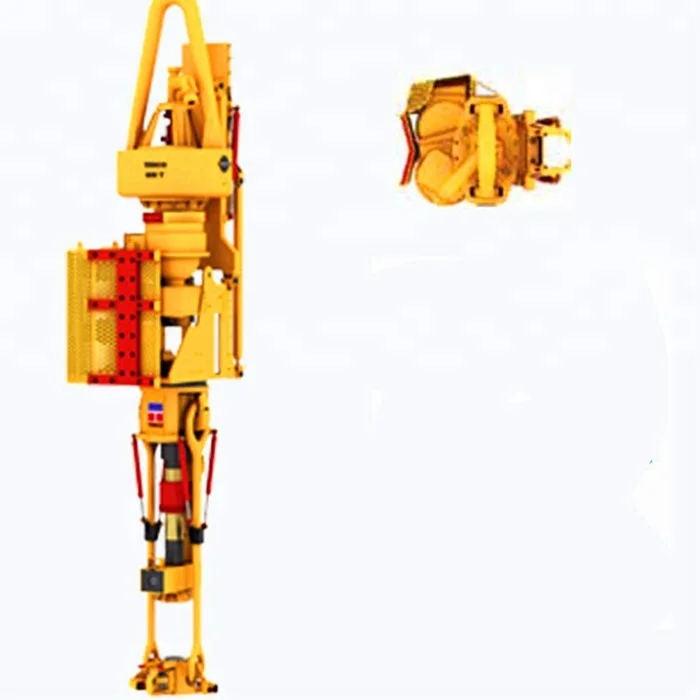

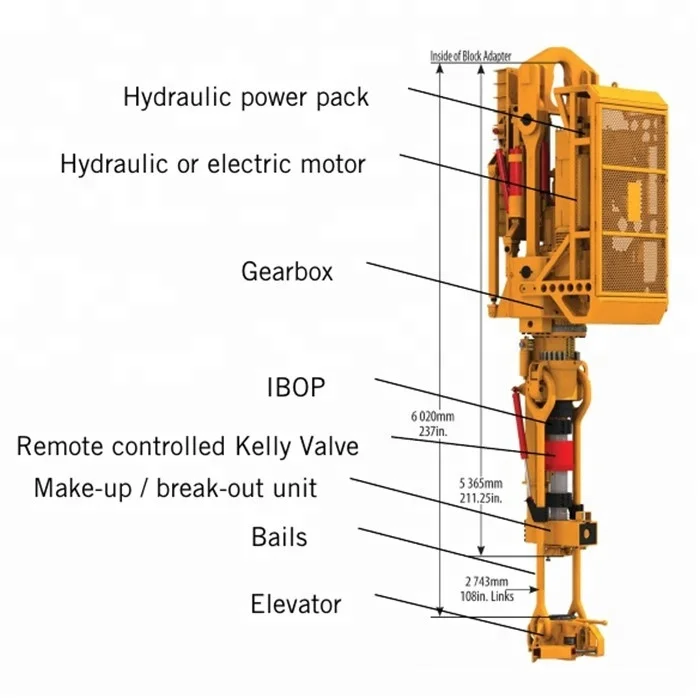

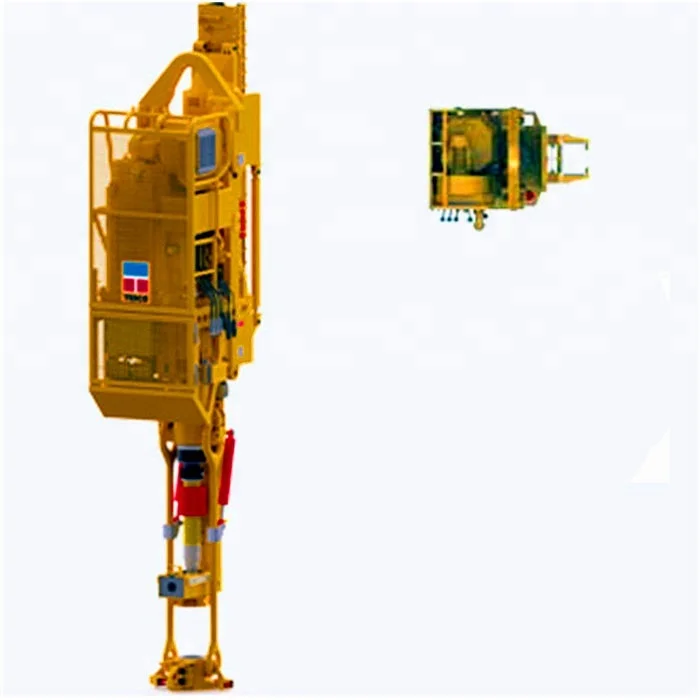

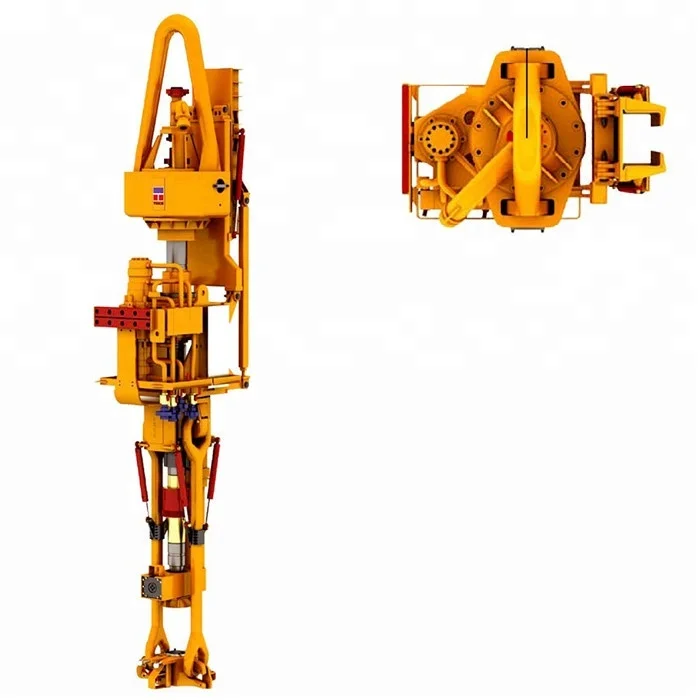

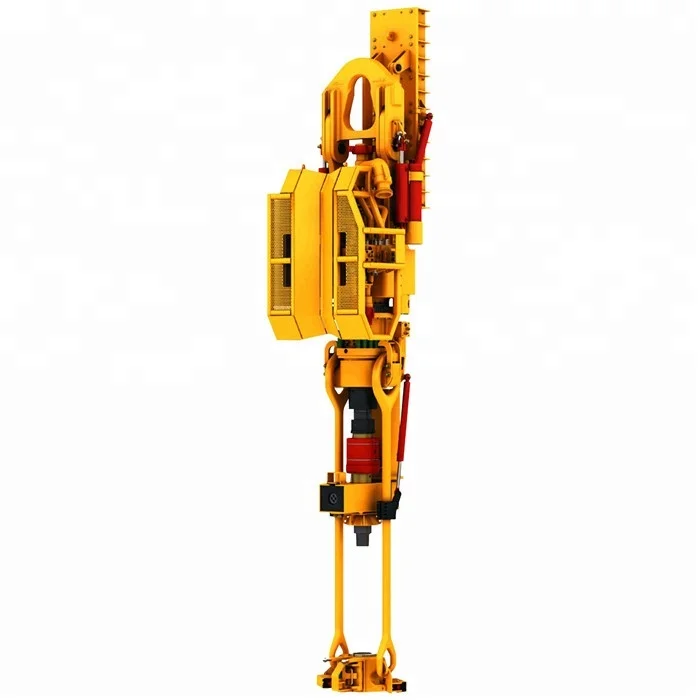

3.Product Pictures:
Packaging & Shipping
4.Packing & Shipping:
Our Services
5.our Services:
Before sale: Reasonable solution based on the customer requirement.
Order service: Fax contract and transfer contract is available .
After sale: 1 year quality warranty and training of installing and debugging for free.
Fund service: Inner customer.48 hours arrive below 1000 km .72 hours arrive over 1000kw.
Foreign customer: We will arrived the destination as soon as possible .
Parts service: Every product parts has the stock to supply customer as soon as possible.
