High pressure PU Braided pipe








Taiwan PU Corporation, known as TPUCO, is a professional manufacturer and a world-class factory of High pressure pipe .





For more than 25 years, TPUCO has created a trustworthy worldwide reputation due to excellent service and high-quality polyurethane products.





With TPUCO’s leading producing and processing technologies, TPUCO can manufacture various kinds of High pressure hose pipe  according to client’s requirement.





Each step of producing High pressure hose pipe is carefully calculated by production line engineers.





From raw material selecting to final product selecting, TPUCO has chemical engineers and quality control technicians to make sure the High pressure hose pipe fit client’s need of physical properties.





Therefore, TPUCO assures customers of the reliability and the top quality of the High pressure hose pipe .





In addition, TPUCO does not only manufacture excellent quality of High pressure hose pipe, but also develop and customize similar new PU finished products





TPUCO believes in “innovation, creativity, and incentive for improvement.”





With a strong and experienced technical support team, TPUCO is constantly developing new kinds of High pressure hose pipe and other PU finished products for closer cooperation with customers and higher leading position in polyurethane industry.





As a world-class factory and supplier for both PU finished products and PU raw materials, according to client’s usage and require properties of the High pressure hose pipe , TPUCO is able to design  High pressure hose pipe from PU raw material, to producing and processing methods, and then to PU finished products.





Moreover, for special property requirement, TPUCO’s more than 25-year experience allows TPUCO to know what chemical additives are the right and the best fit for customers’ High pressure hose pipe . For instance, by choosing and adding the right flame retardants, TPUCO is able to produce ECO-friendly fire resistant High pressure hose pipe, which lower fire-related accident rate and increase end-users’ safety.











Application



High pressure hose is suitable for the following applications: Piping purposes of electronics, construction, automobile, motorcycle, pneumatic & hydraulic machinery, industrial machinery and other factory equipments.

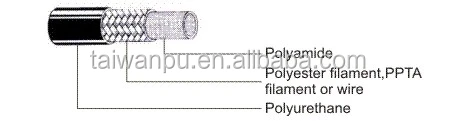

Construction








Inner tube: Polyamide (other material is also available for our high pressure hose)
Reinforcement: Polyester filament, PPTA filament or wire
Cover: Polyurethane











 High_Pressure_Hose





Temperature Range


-30oC to + 90oC












Description




Working pressure for most hydraulic applications are based on a 4:1 burst factor Meets SAE Specification 100 R7.


Figures are for basic reference only. Individual test needs exact figures.
































































ITEM No.
INCH SIZE


ID x OD mm


Length M


MAX WORKING
PRESSURS BAR(kg/cm2)

HOH-01
1/8"


3.4mm


x


8.5mm


400M


W.P 200BAR

HOH-015
3/16"


4.8mm


x


10.4mm


300M

HOH-02
1/4"


6.5mm


x


12.5mm


300M

HOH-025
5/16"


7.9mm


x


13.8mm


200M

HOH-03
3/8"


9.5mm


x


16.4mm


100M

HOH-04
1/2"


12.7mm


x


20.5mm


100M











**More information, please access our website:


https://www.taiwanpu.com/en/product/Tube-and-Hose/High-Pressure-Hose?page=1&rtnKind=Tube-and-Hose?kindt=true











Notice: These values are based on the test of our present laboratory test specimens.














Company Information













































1986



Taiwan PU Corporation, known as TPUCO was founded in Taipei, Taiwan to start Polyurethane business



1987



Established “TPU Extrusion Molding Factory” in Kaohsung, Taiwan, to start production of PU pneumatic tubes, PU spiral tubes, PU round belts, Nylon tubes, Teflon tubes, PU pentagon belts, PU film, PU rough belts and so on.



1990



Established “Pingtung Plant” for production of CPU Casting PU material and PU finished products such as PU rod, PU pipe, PU sheet, PU forklift


wheel, etc..



1999



Certified by ISO 9001. We have demonstrated our dedication to the


continuous improvement of our Quality Management System to offer the


best quality products to customers.



2001



Established “Wuxi plant” in Jiangsu, China. New production plant to


increase our production capacity for extruded products.



2003



Our foreign office was founded at North America in California, U.S.A. to


better serve America market for market expansion.



2004



Certified by 14001 for advocating the management responsibility of


loving our earth and protecting the environment.



2006



Established “Dongtai plant” in North Jiangsu, China.



2011



Total polyurethane production of TPUCO reached 2400 tons per year.
