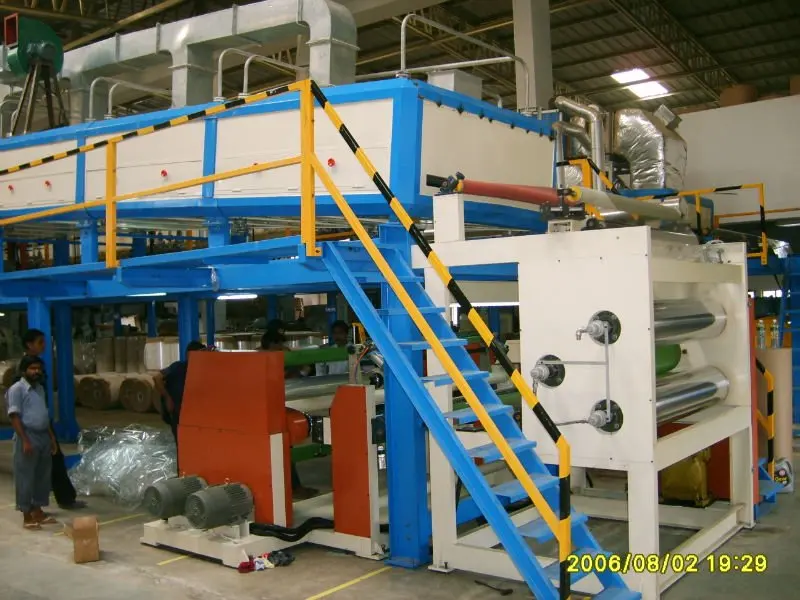

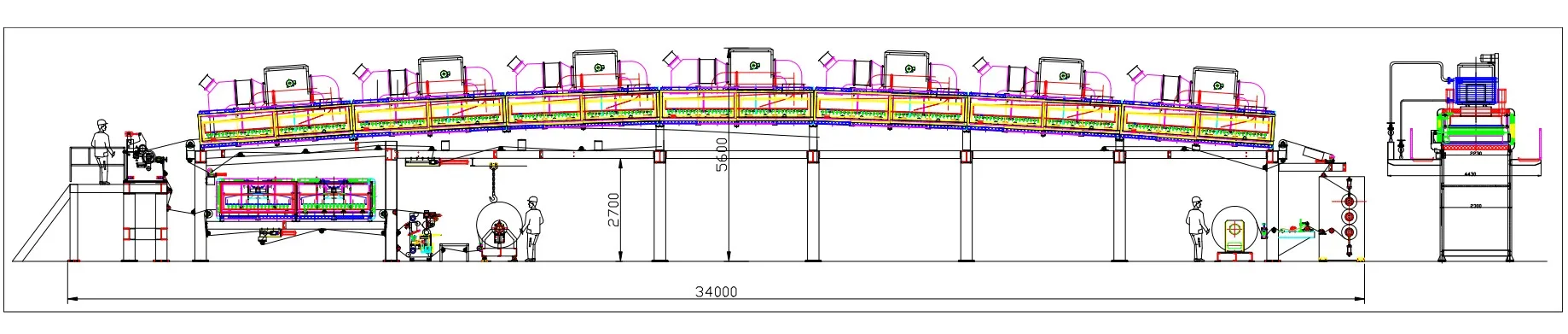

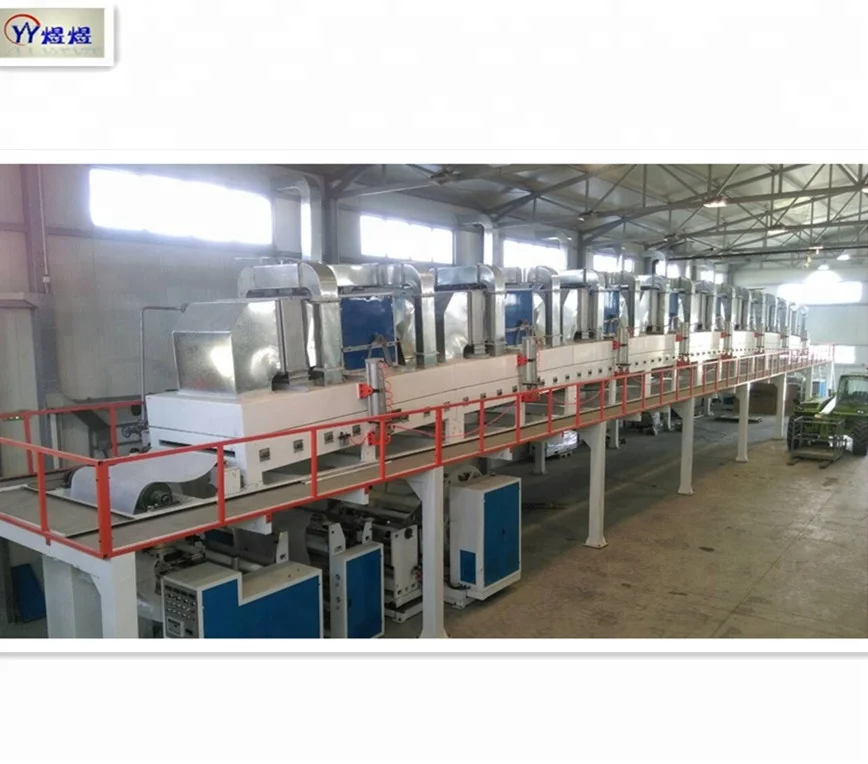

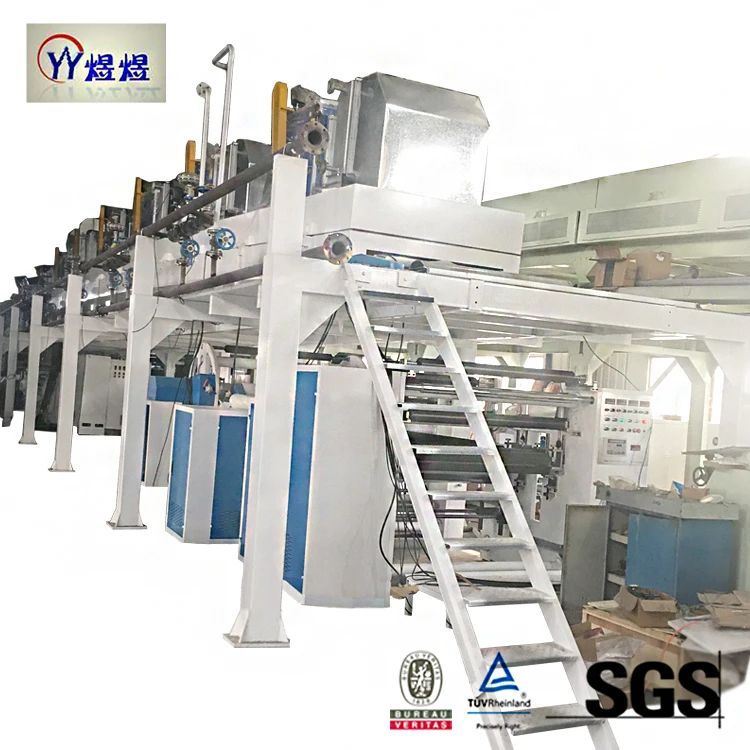

Machinery for drywall corner tape coating machine
Feature Machinery for drywall corner tape coating machine
1.Mesh bottom glue with active mode smoothing equipment;straight-scraping transfer printing type gluing,laminating all kinds of basis materials.
2.Double-position air-operated unwinding and rewinding.
3.Automatic switching,cutting cloth and connecting film.
4.Segmentation control temperature and adjustment according to the technical process.
Technical parameters Machinery for drywall corner tape coating machine
Model | YU-500 | YU-1000 | YU-1300 | YU-1600 |
Valid width | 500mm | 1000mm | 1300mm | 1600mm |
Mechanical speed | 5-60m/min | 5-150m/min | 5-220m/min | 5-220m/min |
Coating average degree | 0.01mm | |||
Rewinding edge smooth | 2mm | |||
Total mechanical speed | 20-25HP | 20-65HP | 30-100HP | 40-100HP |
Oven length | design upon the request of the customer General Purpose tape coating machine | |||
Heating | steam/hot blast/thermal oil/electric/gas furnace | |||
Power supply/voltage | 380v 50HZ | |||

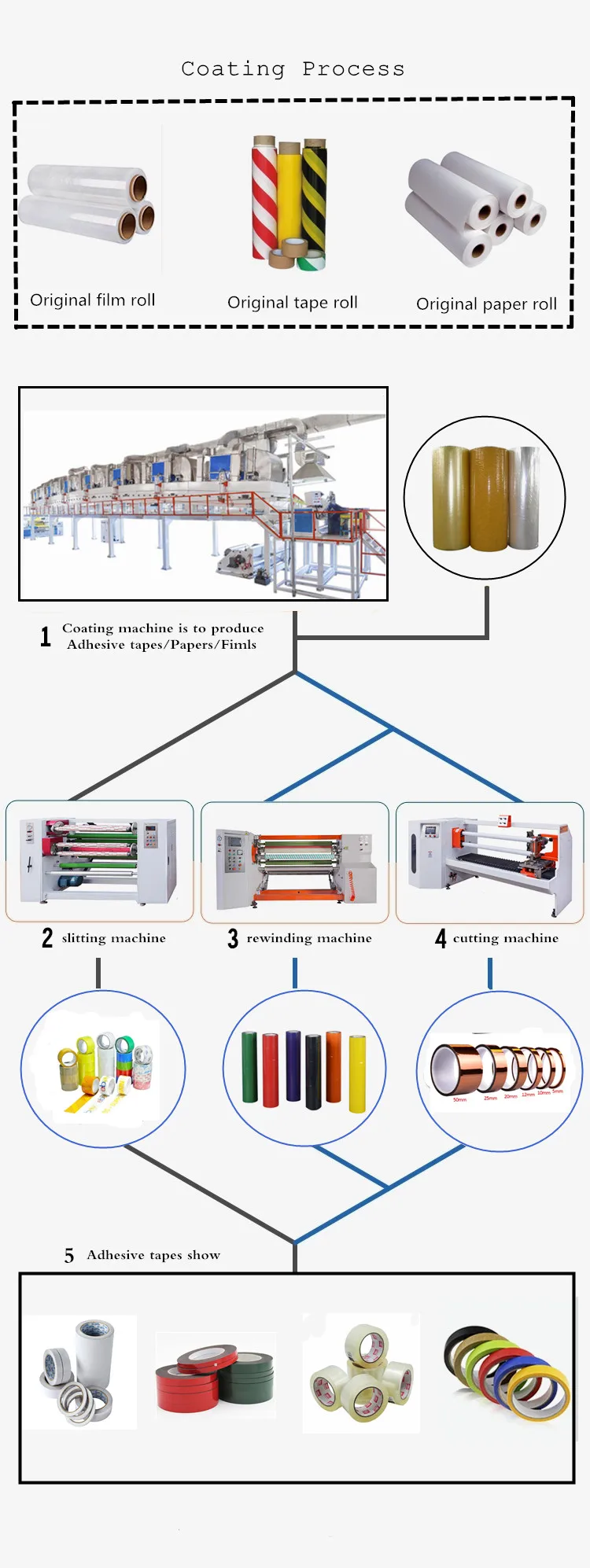

production process

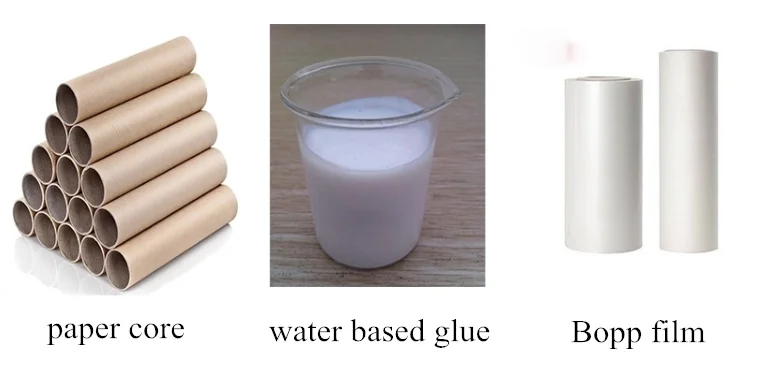

raw materials:
Final product:
After getting big jumbo roll,use rewinding machine get small roll and use cutting machine cutting get final small rolls
rewinding making machine suitable for rewind various electric tape industry tape bopp adhesive tape foil film
cutting making machine suitable for cutting insulation tape polyester tape pvc opp pe masking tapes double side tape plastic film
Certificate
Related Product
Packaging & Shipping
Packaging Type: Case, Film
Packaging Material:Wood , Plastic
Shipping Port : NormallyShanghai Port Also Can According To Your Demands
You can also contact us directly:
Ms Anna
Tel/wechat/whatsapp:+8613902480274
Company Profile
Yu Yu Plastic Co., Ltd is located in China Tape Technology Industry Park, Taicang City, Jiangsu Provience where is near to Shanghai City .The company is a professional manufacture of adhensive tape device after the Steel Machinery. We provide professional technology, perfect service,so that every customer can feel free to buy and feel comfortable to use.
The company is a research and development, design, production, sale , trade in one large multi-functional integrated modern enterprise, which specializing in automatic rewinding machine,slitting machine,cutting machine,manufacturing machines for tape.
With a coating machine,slitting machine,cutting machine prototype,ready and waiting for your visit.Customers are free to choose the style,working site to customize and have a train operation for you. Zhao Manjun, the general manager has the experience for many years to solve your questions on technology,production and operation in 24 hours.
