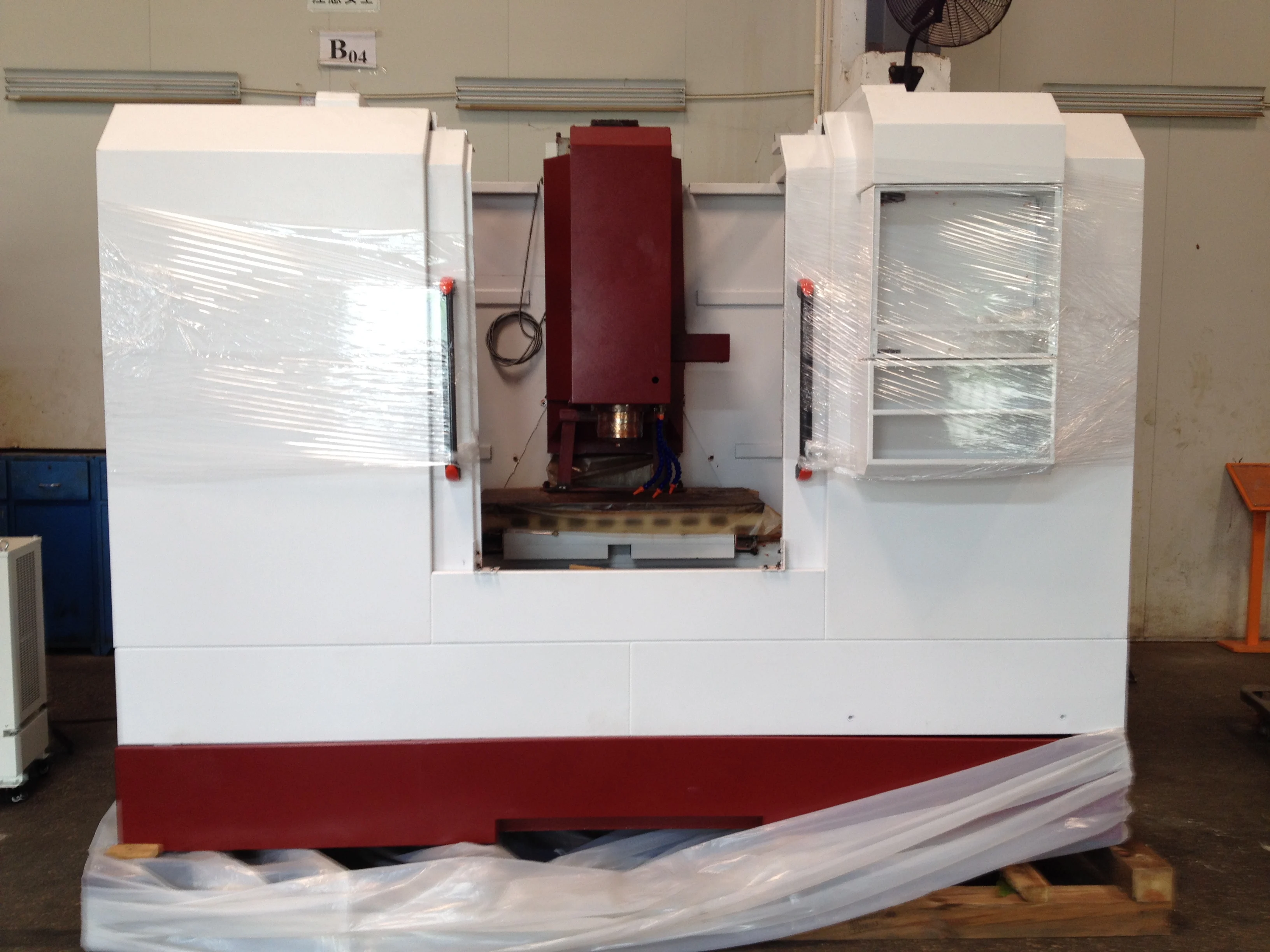

Вертикальный фрезерный станок VMC 1050 VMC, обрабатывающий центр

Product Overview

Description

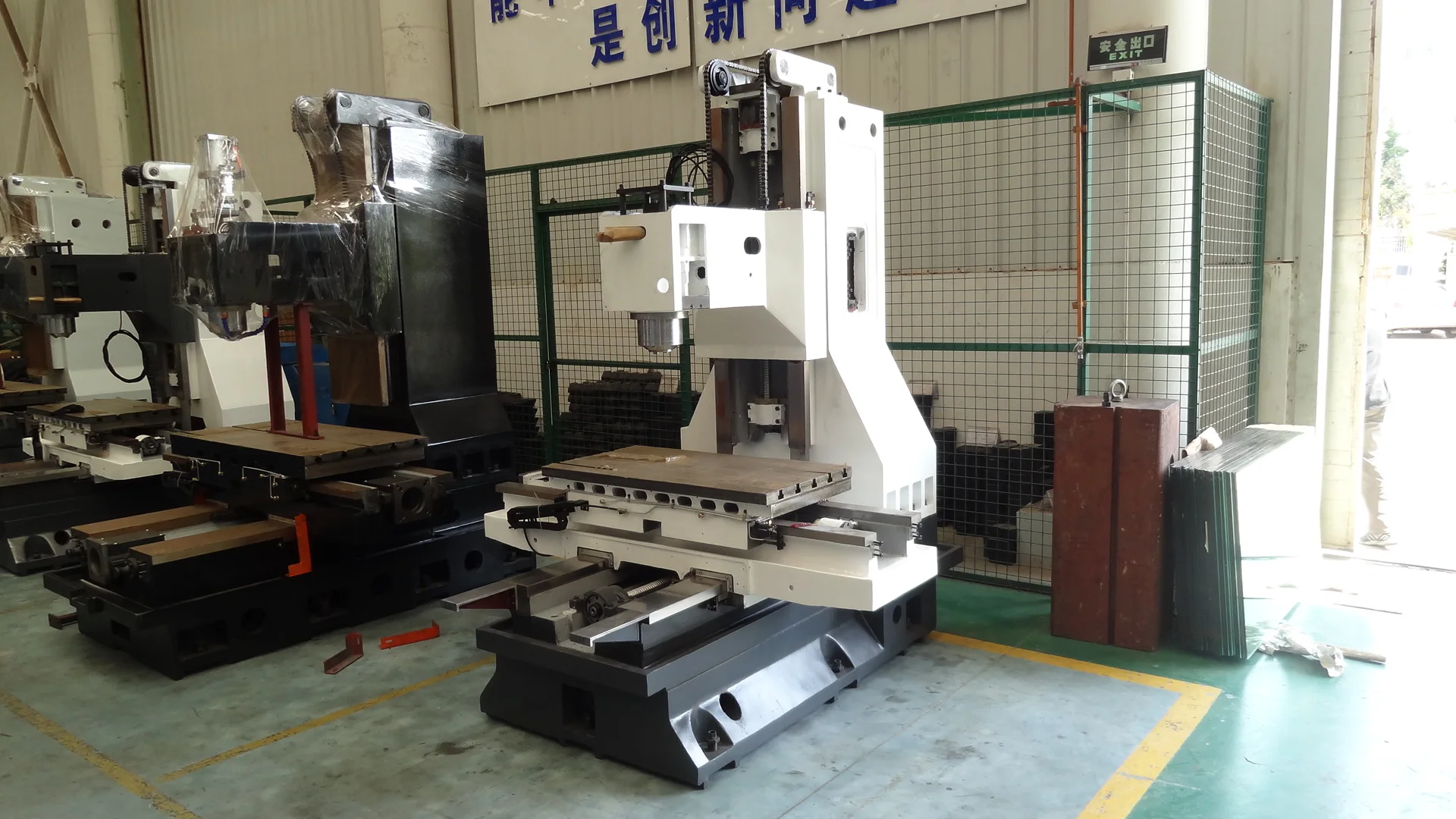

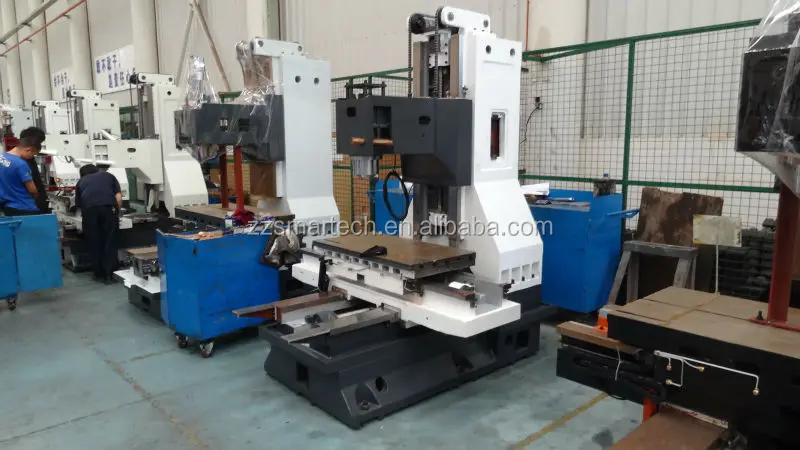

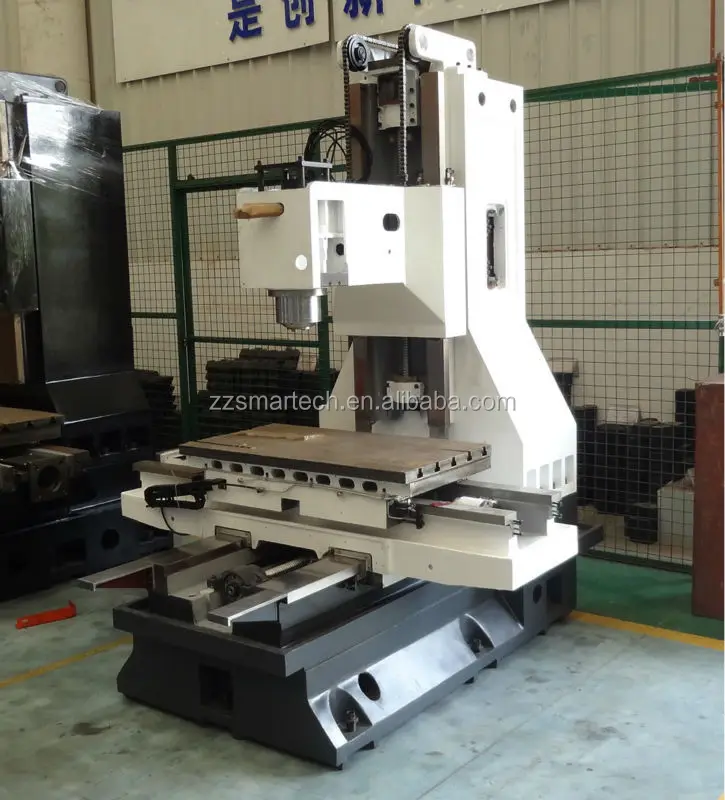

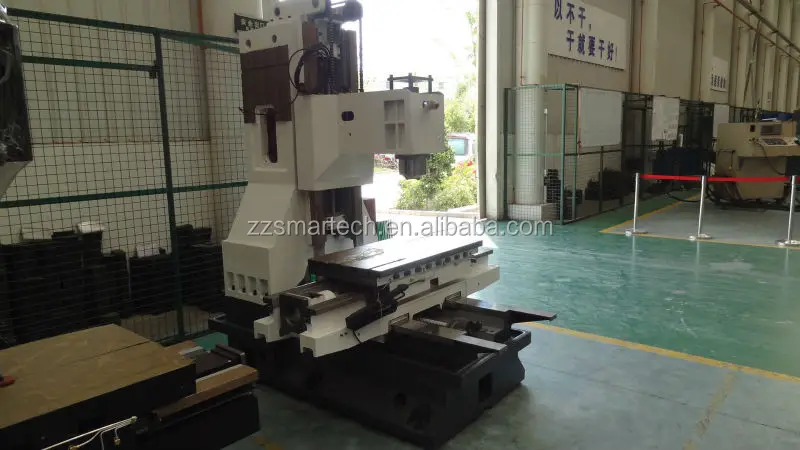

SMARTECH CNC VMC FRAME

• MACHINE FEATURE:

1     High-class casting processed by resin sand and wood mould;

2     Hiwin / PMI ball screws sets, NSK or FAG bearings ;

3     Royal / POSA belt-drive 8000 rpm spindle, Haocheng / Boju tool clamping system ;

4     Harden&ground on all slideways and Turcite-B coated with precise scraping

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     R&W couplings ;

8     Coolant system .



• OPTIONAL:

1     10000 / 12000 / 15000 rpm Spindle;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



• SPECS:

MODEL	VMC-850C
Table Size	530 x 1000
Travel X	1000
Y	500
Z	700
Spindle to Column Slideway	575
Spindle Nose to Table Surface	110-810
T-Slot(No-size/distance)	5-18/100
Spindle Taper/outside dia	BT40/150
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	40/10
Z axis Ball Screw Spec.	40/10
X,Y & Z Motor Connection	Direct drive
Main motors recommended	5.5-7.5w
Drive motors recommended X/Y/Z	10/12/12Nm
Table  Work Load	600 Kg
Net Weight	4500kg

                                          *Also provide linear-type slide ways.

















Machining Equipments Imported from Nicolas Correa Spain





A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
