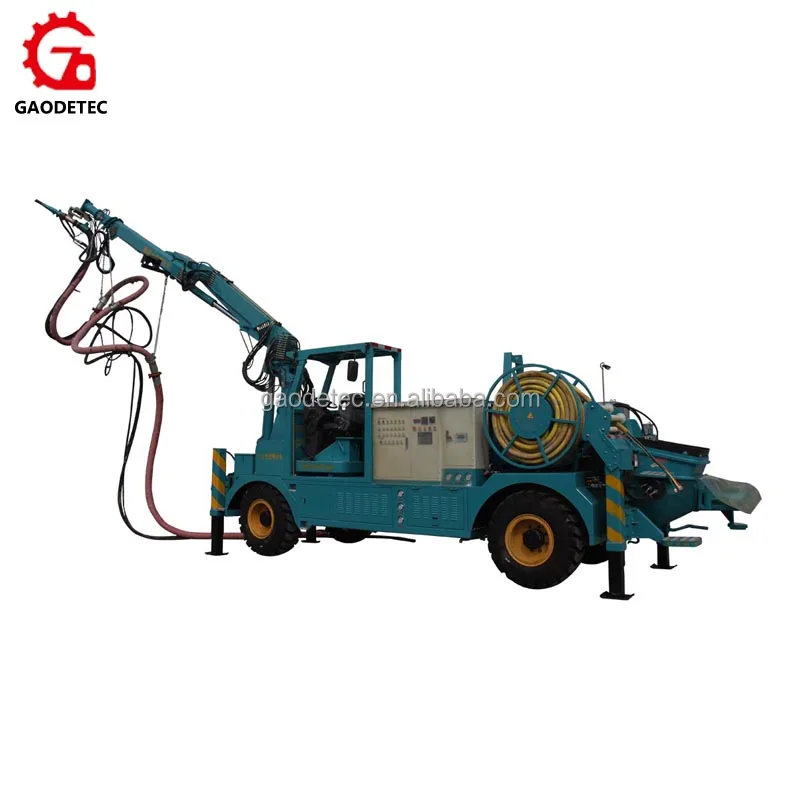

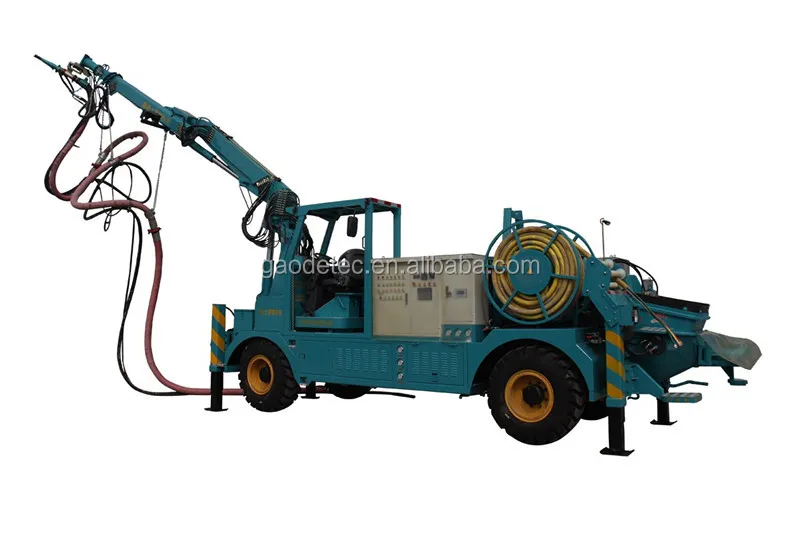

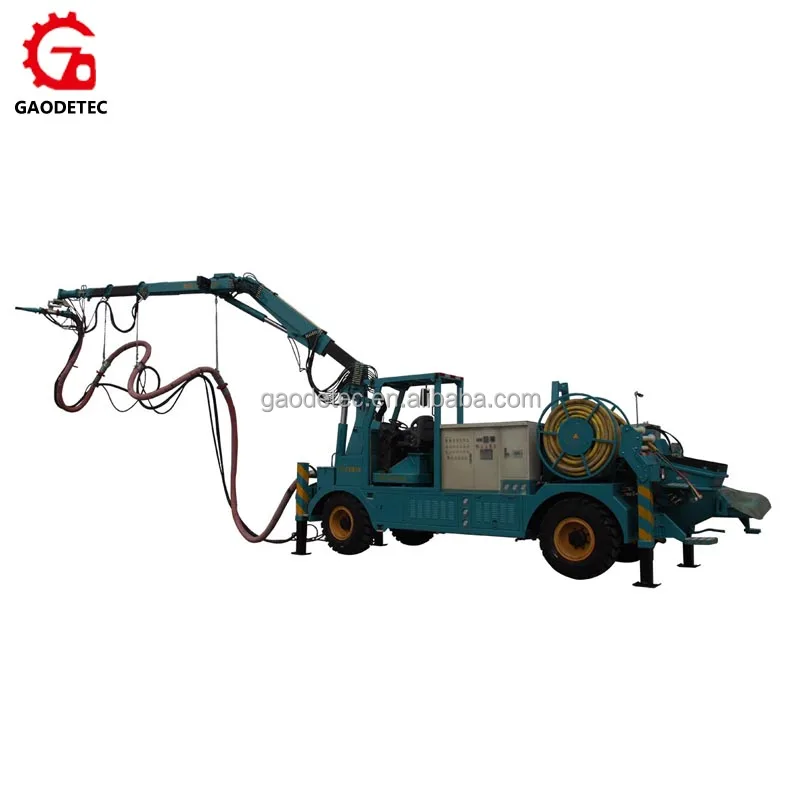

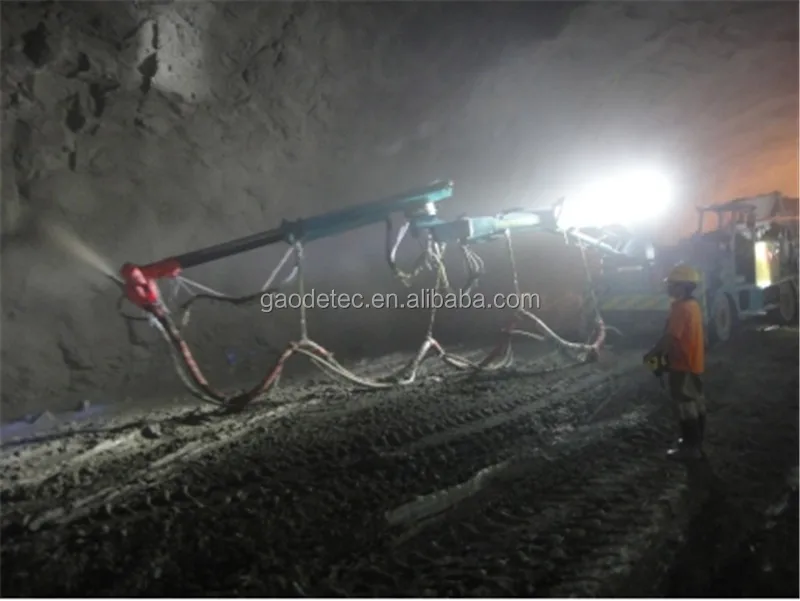

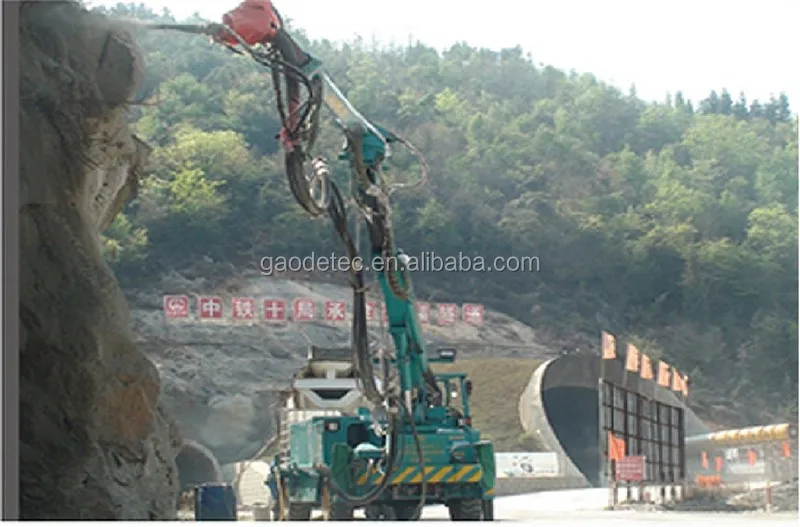

HSC 2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm

Product Overview

Description

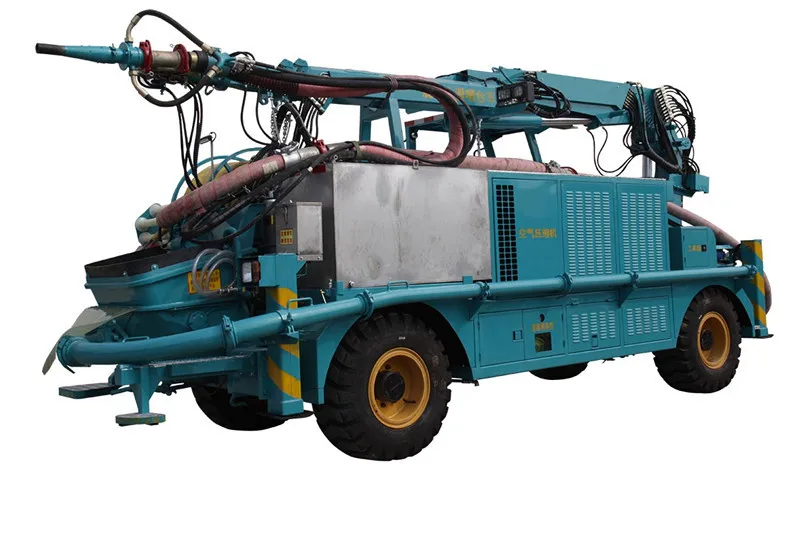

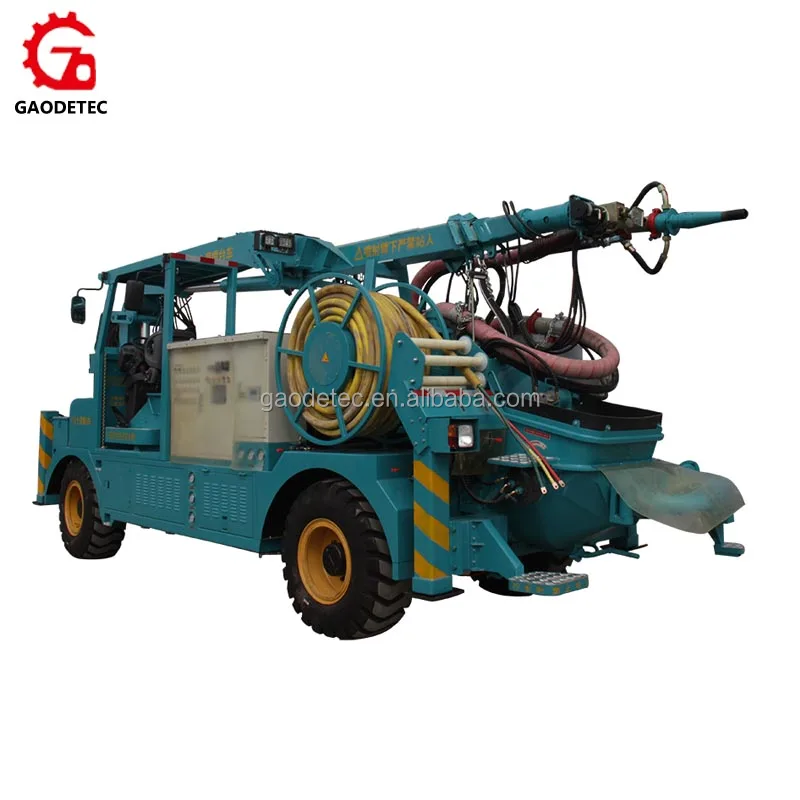

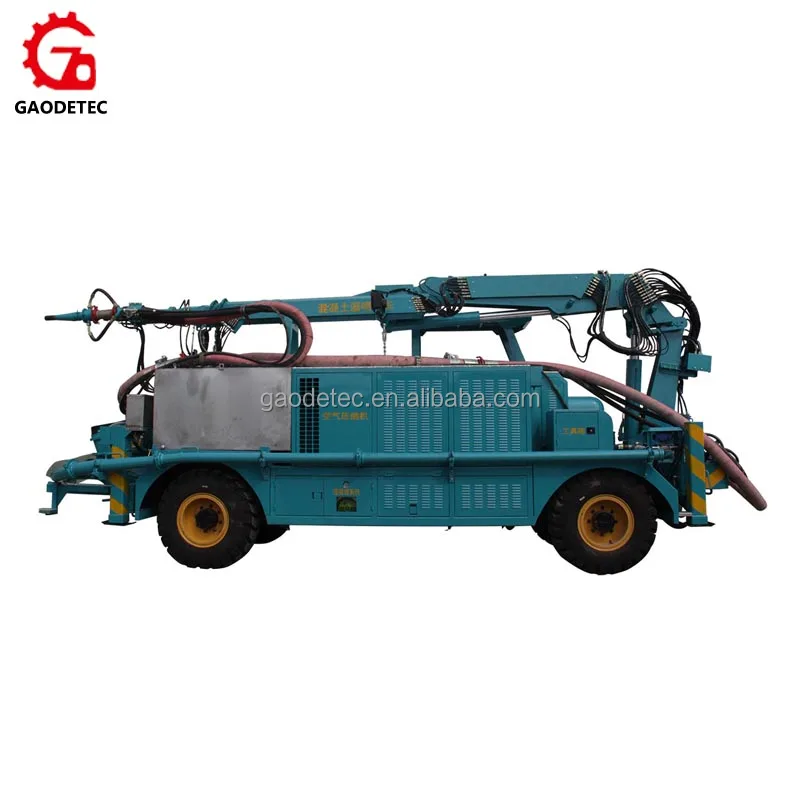

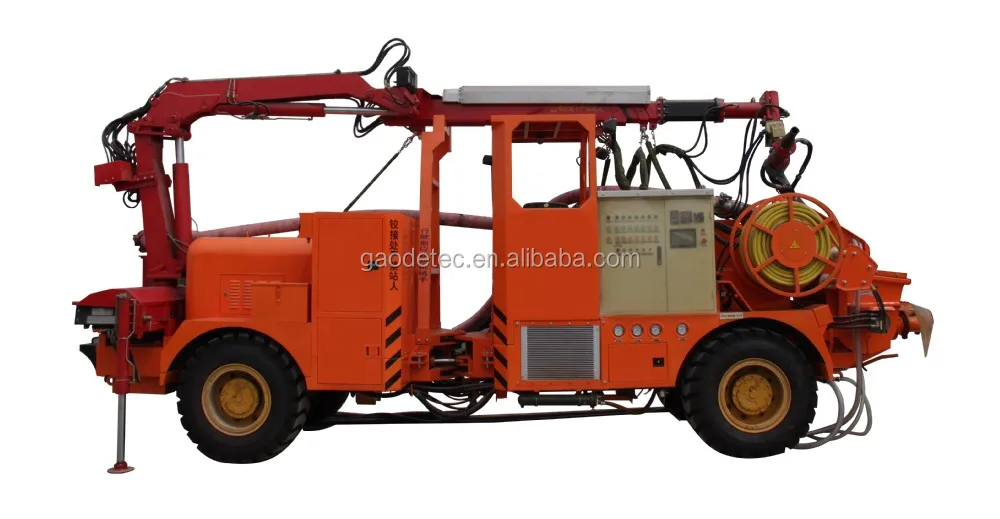

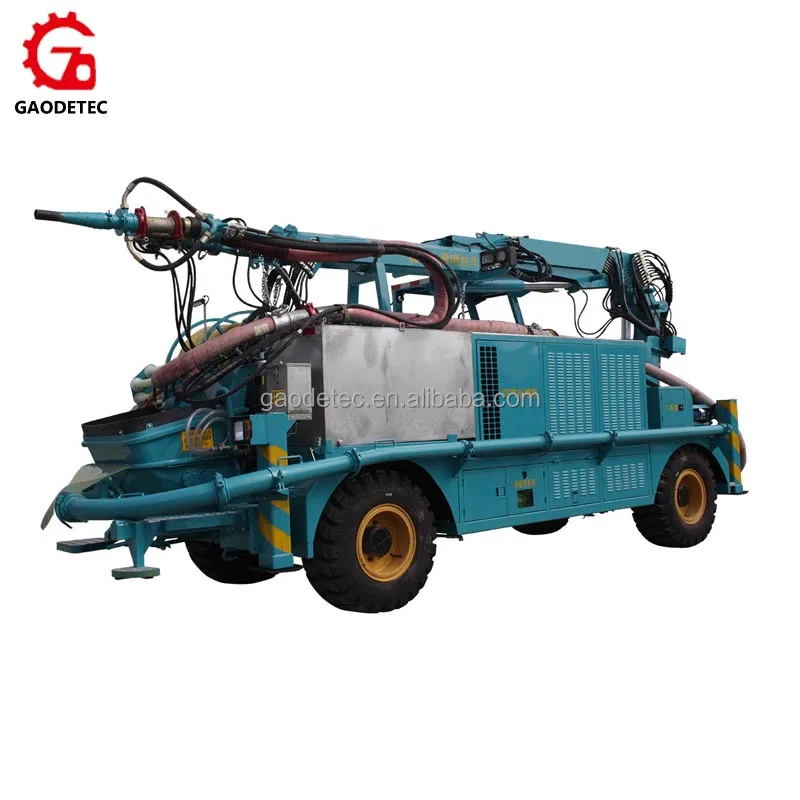

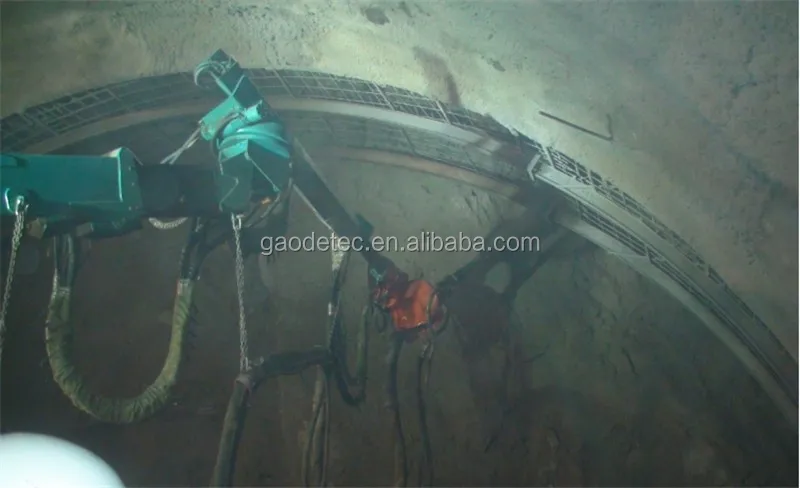

HSC-2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm

 The series wet shotcrete system equipments are high-end equipment with top design and manufacture. They have multi-function and can be applied widely.

The advantages of the equipments are:

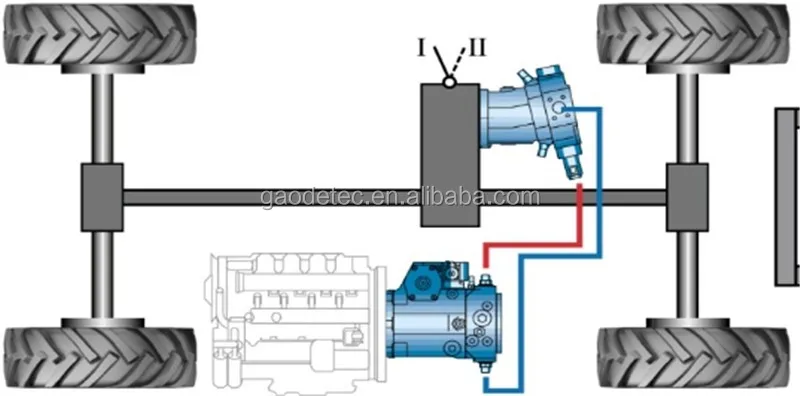

1.      Hydrostaticrunning system, rigid chassis, wet mix braking system.

2.      Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.

3.      Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.

4.      Reasonable loading design makes the equipment with bigger anti-overturning moment.

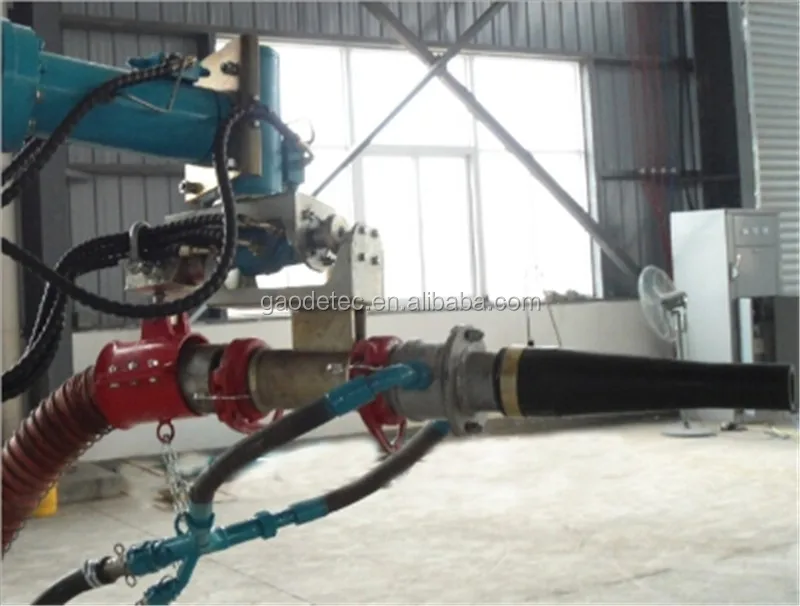

5.      Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.

6.      Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.

7.      Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.

8.      The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.

9.      All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.

10.  Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.



HSC-2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm technical data





Item		unit	HSC-2515A	HSC-2515B	HSC-2515C
Unity machine parameter	L×W×H	mm	7800×2530×3280	7800×2530×3280	7440×2530×3280
	Weight	kg	14000	14000	12800
Arm and Leg parameter	Arm structure		main arm rotate + telescope, spray arm fold + telescope	main arm rotate, spray arm fold + telescope

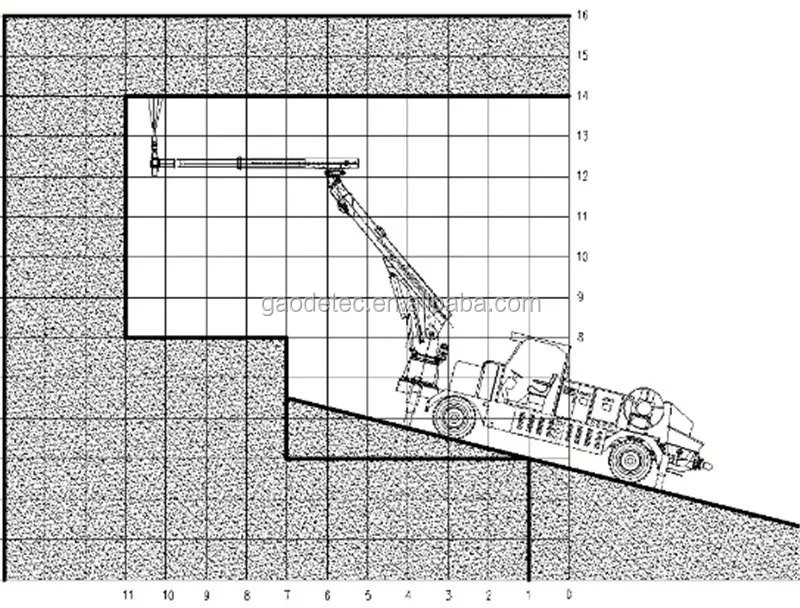

	max. spray height	m	15	15	15
	max. spray width	m	2×13	2×13	2×13
	max. spray depth	m	8	8	8
	big arm pitching angle	degree	-30°~+75°	-30°~+75°	-30°~+75°
	small arm pitching angle	degree	70°	70°	70°
	nozzle rotate angle	degree	360°	360°	360°
	nozzle swing angle	degree	240°	240°	240°
	front leg span	mm	3220	3220	3220
	drive mode		electric motor work (diesel is used for cleaning and withdrawing arms in case of electric power off)
	electric motor rated power	kW	52	52	52
	electric motor working voltage	V/Hz	380/50	380/50	380/50
	diesel engine rated power	kW	93	83	83
Pump parameter	rated output	m3/h	25	25	25
	rated reversing time	/min	21	21	21
	system pressure	Mpa	23	23	23
	outlet pressure	Mpa	7	7	7
	convey cylinder inner diameter	mm	Φ160	Φ160	Φ160
	convey cylinder stroke	mm	1000	1000	1000
	nozzle diameter	mm	Φ45	Φ45	Φ45
Chassis parameter	wheel track	mm	1833	1833	1833
	wheel base	mm	4100	4100	3740
	front and rear axle drive mode	-	4×4	4×4	4×4
	fuel tank capacity	L	190	190	190
	max. running speed	Km/h	22	22	22
	max. gradeability	%	40	40	40
	min. ground clearance	mm	450	450	450
	min. turning radius	m	5	5	5
	braking distance	m	≤10	≤10	≤10
Auxiliary system parameter	cable	m	100	100	100
	air compressor power	kW	55	55	NO
	air compressor output	m3/min	10.7	10.7
	air compressor working pressure	Mpa	0.75	0.75
	additive output	L/h	800	800	800
	additive system pressure	Mpa	1	1	1
	coagulant tank capacity	L	850	850	1000

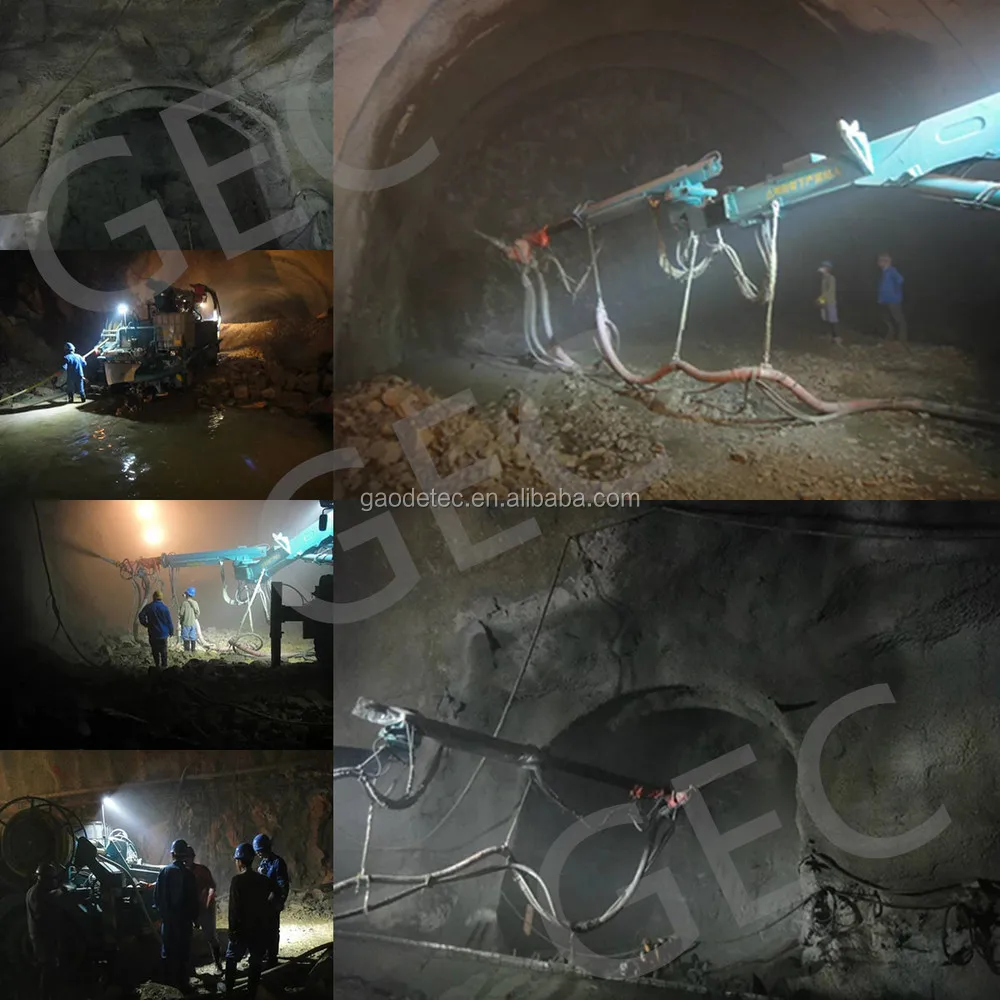

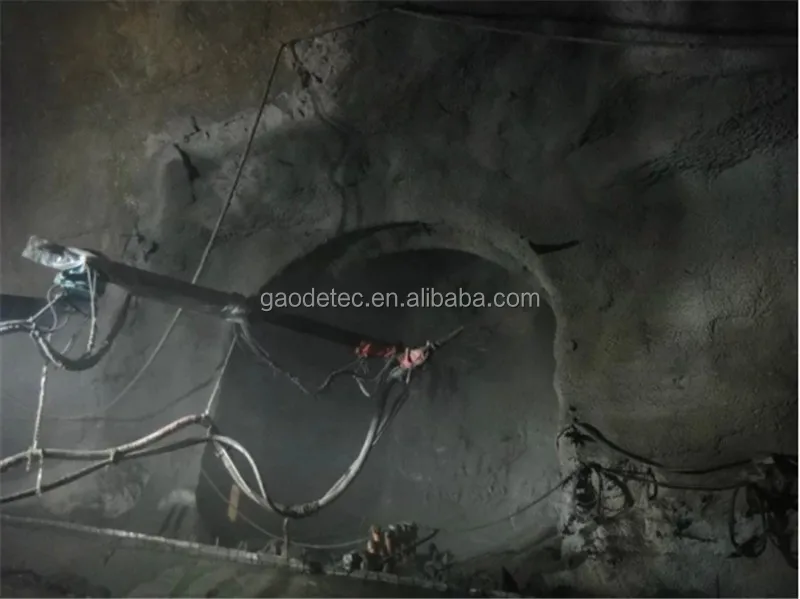

This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
