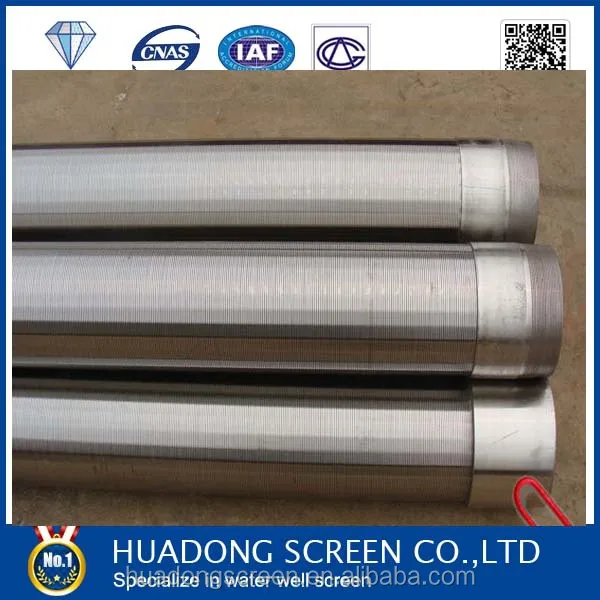

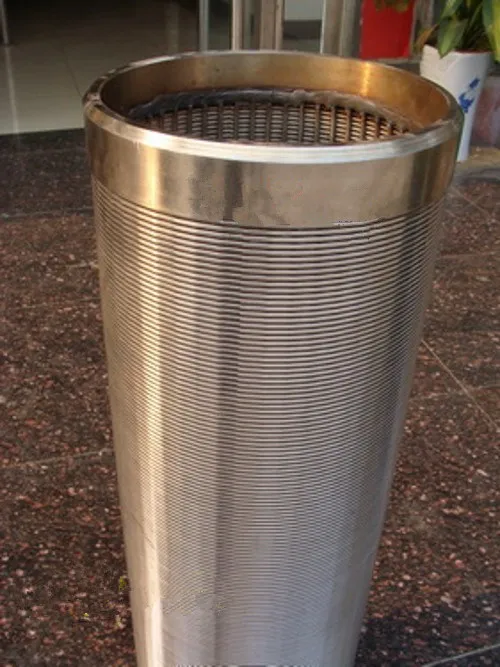

Stainless steel cylindrical filter in drilling ground water /Johnson well screen

Product Overview

Description



Stainless steel cyindrical filters



  Having a history of providing efficient and long lasting products that will work in a variety of situations,we offer a combination of economy,innovation and flexibility to provide a wide variety of industrial screen solutions.Our engineering staff is fully capable of precision design to ensure that each requirement is met.Now with our broadened line of screen products you can specify the perfect,most cost -effective screen no matter how challenging your application or process.



 1^Custom Designed and Engineered

  Each project is specifically designed to ensure complete satisfaction. We provide guidance and support from project concept to completion.



 2^Longer Lasting

  John type screens,whose manufacturing standards are most stringent in the industry,are extremely durable and have high resistance to abrasion,corrosion and impact damage.



 3^Lower Maintenance

The rugged construction and high quality of materials make possible a product that lasts longer and requires less maintenance.



 4^Less Costly

Superior operating efficiency ,extended service life and reduced maintenance needs combine to reduce the true cost of Johnson type screens to plant operators.

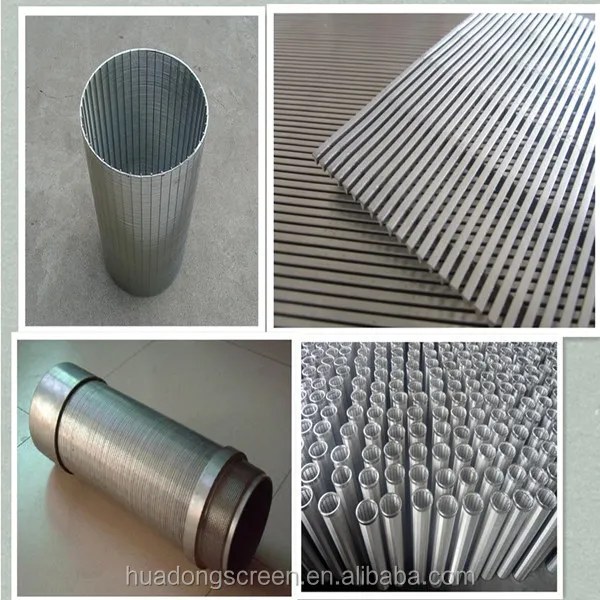

some detail ----wire , slot ,support



The continuous slot wire-wrap screen ,Johnson water well screen, wedge wire screen ,stainless steel water well screen , we offer high quality products with competitive price.



 Wire and Rod Information



 A wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation efficiency.

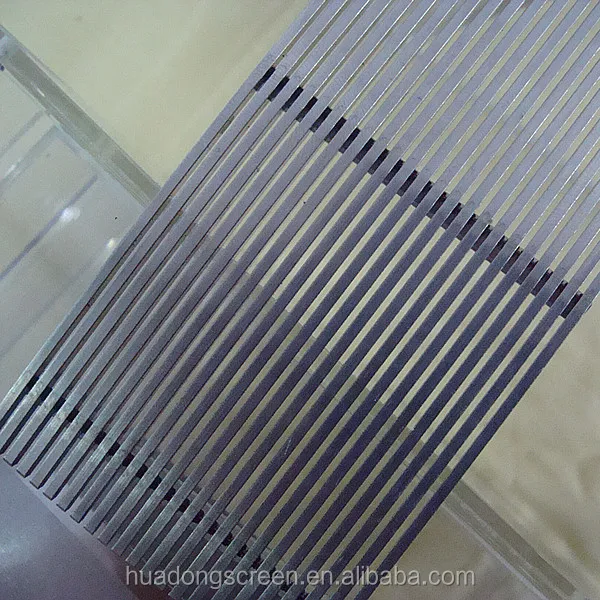

Johnson Screen Vee-Wire Profiles



Johnson Screen Vee-Wire Profile wires range in widths from 0.020 inch (0.508mm) yo 0.195 inch (4.953mm) and hights ranging from 0.040 inch (1.016mm) to 0.363 inch(9.220mm) , Other wire shapes also available:



Common Johnson Screen Shaped Support Rods



Johnson Screens shaped support rods range in width from 0.029inch (0.737mm) to 0.151 inch (3.835mm) and the height ranging from 0.102inch(2.591mm) to 0.120 inch (3.048mm).



 Specification Table :



Johnson Screen Specification
Material:	AISI304/316/316L,etc.
Wedge Wire (mm):	2.2*3.0 , 2.3*3.0 ,  2.3*3.5 ,  3.5*5.0
Support Rod (mm):	Width : 2.30 3.00 3.30 3.70
	Height : 2.70 3.60 4.70 5.60 6.30
	Round : 2.50mm -- 6.0mm
Slot Size	0.10 -- 6.00mm ,also can be customized as your request.
Length	Max 6 meters.
Diameter (Inch)	4''  6''  8''  10''
Note: Other specifications can be customized according to your requirement.



 Market / Industry

• Water and waste water
• Pulp and paper
• Chemical
• Petrochemical
• Water supply
• Mineral and aggregate processing
• Plastics extrusion
• Machine coolant filtration
• Architectural application

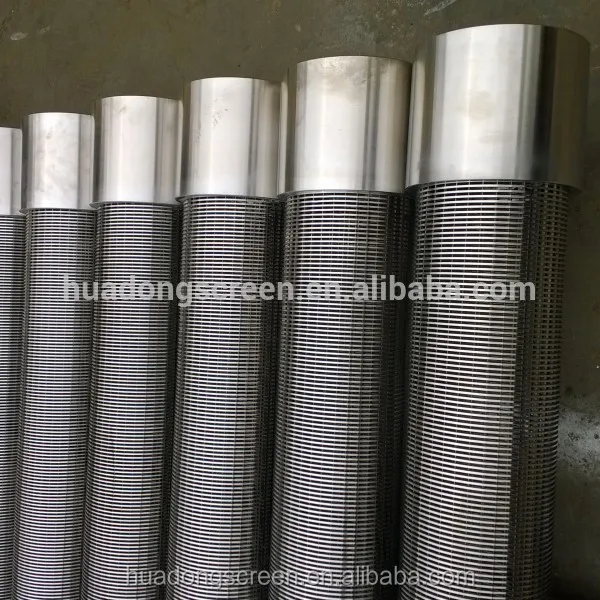

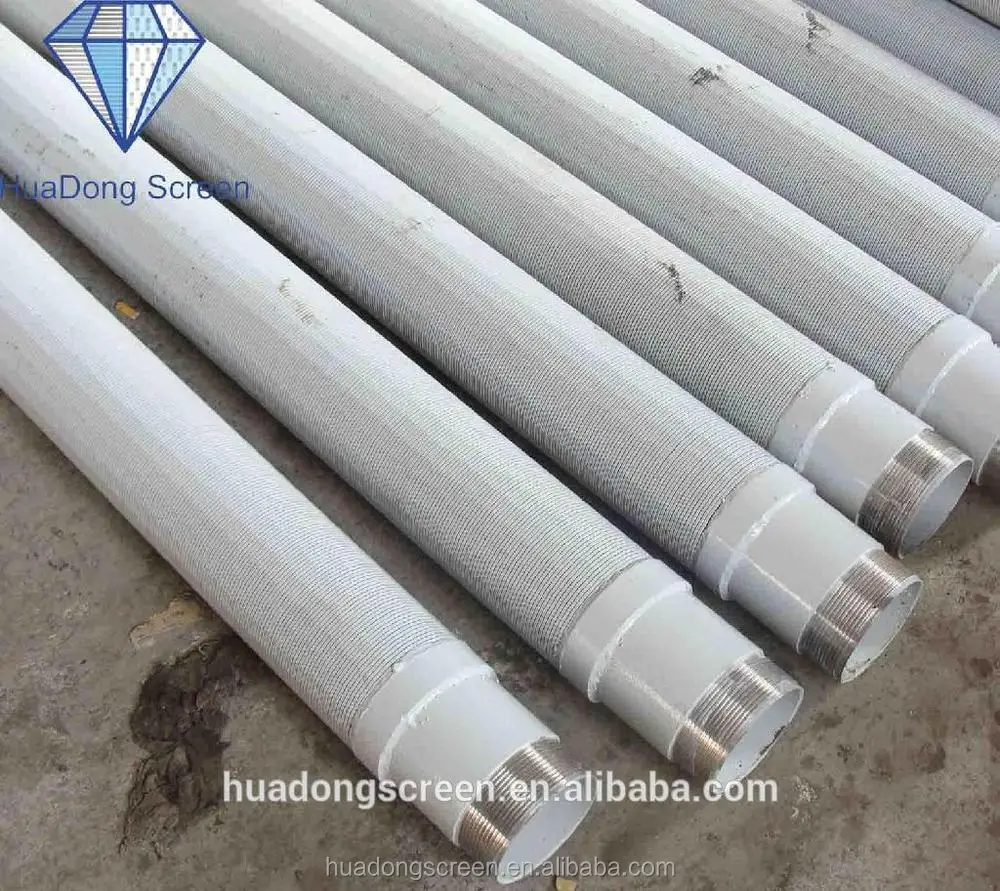

Product

Packing

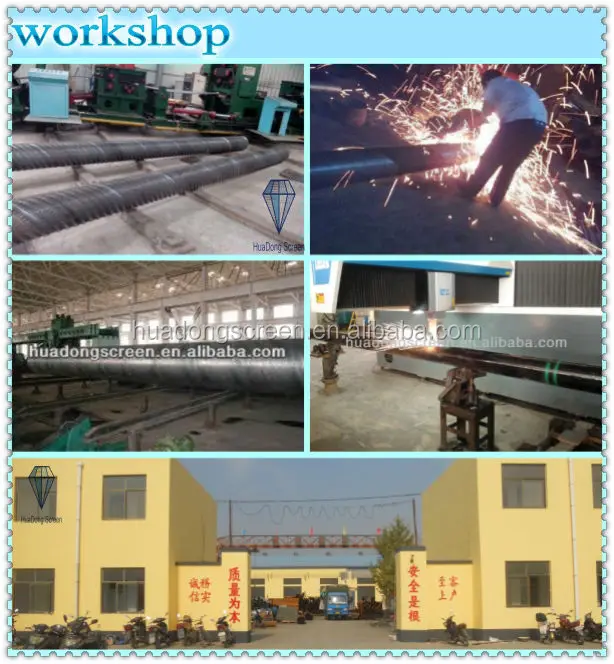

Our company
