Glass bottle juice production line / machine / equipment
- Category: >>>
- Supplier: Zhangjiagang King Machine Co. Ltd.
Share on (60075983025):
Product Overview
Description
Glass bottle juice production line / machine / equipment
pruduct description
Glass bottle juice production line / machine / equipment
Products Introduction of Glass bottle juice production line / machine / equipment:
Usage of Glass bottle juice production line / machine / equipment:
The plant is mainly used in hot filling and sealing of green tea,black tea,wulong tea and fruit juice drink. This machine integrates washing,filling and capping together. The design is scientific and resonable. Its apperance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
Fetures of Glass bottle juice production line / machine / equipment:
1. The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
2. It is automatic in total process and suitable for PET bottled juice tea drink which can resistant high temperature.
3. It also can be used for mineral water, pure water and many other no gas containing drinks.
4. It makes by high quality SUS304 and key parts are precision machined by NC tool.
5. The total machine adopts advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, no bottle no capping, automatic easy operation.
6. Using the wind sent access, with clamp hanging the bottle neck which can keep the bottle shape high-speed.
7. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable avoid secondary pollution.
8. Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling.
9. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
10. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, Omron.
Technical parameters
| model | RCGF | RCGF | RCGF | RCGF | RCGF |
| 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 | |
| production capacity(500ml)(b/h) | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 | 20000-24000 |
| filling precision | ±2mm(liquid level) | ||||
| polyester bottle standerd(mm) | bottle diameter: φ50-φ100;height:150-310 | ||||
| suitable cap shape | plastic screw cap | ||||
| water pressure of washing bottle(Mpa) | 0.2-0.25(Mpa) | ||||
| gas consumption(m3/min) | 0.1 | 0.4 | 0.5 | 0.5 | 0.6 |
| power(kw) | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| weight(kg) | 2800 | 4500 | 6000 | 7000 | 9500 |
| dimensions(L*W*H)(mm) | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | 4500*3500*2400 |

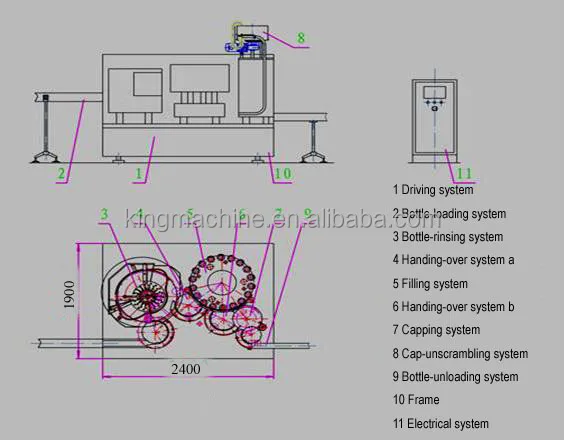

Main components: (See Drawing 1)
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.
Drawing 1:

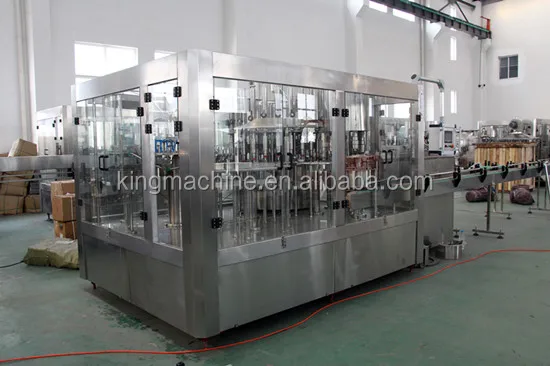

Photoes of Glass bottle juice production line / machine / equipment:
Washing part:

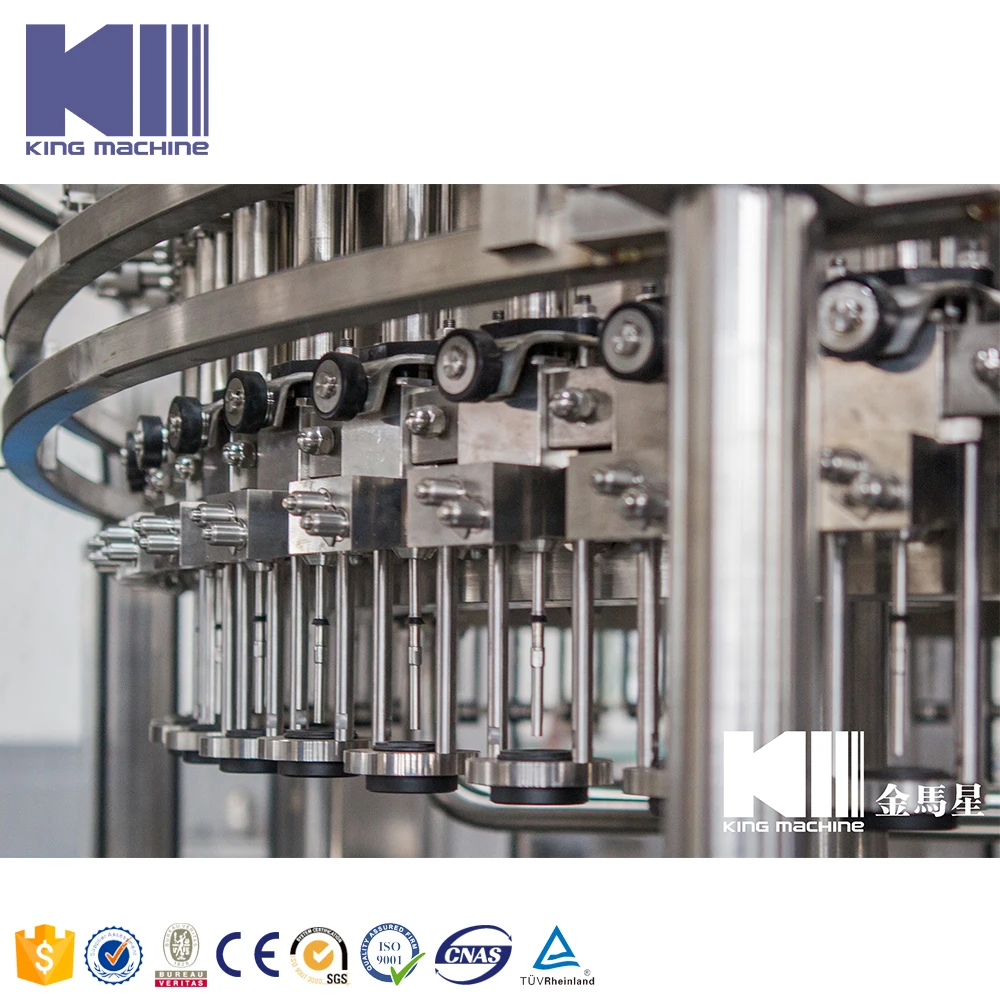

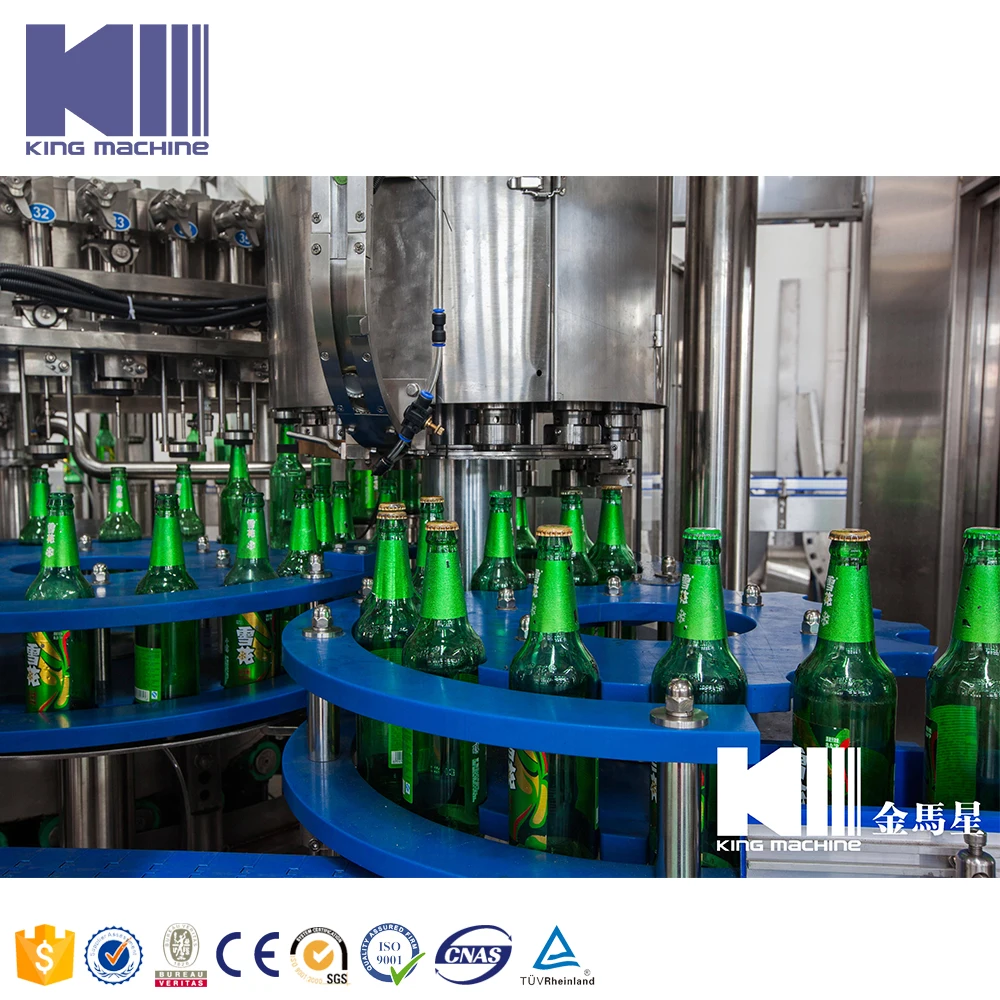

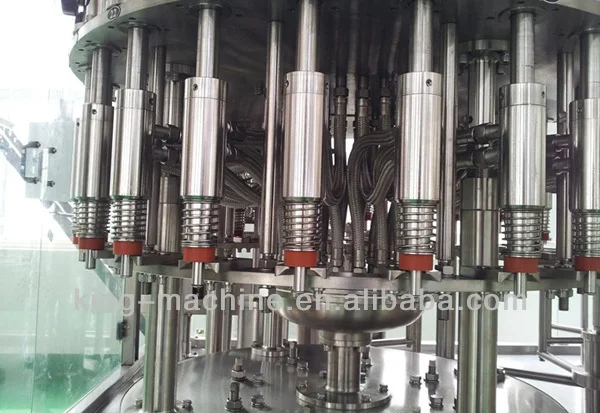

Filling part:

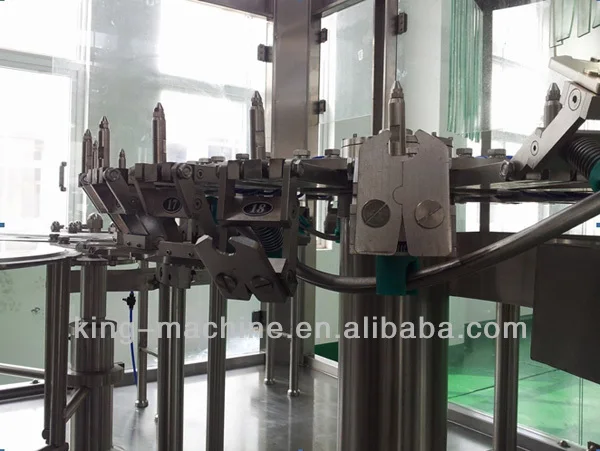

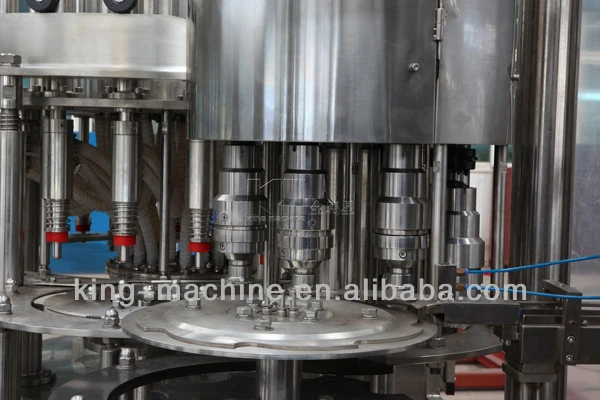

Capping part:
Certificates

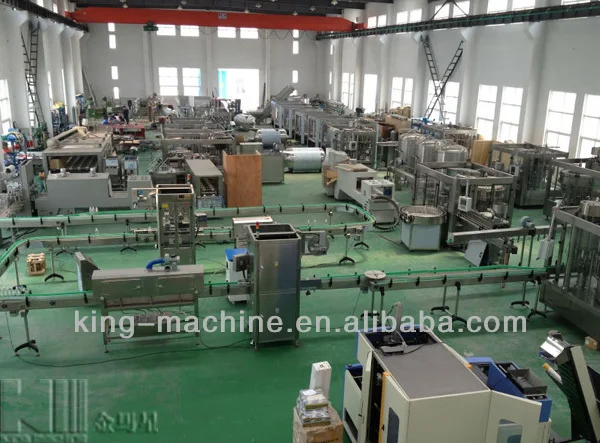

Workshop of Glass bottle juice production line / machine / equipment:
Loading:

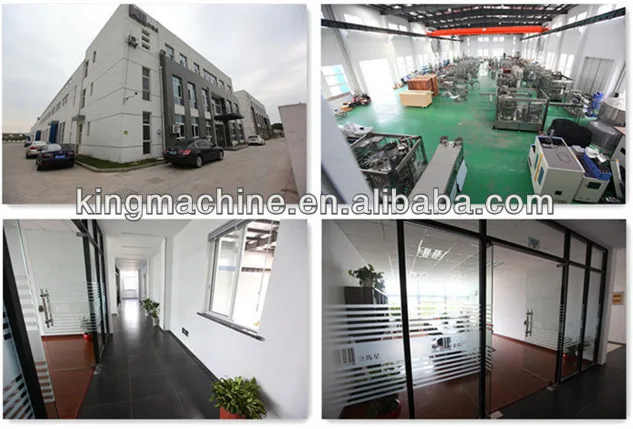

Factory show:
Our Services
1.installation, debug
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.
2.training
Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
