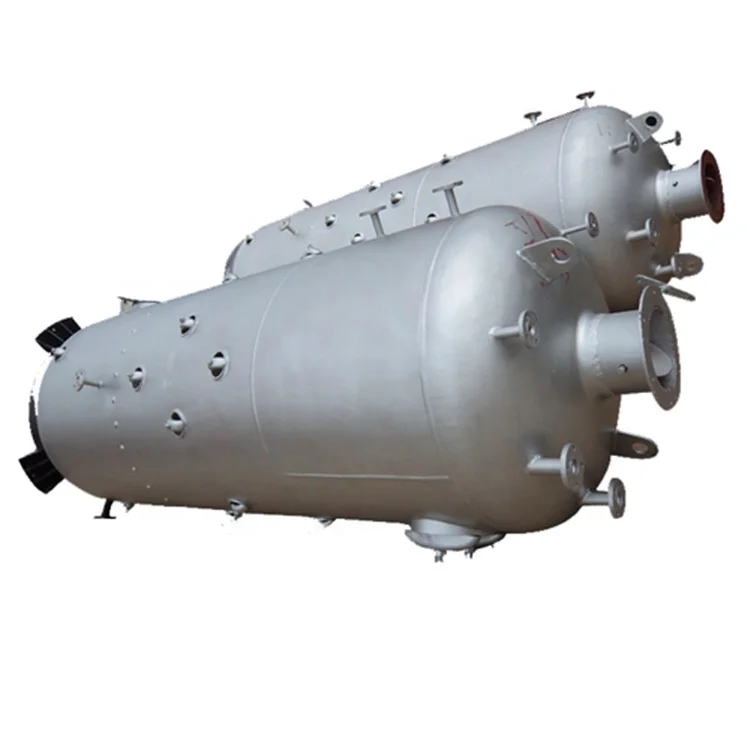

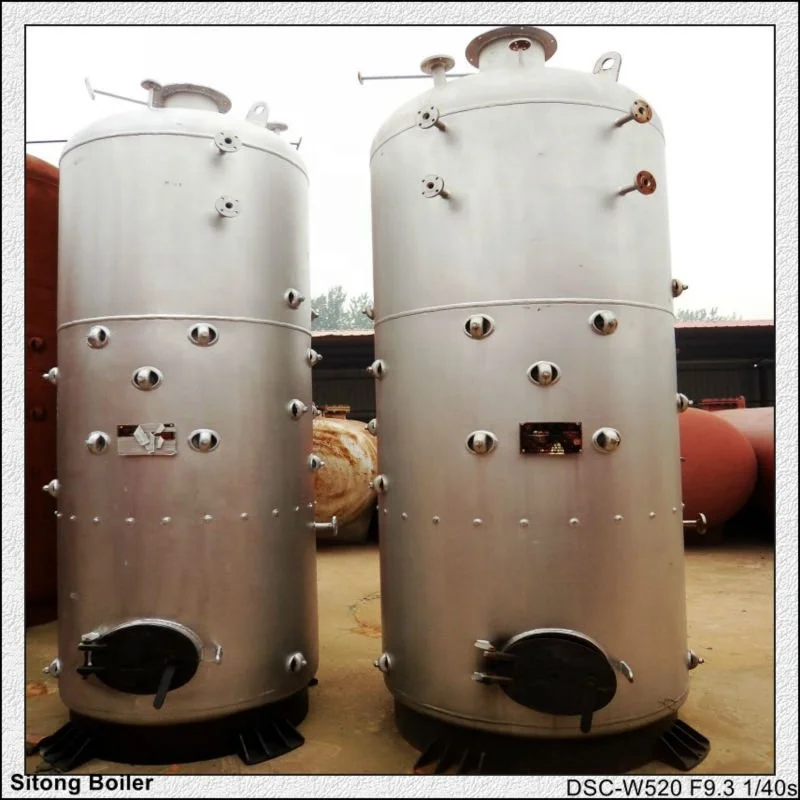

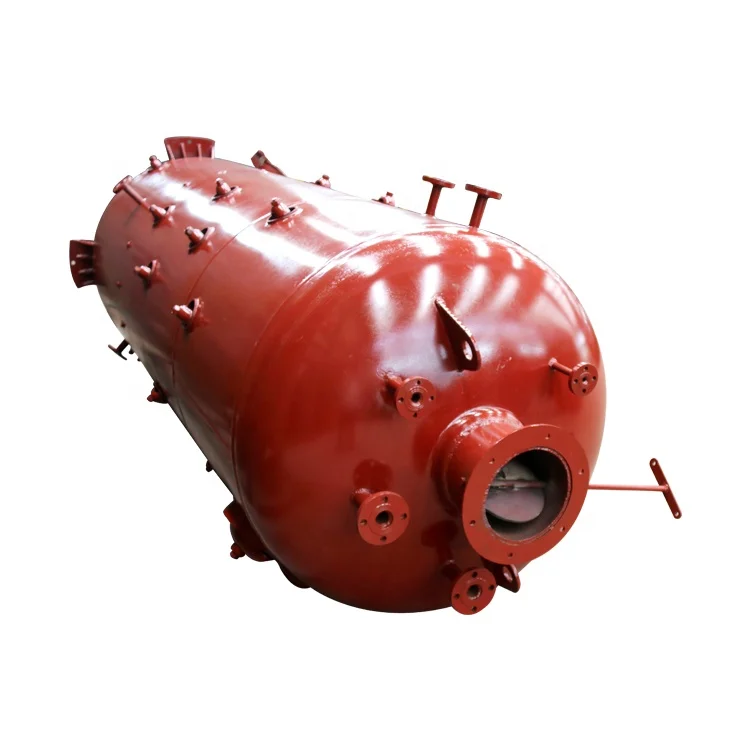

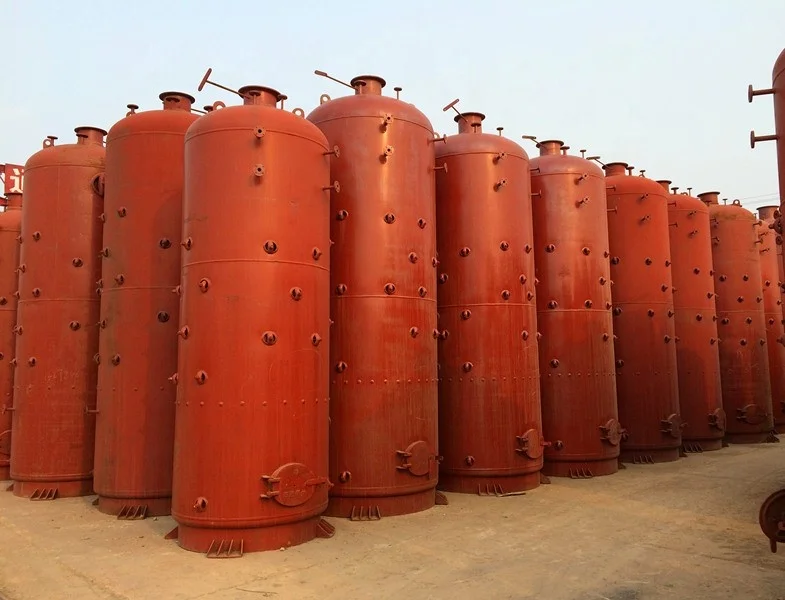

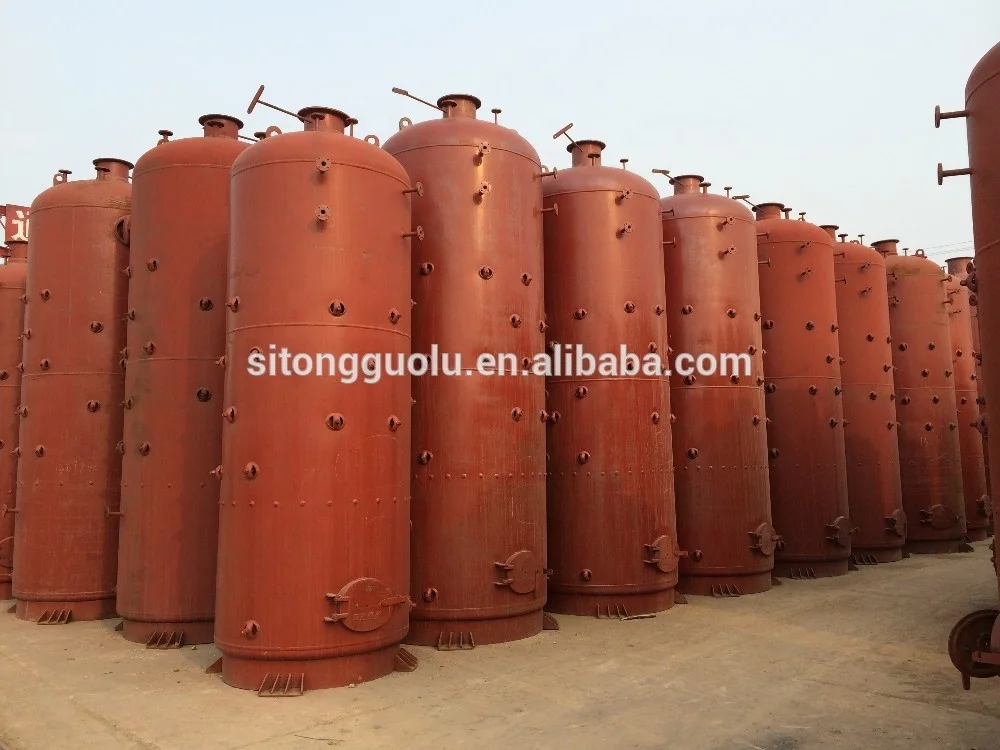

Vertical portable coal or wood fired hot water boiler

Product Overview

Description

Vertical portable coal or wood fired hot water boiler





Introduction of Vertical Portable Coal or Wood Fired Hot Water Boiler :



CLSG atmospheric pressure hot water boiler series, mainly by the pan head shell, furnace, furnace top, the sealing ring, foaming at the mouth of pipe and horizontal pipe, decorate inside the furnace combustion chamber, the fuel on the fixed grate combustion, flue gas lateral flushing water pipe inside the furnace, the foaming at the mouth tube, chimney discharged into the atmosphere. Because the runtime without pressure hot water boiler, thus it can be installed in any place without being year by year in a wide range of levels of inspection procedures. This kind of safe and reliable no explosion hazard of hot water boiler, obtained the rapid development and popularization in recent years.





Characteristics of Vertical Portable Coal or Wood Fired Hot Water Boiler :



1.this water boiler adopts horizontal water tubes and circular flue, so it is natual ventilation and can save energy and especially apply to area with no electric.

2.Heated area is all straight pipe,and have enough hand hole device,so it is easy to clean,examine and repair.

3.According to excellent design,the efficiency of this water boiler is high.

4.Easy to install ,small footprint,small investment.



Parameter of Vertical Portable Coal or Wood Fired Hot Water Boiler :



Item Model	CLSG0.06- 95/70 -A(III)	CLSG0.12- 95/70 -A(III)	CLSG0.24- 95/70 -A(III)	CLSG0.35- 95/70 -A(III)	CLSG0.5- 95/70 -A(III)	CLSG0.6- 95/70- A(III)	CLSG0.7- 95/70- A(III)	CLSG1.05- 95/70 -A(III)	CLSG1.4- 95/70 -A(III)
Nominal  Thermal Rating MW *104kcal/h	0.06 (5)	0.12 (10)	0.24 (20)	0.35 (30)	0.5 (40)	0.6 (50)	0.7 (60)	1.05 (90)	1.4 (120)
Leaving Water Temp	95°C
Return  Water Temp	70°C
Thermal Efficiency	>=70%
Coal-burning (kg/h)	20	28.6	57.2	85.8	114.4	143	171.6	257.4	343.2
Overall Dimension (¢*H)	Ø800* 2200	Ø900* 2600	Ø1100* 2800	Ø1212* 3420	Ø1310* 3780	Ø1416* 3780	Ø1612* 4420	Ø1812* 5200	Ø2016* 5300
Approx.Weight  (kg)	380	550	900	1893	3120	3650	3821	4800	5700
