Product Overview

Description

high brightness electric sound activated electroluminescent equalizer el Led car sticker for light





EL lighting car sticker,

It is a layer of soft and thin sheet be sticked on rear windshield or side window, wherever you feel appropriate.

Use driving equipment, plug it to 12VDC power, it can produce beautiful effect; also, it increases safety while you are driving at night.

At the mean time, it helps to make your car looks attractive and fashionable.



Installation:

This product is furnished with double faced adhesive tape and is covered with a protective membrane, you can remove membrane and stick to back windshield.

Meanwhile, the product is outfitted with a cupule and you can press it directly to windshield.



Wire connection:

A power cord with anode and cathode comes from the wire system of the small light which shows the width of a car,

you can directly connect them together by connecting red cord to anode and back to cathode, it will light when you power-on the small lamps at night.

Furthermore, the product is equipped with a white wire which will be connected to the anode of the wire of brake to make a brake lamp.

When you push the brake, the twinkling of product will be changeable. However, it will has no impact on the product effect if you would not like to make use the white wire.

Moreover, if there is a trouble for you to connect the wires in the car, you can demand to equip a lighter for cigarette instead,

the lighter can be directly inserted into car to make lamp lightening.

Please note that the quoted price does not include cost of fittings of lighter for cigarette.

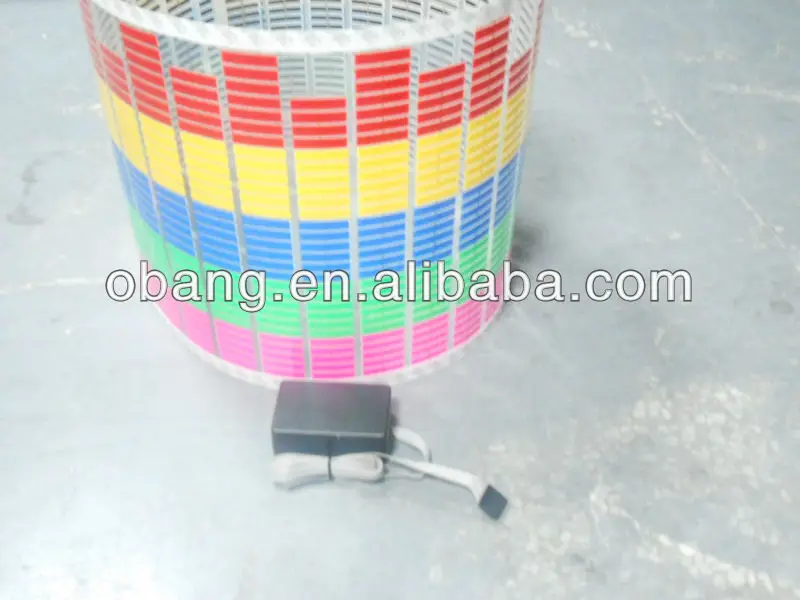

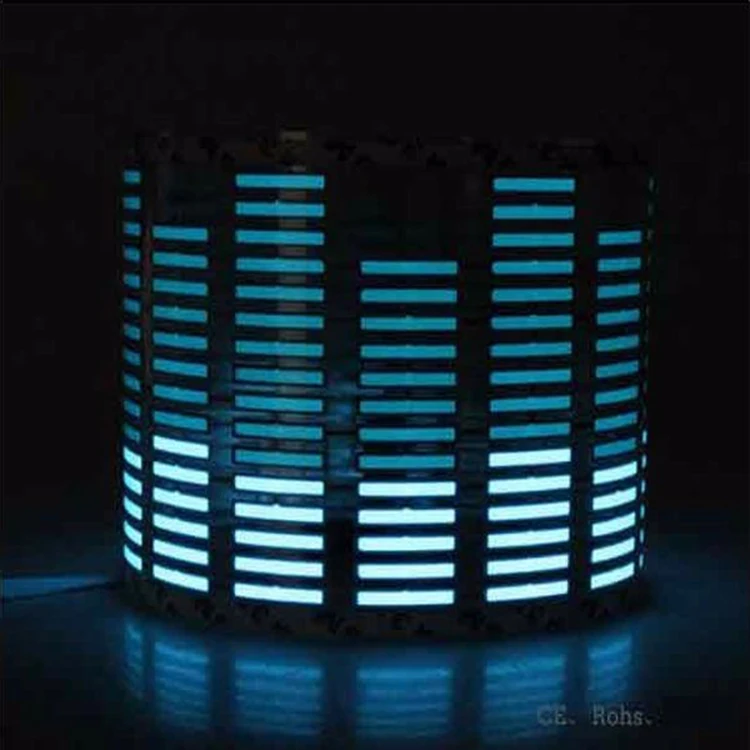

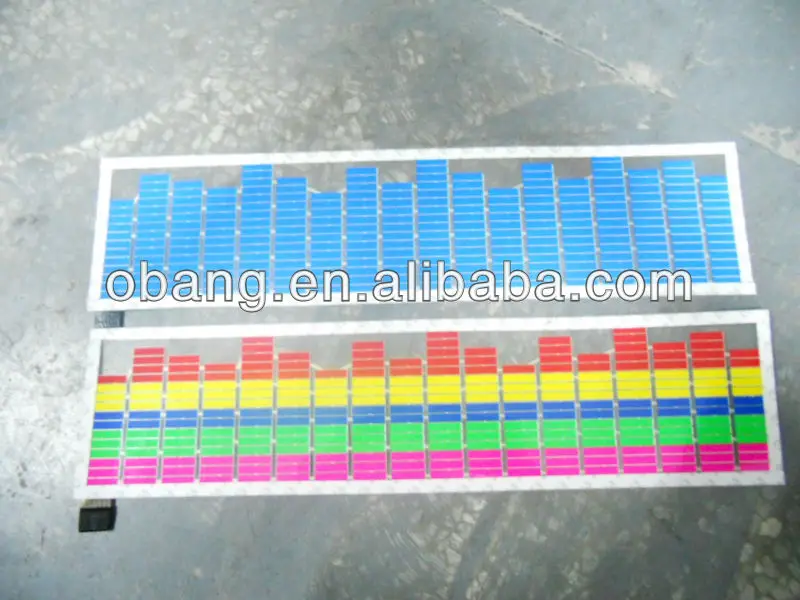

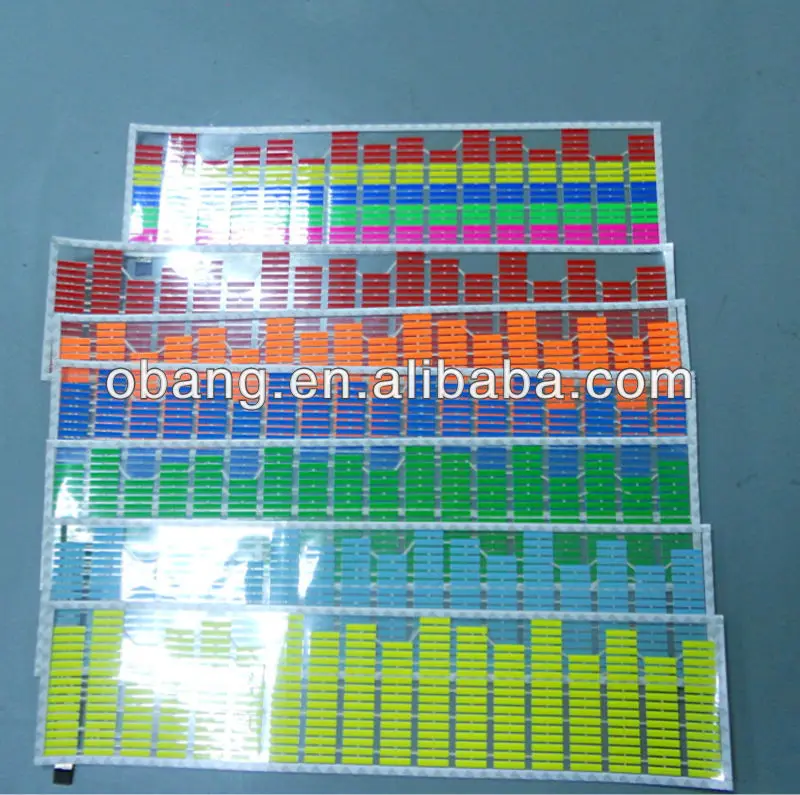

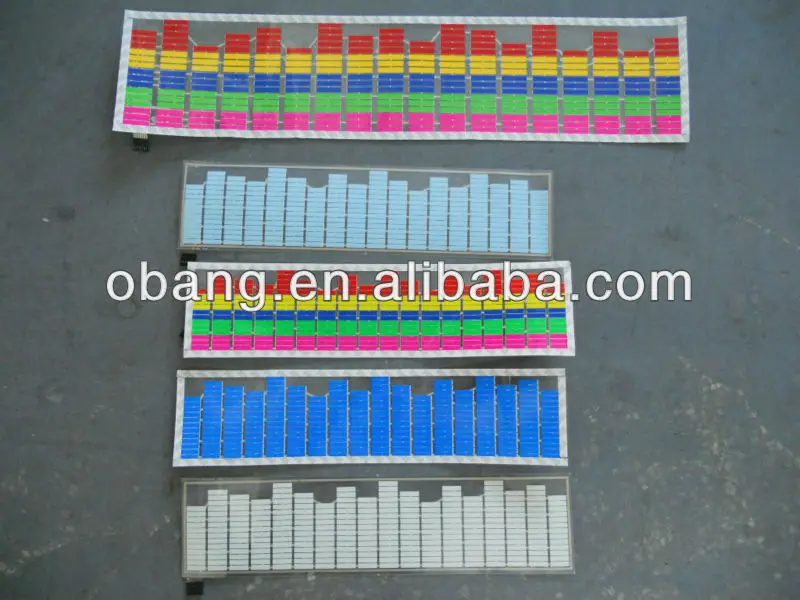

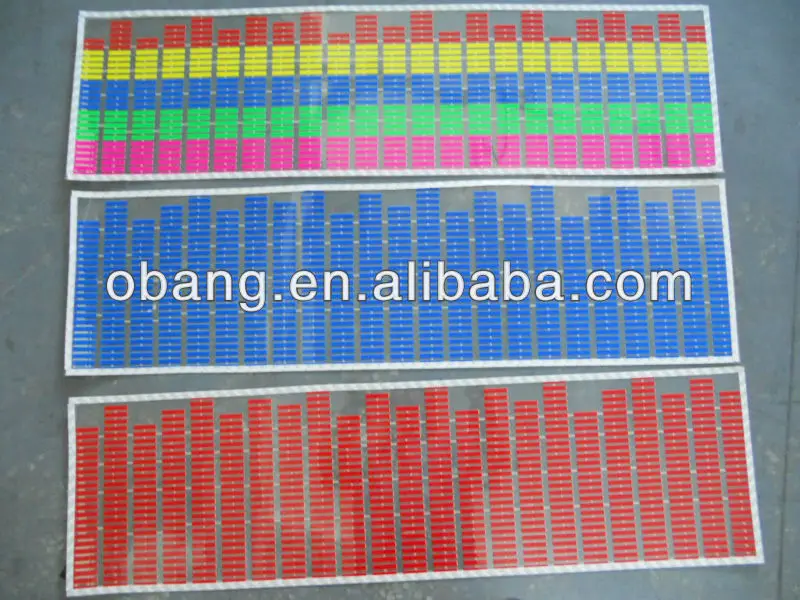

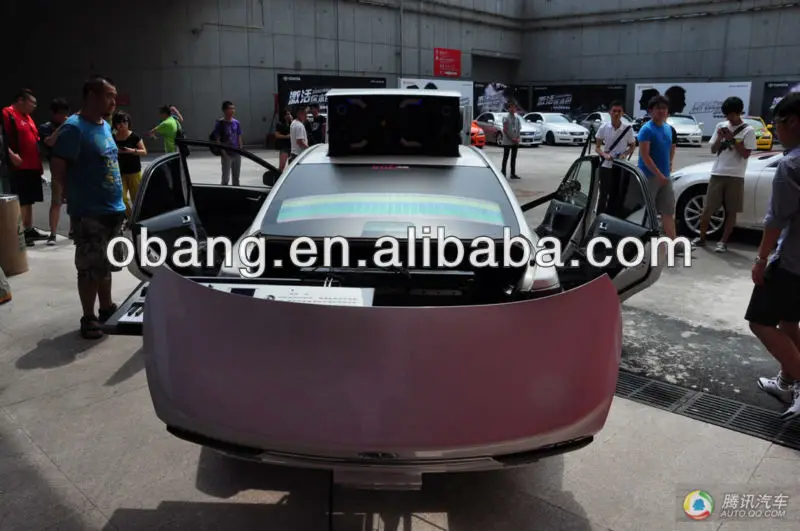

CHECK SOME PHOTOS OF READY-MADE:













Specification Of  EL Car stick
1.Thickness:0.2-0.5mm		8.Double side adheive: 3M
2.Property: flexible		9.Operating Temperature:-30°C~80°C
3.Bend Radius: 0.25''		10.Operating Humidity: 0-90%
4.Life time:10,000hours		11.Storage Temperature:-40°C~85°C
5.Size: Customized		12.Operating Current (100V/400Hz):1.5~2.5 mA /sq.in
6.Certificate: CE&RoHS		13. Applied Voltage: 12V DC
7.Capacitance:2-5nF/sq.in		14.Brightness(100vrm/400Hz): 80-100cd/m2







we are not only selling product, but also we provide superb service and customer care. it is available to customise the product and make sound activated el car sticker under customer's request.



do not hesitat to contact with me for any question,we will be your better choice.
