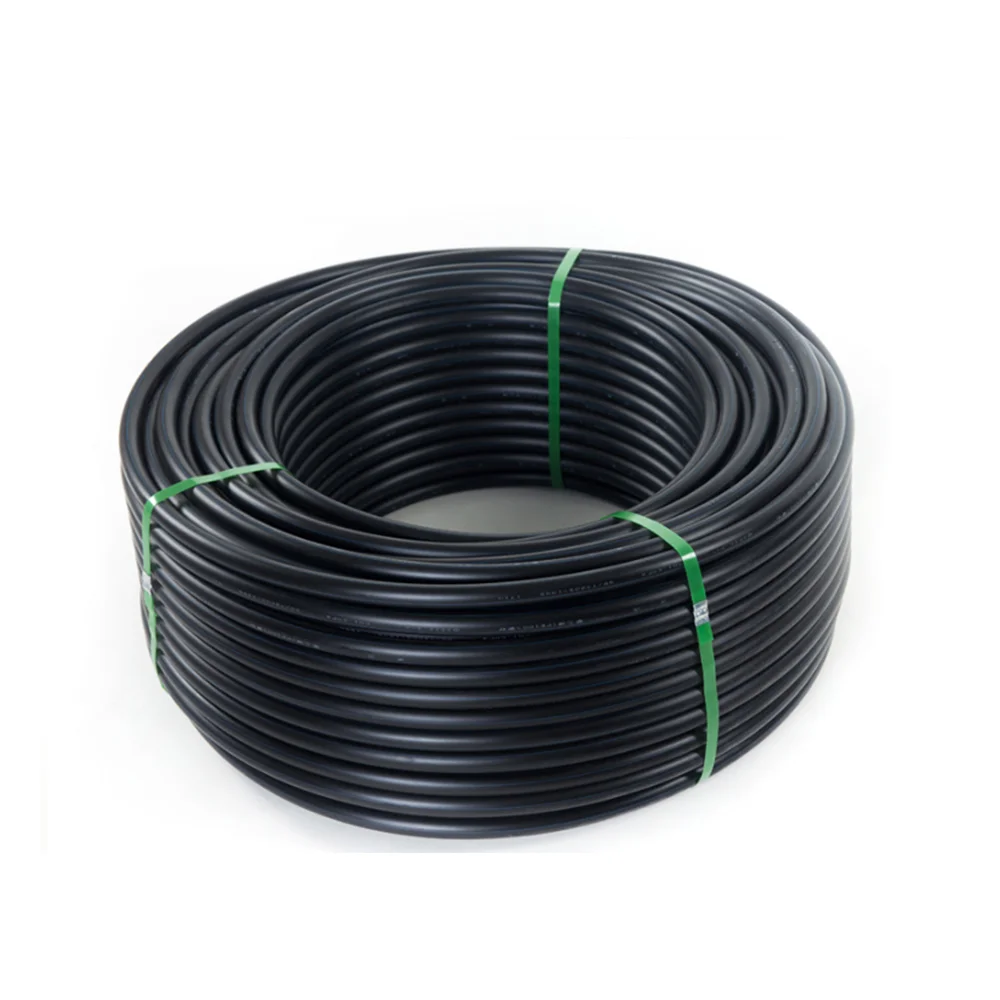

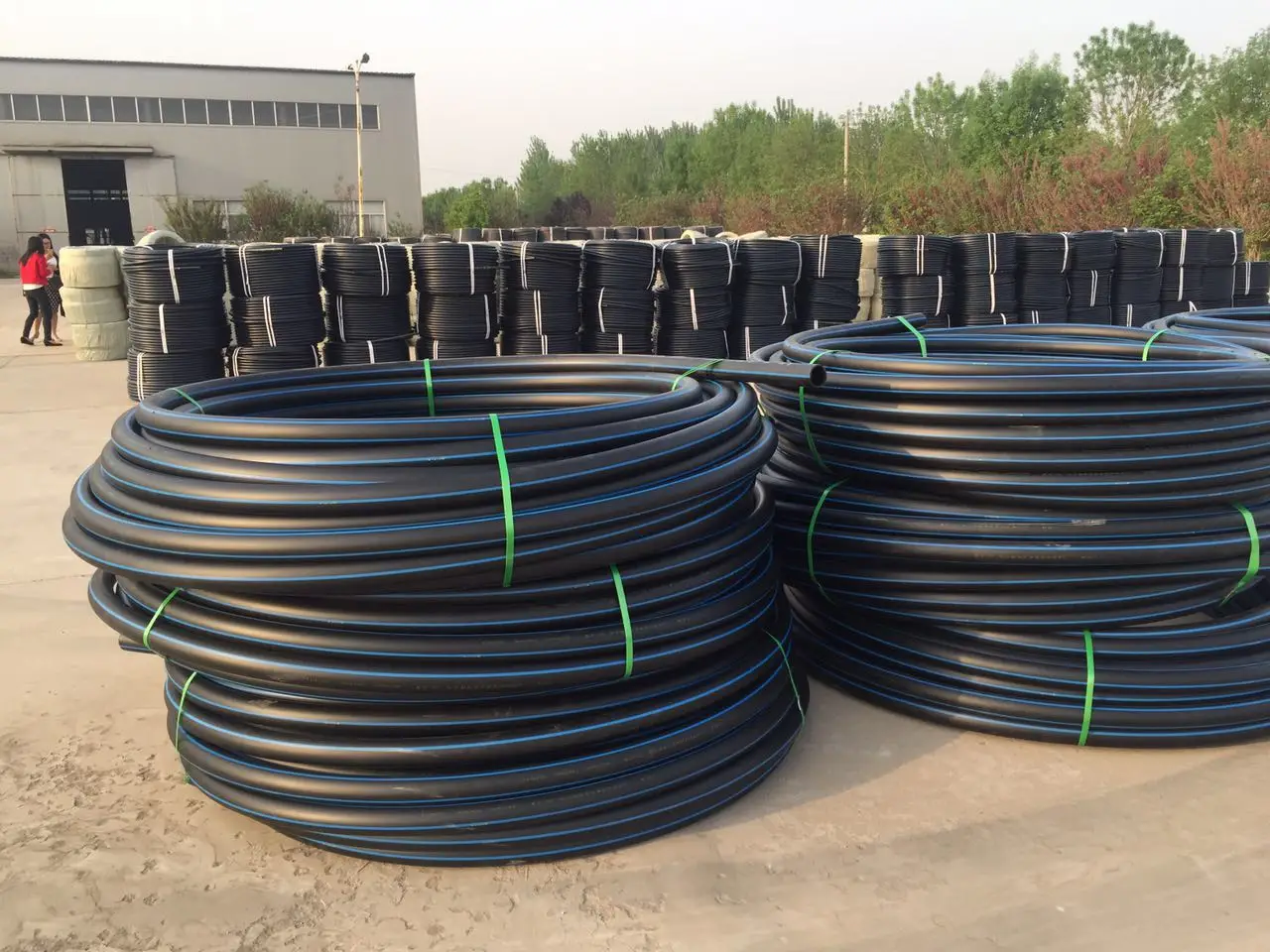

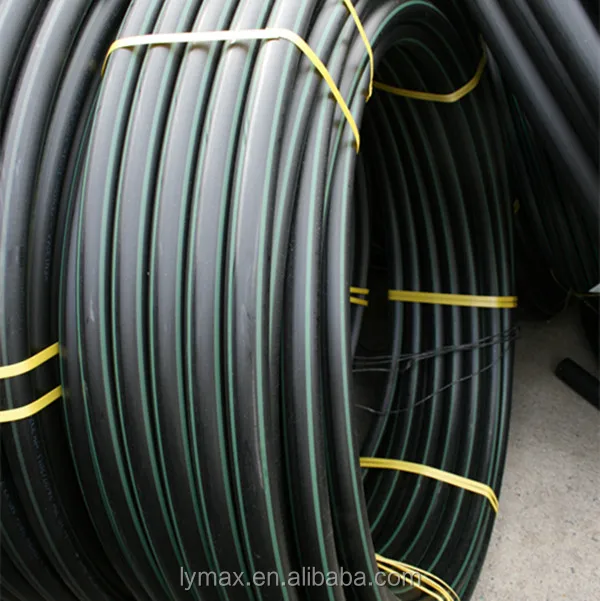

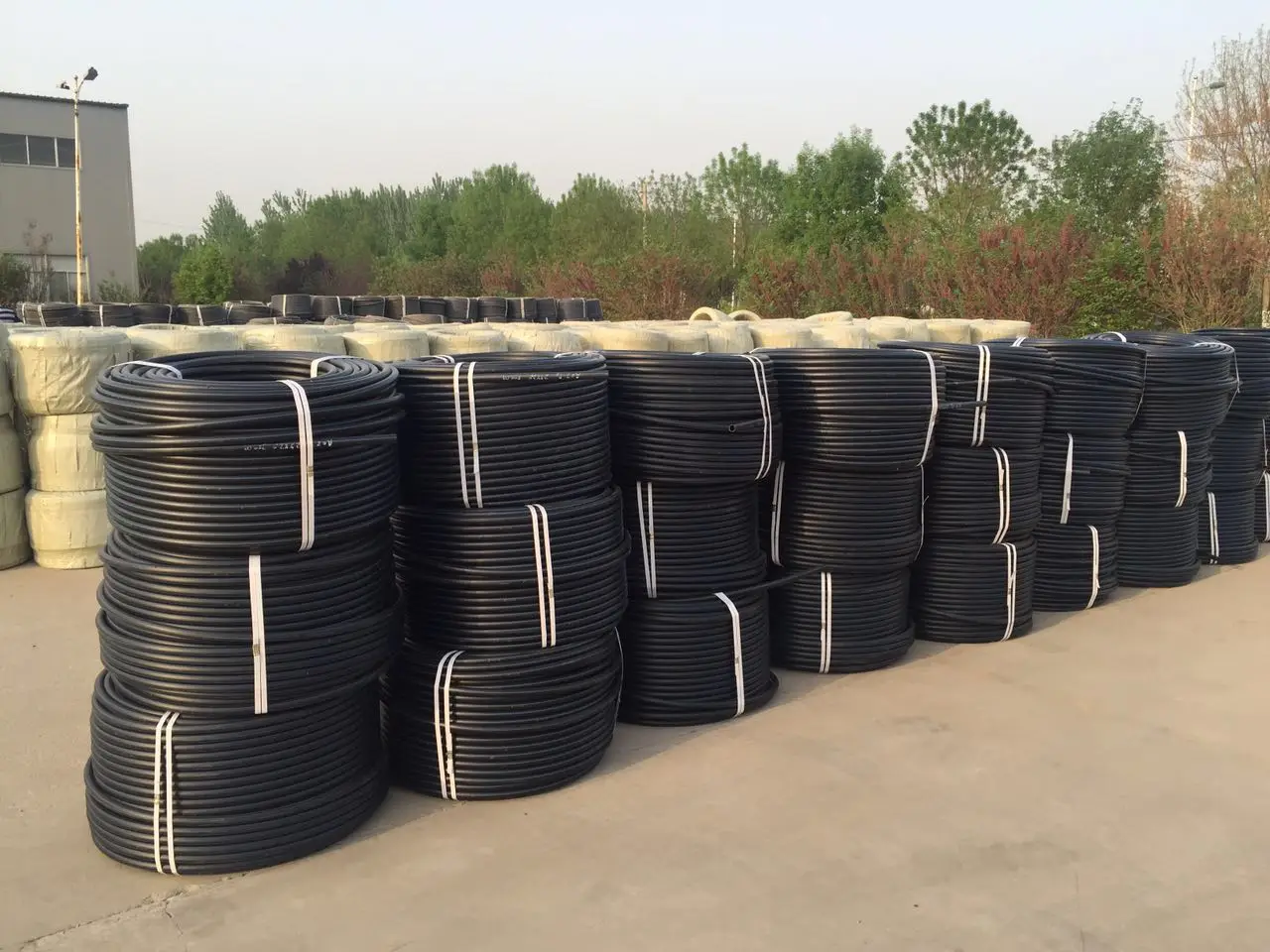

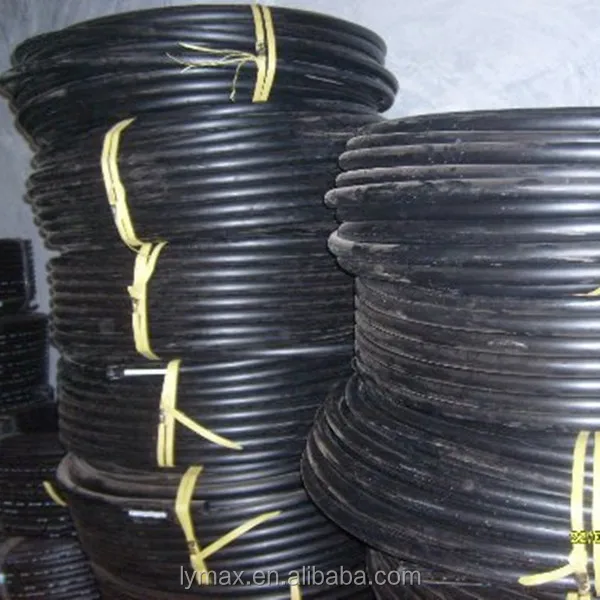

HDPE/ poly/polyethylene irrigation hoses price

Product Overview

Description

The Features of HDPE Pipe for Water Supply:
1. Health: nontoxic, not scaling. It does not contain heavy metal additive and will not breed bacterium

2. Chemical resistance
3. Size: 16mm to 1400mm
4. Thickness: 2.3-102.9mm
5. Pressure Rating: 0.6Mpa,0.8Mpa,1.0Mpa,1.25Mpa,1.60Mpa
6. Color: black, black with blue stripes, other colors available on request
7. Connection: socket fusion joint,butt fusion joint,electro fusion joint,flanged joint
8. Standard: GB/T13663-2000
9. Certification: ISO9001:2008
 HDPE Water Pipe Advantages:
1.Nontoxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion
3.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
5.Longevity: more than 50 years under proper use
6.Recycled and Environment-friendly
HDPE Water Pipe Applications:
1.City water pipe network system.
2.Urban and rural drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.

HDPE Pipe Size:

HDPE100 PIPE
Standard:GB/T13663-2000				Thickness: mm
PN	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
SDR	SDR26	SDR21	SDR17	SDR13.6	SDR11
DN	Thicnkness	Thicnkness	Thicnkness	Thicnkness	Thicnkness
16					2.0
20				2.0	2.3
25				2.3	3.0
32			2.3	2.4	3.0
40		2.3	2.3	3.0	3.7
50		2.3	2.9	3.7	4.6
63	2.3	2.5	3.6	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.3
710	27.2	33.9	42.1	52.2	-
800	30.6	38.1	47.4	58.8	-
900	34.4	42.9	53.3
1000	38.2	47.7	59.3
1200	45.9	57.2	70.6
1400	53.9	66.7	82.4

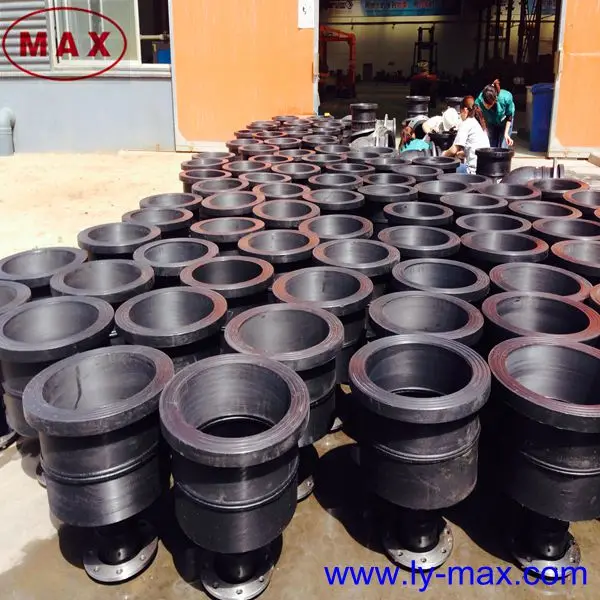

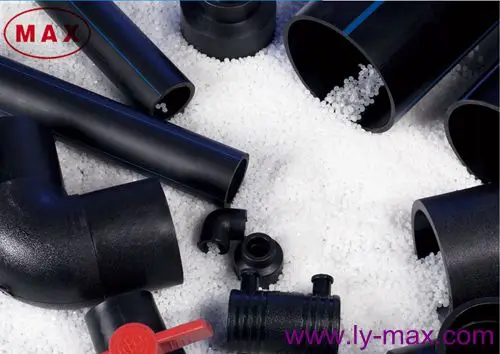

Our Main Products:



Our customers:

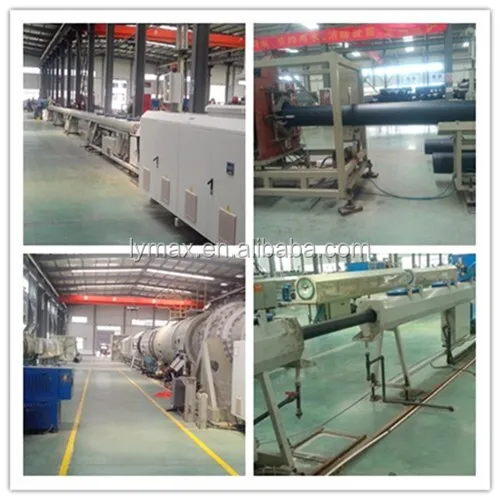

Welcome to visit our factory at any time,we would like to provide you the
