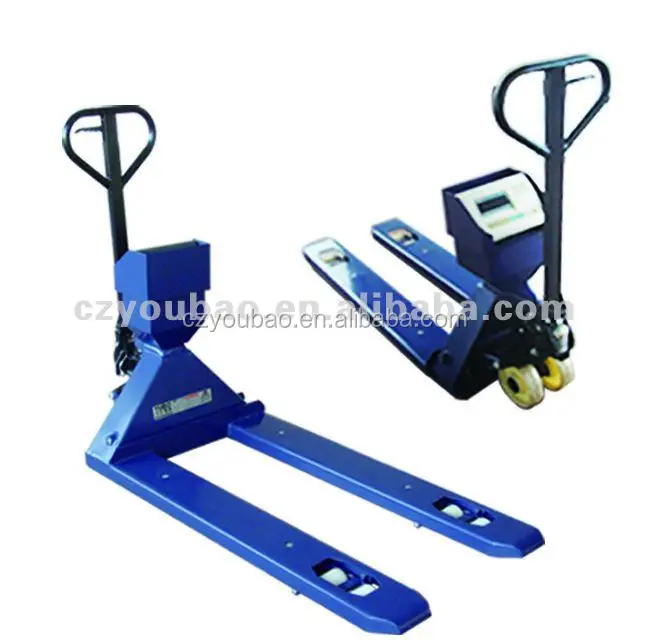

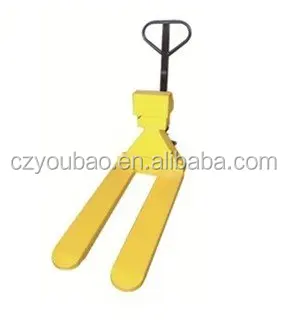

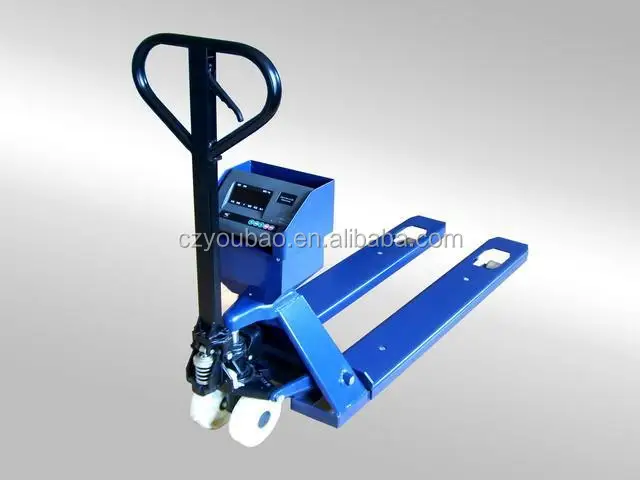

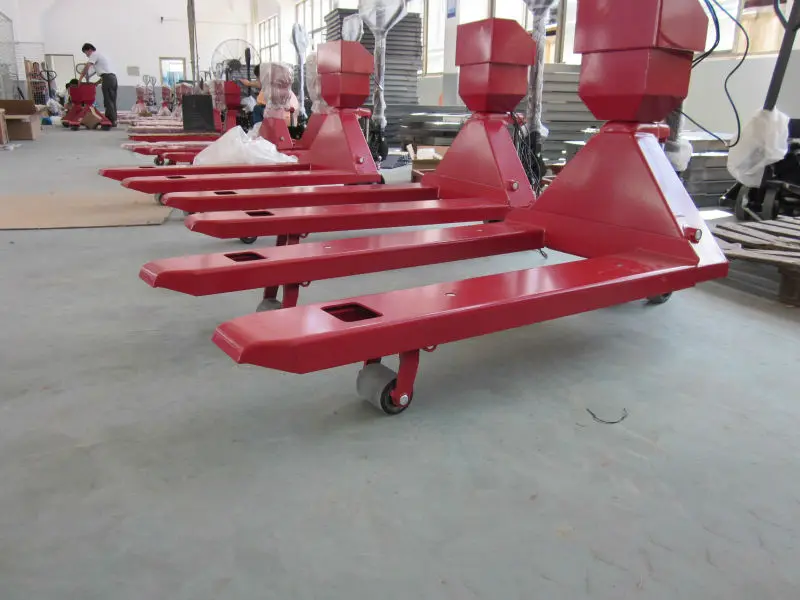

1ton 2 ton hand pallet forklift weighing scale

Product Overview

Description

  1ton 2 ton handle pallet forklift weight scale machine



Features:



1. No holes on the fork cover,and the minimum height above the ground is a little higher.



2. The surface finishing for scale is powder coated.



3. The fork is with holes on the cover, which makes cleaning the wheels easily and more conveniently to maintain the scale.



4. The minimum height to the ground is much lower.



5. With all functions of pallet truck



6. Special Nylon wheel



7. 6 digits LCD display (LED is optional)







PS series parameters:



1. Capacity: 1t, 1.5t, 2t



2. Fork length:1220mm.



3. Fork outside distance:560mm,690mm



4. Minimum height above the ground of fork:80mm.



5. Fork lifting distance:120mm.





Specifications:







Size Explanation:



Code	Explanation	Size(mm)
H1	Handle Height	1120
H2	Pallet Lowest Height	85
H3	Pallet Lifting Height	200
W1	Pallet Length	1350
W2	Pallet Width	180
W3	Width between Pallet	180(EU Size) 340(American Size)





Model	Platform Size	Capacity	Material	Type
PE	1.15*0.56*0.08m	1.5t, 2t	Mild Steel	European Size
PU	1.22*0.7*0.08m	1.5t, 2t	Mild Steel	American Size





Pictures:
