25m3 mobile concrete batching plant price

Share on (60076789275):


Price:RUB 2,994,811.00

Quantity:


Product Overview

Description

25m3 mobile concrete batching plant price



YHZS Series Mobile Concrete Batching Plant Technical Parameters:

Model

YHZS25

YHZS35

YHZS50/60

YHZS75

Output capacity

25m³/h

35m³/h

50m³-60m³/h

75m³/h

Overall power

40kw

60kw

85kw

105kw

Discharge height

3800mm

Max. hauling speed

40km/h

warranty

13months after commissioning

After-sale service

Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards

Concrete mixer

JS500

JS750

JS1000

JS1500

Motor power

18.5kw

30kw

18.5x2kw

30x2kw

Max. aggregate dia.

80mm

Aggregate batcher

PLD800

PLD1200

PLD1600

PLD2400

Aggregate weighing precision

±2%

Aggregate feeder

Belt conveyor

Other scale scope

Cement

±1%

water

±1%

additive

±1%

Control system

Auto computer control, 1 set

Pneumatic system

1 set

25m3 mobile concrete batching plant price

Why would our clients choose FOCUS mobile concrete batching plant?

FOCUS MACHINERYboasts an award-wining mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.

This series of mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.

As uniquely and compactly designed it is, this mobile concrete mixing plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing. It is the ideal concrete plant for projects that require frequent removal from one site to another.

What are the main features of FOCUS mobile concrete batching plant?

1.     Complete mobile unit:

Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this mobile concrete batching plant.

2.     Reliability of mix consistency:

Computer and manual dual control mode can be converted easily by a simple switch, auto control system with control panel provides ease of use as well as storing, editing and retrieving of up to 20 recipes for the proportioning of different materials;

Twin-shaft mixer offers this mobile concrete batching plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.

3.     Highly precise dosing of water, cement, fly-ash, additive

Focus mobile concrete batching plant dosing is realized by three-point suspension sensors, and they are all metered separately.

4.     Optimized and modular design

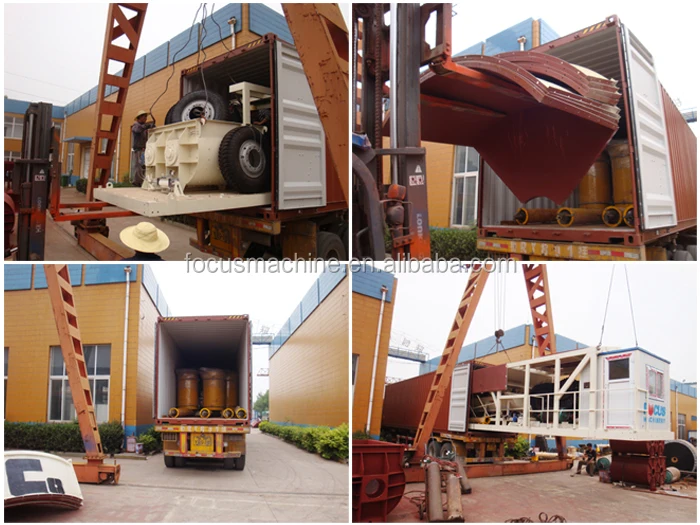

FOCUS mobile batching plant is convenient either for container transport or for towing vehicles.

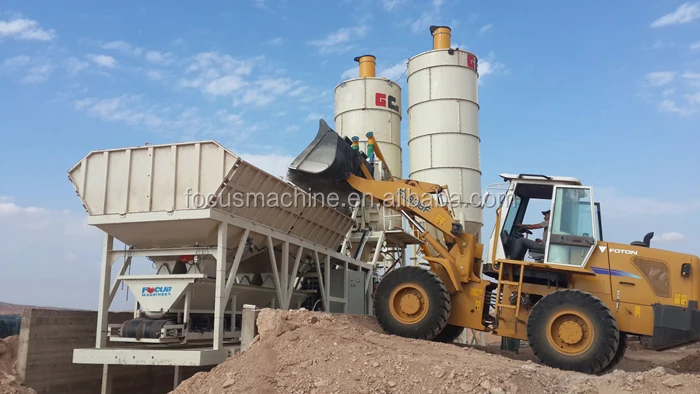

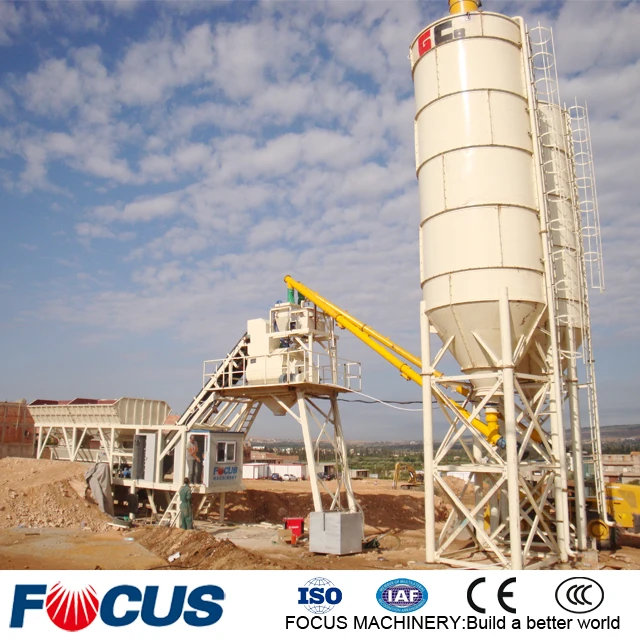

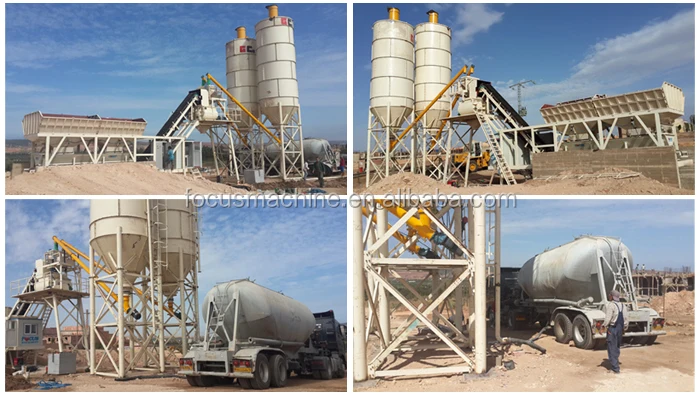

Our mobile concrete batching plants have been purchased, installed and operated all over the world:

25m3 mobile concrete batching plant price

Our mobile concrete batching plants have been delivered /distributed to the world with high reputation, it’ll be such a great honor if you can join us:

25m3 mobile concrete batching plant price25m3 mobile concrete batching plant price

1.ompetitive price and high quality

2.Good after-sale service;

3.ISO and CE certified with 12 months warranty

4.Reliable performance

25m3 mobile concrete batching plant price
