pressure vessel pipeline pig launcher pig receiver

Product Structure

 • Quick opening blind flange

 • Barometer connecting tube

 • Relief valve connecting tube

 • Fluid outlet tube

 • Barrel body

 • Relief valve connecting tube

 • Variable diameter tube

 • Extension tube

 • Rear support

 • Contaminant discharge tube

 • Front support

 Technical Parameters

• Design Pressure: techical up to PN35.0 Mpa

• Test pressure: water pressure is 1.5 times of the design pressure and air-tight test pressure is

  the same as the design pressure.

• Corrosion allowable: 2mm-3mm or based on customer's requirements

• Seismic intensity: 8 degree

• Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), gas, water.

• Size range from 3” to 56”.

• Class Rating from 150 – 2500.

• Materials – Carbon Steel, Stainless Steel, Monel

• Option of Pig Signallers available.

• Quick Opening Closures with Safety Interlocks.

• Third party classification society approved.

• Design codes include ASME VIII DIV. I & ASME B31.3, GB150.

• Full material traceability available in accordance with EN 10204 3.1.B or 3.1.C.

•Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), natural gas, coal gas, water.

h

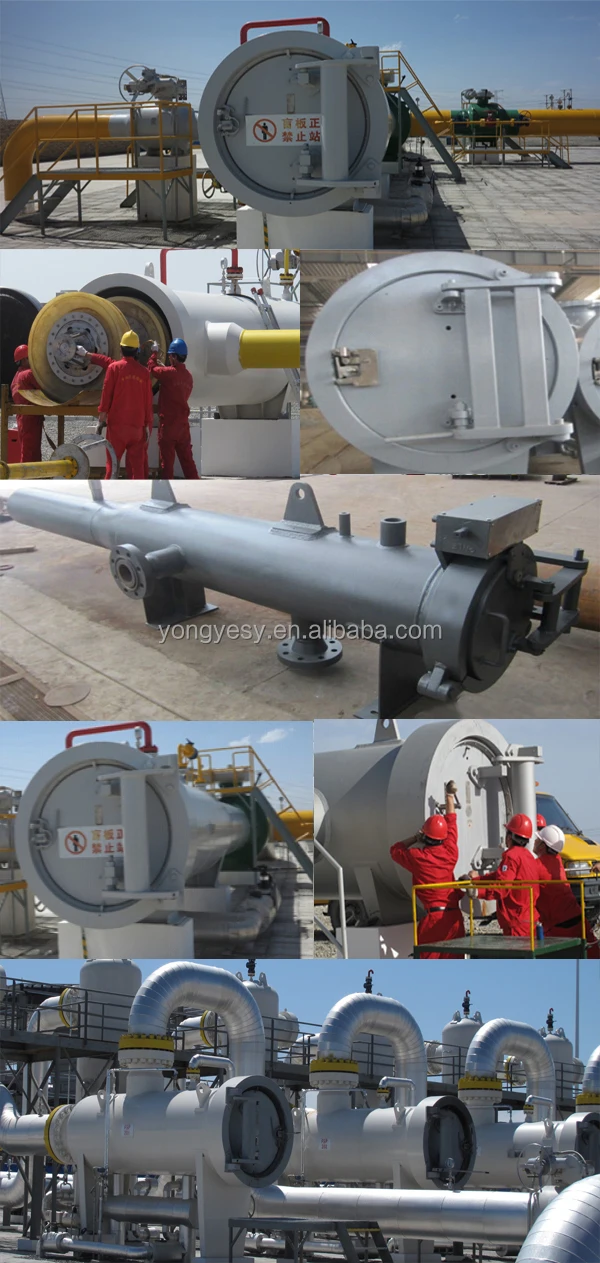

Products Picture:

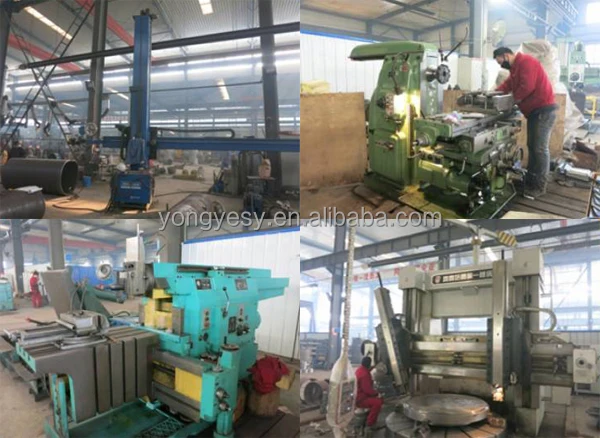

Manufacturing Equipment :
