RJ45 Surge Arrester for Signal and Control system, with DPR

Product Overview

Description

Lightning arrester / RJ45 surge protector  SY3157



RJ45 surge protector is special used in the network system and its different types can satisfy different defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed.

It is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting the equipment which will be damaged by the over voltage of the earth or the line inductance.

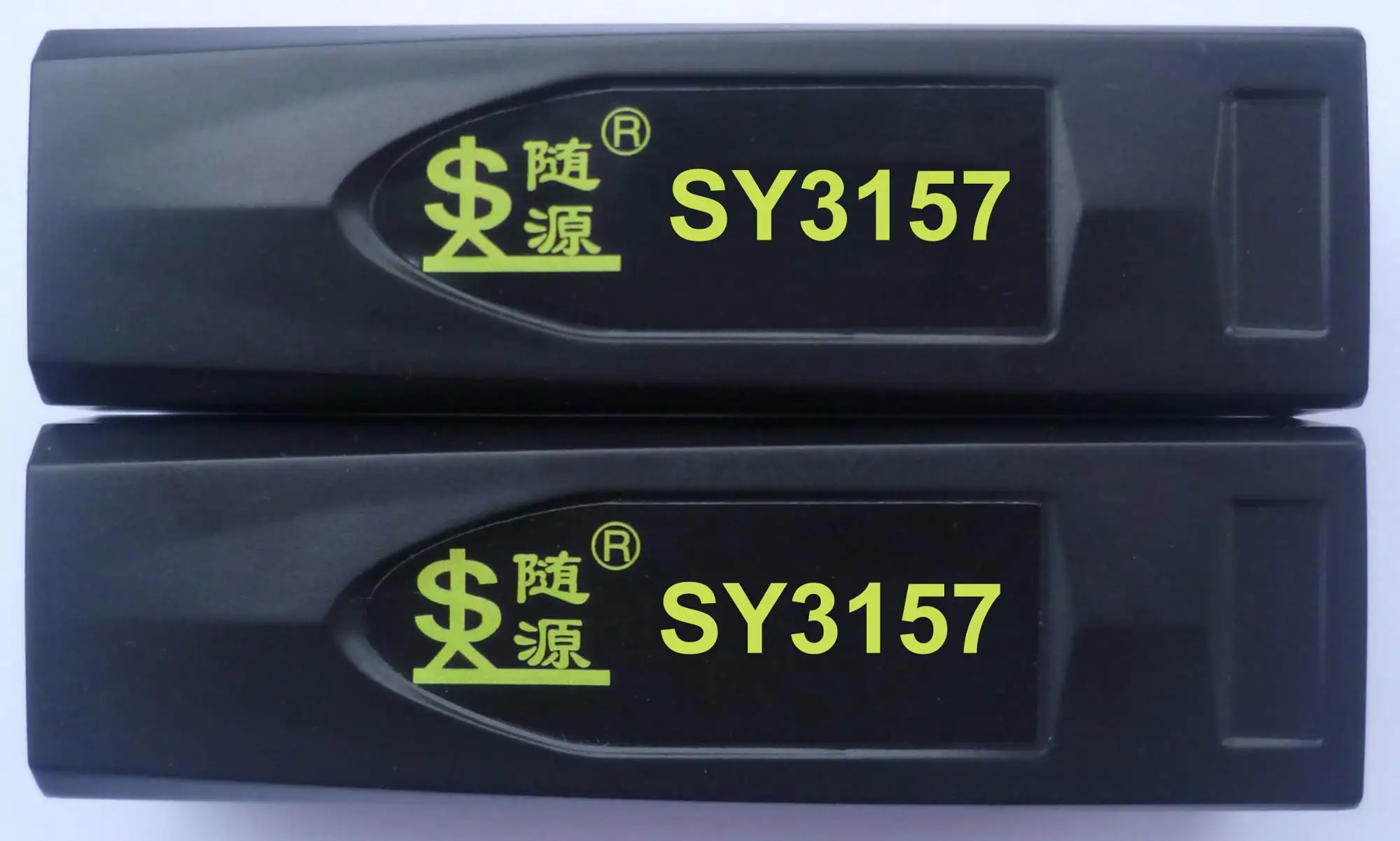

 SY3157 with DPRis one of these surge protector using in protection for network.



1. Specification details



Model	SY3157
Interface	Ethernet, RJ45 Cat6, with DPR
Data rater	1000Mb/s
Line voltage	3V
Max operating voltage	6V
Max surge discharge current	5KA(8-20 μ s)
Protected pins	All pins
Mounting	Grounding clip & Grounding terminal
Shell material	ABS
Weight	52g
Size	26*26*95mm
Package inch	40*27*105mm



2. Dimension



3.Main feature:

1.ABS material profile shell, attractive and durable, good shielding effect;

2.RJ 45 convenient to use, reliable connection;

3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.



4.Package

Surge protector x 1

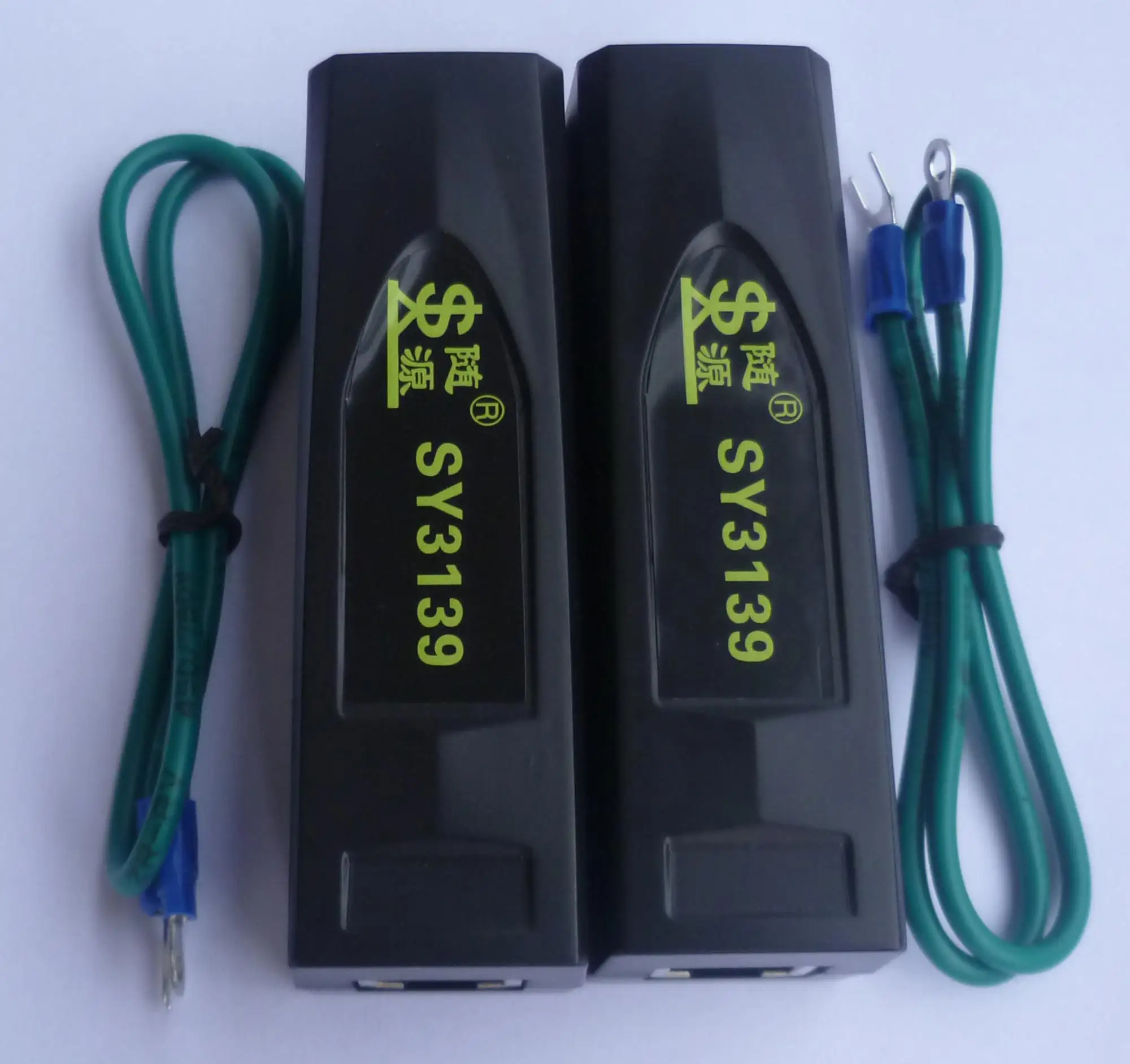

Grounding terminal/ Grounding clip x 1

Manuals/ Instructions x 1



5.Certificates:

 CE certificate

 Compliant to ROHS

 Lead-free



6.Service

  A. OEM

  B. If there is other requirements for surge protector, pls send your specs, we will design for you.



Welcom your inquiry, we will do our best to support you!
