6s New Double Deck LS4500-2 Mining Shaking Table
Product Description
6-S shaking table, as one of the gravity mining machines, is applicable not only to nonferrous metals, ferrous metals and rare metals minerals, like gold, tungsten, tin, tantalum, iron, manganese, chrome, titanium, bismuth and lead whose size ranges from 2-0.037mm, but also to the recovery of Au, Cu, Ag from various of slags, PCB, waste wire and cable, and battery scrap, as well as to pyrite whose size ranges from 4-0.037mm. By changing its grooves somehow, shaking table could be applied to some nonmetal mineral, like slack coal, coal slime, monazite, rutile, zircon sand, fluorite, silica etc, as well as other mixtures which have enough specific gravity and particle size differences.
Features
Compared with the single deck shaking table, the double deck shaking table has following features:
>> Smaller floor area. That could reduce the cost on the construction area of the plant.
>> A larger capacity. Capacity of one double-layer shaking table is 2 times of that of a single layer shaking table, which could reduce your investment.
>> High cost-performance. The double-layer shaking table has a much favorable price than 2 sets of single layer shaking table.
>> Lower labor cost. In the condition of same quantity of shaking tables, the double-layer type only take half operators of that of one single layer shaking table.
Structure

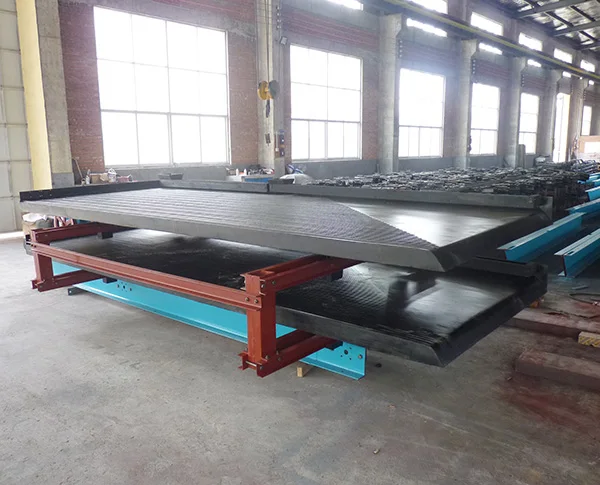

Name: Deck / Table
There are 3 different deck designs available:
(1) The coarse ore deck for 0.5 mm to 2 mm;
(2) The fine sand deck for 0.074 mm to 0.5 mm;

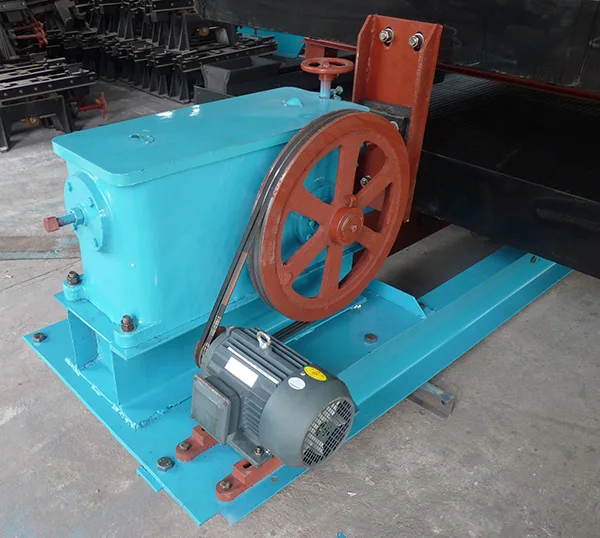

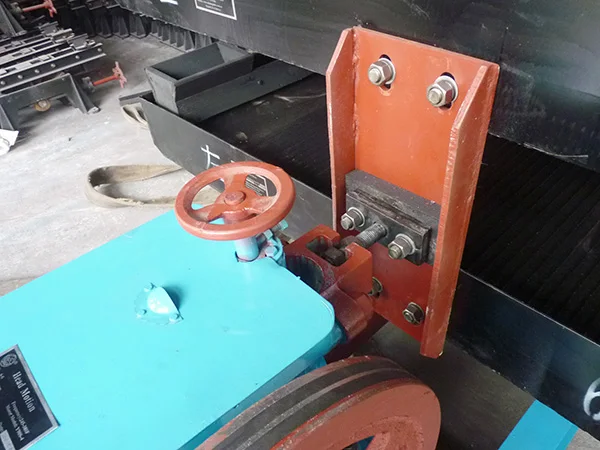

(3) The slime deck for 0.05 mm to 0.074 mm | Name: Head motion / Driving device
Gold Washing Shaking Table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
It is one of the most important part of shaking table |
Name: Support device
The double layer shaking table usually adopts the #28 channel steel support as it's the most stable support compared with #10 and #8 channel steel support.:
| Name: Motor engine
The motor engine for our shaking table is the type which is specially applied for export and which is with high quality.
It is different from the one for domestic market. Siemens motors are available |
Each shaking table can be configured with the product collector if you would like. Thus it's unnecessary for you to make the collector after you get the machine.
Technical Parameter
Model | LY(S)4500-2 | LY3000-2 | LY2100-2 | |
Deck Size(mm) | 4500×1850×1560 | 3000×1680×1380 | 2100×1050×850 | |
Separation Area(m²) | 7.67*2 | 4.08*2 | 2*2 | |
Feeding size (mm) | Coarse | 2-0.5 | 2-0.5 | 2-0.5 |
Fine | 0.5-0.074 | 0.5-0.074 | 0.5-0.074 | |
Slime | 0.074-0.037 | 0.074-0.037 | 0.074-0.037 | |
Capacity (t/h) | Coarse | 2-5 | 1.2-3 | 0.8-1.6 |
Fine | 1.6-2.4 | 0.6-1.6 | 0.4-1 | |
Slime | 0.6-1.8 | 0.4-1.2 | 0.2-0.8 | |
Water Consumption(t/h) | 3-8 | 2.5-7.5 | 2-5 | |
Power (kw) | 2.2 | 2.2 | 1.5 | |
Dimension (mm) | 5630×1850×1260 (#28 support) | 4130×1680×1260 (#28 support) | 3040×1050×1060 (#28 support) | |
Two Layer Shaking Table Two Layer Shaking Table Two Layer Shaking Table

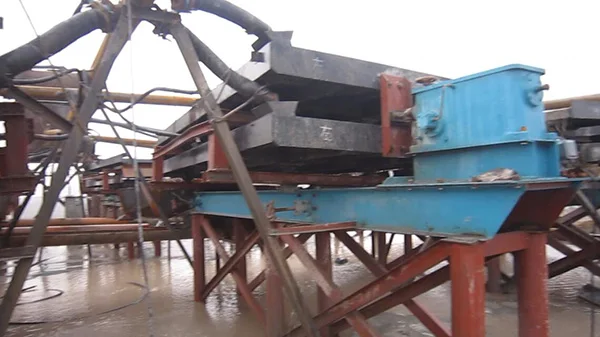

Engineer Case
Shaking table is a gravity equipment suitable for almost every type of heavy mineral separation. So it's widely applied both in China and abroad.
Two Layer Shaking Table Two Layer Shaking Table Two Layer Shaking Table

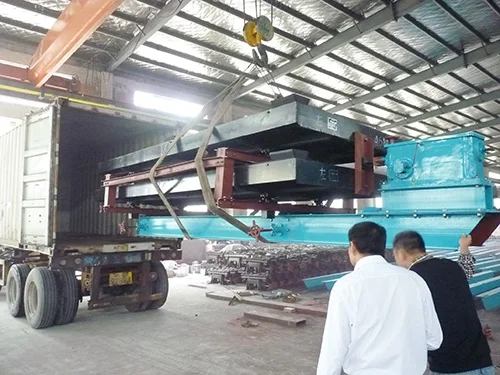

Packaging & Shipping
The double deck shaking table is usually shipped in full container as it's not economic to be shipped in bulk after package.
Two Layer Shaking Table Two Layer Shaking Table Two Layer Shaking Table
About us
Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd has specialized in the mining equipment manufacturing for 25 years.
Shaking Table is one of our flagship products. The place we locate, Shicheng County, is the home of Shaking Table in China. Based on this, we grow up stronger and stronger.
25 Year-experienced skill ensure our product a stable structure and better performance. Among so many products from us, Shaking Table is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.
