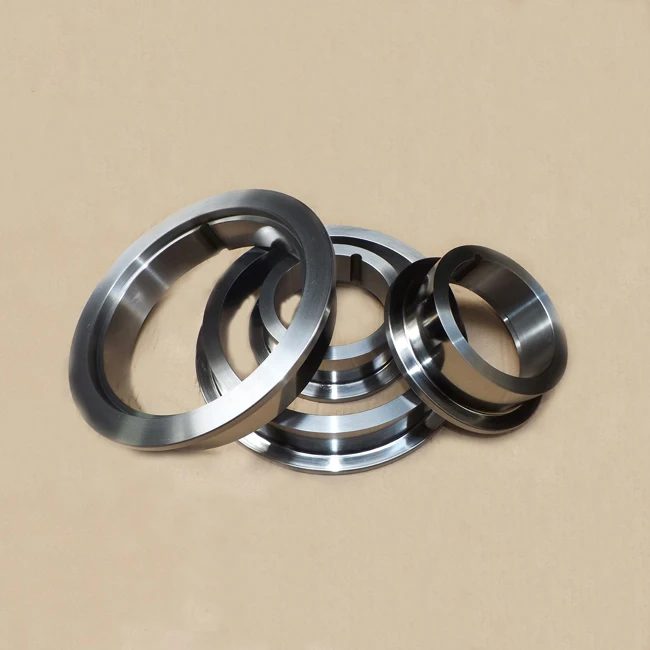

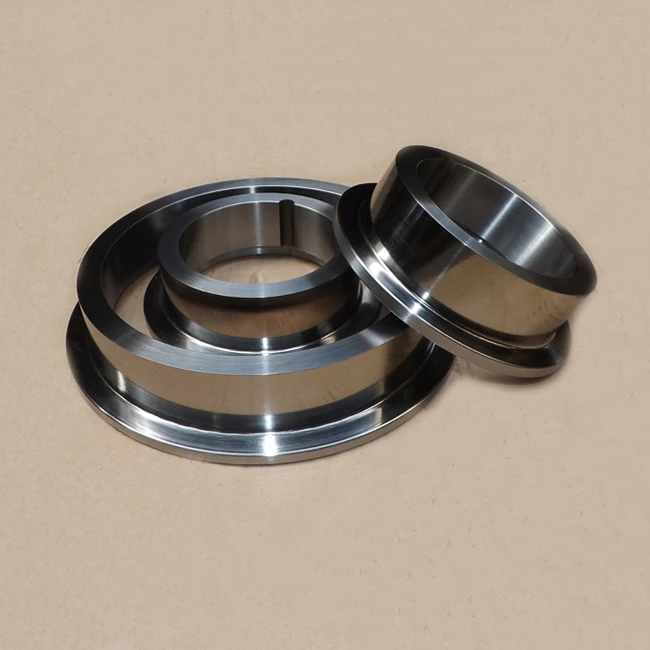

Tungsten Carbide Coating Bare Copper Wire Drawing Steel Ring For Middle /Large Wire Drawing Machine

Product Overview

Description

Specifications

Copper Wire Drawing Steel Ring  :
1 Excellent low friction
2 light weight as aluminum material
3 not damage wire
4 Long working life .





SENGUANG  Tungsten Carbide Coating Bare Copper Wire Drawing Steel Ring For Middle /Large Wire Drawing Machine





Specification



1 Direct Factory with more than 10 years exprience

2 High quality,Small MOQ

3 Best service,Fast delivery

4 Custom order:Accept





Technical parameter table :



Material bone 45# steel Spary material: Tungsten Carbide(wolfram carbide) Surface roughness  Ra 0.3 Thickness of Coating: 2-3 mm single side Hardness of Coating: HRC 65 Craft: Melting after coating to ensure the coating powder  and the base metallurgical connection. Coating feature:  wearing roof,   fit for making cooper wire,   stainless wire with Φ 0.5mm and   above. equippment Supersonic equipment(HVOF),flame powder spray equipment Typical coat(Tungsten carbide ): CO-WC coat,self-fusion alloy+(30-50)%WC coat Drawing  Customs provide technical drawing or finish with us Certification ISO9001 Sample Lead time From 7 days to 7 days upon receipt of sample charge Delivery Lead time 10-15 days after deposit received







The Production Process



 1) Purchase material.



2)Processing:To ensure that the coating thickness and size requirements, we need to reserve the size o  f  coating, pre-cut.



3) Rubbing    : After pre-cut,Rub the burrs and marks.



4) Sand coating:Go gray, impurities, surface roughening.



5) The thermal spraying (WC –Metal ceramic hot spraying).



6) Cooling down



7) Granding:According to the customer size requirements and precision.



8) Polishing.



9) Inspection (packing and ship the goods after inspection).

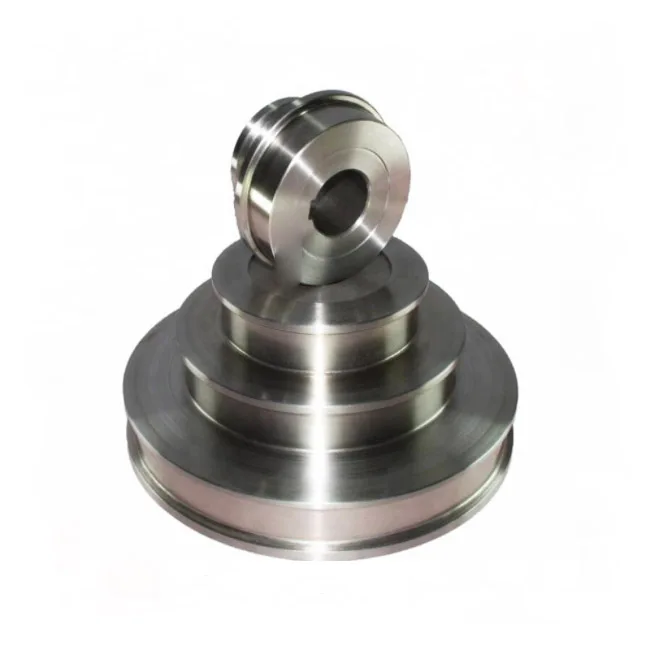

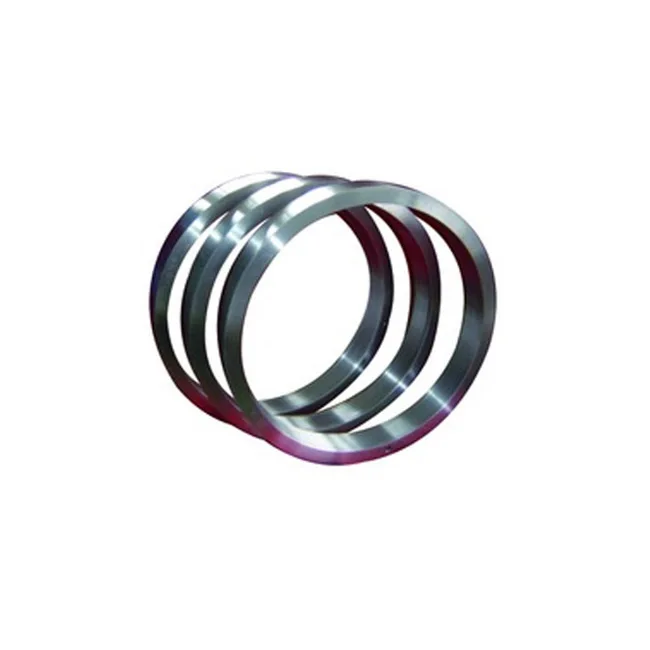

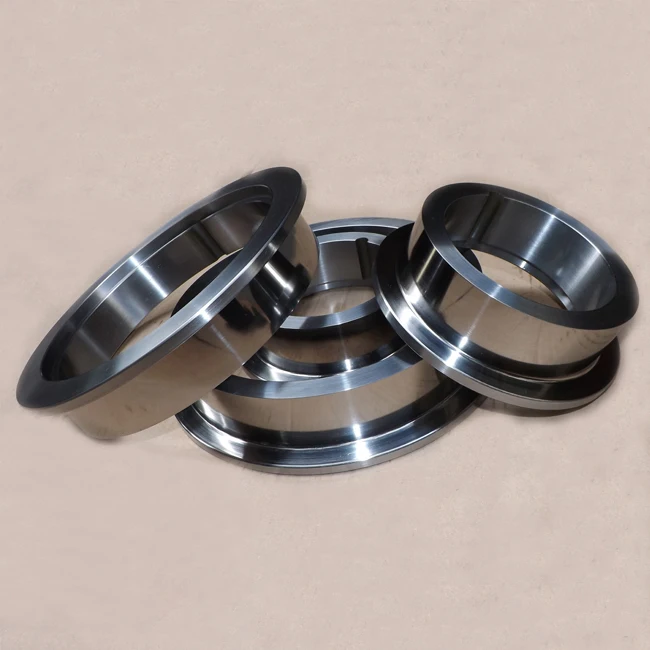

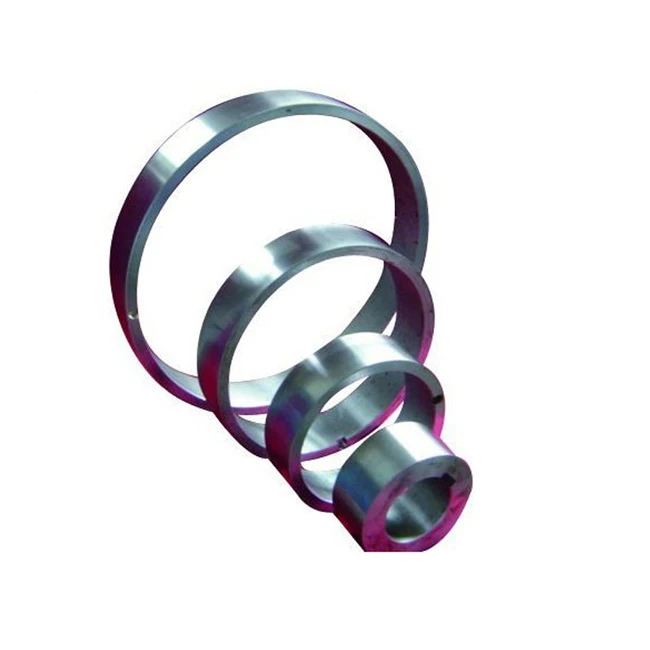

Product Photos:

























1) Our Company

    Our Company has a team ---- experienced technical personnel with over 10 years working experience in---- producing various wire guide pulley,steel ring, roller . We can provide you with first-class design, precision

 product, packing, delivery and other services like pre-sales, sale and after-sale services.





 2) Our Product

     Our product type is diversified, covering nearly all kinds of ----wire industry, ---cable industry,------- wire

drawing pulley,ceramic pullley,roller etc used in deiiferent industries. Our main product are various ceramic      coated pulley and cone pulley,tungsten carbide coated pulley and cone puley,ceramic and tungsten carbide   roller,steel ring, etc.





 3) Our Equipment

     We equipped with advanced production equipment(like------ Supersonic equipment(HVOF),------flame

powder spray equipment ) and -------advanced technical experience, which gives us good production

capability.





1 Can we get some samples?Any charge?

    Yes,you can get available samples,Free for ceramic samples,but freight cost.

    Other metal products need sample cost.



2 How can we get the quote?

    Of course,First send the detailed drawing to my customer service Email.

     If no drawing,please  supply the specification of products,such as material,size,shape,  quantity,            surface finish,etc.



3 If i have no drawing,Can you help with the design?

   Yes,we have professional designer to help your design.



4 What is the trade terms and payment terms?

   30% or 50% of the total value to be paid before producing,the rest of depoist to be paid before shippment.

   Accept T/T .west union,money gram,L/C,paypal,Cash,other can be negotiated



5  What about the lead time?

   It depends on products,Normally 10-15 days after comfirmation of drawing and payment.



6 How Can i know if Our product have been shipped?

  Detaileds photos of every process will be sent to you durning the production,we will supply tracking No,once shipped.



7 What shipping method can i choose?How about the shipping time of each option?

   DHL,UPS,FEDEX,TNT,CHINA POST ,etc. 3 to 5 working days of express delivery.



8 How do you computer the shipping charges?

  We will supply shipping charges according to estimated G.W,when quote.



9 Do you have MOQ?

  Yes,the Minimum order quantity depends on the specifications of products you need.







Notice: please accompany your inquiry with a drawing of the item. then response you within 24 hours.
