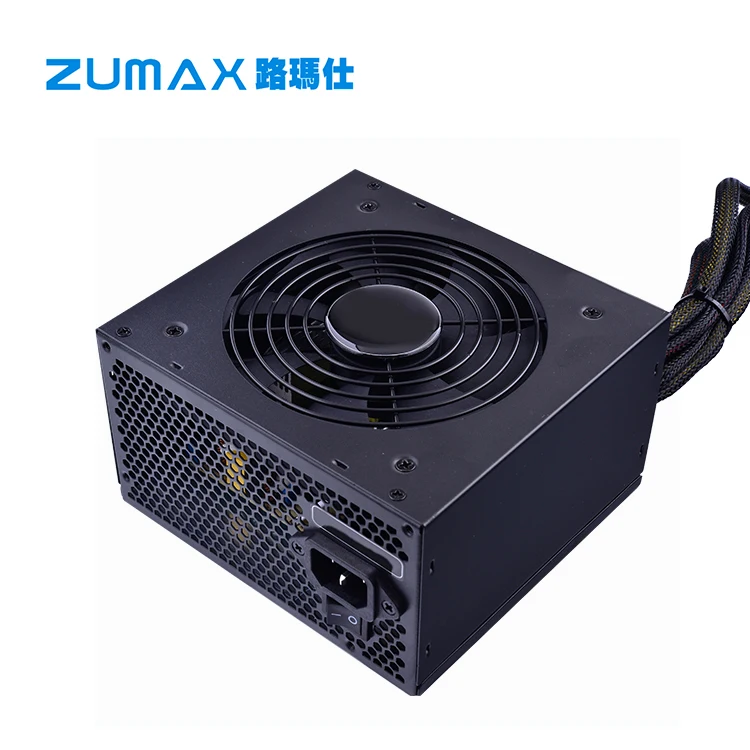

ZUMAX заводской Лидер продаж 500 Вт ПК блок питания Игровой atx Блок питания новые продукты
- Category: Power Supply Units >>>
- Supplier: Dongguan Worldwide Electronic Technologies Co. Ltd.
Share on (60077677015):
Product Overview
Description
| Model NO | ZU-500 | ||||||
| Rate Power | 500W | ||||||
| Peak Power | 600W | ||||||
| Efficiency | 80% (80Plus White) | ||||||
| AC Input Range | 100-240V | ||||||
| Active PFC Universal | Yes | ||||||
| Temperture Control | Yes | ||||||
| 12V Rails | 2 12V(12V1,12V2) | ||||||
| Housing Material | Black Coating | ||||||
| Fan & Fan Guard | Intel fan 120mm with black Guard | ||||||
| I/O switch | Yes | ||||||
| Modular | - | ||||||
| Power Cord | - | ||||||
| Housing Size | 140mm (L) x 150mm(W) x 85mm(H) | ||||||
| Package | PE bag &10 pcs/brown box | ||||||
| 20+4Pin | 1 (exposed 500mm) | ||||||
| CPU 4Pin | - | ||||||
| CPU 4+4Pin | 1 (exposed 500mm) | ||||||
| PCI-E 6Pin | 1 (exposed 500mm) | ||||||
| PCI-E 6+2Pin | 1 | ||||||
| SATA | 6 (exposed 500mm) | ||||||
| Molex 4Pin | 6 (exposed 500mm) | ||||||
| Floppy 4Pin | 1 | ||||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||||
| Output voltage | +12V1 | +12V2 | +5V | +3.3V | -12V | +5Vsb | |
| Output current | 20A | 20A | 20A | 20A | 0.5A | 3A | |
| Max.output power | 420W | 100W | 6W | 10W | |||
| Rated power | 500W | ||||||
Key Feature:
1. Version: Intel ATX 12V Version 2.31
2 .Efficiency exceed 80%
3.AC input options (100V -240V)
4.Thermal control technology
5.Protection circuitry offer: OVP OPP SCP OCP UVP OTP
6.100% burn-in under ambient temperature upto 45℃
7.100% high voltage test under AC 1.5KV 10mA 3Sec
8.Standby power less than 0.5W,low power consumption
9.Low ripple,silent
10. MTBF:100K hours at 25℃
EUW500 ATX Power Supply is our high-end pc power supply model ,It efficency can be easily made reach 80% ,Adopt the Active PFC and 2 of 12v rails circuit,The power supply is low loss and high reliability. The Standby power of EUW500 ATX Power Supply can less than 0.5W and is so quiet With strong and steady power supply support for Discrete Graphics EUW ATX Power Supply can satisfy high-end PC Game wants And EUW series include these specification as bellow: 250W 300W 350W 400W 450W 550W 600W 650W 700W 750W 800W
Company Information
Zumax is a professional manufacture of power supply, who is devoted to research the products how to save energy and keep up with the pace to the new motherboard.Since founded in 2010, Zumax is covering an area of 15,000 square meters and has owed over 200 skilled workers who is engaging and developing with factory to keep good and stable quality for our customers based on advanced technology. “Sustaining innovation” is the aim of our R&D department, satisfaction for our customers is corporate goal.Besides ATX power supply, we have Flex Power Supply , TFX Power Supply , Micro Power SUpply, 1U Power Supply , 2U Power Supply, DC-ATX Power Supply to apply with mini ITX, Server and Industrial computers
Packaging & Shipping
ZUMAX EUW500 80 PLUS White 500W pc intel core i7 4790k power supply
1.PSU with PE bag packing
2.One set PSU include power cord & accessory bag put in gift box
3.10pcs gift boxes put in 1 export carton
4.0.066CBM/CTN
5.Can be shipped by sea,truck, and express company, such as Fedex, DHL,TNT etc.
Waiting for your kind inquiry !
any queston pls contact me-Lorrie
