High Quality Manufacturer electric motor price

Product Overview

Description

High Quality Manufacturer electric motor price



===FEATURES OF SUAJAN MOTOR====

Applications:

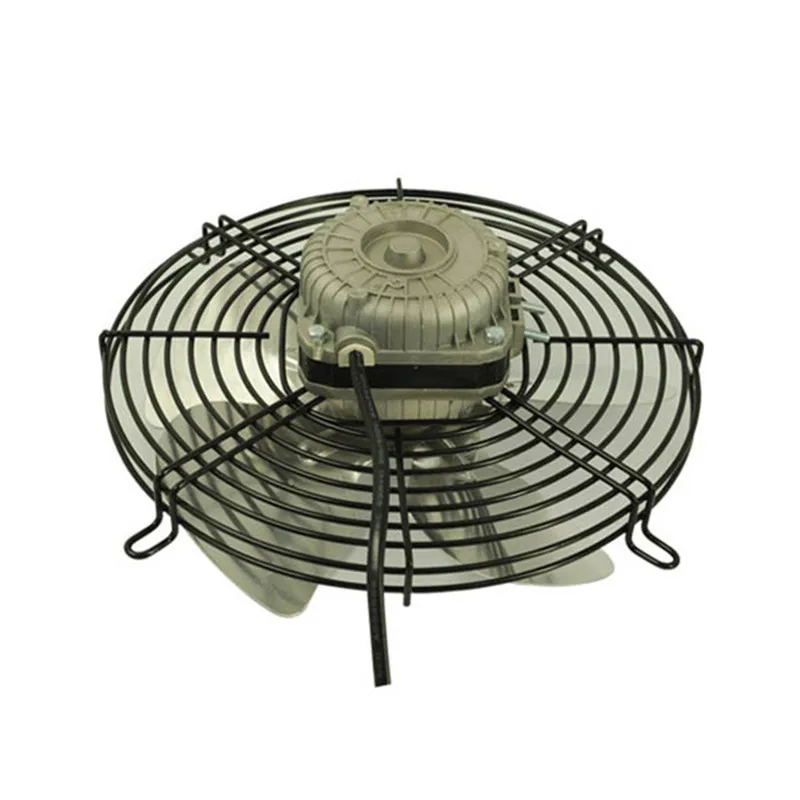

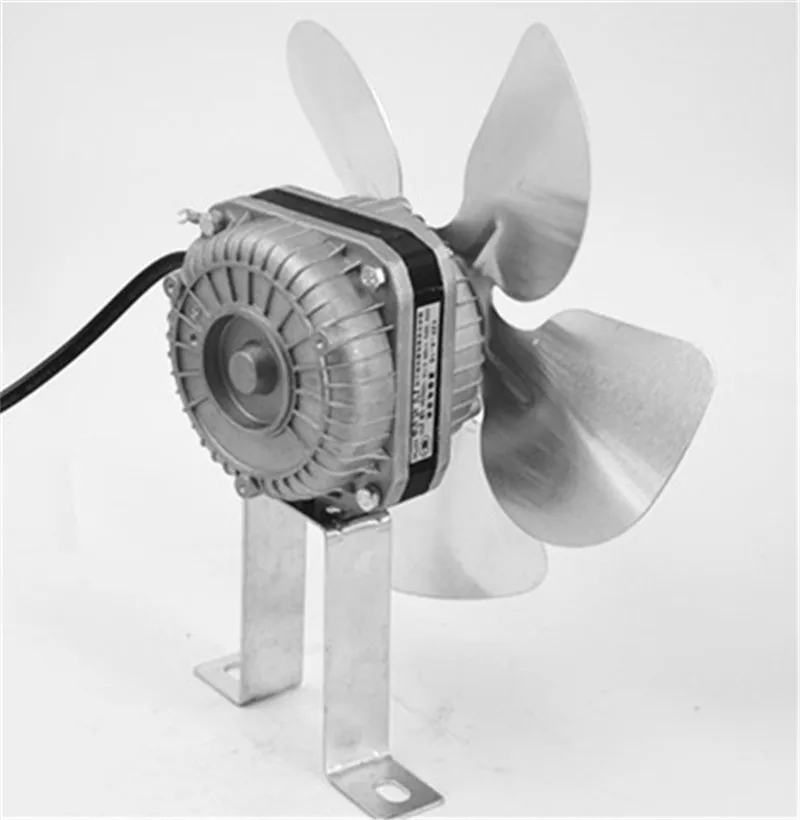

The YZF series motor is our most popular and long running motor with 3 years warranty time . The 4 pole YZF series fan motor is widely used in  commercial refrigeration, condensing and evaporating units,ice machine , heaters as well as small venting units.

OEM & ODM SERVICE:

We accpet customer's Sample and Drawing to develop new fan motor model .

Features:



YZF series fan motor confrim to CCC ,CE,TUV ,UL,CSA standard ,with high efficiency ,good proformance,energy saving , lowest noise ,high starting torque ,dustproof , anticorrosion ,long service time .



• Output power : 2W to 34W


• Direction of rotation : CW or CCW ( view from shaft end )


• Bearing : Sleeve bearing (standard) or Ball bearing on request


• Life expectancy : over 30000hours


• Insulation : Class B . Class E and F on request


• Direction of rotation: CW or CCW


• Motor protection: Impedance / thermal protected


• UL listed, TUV approved and CE certificated


• Fan blade , bracket , range of Guards and Shrouds are available


• Fan blade diameter : 150mm ( 6") ,170mm( 7") ,200mm ( 8"),230mm ( 9") ,250mm(10") ,300mm (12") .


• Bracket height : 55mm,72mm,84mm,109mm


• Direction of airflow : Blowing or Sucking


• Voltage: 110-120V/60Hz , 220-240V/50hz

Productivity Must But Quality First !!!



======TECHNICAL PARAMETER=====





Model	Voltage	Output Power (W)	Current (A)	Rotation Speed (r/min)	Weight (KGS)	Fan blade size (mm)	Stator height A	Height of Bracket
YZF3/10	110V	3	0.16	1300/1550	0.8	150	13	72
YZF5/13	115V	5	0.2	1300/1550	1	170	13	72
YZF7/15	120V	7	0.22	1300/1550	1.1	170	15	72
YZF10/20	220V	10	0.25	1300/1550	1.2	200	20	84
YZF16/25	230V	16	0.42	1300/1550	1.4	250	25	84
YZF18/28	240V	18	0.55	1300/1550	1.5	250	28	84
YZF25/30	400V	25	0.62	1300/1550	1.8	300	30	109
YZF34/40	400V	34	0.83	1300/1550	2	300	40	109
VOLTAGE :110-127,60HZ   220-240V,50/60HZ 400 V/50HZ







3.====== PRODUCTION PROCESS======



4. ===COMPANY PROFILE (SUAJAN MOTOR)=====

About us

l Since 1997

l Specializing in AC household motors,such as Shaded pole motor ,range hood motor,Air conditioner motor , shoe polishing machine motor ,ect .

l Professional Motor Manufacture with 6 production lines and 215 skilled workers .

l Passed the ISO9001:2008 and international certificate as CE,TUV,SGS,UL,CSA,RoHS.ect.

l    All of our motors with 3 years warranty time .

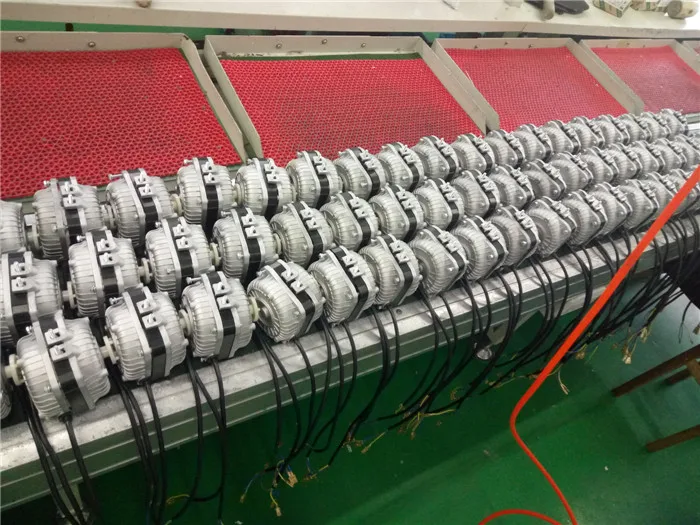

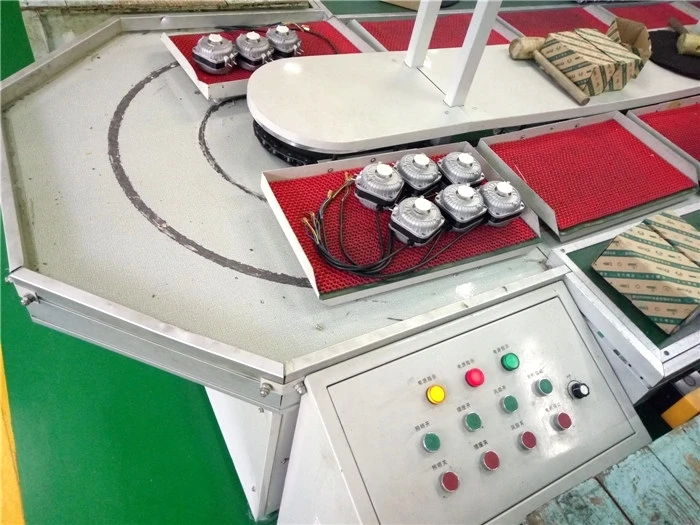

Production Workshop

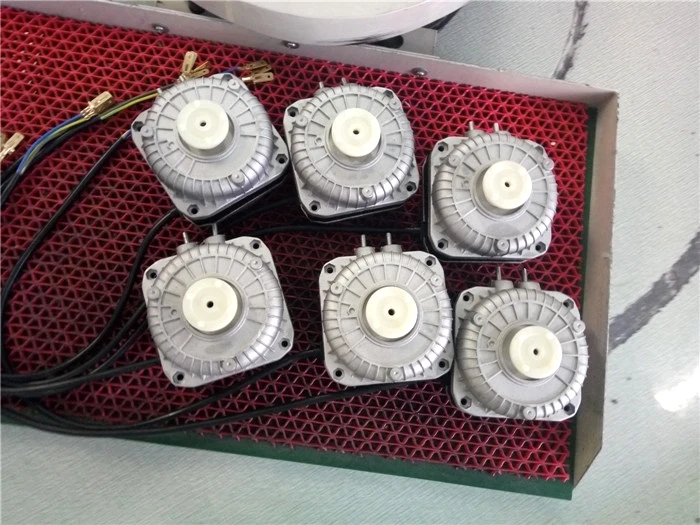

 Materials Show for Shaded pole motors



5. ======OUR SERVICE ( Why Choose Us ? )======



1. Warranty : 3 year warranty for all products.

2. 6 years gold member of alibaba web site .

3. 100% In coming, in process inspection before final packing.

4. OEM /ODM : we can make the sample as your sample or design drawing.

5. Sample : free of charge when we start to cooperate.Small orders,Mixed orders,Trial orders are accepted . Customers pay the charge of Freight .

6. Prompt reply: we can reply your inquiry and email within 24 hours.

7. Fast Delivery: The delivery time is within 3weeks (depend on your QTY) after receiving the deposit.



5.======PAYMENT ITEMS======



1.You can pay via Western Union,T/T,MoneyGrsm, Escrow,L/C,Paypal



2.For small order, pay 100% in advance



3.For bulk order, pay 30% deposit in advance, and pay balance before shipping.



6.=====PACKING & SHIPPING======

 30 PCS /CTN or 8 PCS / CTN

Carton  size : 56x30x20 CM
