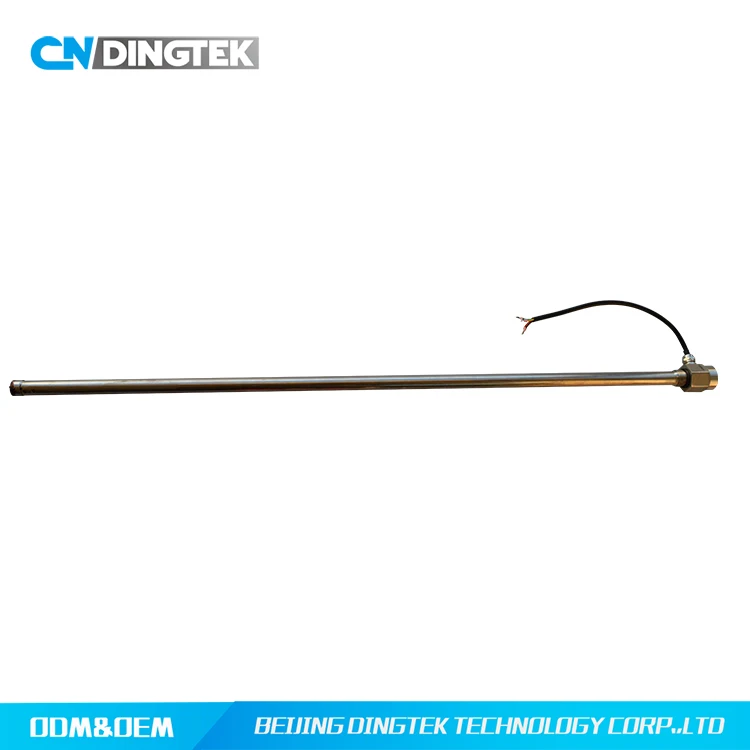

F300 Capacitive liquid level meter with high resolution/gps tracking sensors for cars with digital output RS232 RS485
| Measurement Range | 100~ 1000mm (customized for 100-3000mm) |
| Blind Area | <2cm (depend on the space between sensor bottom and tank bottom) |
| Resolution | 1mm or 0.1%FS, the bigger one |
| Power Supply | 10-32V DC (optional for 5V DC) |
| Pressure | -0.1MPa~0.1MPa |
| Output Signal | RS485, RS232, 0-5V, 4-20mA, TCP |
| Protocol | Modbus RTU/ Dingtek /Customized |
| Operating Temperature | -40 ~ 85℃ |
| Electrode Temperature | -50 ~ 150℃ |
| Shell Material | Sus 304 |
| Media | liquid (except strong acid or strong base) |
| Explosion-proof | EXia II CT5 (optional for CT6) |

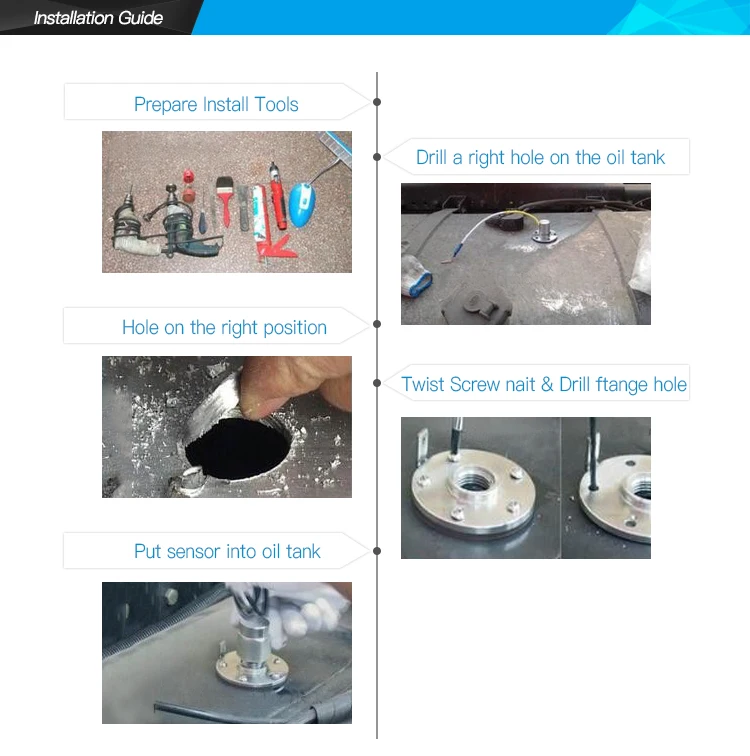

| Mounting | Flange M20*1.5 |
| Current | <15mA |
| Variation for different batch | <=3.5% |
| Wireless | Optional for zigbee, wifi, GPRS, UMTS. |
