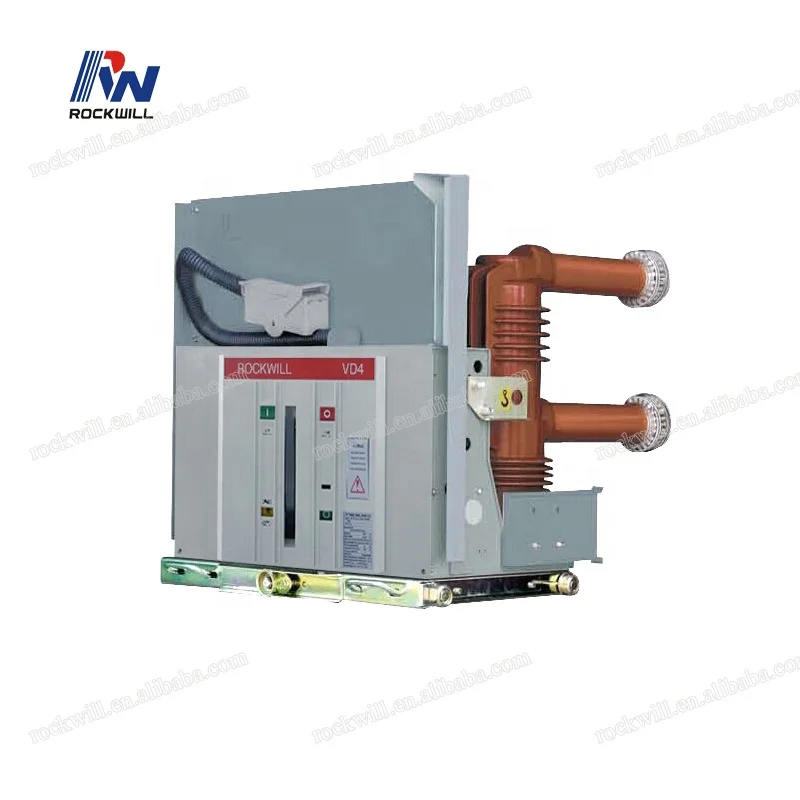

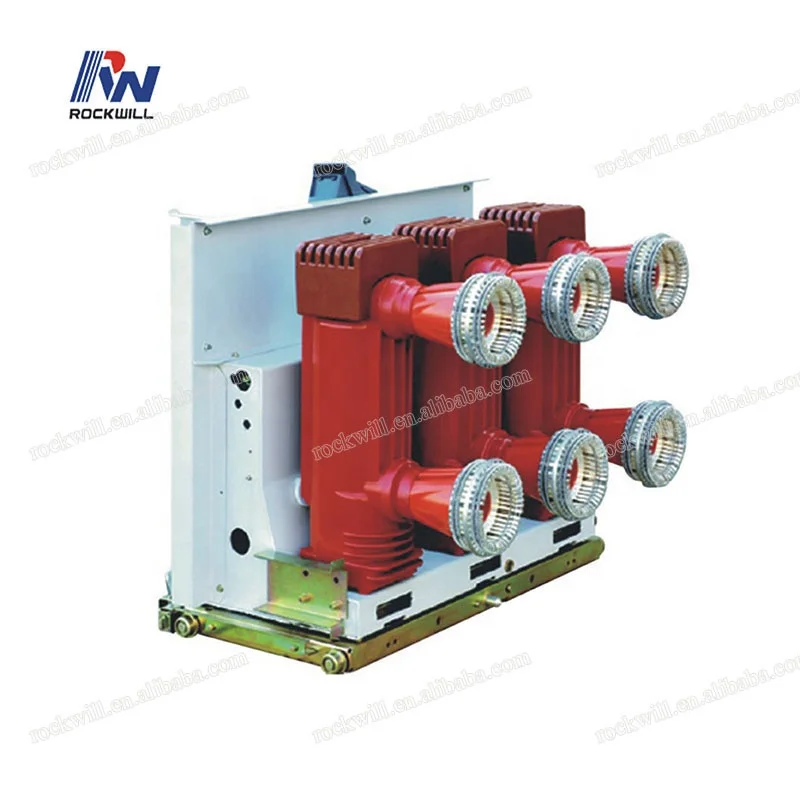

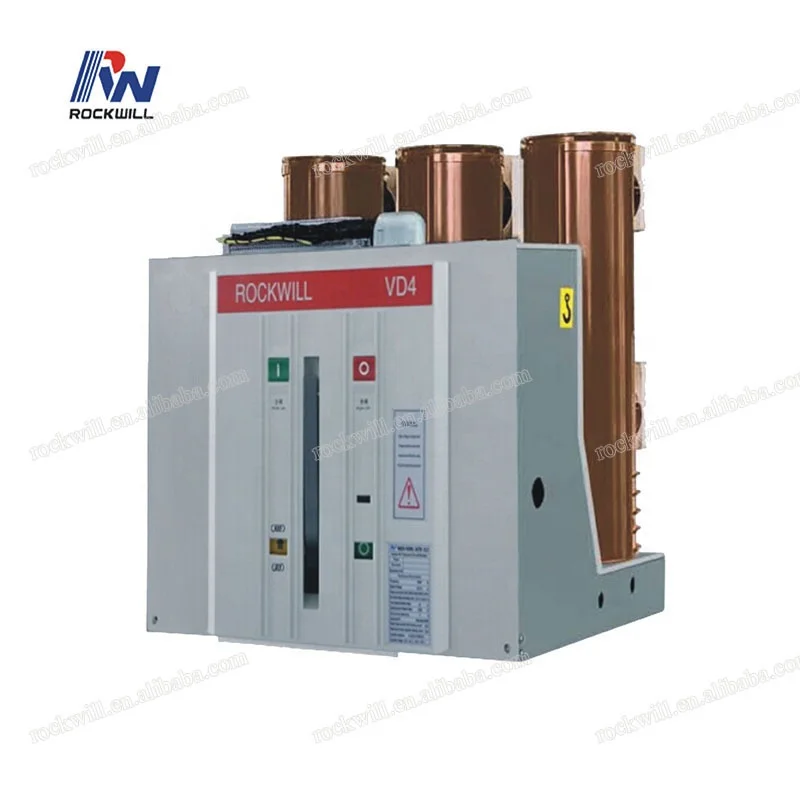

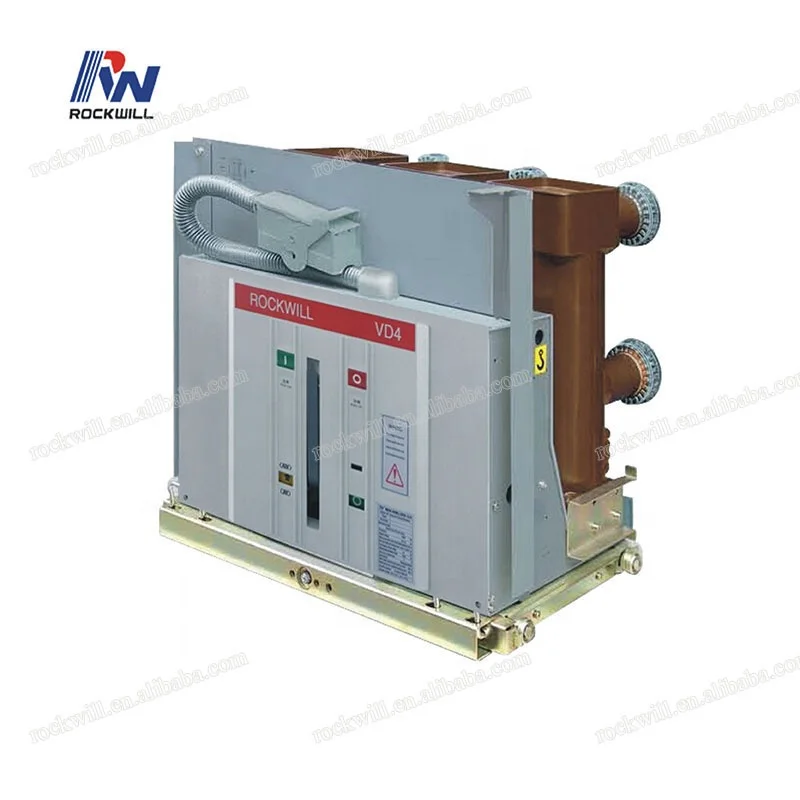

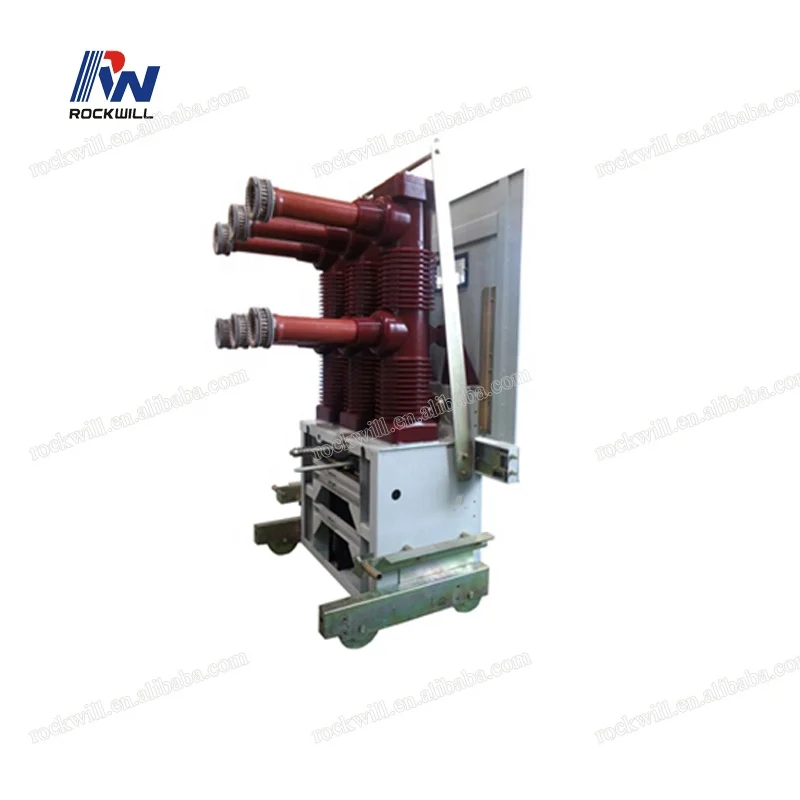

Drawable type 33KV vacuum circuit breaker

Product Overview

Description

General


VD4 medium-voltage indoor vacuum circuit breaker is applicable for three-phase  AC power system of rated voltage up to 7.2kV~24kV and frequency 50/60HZ,widely used in many fields such as power plant, transformer substation, petrol chemical industry , metallurgy , manufacturing industry , airport, residential area, etc., to control and protect the electric equipment, especially , It is used for the occasion that needs infrequent operation at rated current or multi-breaking short circuit current, may be mounted in the indoor air insulating switchgear like type KYN28 or KYN96,  ABB type ZS series, etc. This circuit breaker is standards asGB1984-2003  AC high voltage circuit breaker ,JB3855 3.6-40.5Kv indoor  AC High voltage circuit breaker ,DL/T403 Specification of 12-40.5Kv indoor High voltage vacuum circuit breaker for order as well as IEC60694. This circuit breaker is made with mature  APG technology . The application of VD4terminal buffer guarantees the indoor terminal is ever more reliable in nay operation environment. VD4 can fully meet the requirement of GB, DL, IEC, DIN, VDE as well as standards of other advanced industrial countries.



Service environment

a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity: Monthly average humidity 95%; Daily average humidity 90%.
c) Altitude above sea level: Maximum installation altitude: 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake



Main technical specifications



No	Item	Unit	Parameter
1	Rated voltage	kV	24
2	Rated frequency	Hz	50/60
3	Rated current	A	630, … 4000A
4	1min Power frequency withstand voltage	kV	65
5	Lightning impulse withstand voltage	kV	125/150
6	Rated short circuit breaking current (peak)	kA	50/63/80/100
7	Rated short breaking current	kA	20, …40
8	Rated short circuit making current (peak)	kA	50/63/80/100
9	Rated cable(line) charging breaking current	A	50 and 10
10	Rated single capacitor bank switching current	A	400
11	Rated withstand current (peak)	kA	50/63/80/100
12	Short time withstand current (4s)	kA	20, …40
13	Mechanism life	times	10000

Note: For short circuit breaking current & rated current is optional by clients.
