Hantek 200MHz MSO5202D Mixed Signal Digital Oscilloscope 16 Logical Channels 2 Analog Channels External Trigger Channel

Product Overview

Description



Hantek 200MHz MSO5202D Mixed Signal Digital Oscilloscope 16 Logical Channels +2 Analog Channels + External Trigger Channel



Features:

16 channels logic analyzer + 2 channels oscilloscope + external trigger.

Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.

1GSa/s real time sampling rate.

USB host, support flash memory card storage and USB interface system upgrade.

Ultrathin design, handy volume, easily portable.

VGA Optional



Oscilloscope Function

Bandwidth 200MHz.

Each channel record length up to 1M.

Real time sampling rate up to 1GSa/s.

Powerful trigger function.

32 kinds of automatic measurement function.



Logic Analyzer Function

16 channels divided into 2 groups which is able to setup threshold level individually.

Real time sampling rate up to 500MSa/s.

Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.



Specification

Oscilloscope Specification
Horizontal
Model		MSO5062D		MSO5102D	MSO5202D
Bandwidth		60MHz		100MHz	200MHz
Sampling Rate Range		Max. 1GS/s
Waveform Interpolation		( sin x) /x
A/D Converter		8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range		2mV/div ~ 5V/div at input BNC
Optional Analog Bandwidth Limit (typical)		20MHz
Low Frequency Response (-3db)		≤10Hz at output BNC
Holdoff Range	100ns-10s
Mode	When <, >, =, or ≠ trigger; positive or negative pulses.
Range	20ns ~10s
mode	When <, >, =, or ≠ trigger; positive or negative slopes.
Range	20ns-10s
Overtime Trigger	From the rising or falling edge; Setup time: 20-10 s
Alternative Trigger
Type	7” TFT, 64K true color LCD
Resolution	800x480 dots
Frequency (typical)	1kHz
Power Supply
Voltage	100-120VACRMS(10%),45Hz to 440Hz, CAT 120-240VACRMS(10%),45Hz to 66Hz, CAT
Power	< 30W
Fuse	2A, T rating, 250V
Environment
Temperature	Working: 32 to 122 (0 to 50)
	Not working: -40 to 159.8 (-40 to +71)
Cooling Type	Convection
Humidity	+ 104 or below (+ 40 or below) : ≤ 90% relative humidity
	+ 106 to 122 (+ 40 to 50) : ≤ 60% relative humidity
Dimension	Length		313mm
	Height		142mm
	Thickness		108mm
Weight	Not including the weight of package and accessories		2.08Kg
Packing Dimension	Length		395mm
	Width		410mm
	Height		275mm
Gross Weight	Including all accessories		about 3.2kg



Package Content

1*MSO5202D Oscilloscope

1*User Manual

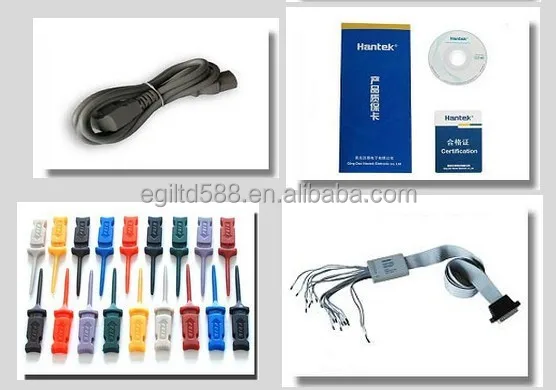

Other accessories showed as the pictures



Pictures for reference only.
