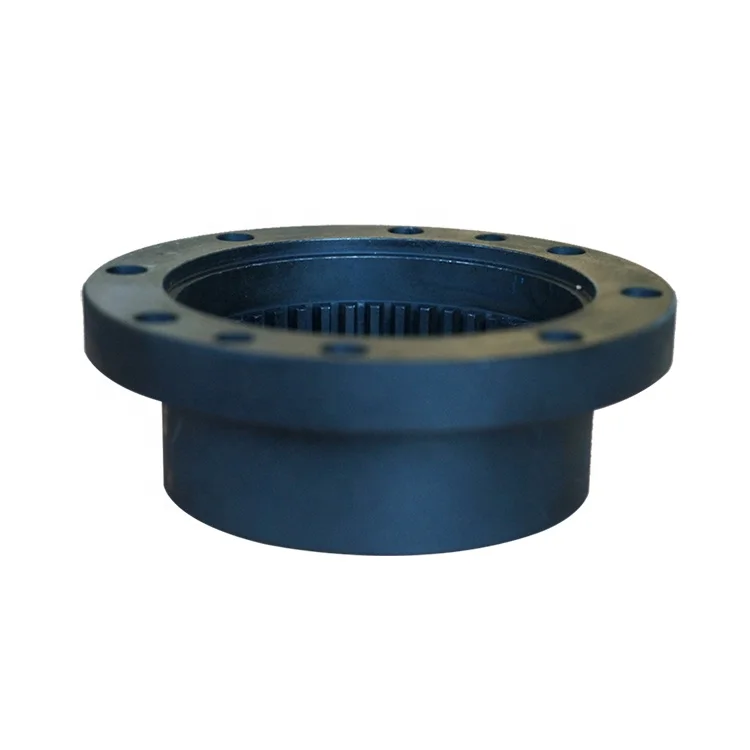

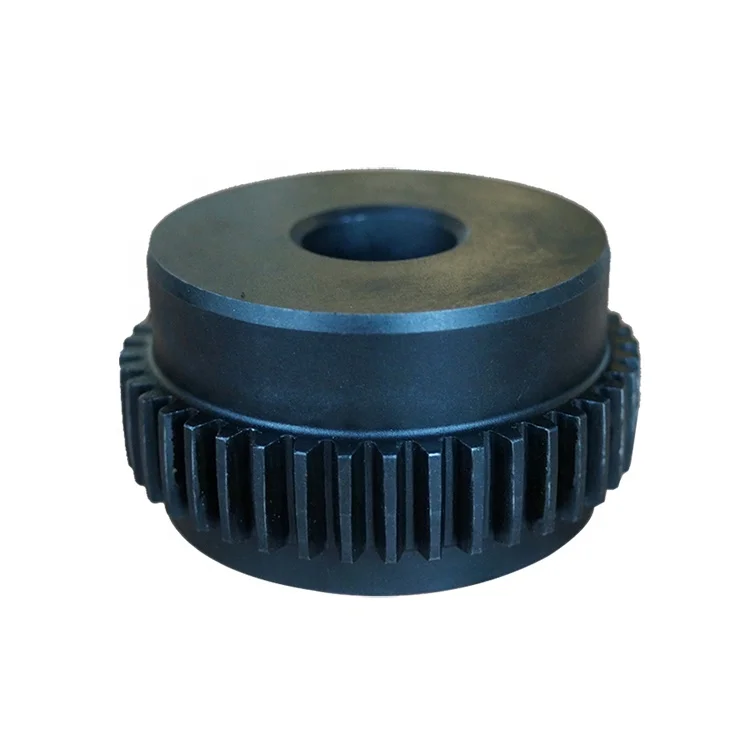

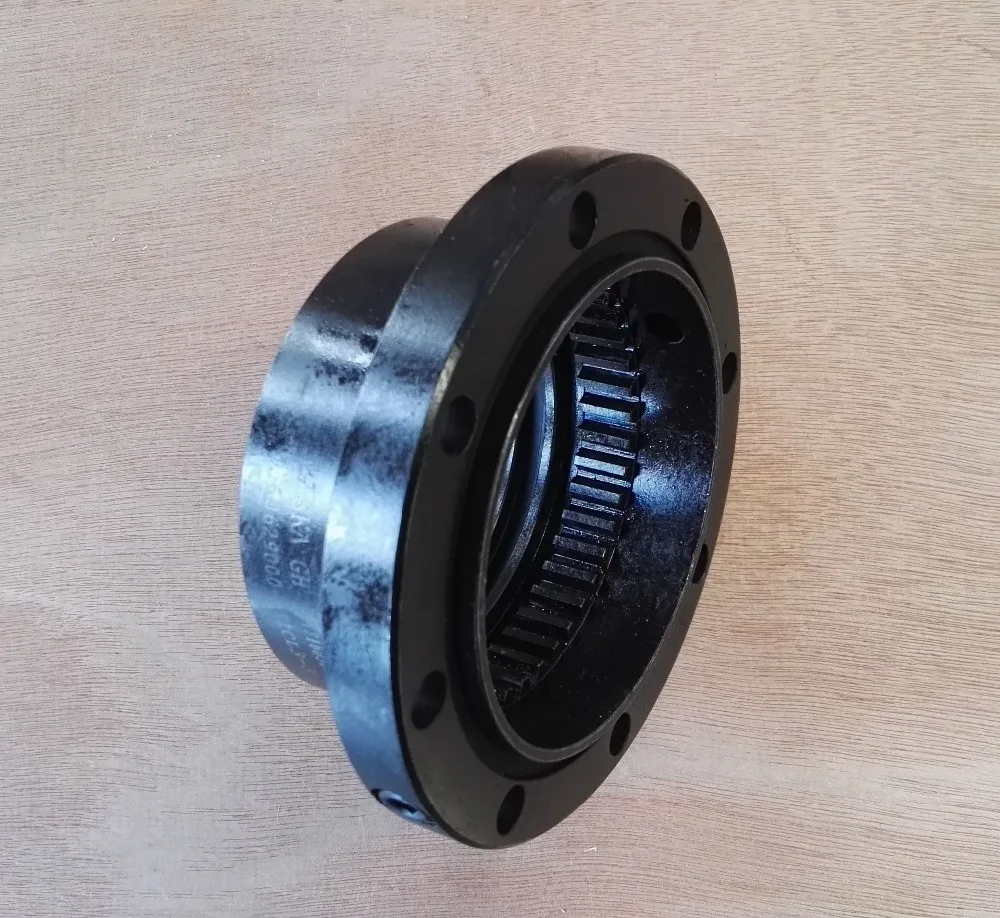

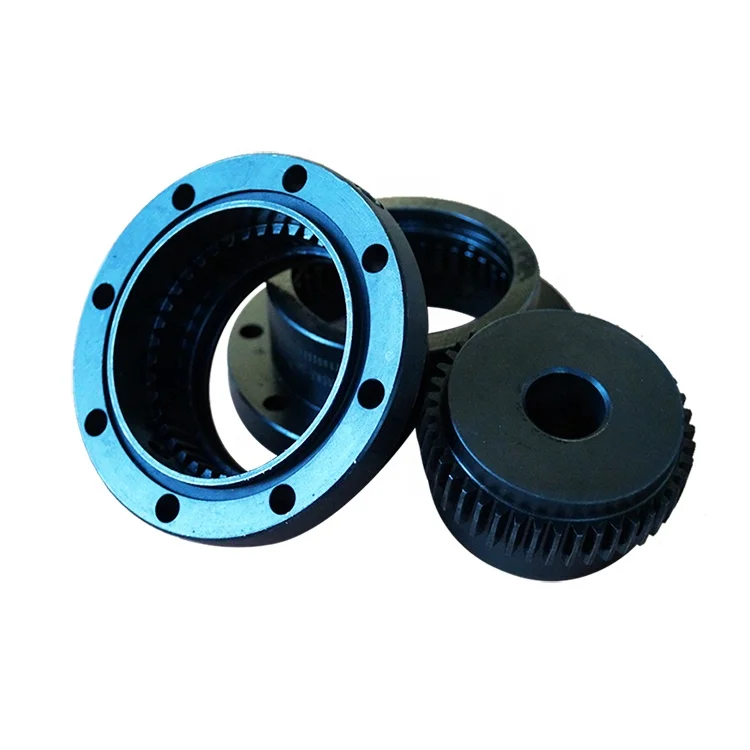

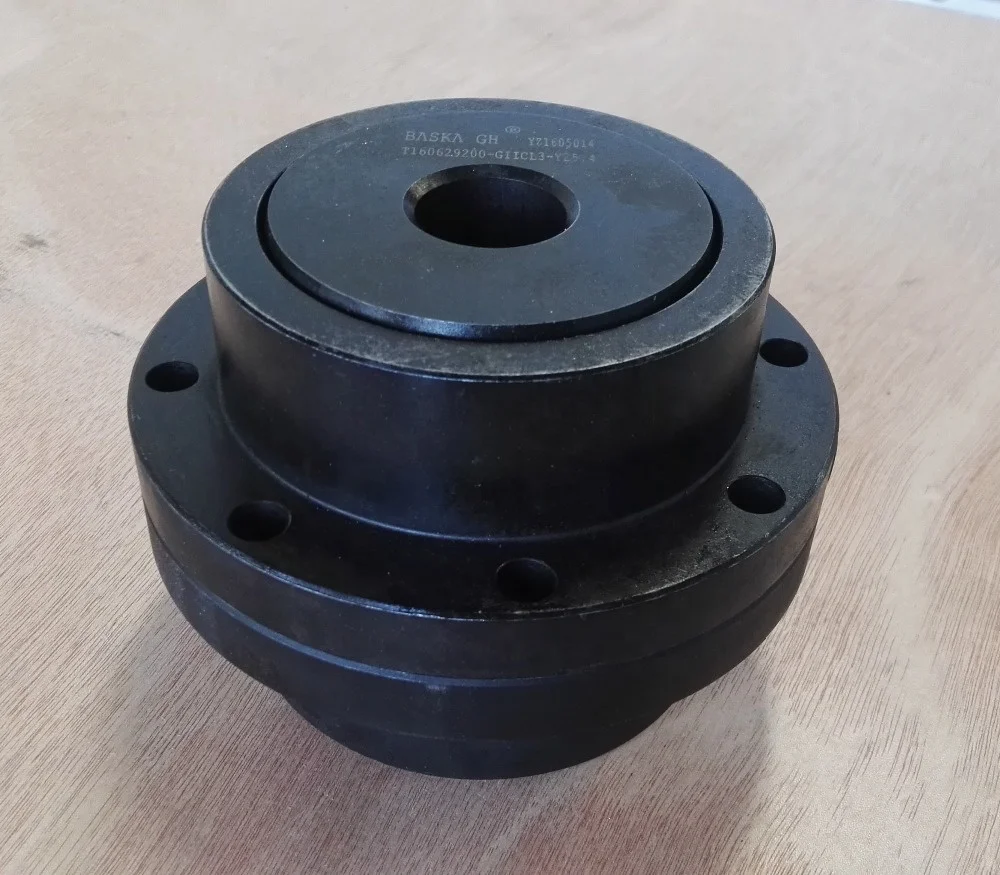

High Transmission Efficiency Keyed Drum Gear Coupling

Product Overview

Description



Product features of drum gear coupling:



1. High Transmission Efficiency Can Reach 99.7%

2. High Loading Capacity: With the same external dimension, the loading capacity is 15%~20%  averagely higher than that of straight-tooth coupling

3. Large Angular Compensation: The maximum allowable angular misalignment is 1.5°, 50% higher than that of straight-tooth coupling

4. More Scientific Gear Tooth Design: It avoids local stress concentration caused by straight tooth edge extrusion, and tooth surface friction is eased at the same time.

5. Gear tooth of external gear sleeve is horn-shaped, which makes it easy to install and dismantle.

6. Long Service Life: The internal and external gear teeth are made of high strength alloy steel. After quenched-tempered heat treatment, gear teeth rigidity and wear resistance are improved.

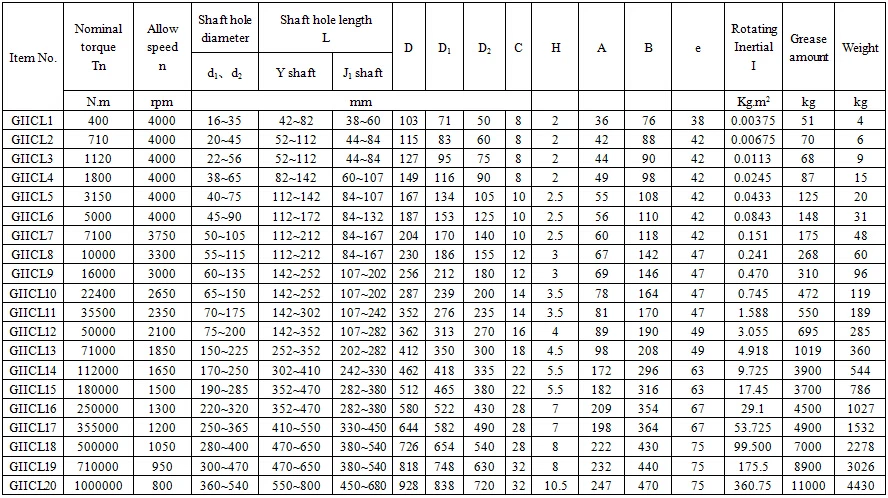

Product models of drum gear coupling:

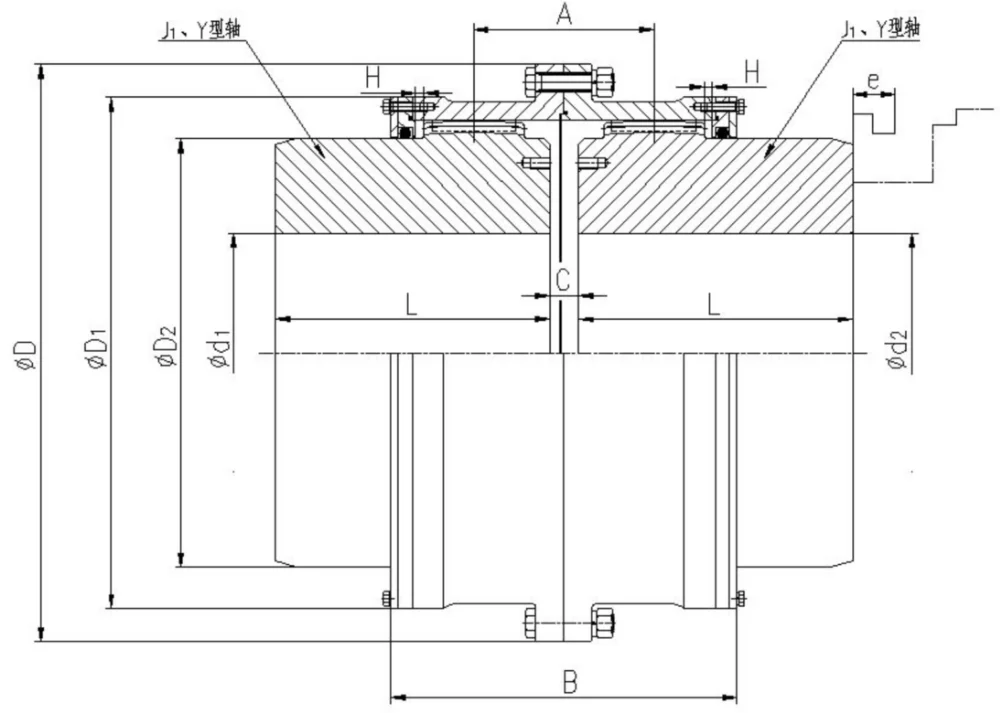

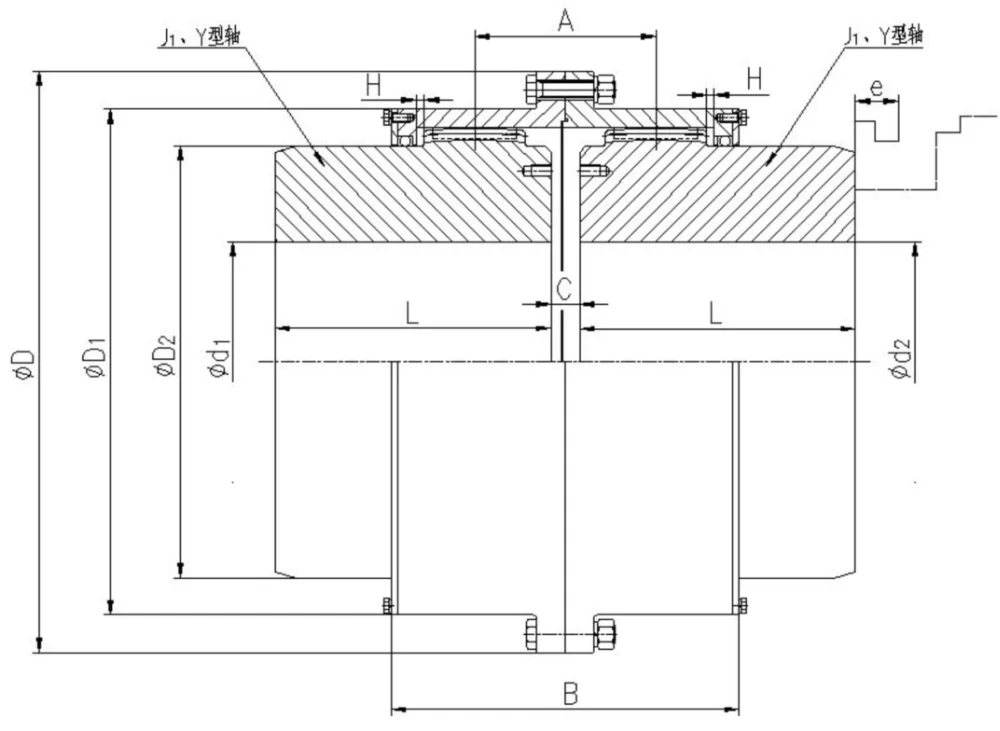

                               GIICL1­——GIICL13                                                GIICL14——GIICL20







Customize Your Product

1. Application to: e.g. conveyor, crusher,               compressor, etc. 2. Driving end related parameters:      Motor power(KW):                     Motor rotation speed(rpm):                Reducer speed ratio:

For cylindrical shaft, please provide: Shaft end gap length B(mm):              Center height H(mm):               High speed shaft: Driving end: shaft diameter d1(mm)             , shaft length L1(mm)             ,                       key groove width b(mm)           , key groove depth t(mm)          ; Driven end: shaft diameter d2(mm)              , shaft length L2(mm)             ,                       key groove width b(mm)           , key groove depth t(mm)          ; Low speed shaft: Driving end: shaft diameter d1(mm)             , shaft length L1(mm)             ,                       key groove width b(mm)           , key groove depth t(mm)          ; Driven end: shaft diameter d2(mm)              , shaft length L2(mm)             ,                       key groove width b(mm)           , key groove depth t(mm)          ;

Notice:

1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.

2. If your requirement is different from this drawing, please provide your technical drawing.
