Medical Diagnostic Equipment Anesthesia Machine

Product Overview

Description

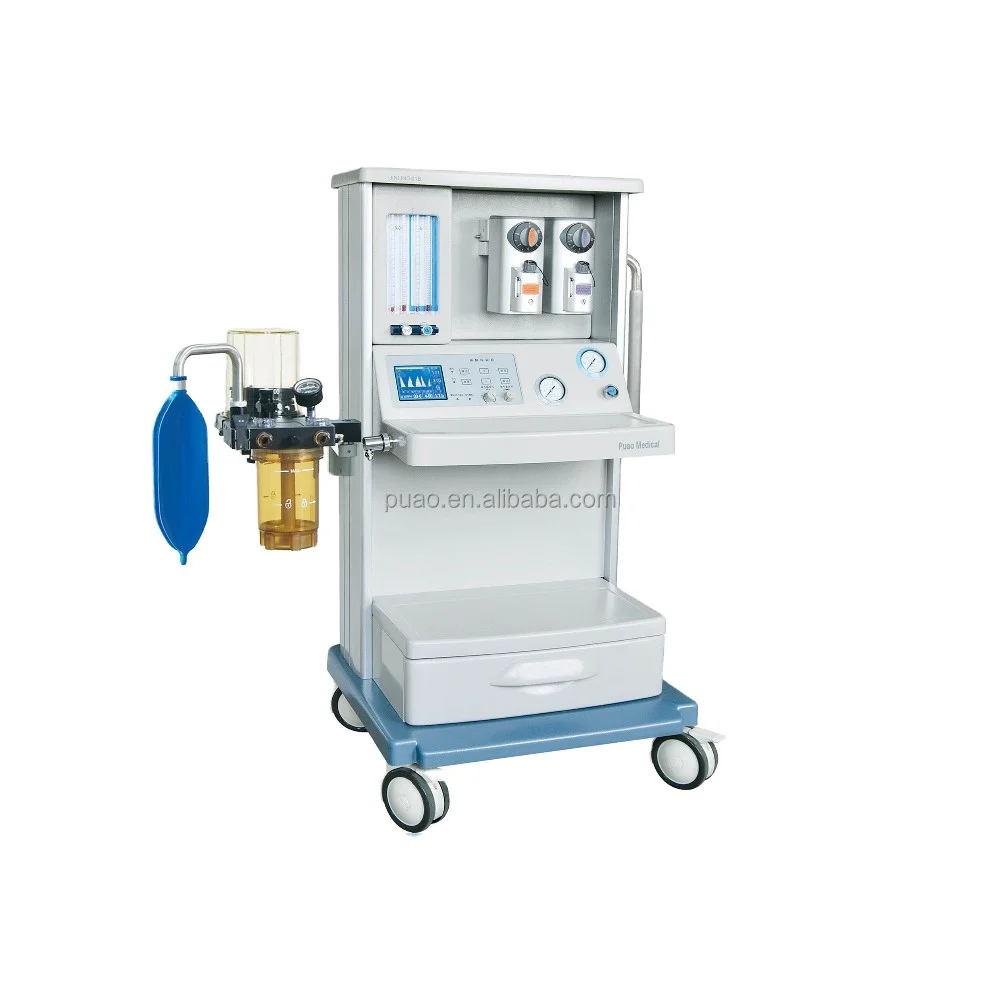

  Medical Diagnostic Equipment Anesthesia Machine







Technicals:



Specification
Pneumatically driven electronically controlled system
Built-in ventilator, 5.4” LCD display screen
With 1 patient circuit for adult (Option: patient circuit for children).
4-tube flowmeters, O2 & N2O ;0.1 L/Min ~ 10 L/Min;

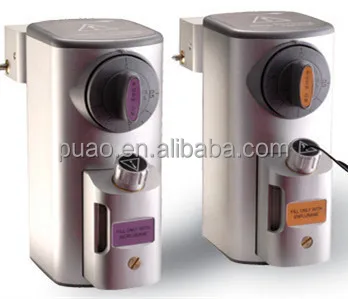

One vaporizer, Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
Oxygen Flush:	25~75 L/Min;
Respiration Mode:	IPPV, SIPPV(VCV), IMV, SIMV, PEEP, Manu, Sigh
Tidal Volume:	50~1500 mL;
I:E:	4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0, 1:2.5, 1:3, 1:4;
Respiration Frequency:	1~99bpm;
PEEP:	1~10 hPa;
Ptr:	-10~10 hPa;
CO2 absorber capacity:	1 kg
Lung compliance:	≤ 30 mL/kPa;
IMV frequency:	1~12bpm
Inspiratory Plateau:	0~1S;
Alarm parameter:	upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery low power





Certification:



    The company has passed quality system certification in the European Union.









Company Profile:

Nanjing Puao Medical Equipment Co.,Ltd. is located in  No. 9,Gaoke First Road. We focus on anesthesia machine,ventilator and patient monitor research and development,production,sales and service.As a high-tech enterprises and software company,we are good at sustaining innovations and know how to jump from technology to technology along the sustained innovation path.

The company has a complete hardware facilities,perfect detection means,strong economic strength,strong technical force,intensive marketing network.















 Welcome to contact us!
