inflatable floating SOLAS life raft 10 person

Product Overview

Description

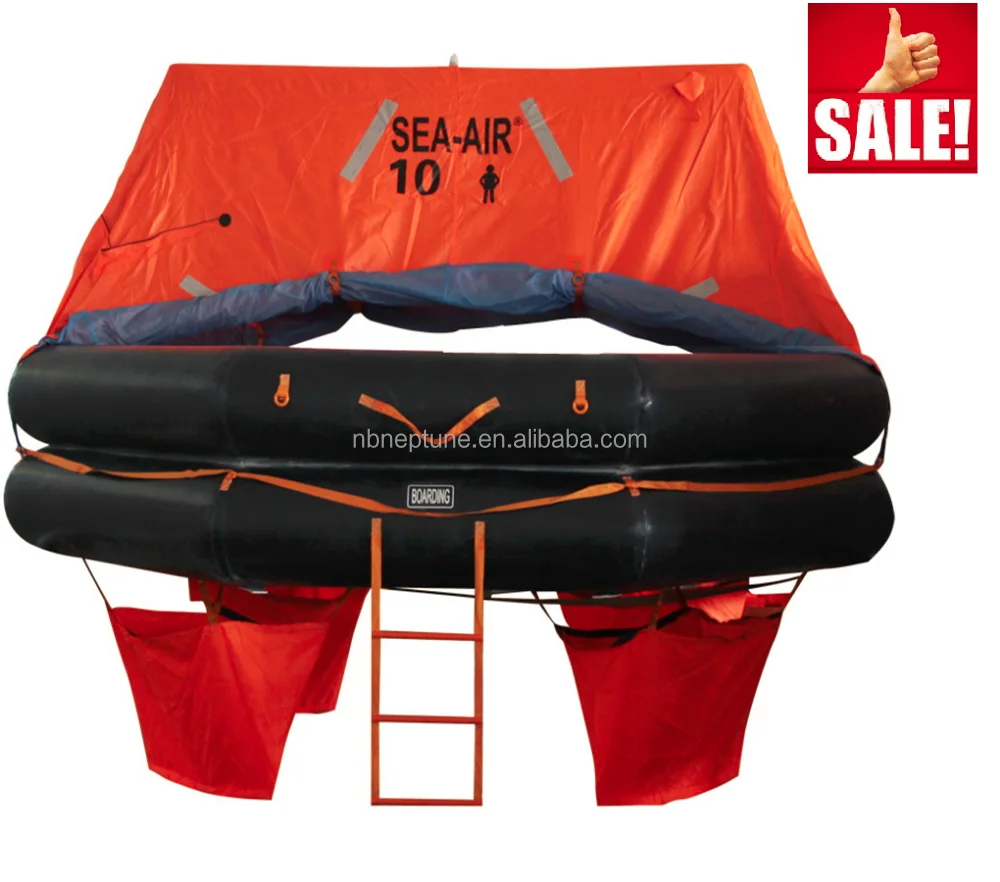

inflatable floating SOLAS life raft 10 person SOLAS approved 10 person throw overboard liferaft
Model No.	ATOB - 10
Shape	Regular octagon
Capacity	10
Material	Neoprene coated fabric (buoyancy tube), water-proof cloth (canopy)
Cylinder	6L x 1
Gas composition	CO2 and N2
Lighting system	1 interior lighting lamp, 1 exterior indication lamp
Battery life	≥12hrs
Ballast system	4 x 60.5L water pockets for better stability
Temperature inflating range	-30 — +65°c
Max stroage height	18 - 50M from water surface
Use	Suitable for offshore cruising or open sea longer voyages ships
Standard	It meets the China MSA- "Regulations for the Statutory Surbeys of Ships and offshore Installations---Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged in Domestic Voyages"2004, and its 2008 Amendments, Part4, Ch.3. and SOLAS(74/96) LSA, MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002)
Equipment outfit	Solas A/ B pack
Life raft dimension (mm)	2694x2694x1400
Canister dimension (mm)	1230x645x550   (Solas A Pack)
	1090x615x530   (Solas B Pack)
Outer package dimension (mm)	1280x680x670   (Solas A Pack)
	1130x660x640   (Solas B Pack)
Weight (kg)	≤102
Conveyance:
Solas A Pack	Solas B pack
Qty/ 20'FCL: 45units	Qty/ 20'FCL: 67units
Qty/ 40'FCL: 93units	Qty/ 40'FCL: 112units
Qty/ 20'HQ: 117units	Qty/ 20'HQ: 141units
