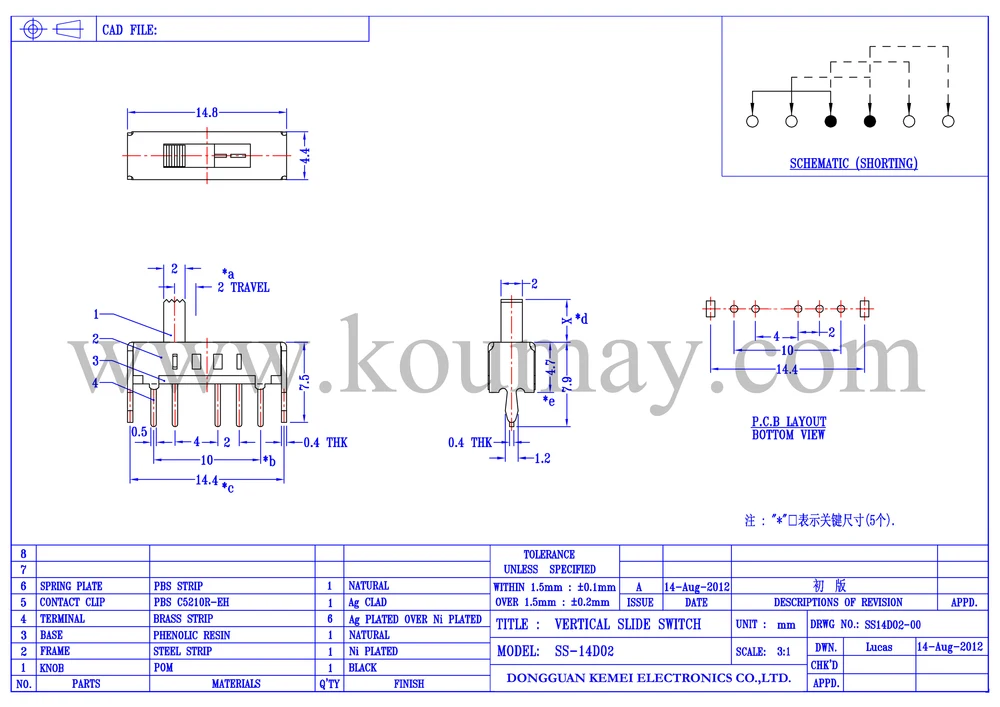

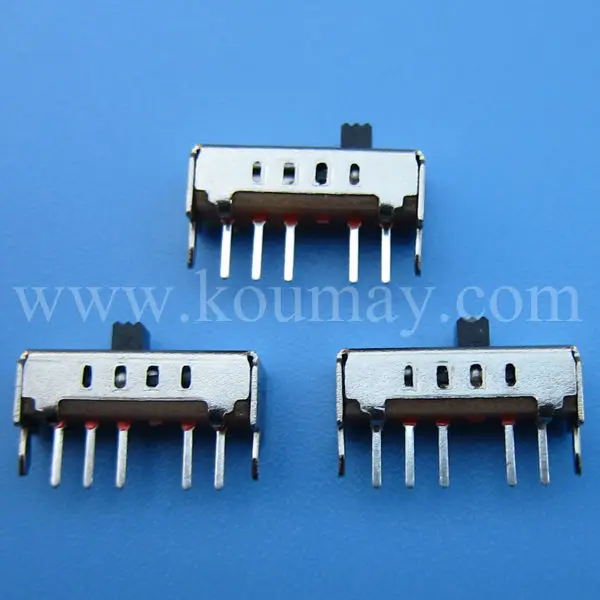

5pin SS 14D02 Vertical Slide Switch 1P4T

Slide Switch

Specification

Rating

0.5A 50V DC

Contact resistance

100mΩ max

Insulation resistance

100MΩ min at 500V DC

Dielectric strength

AC 500V for 1 min

Lifespan

10,000 Cycles

Practical temperature range

-25 to 85 degrees Celsius

RoHS

Yes

[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
