Незубчатые прецизионные поперечные роликовые подшипники для вращающихся соединений роботов и обрабатывающих центров ЧПУ NRXT8013
- Category: Bearings >>>
- Supplier: Jinan Kaiming Bearing Co. Ltd.
Share on (60078985642):
Product Overview
Description

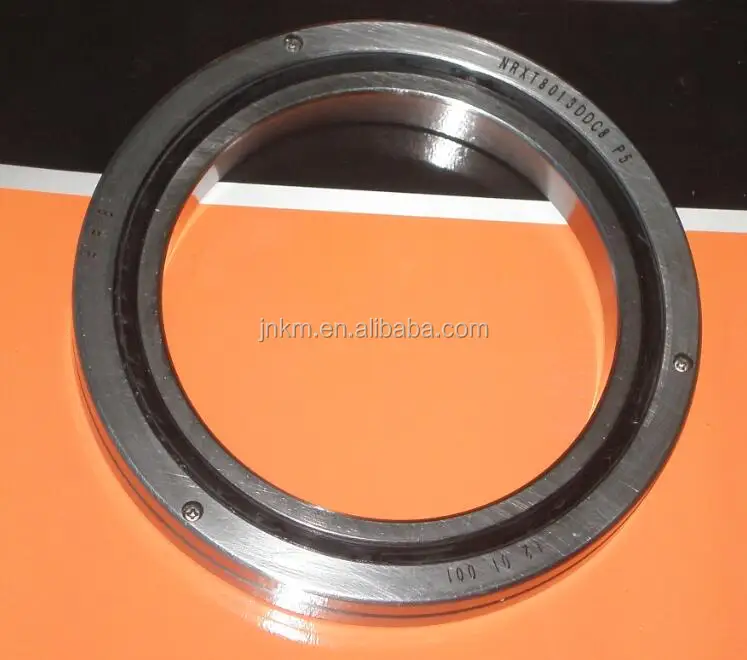

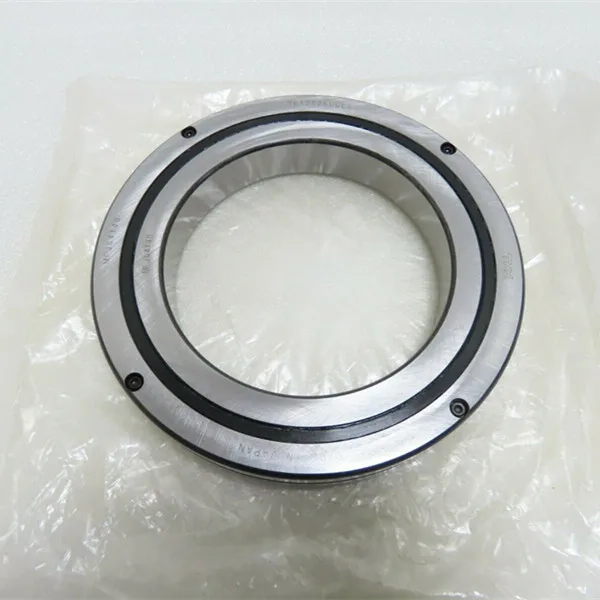

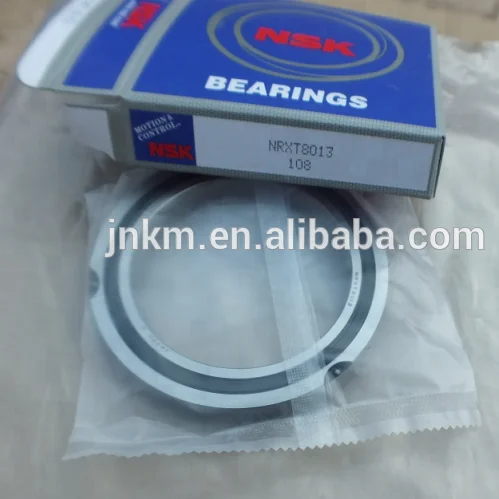

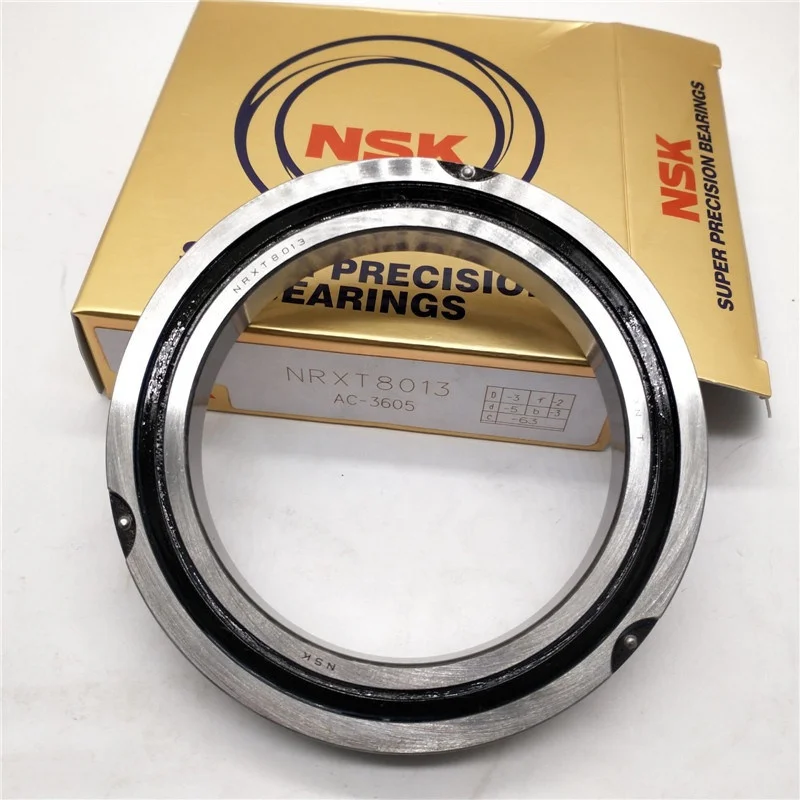

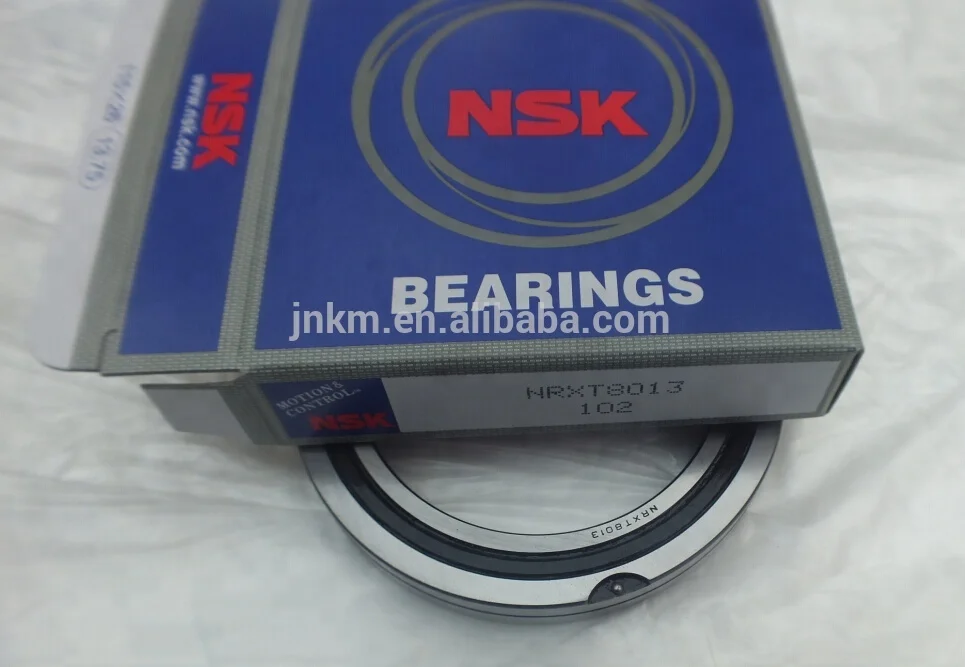

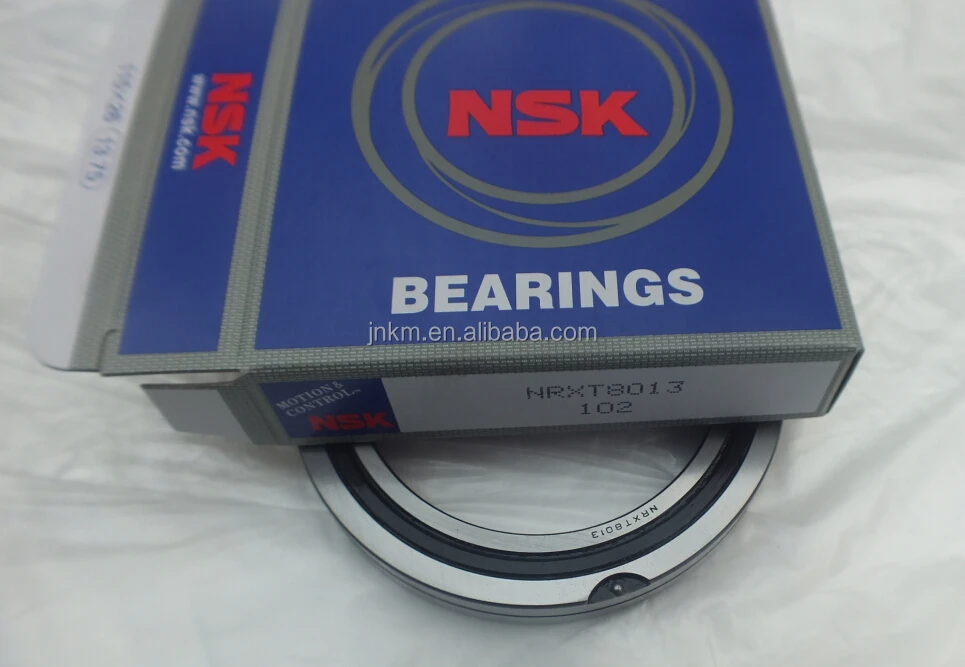

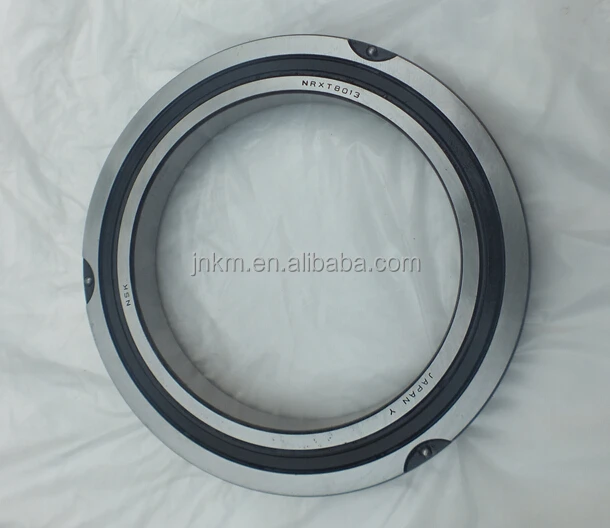

Non gear type Precision Cross roller bearings for rotating joints of robot and CNC machining centers NRXT8013

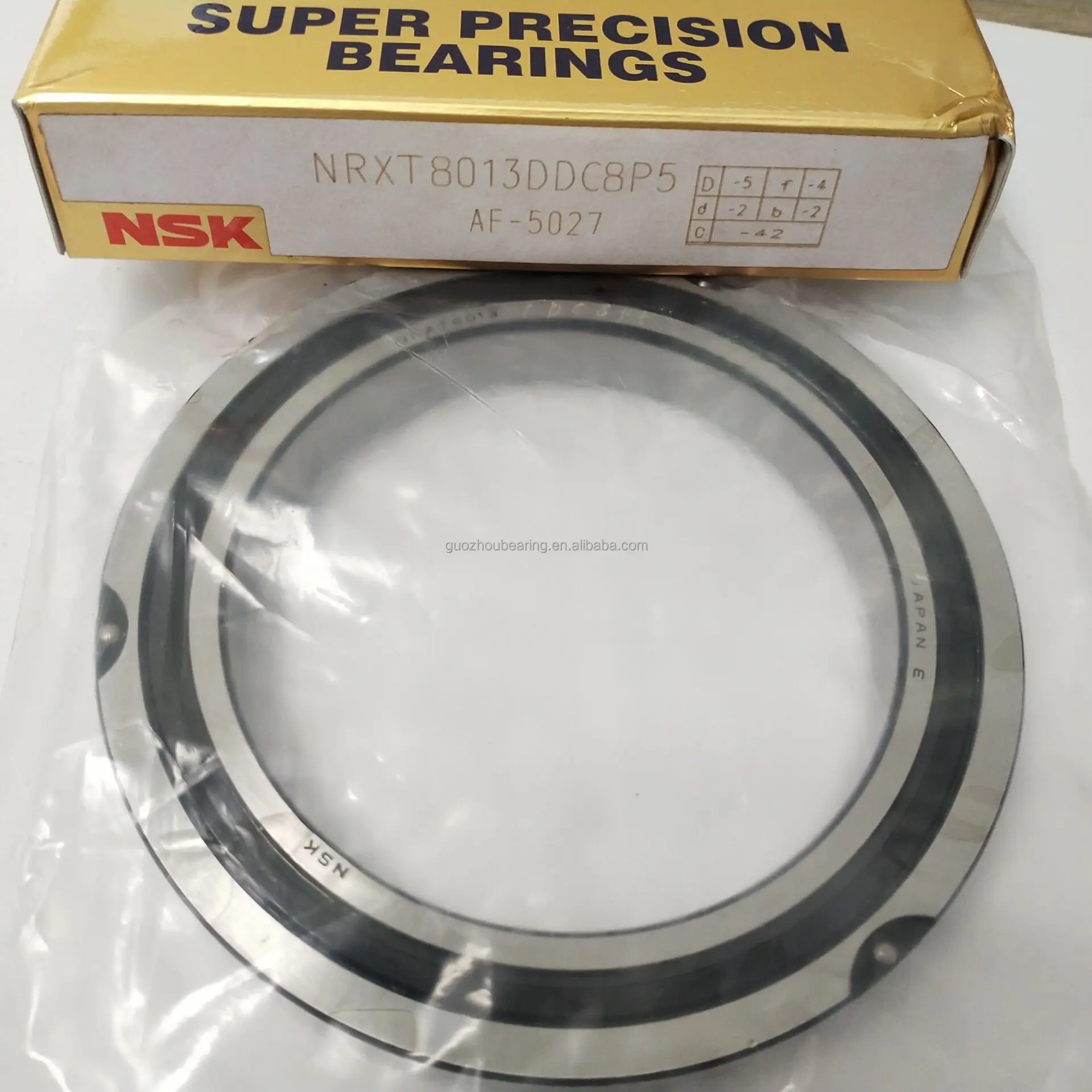

NRXT8013DDC8P5 N series crossed roller bearings for the rotating joints of robots
N series Crossed Roller Bearings are thin-wall bearings consisting of an inner ring, a two-part outer ring, cylindrical rollers, and separators. The rollers are oriented at right angles to each other and kept apart by separators.
This kind of N series Crossed Roller Bearings can sustain axial loads in both directions as well as radial loads and strong moment loads. And with their internal clearances factory-adjusted, it can be installed directly without troublesome shim adjustment. Mounting is facilitated by the outer ring parts being inseparable.
Application:
The rotating joints of robots
Indexing mechanisms
Rotary tables
NRXT8013DDC8P5 technical specification:
Bore diameter: 80mm
Outer diameter: 110mm
Width: 13mm
Basic load ratings, dynamic: Cr=20.5KN
Basic load ratings, static: Cor=32KN
Mass: 0.38kg
With seals on both sides, internal clearance: -0.010~0mm
