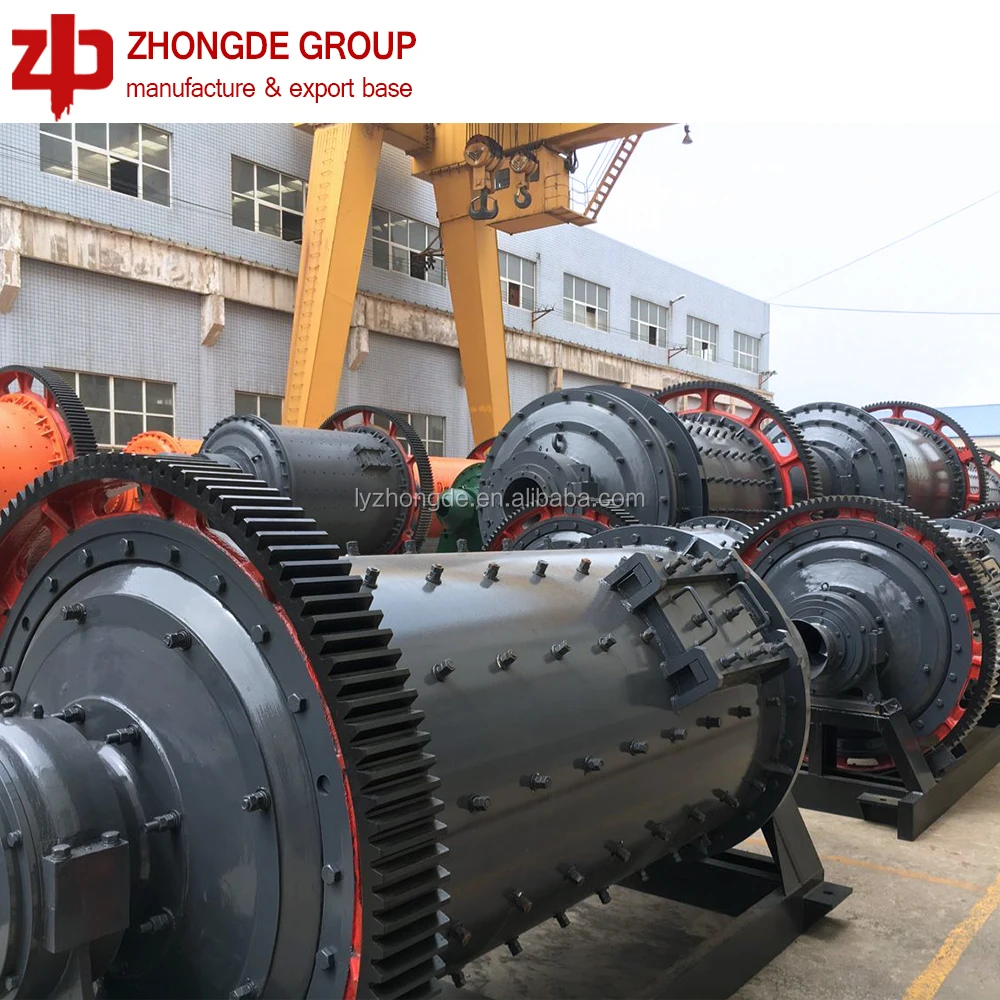

Red Mercury Price, Ball Mill Manufacturer, Manganese Ore
Ball mill is the key milling equipment after material has been crushed. It is widely used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to dry or wet grinding for ores and grindable materials.
Structure of Ball Mill:

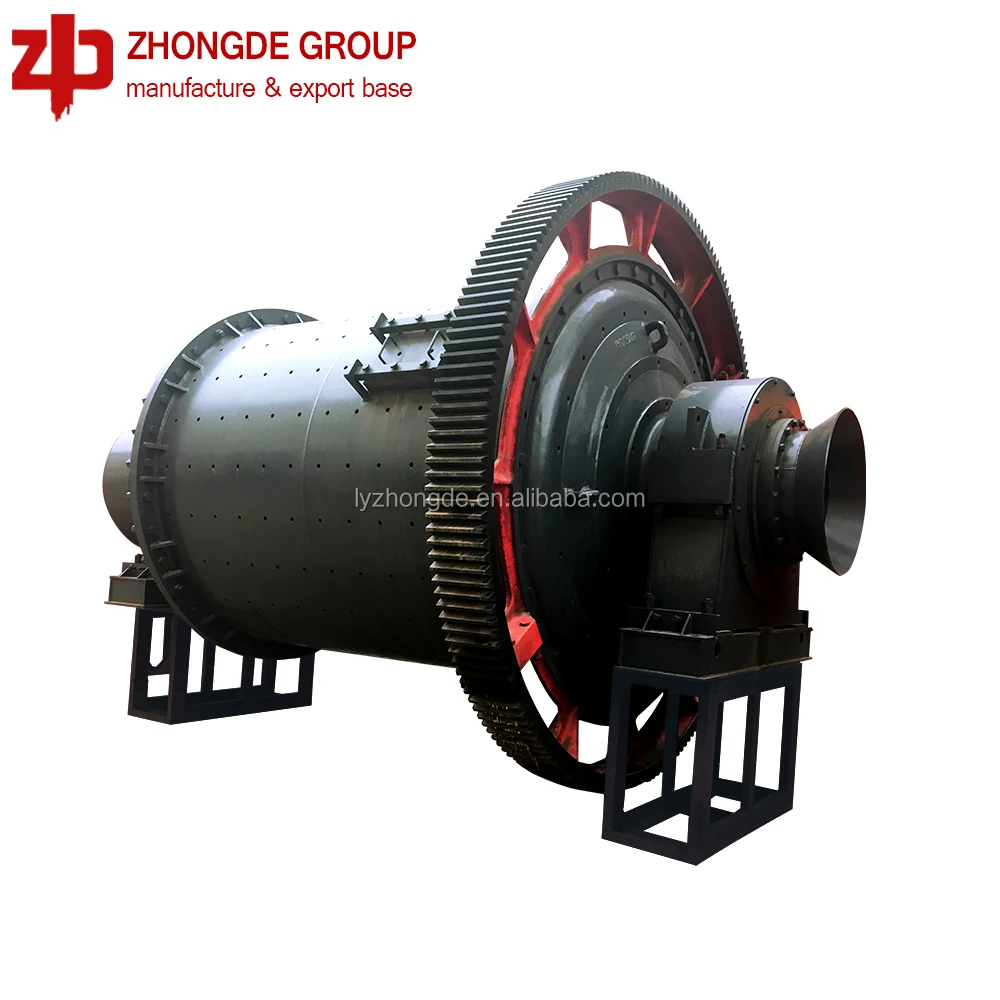

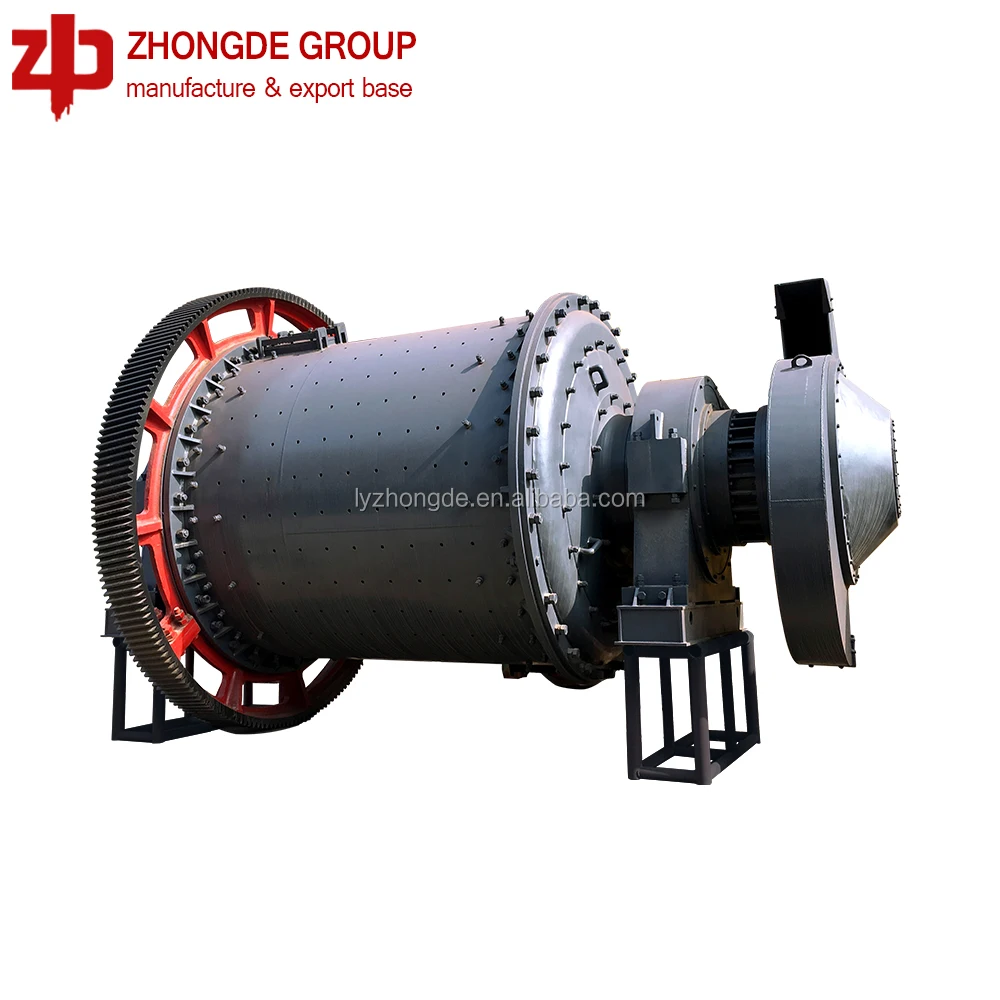

The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

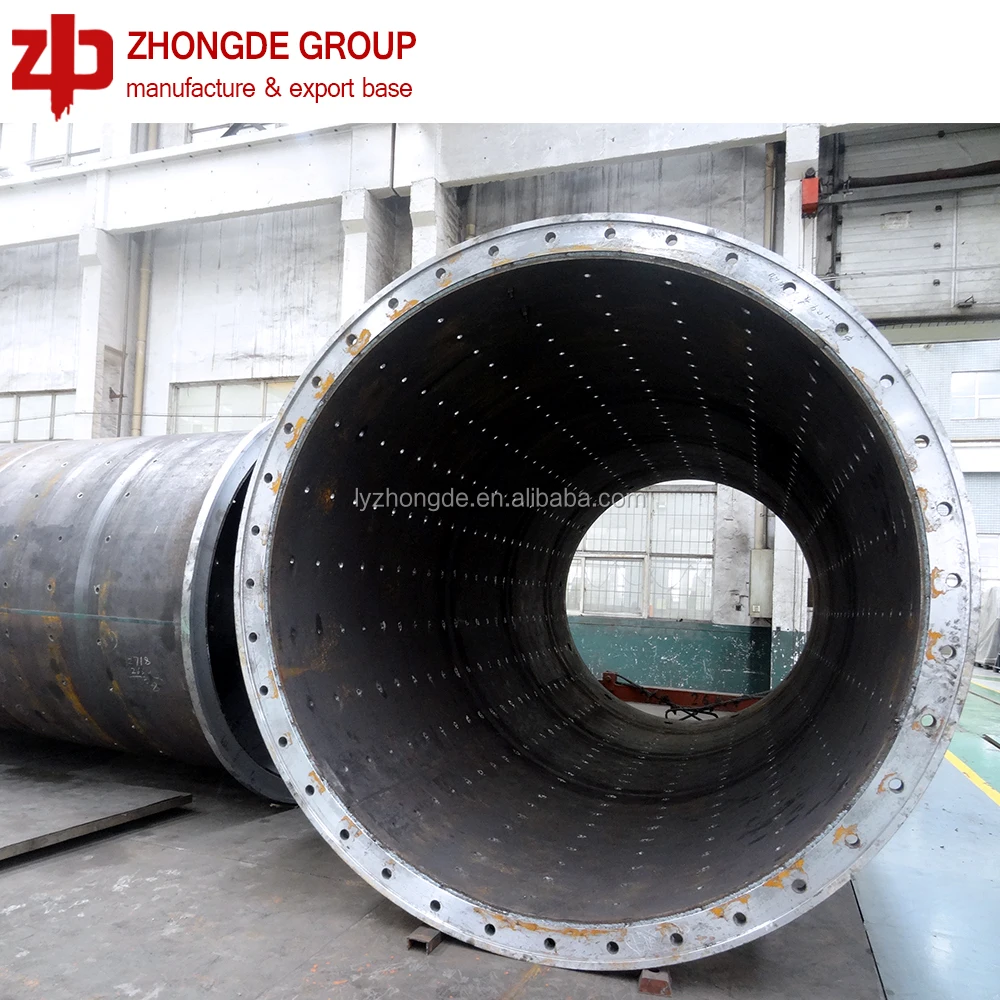

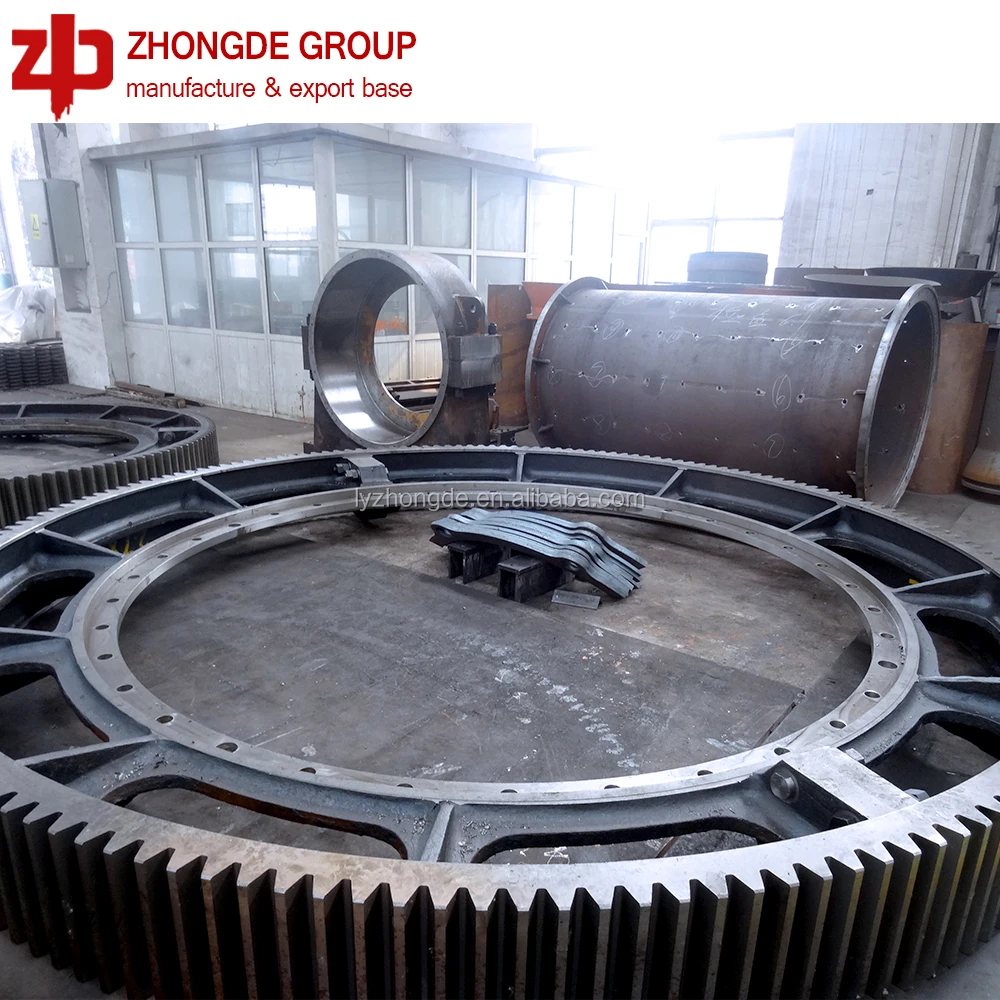

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Ball mill capacity chart
| Model | Cylinder | Effective volume(m3) | Max.ball loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(KW) | |
Diameter (mm) | Length (mm) | |||||||
| MQY-1530 | 1500 | 3000 | 4.5 | 8 | 30 | 6.3~2.8 | 0.3~0.074 | 90 |
| MQY-1545 | 1500 | 4500 | 6.7 | 12 | 30 | 9~3.8 | 0.3~0.074 | 132 |
| MQY-1830 | 1830 | 3000 | 6.7 | 12 | 26.6 | 12.5~4.5 | 0.3~0.074 | 130 |
| MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5~6 | 0.3~0.074 | 180 |
| MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18~5.8 | 0.3~0.074 | 210 |
| MQY-2136 | 2100 | 3600 | 11 | 20 | 23.8 | 22~6.8 | 0.3~0.074 | 210 |
| MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.9 | 25~8 | 0.3~0.074 | 280 |
| MQY-2230 | 2200 | 3000 | 10 | 18.5 | 21.3 | 23~6.9 | 0.3~0.074 | 210 |
| MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8~8.5 | 0.3~0.074 | 280 |
| MQY-2430 | 2400 | 3000 | 12 | 22 | 21.3 | 26~7 | 0.3~0.074 | 245 |
| MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5~8.8 | 0.3~0.074 | 280 |
| MQY-2445 | 2400 | 4500 | 17.8 | 30 | 21.6 | 42~11 | 0.3~0.074 | 320 |
| MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56~14.5 | 0.3~0.074 | 480 |
| MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54~11.7 | 0.3~0.074 | 400 |
| MQY-2740 | 2700 | 4000 | 20.6 | 38 | 20.7 | 60~13 | 0.3~0.074 | 400 |
| MQY-2745 | 2700 | 4500 | 23.2 | 43 | 20.7 | 67.5~14.5 | 0.3~0.074 | 480 |
| MQY-2750 | 2700 | 5000 | 25.8 | 48 | 20.6 | 75~16 | 0.3~0.074 | 500 |
| MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90~19.5 | 0.3~0.074 | 630 |
| MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78~16.5 | 0.3~0.074 | 500 |
| MQY-3064 | 3000 | 6400 | 40.2 | 74 | 19 | 125~26 | 0.3~0.074 | 800 |
| MQY-3245 | 3200 | 4500 | 32 | 59 | 18.2 | 95~21.6 | 0.3~0.074 | 630 |
| MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114~25.9 | 0.3~0.074 | 800 |
| MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148~30.2 | 0.3~0.074 | 1250 |
| MQY-3645 | 3600 | 4500 | 40 | 75 | 18 | 136~24.3 | 0.3~0.074 | 1000 |
| MQY-3650 | 3600 | 5000 | 46 | 86 | 18 | 151~28.1 | 0.3~0.074 | 1250 |
| MQY-3660 | 3600 | 6000 | 54 | 102 | 18 | 181~32.4 | 0.3~0.074 | 1250 |
| MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256~45.8 | 0.3~0.074 | 1800 |
| MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226~40.5 | 0.3~0.074 | 1500 |
| MQY-4067 | 4000 | 6700 | 78 | 136 | 16.9 | 252~45 | 0.3~0.074 | 1600 |
| MQY-4361 | 4270 | 6100 | 80 | 144 | 15.7 | 258~46 | 0.3~0.074 | 1850 |
| MQY-4564 | 4500 | 6400 | 95 | 172 | 15.6 | 306~54 | 0.3~0.074 | 2000 |
| MQY-5064 | 5030 | 6400 | 120 | 216 | 14.4 | 386~68 | 0.3~0.074 | 2600 |
| MQY-5083 | 5030 | 8300 | 152 | 266 | 14.4 | 500~88 | 0.3~0.074 | 3300 |
| MQY-5585 | 5500 | 8500 | 187 | 338 | 13.8 | 615~108 | 0.3~0.074 | 4500 |
Packaging & Shipping
- The ball mill will be delivered in 30 days after payment.
- The machine will be packed in export container.
- Motors and small parts will be packed in new strong wooden cases suitable for long distance ocean transportation.
- Zhongde promise that your goods will be shipped to destination timely and safely.
