FULLY AUTOMATIC 1' VENETIAN BLIND RAIL CUTTING PUNCHING MACHINE/VENETIAN BLIND MACHINE

Product Overview

Description

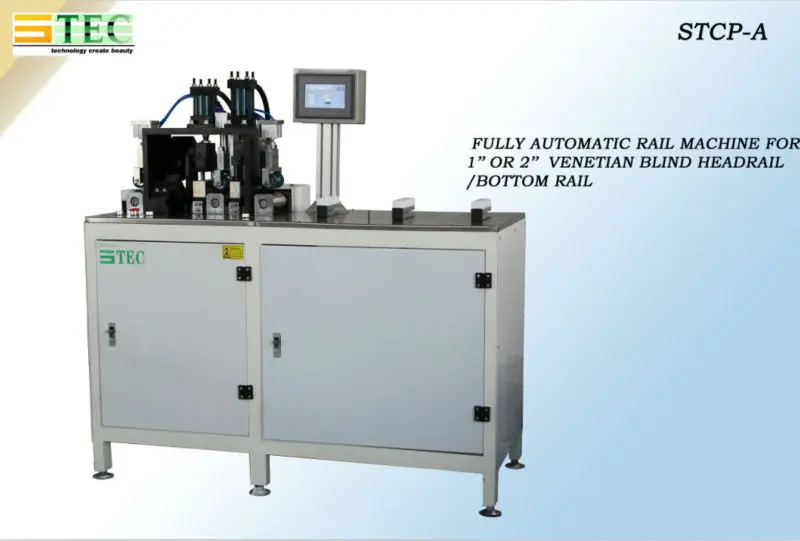

FULLY ATUOMATIC MACHINE FOR 1'' OR 2'' VENETIAN BLIND HEADRAIL AND BOTTOM RAIL





SPECIFICATIONS

Fully Automatic Aluminum Venetian Blind Head Rail &Bottom Rail Cutting Punching Machine
Voltage	110/220V AC 50/60HZ
Rate power	3KW
Working air pressure	0.4~0.5PMA
System	PLC Control system,hydraulic&pneumatic driving system
Dimension	L1500mm*W650mm*H1570mm
Packing size	L1600mm*W700mm*H1670
N.W	550KG
G.W	600KG
Package	Steel frame with poly wood board cover



FUNCTION FEATURES:



• PLC CONTROL SYSTEM,TOUCH CONTROL PANNEL



• ACCURATE FIXED LENGTH CUTTING



• COMPUTERIZED SPACING HOLE PUNCHING



• HEAD RAIL AND BOTTOM RAIL CAN BE PROCESSED TOGETHER



• HOLES OF CORD LOCK,TAPE ROLL SUPPORT,TILTER,TAPE LOCK BUTTON PUNCHING
