UTECH PM5000V Veterinary Multiparameter Patient Monitor with Stable Quality

Product Overview

Description

                   12.1 inch PM5000V Monitor Multiparametrico Veterinario

 Features:

• 12.1'' inch colored, high definition TFT screen


• Lightweight, compact and portable


• Parameters: SPO2, ECG, NIBP, TEMP, RESP


• Suitable for DOG, CAT and HORSE etc.


• 72 hours graphic and tabular trends of all parameters


• 32 seconds full-disclosure waveform review


• 500 NIBP measurement data can be stored and recalled


• Storage and recall of 500 SpO2 measurement data


• Built-in rechargeable Lithium battery

Technical Specifications:



1. Parameters: SPO2, ECG, NIBP, TEMP, RESP, PR, RR. Optional function: ETCO2 and internal printer.

2. Power supply

• AC power adapter, AC 85~265V/ 50Hz/60Hz;


• lithium battery.

3. SpO₂

• Range: 0%-100%.


• Accuracy: ±2% at 70-100%;<70%, undefined.

4. Pulse rate

• Range: 30-250bpm.


• Accuracy: ±2bpm at 30-250bpm.

5. NIBP

•

  Method: Oscillometry




•

  Modes: Manual/Auto/Comtinuous




•

  Auto measure time: Adjustable




•

  Measurement range: 10-270mmHg



6. ECG

•

  Lead mode:3-lead or 5-lead




•

  Lead selection:I;II;III,avR;avF;V




•

  Heart rate range:Adult:15-300bpm;Pediatric/Neonatal:15-300bpm




•

  ECG waveform:2 channals




•

  Accuracy: ±1 bpm or ±1%,which is greater




•

  S-T segment detection;measurement range: -2.0mv~2.0mv




•

  Alarm:Yes,audible and  visual alarm,alarm events review



7. Respiration

•

  Method:RA-LL impedance




•

  Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm




•

  Apnca alarm:Yes



 8. Temperature

•

  Range:0-500C




•

  Accuracy: ± 0.10C




•

  Channal:Dual-channel



Environment Specification:

• Operating Temp.: 0 to 45°c


• Storage Temp.: -20 to +60°c


• Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)

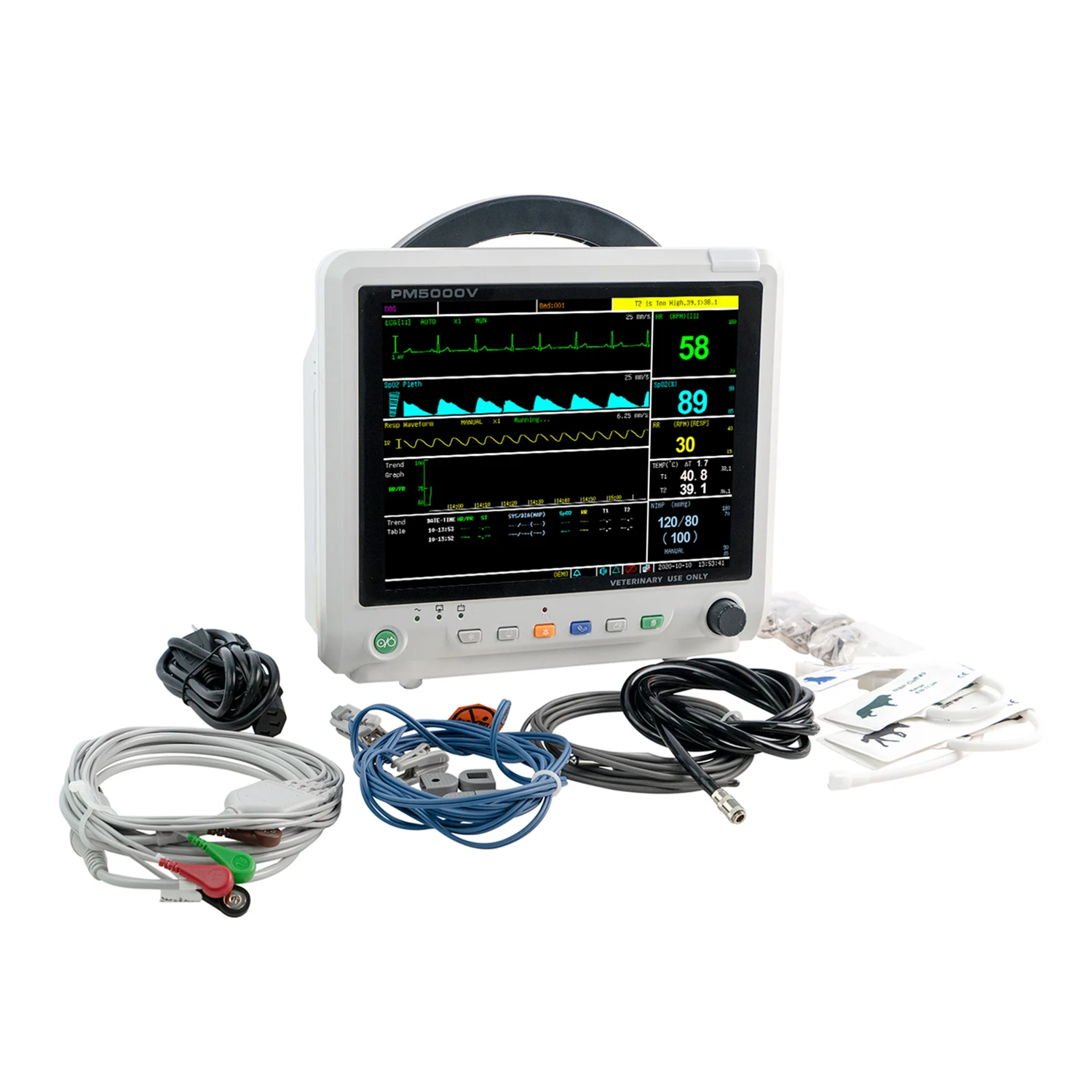

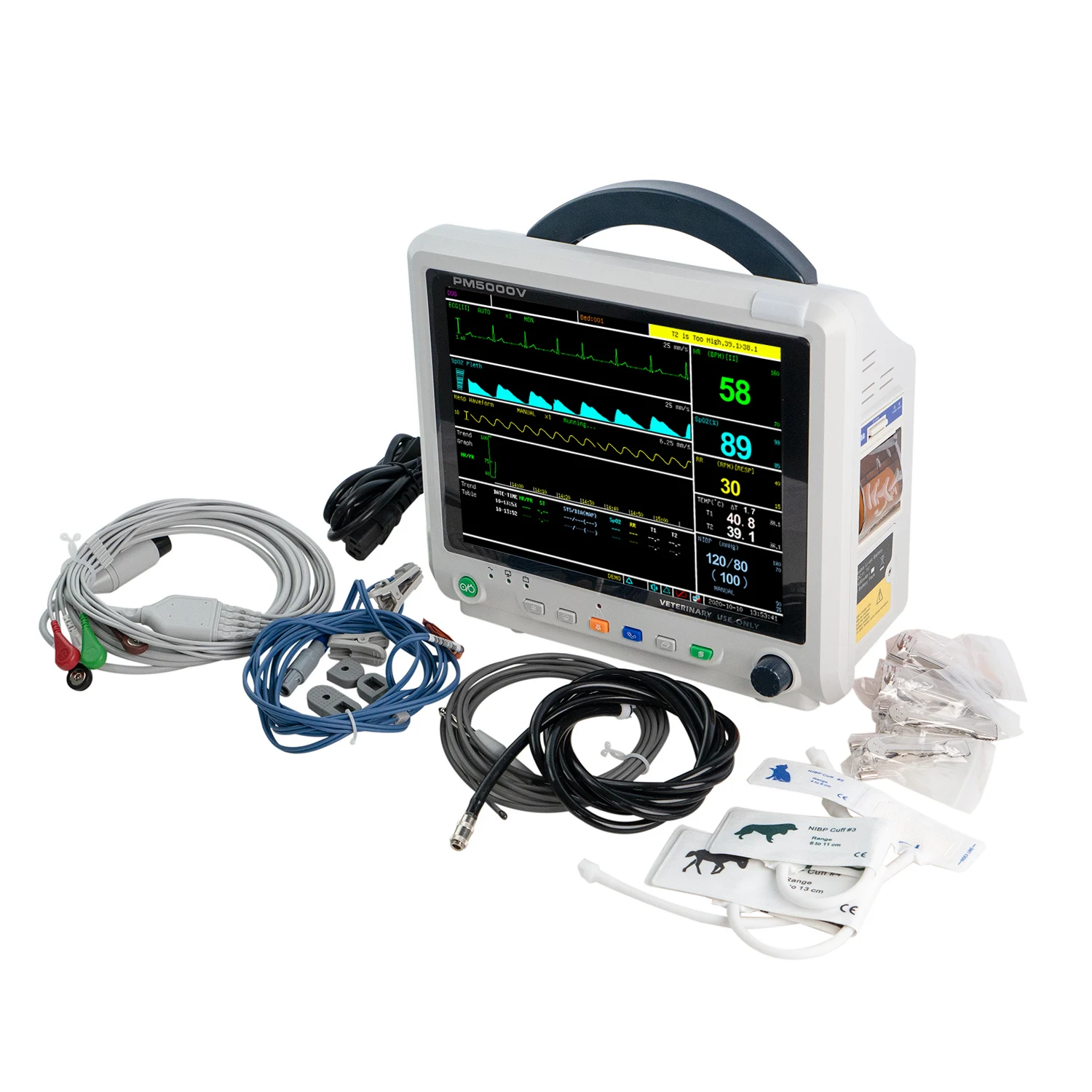

Standard Package:

• PM5000V Main Uint


• Veterinary SpO2 Probe


• 5-leads ECG Cable (mini clip)


• NIBP Cuff for VET


• NIBP Extension Tube


•

  Power cable




•

  Battery




• User manual

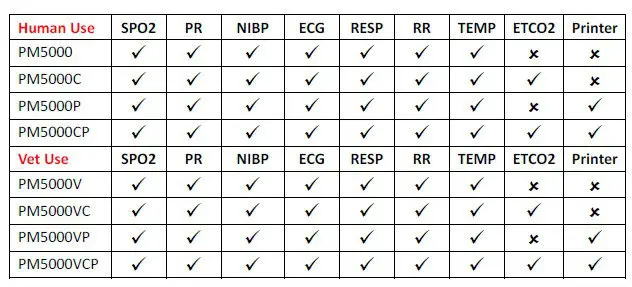

PM5000 Configuration Table:
