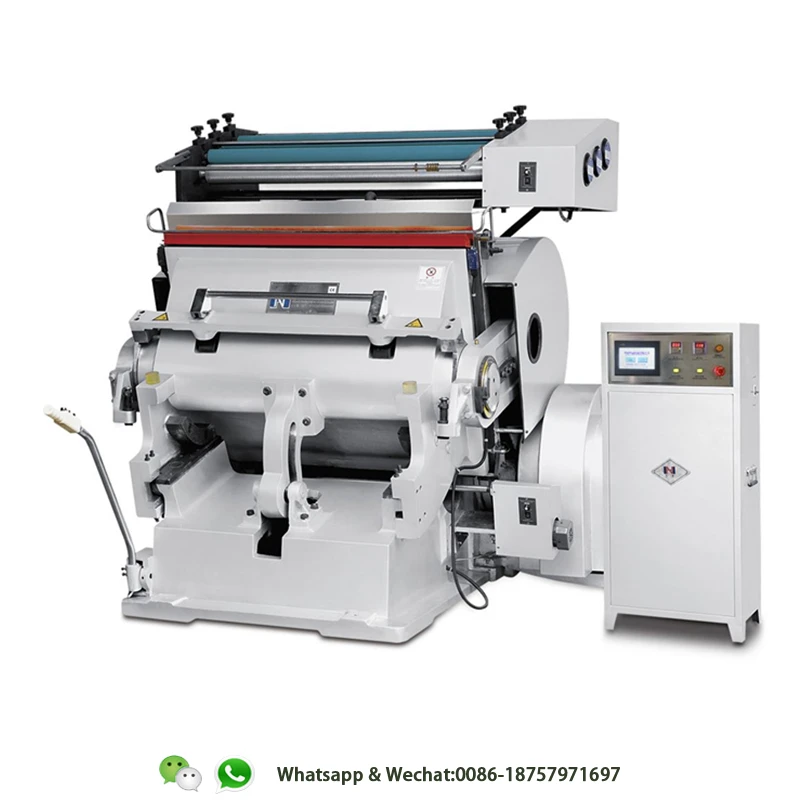

TYMK750 Computerized Hot Foil Stamping and Die Cutting Machine, stamping machine and die cutting machine

Product Overview

Description

Item: TYMK930/750 Hot Stamping & Die Cutting Machine

Description:

Applications
Our hot foil stamping machine is a piece of post press equipment primarily used in the package printing industry. It is suitable for thermo printing of various cigarette cases, wine boxes, cosmetics boxes, medicine boxes, photos, business cards, greeting cards, as well as calendars, book covers, logos, plastic products, gift boxes, and more.

Features
1. TYMC series hot foil stamping machine is very versatile, with the functions of hot stamping, die cutting and concave-convex forming.
2. The display system with LCD greatly improves the productivity.
3. This machine adopts PLC microcomputer control, stepper motor drive for reliable operation and convenient adjustment
4. Uniform, fast heating, low power consumption, constant temperature control, real-time temperature display function

Advantages
1. Our hot foil stamping machine uses centralized lubrication pump system
2. It adopts electrical components from world renowned suppliers
3. Strengthened construction ensures smooth operation and long service life.
4. After hot stamping, the items are aesthetic, abrasion resistant, and bright in color.

Detailed data:



Model	TYMK930	TYMK750
Area of large lettering plate	900x600mm	720x520mm
Continuous lettering speed	23±2 strokes/min	26±2 strokes/min
Groups of foil-feeding	3 set	2 set
Common foil feeding	1-600mm	1-450mm
Times of skip	0-99 times	0-99 times
Total electro thermal power	10kw	6kw
Machine weight	3000kg	2000kg
Overall dimension	1800x1600x1750mm	1700x1400x1700mm
