Midea Large capacity air conditioner up to 88HP

Product Overview

Description



Large capacity air con up to 88HP

Midea VRF inverter air conditioner -  Commercial Air conditioning



 V5 X Full DC Inverter VRF

a new altitude of HVAC solutions



Core Advantage

• Top-class energy efficiency
• Single capacity 22HP & Module capacity 88HP
• Longest pipeing length & Highest elevation
• Masterpiece from French designer







Features of Large capacity air conditioner up to 88HP:

1. Wide Application Range

• Large capacity for big sized building

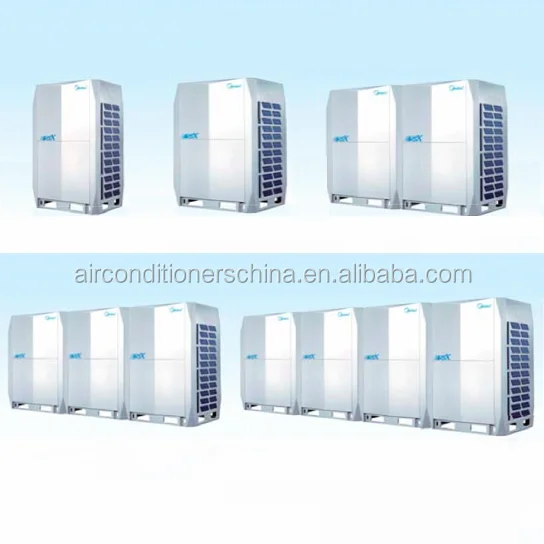

The outdoor units capacity range from 8HP up to 88HP in 2HP increment, max. combination of 4 basic models.



• Wide choices of locations

Maximum 64 indoor units with capacity up to 130% of total main units can be connected in one refrigeration system. It is especially suitable for office buildings, hotels, apartments, waiting rooms, hospitals, and so on.

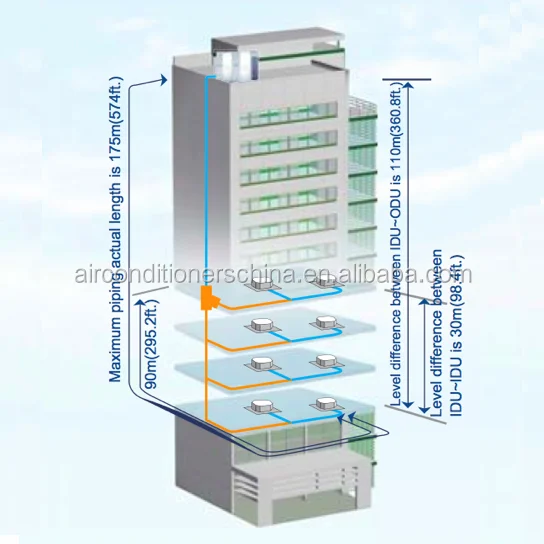

• Long piping length

The solution supports an incredible piping length of 1,000m (3280ft.) and level difference of 110m (360.8ft.), making it perfect for large projects.



• High external static pressure

The high-static pressure propeller and optimized fan guard can adapt to various installation environments.
Midea now offers up to 40Pa(0.16”W.G.)* external static pressure units for customized applications. A standard 0-20Pa(0-0.08”W.G.) function is equipped by default.

*You need to consult Midea if you require over 40Pa(0.16”W.G.)



• Wide operation range

Outdoor temperature when cooling: -5°C~48°C(23°F-118.4°F)

Outdoor temperature when heating: -20°C~24°C(-4°F-75.2°F)

The V5 X series system air conditioner operates stably at extreme temperatures ranging from -20°C(-4°F) to 48°C(118.4°F).



2. Higher Reliability

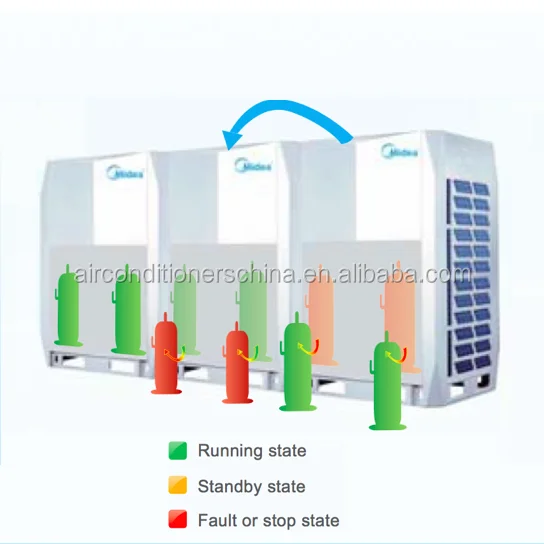

• Duty cycling
• Back-up function

• High efficiency oil balance and oil return technology
• Accurate control technology
• Real-time pressure control technology
• Temperature protection for electricity device
• Various kinds of protect function

3. Enhanced Confort

• Intelligent soft start technology
• Quick warm-up and cool-down design
• Intelligent defrosting technology
• Optional operation mode

• Advanced silence technology

4. High Efficiency

• High EER and COP values
• High efficiency DC inverter compressor
• Smooth 180 ° sine wave DC inverter
• All DC inverter compressor, auto energy allocation
• New profile fan blade
• DC fan motor
• High performance heat exchanger



5. Easier Installation and Service

• Simple communication wiring
• Auto-test operation and auto-addressing function

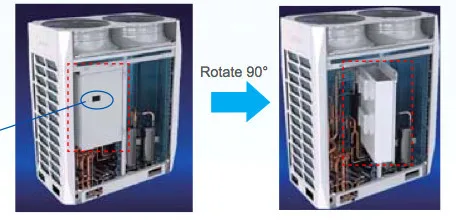

• 90° rotatable electric box

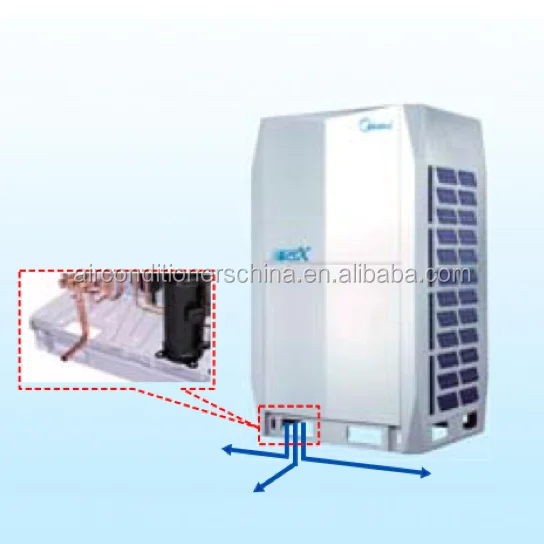

• 360 ° pipe connection

• Compact size for saving space

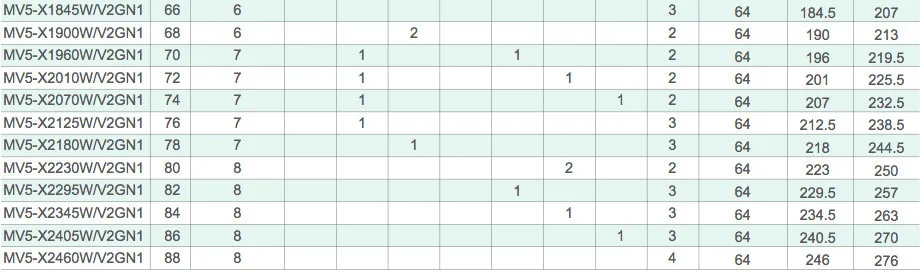

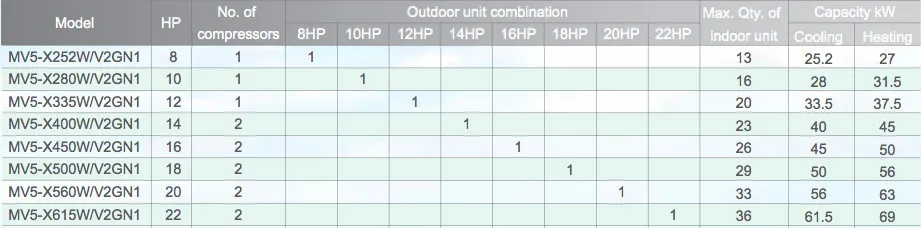

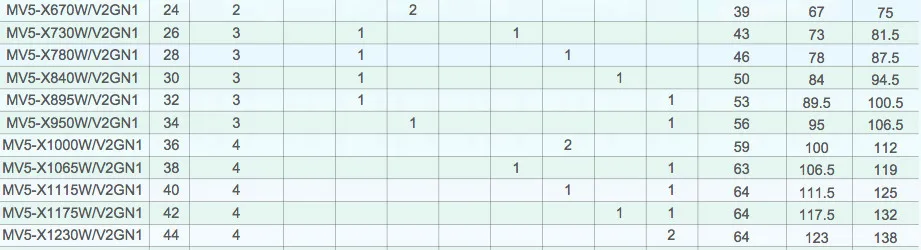

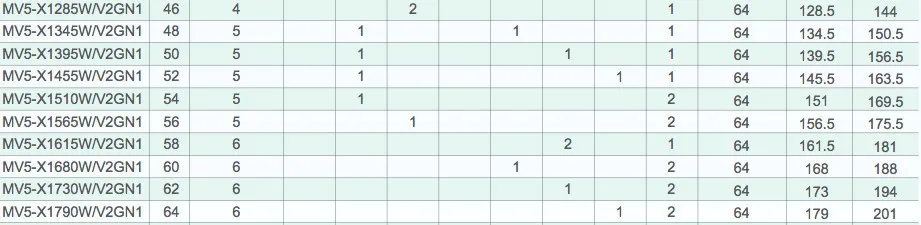

Outdoor units’ lineup of Large capacity air conditioner up to 88HP:

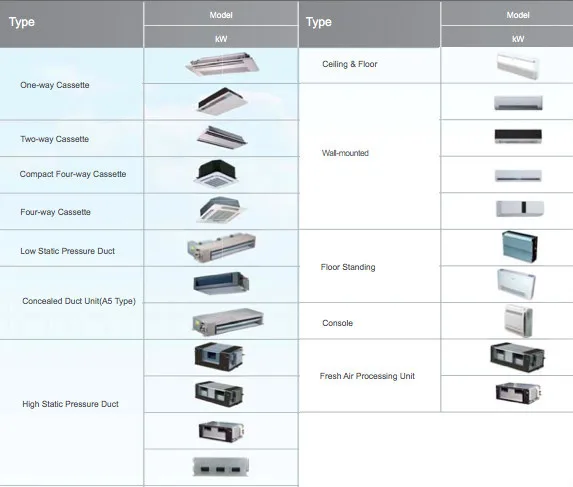

Indoor unit's lineup of  Large capacity air conditioner :





If you have more inquiry for Large capacity air conditioner, pls. contact us freely!
