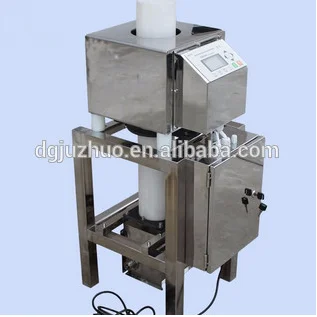

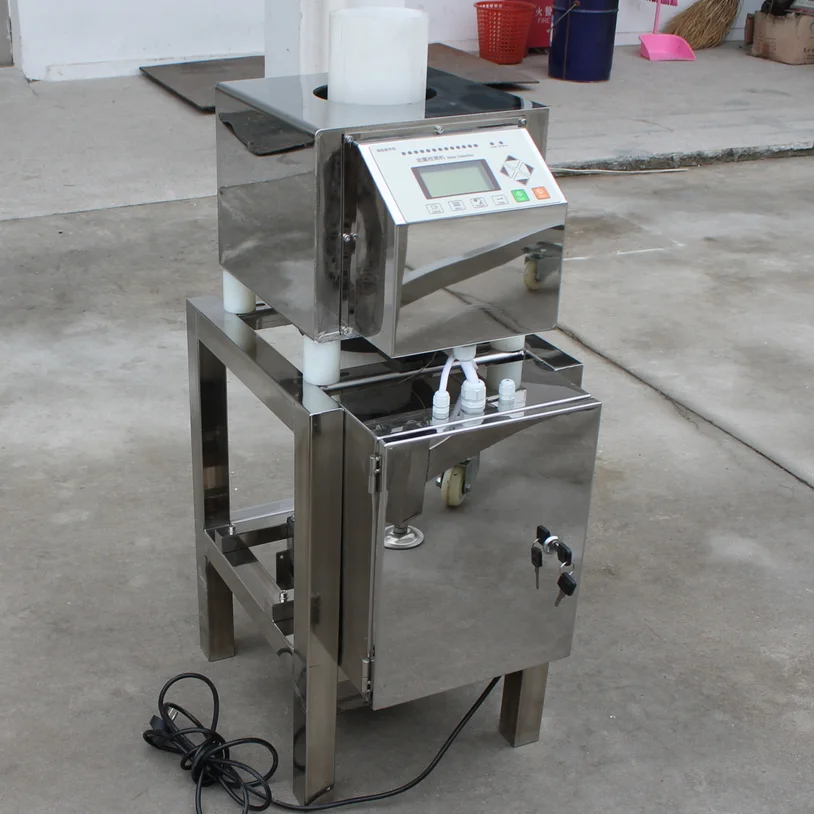

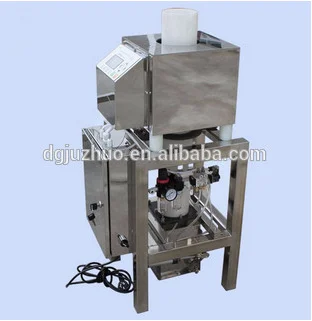

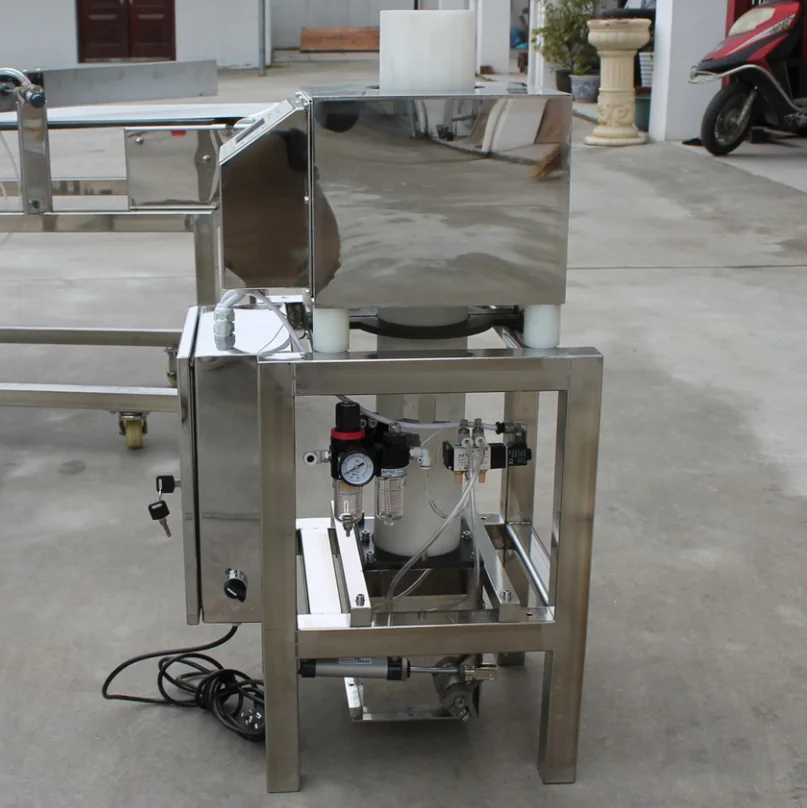

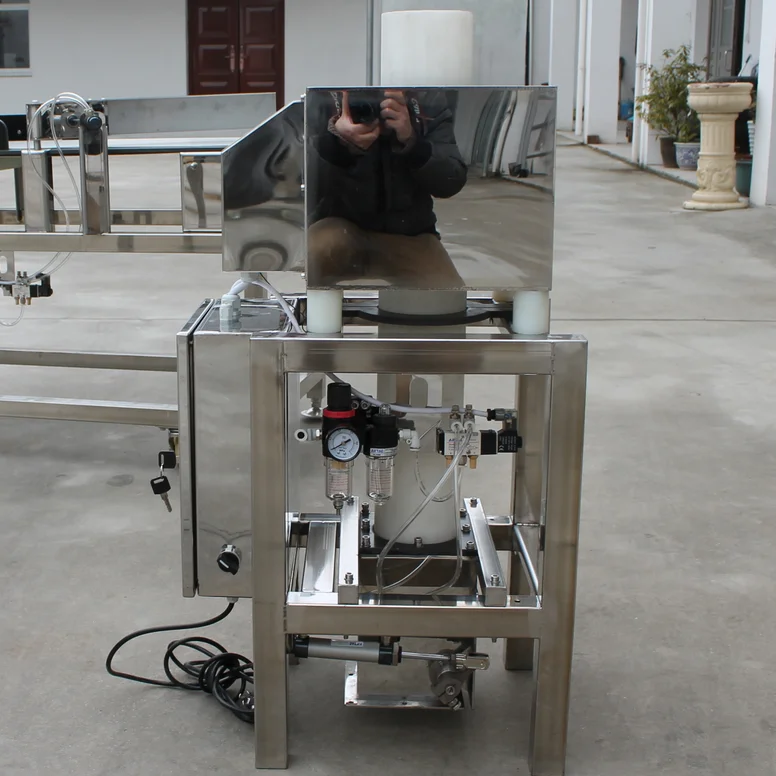

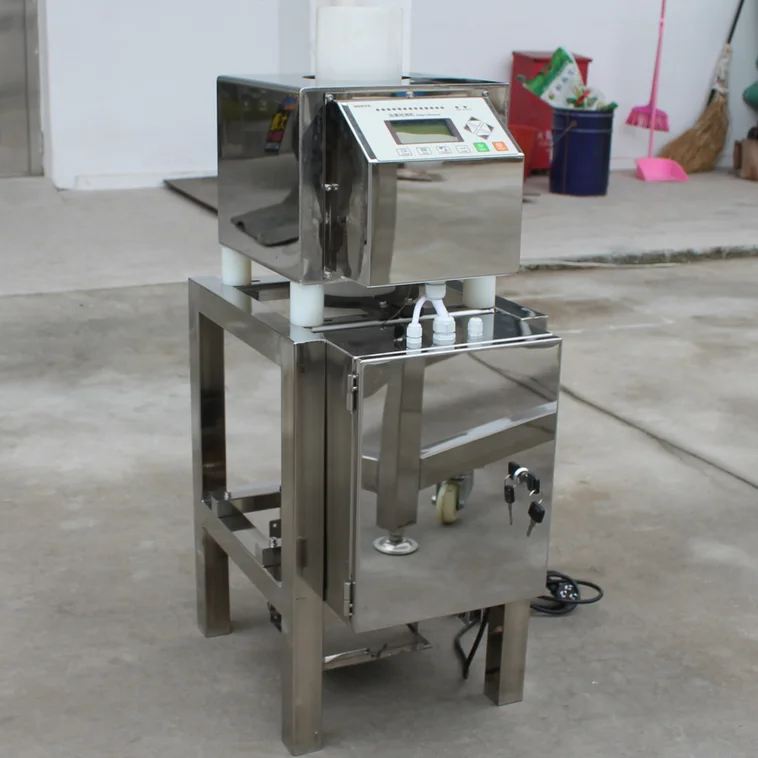

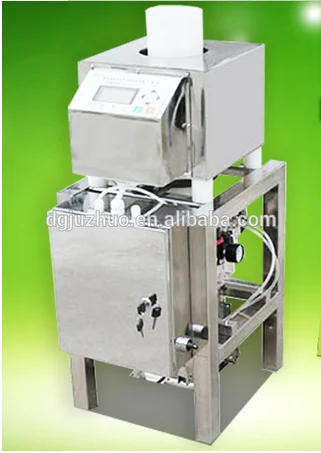

Alarm detector metal/Metal Detector for powder products JZD P16

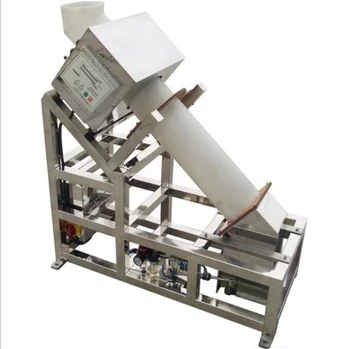

Alarm detector metal/Metal Detector for powder products JZD-P16

Application:

Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

Function:

To detect and separate of all metals: copper, iron, zinc, stainless steel and all metals.

Features:

Detection method: Free-Falling body/Gravity

Suitable material: grain or powder

Separate ways: automatic separation

Advantage: high precision and simple installation.

Technical Parameter:

Operating voltage: 220 VAC (+ / -10%, 50/60 Hz)

Input current: 80/160 mA

Ambient temperature: -10/60 degrees

Case Material: Stainless Steel

Contact parts with material: PP plastic and PTFE

Compressed air: 4-8 kg, connected with 6 - 8 mm hose

Gas consumption: 0.6 liters each separate action

Level of protection: IP 54

Separation time 0.2 - 2.5 seconds. No level can be adjusted

Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)

The way of using and detect the material: To detect the plastic granules with falling body.

Material characteristics: dry, no long-fiber, non-conductive ,particles less than 8 mm

Specifications:

80 type(internal detection tube Dia): 5000  l / h      Accuracy: 0.7 iron, stainless steel, 1.5, copper 1.2 mm

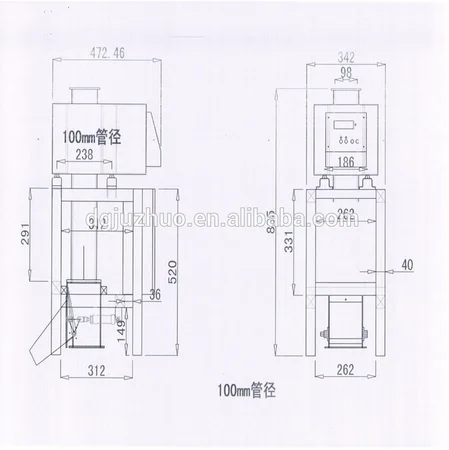

100 type(internal detection tube Dia): 10000 l / h    Accuracy: 0.8 iron, stainless steel, 2.0, copper 1.5 mm

150 type(internal detection tube Dia): 20000 l / h    Accuracy: 1.2 iron, stainless steel, 2.3, copper 2.0 mm

200 type(internal detection tube Dia): 40000 l / h    Accuracy: 1.5 iron, stainless steel, 2.5, copper 2.0 mm

250 Type(internal detection tube Dia): 65,000 l / h   Accuracy: 2.0 iron, stainless steel, 3.0, copper 2.5 mm
