500ml 380 degree Magnetic stirring laboratory harga heating mantle

Product Overview

Description

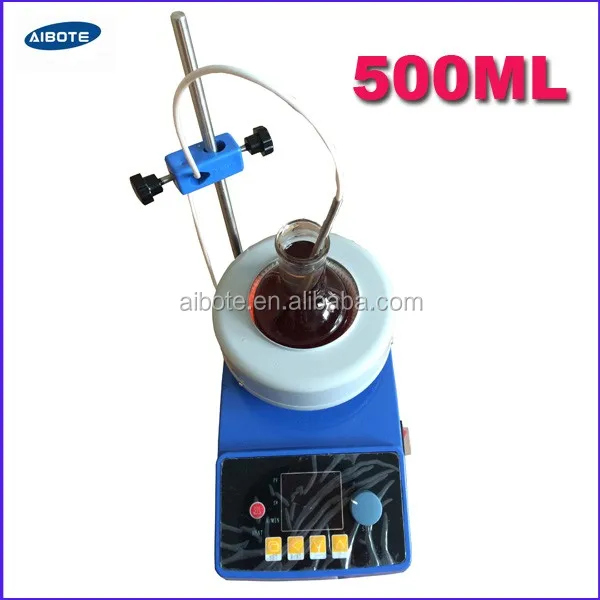

500ml 380 degree  Magnetic stirring  laboratory harga heating mantle

Model :  ZNCLT500

HS :8514400090

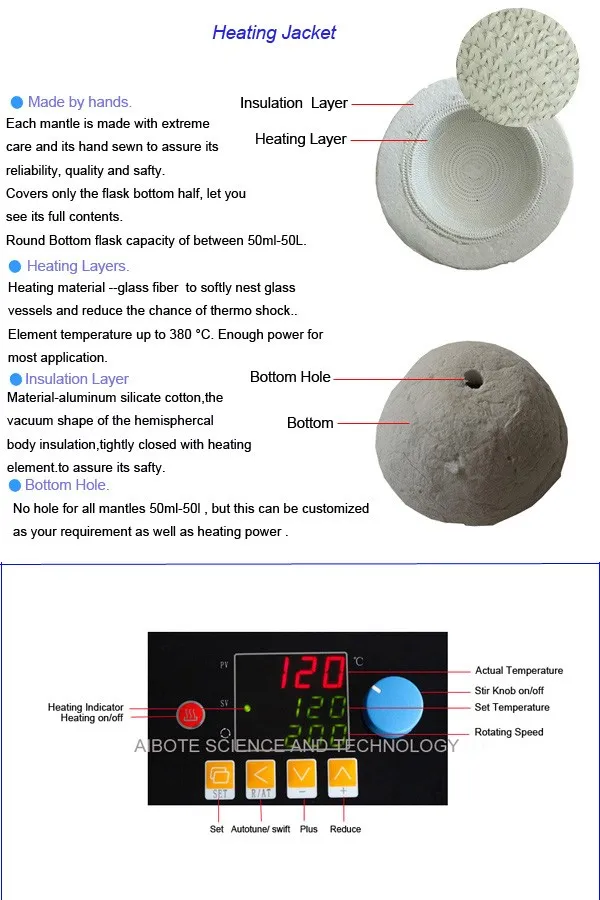

  AIBOTE Heating Mantles are manufactured to the highest quality in  China manufacturing facility .Our heating mantles  made of alkali-free glass fiber insulation material, the Cr20Ni80 alloy wire spring installed in them, with aluminum silicate cotton by the vacuum shape of the hemispherical insulation body insulation. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage. All AIBOTE mantles go through the 'burn off' procedure at the end of the manufacturing process enabling use straight out of the box.



And our mantle including stirring heating mantle ZNCLTS series , ZNCLT series, TWCLT series ,single heating  mantles ZNHW series , ZNHW-II series, PTHW series , multi- position stirring and without stirring heating mantle , both can be digital display and analog for each units . Offered in a wide range of sizes to accomodate large flasks to small beakers, these heating mantles are CE  certified. OEM also available for us. Can be widely used with hotplate stirrers, glasswares ,reaction bath for heating and Fractional distillation in schools , institutes, Large chemical plants ,ect.



Main Features

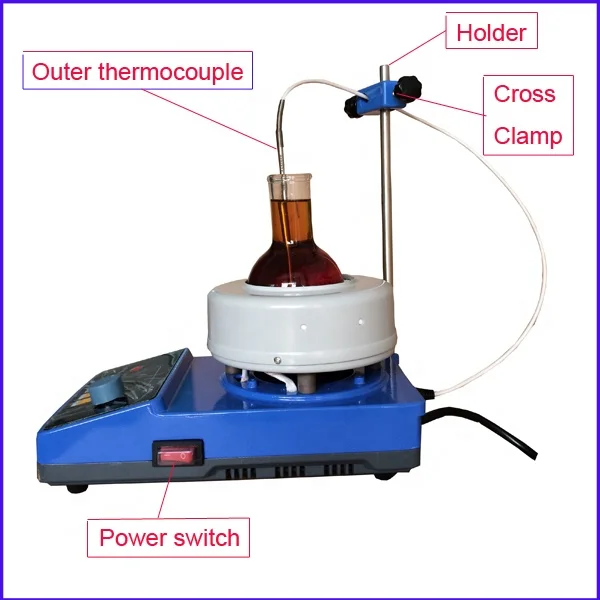

1. Temperature range : ambient to 380 degree . PID control as well as inner and outer thermocouple for laboratory  heating mantle



2. Digital display for temperature Speed add , reduce and set . LED Display for stir  speed add and reduce .



3. Stirring is Independently controlled with a variable speed control up to 2500rpm .



4. Capacity : 50ml - 20, 000ml for round bottom flasks .



5. Can be customized for beakers as your requests

TECHNICAL SPECIFICATION



Model	ZNCLT 500
For flask round flask Volume (ml)	500ml for laboratory heating mantle
Voltage	110-130V , 160 - 240V
Power outfits  (w )	220 W
Temp Control	PID
Temperature  Range	Ambient to 380 degree
Accuracy	+/ - 1 Degree
Temperature Display	Red LCD Digital Display
Stir Speed Range	0- 2500rpm
Stir Speed Display	Green LCD Digital Display
Motor Power	20W , DC30
Upper Diameter(mm)	Φ115
Heat Material	Alkali-free glass fiber . Max Temperature Resistance 450°
Upper mantle Shell Material	Superfine metal
Shell Material blue parts	Plastic
Net Weight	3.3KG
Gross weight	4Kg
Dimension	37 x 34 x 48cm
Thermostatic probe for temperature	Length 345 mm, stainless steel material
Inner Thermostatic sensor	To measure the liquid temperature



DIGITAL PARTS

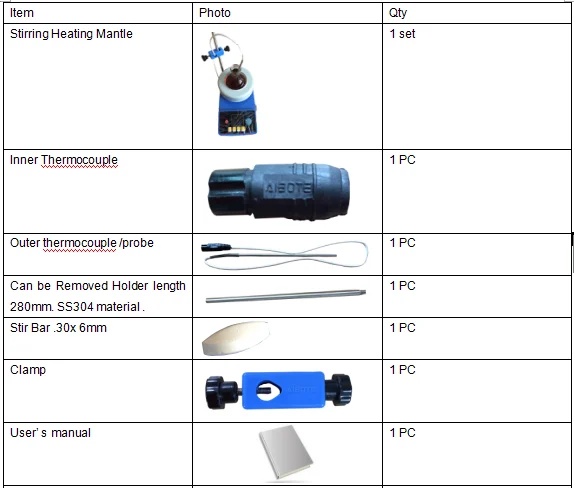

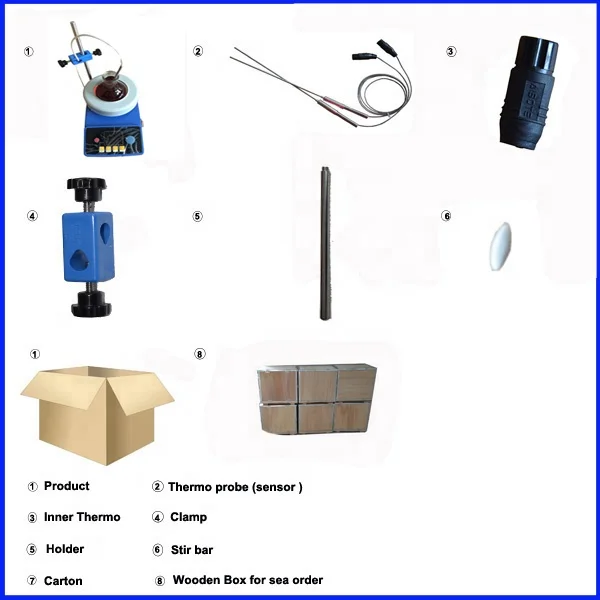

 PACKING LIST



 OUR LOGO IN THE MACHINE

 CLICK BELOW PHOTOS FOR MORE MANTLES



   TWCLT50-20000             ZNCLT50-20000          ZNCLTS50-20000        TWCLDL250-1000



  TWCLDL450-1000        TWCLDL6250-1000      ZNCLDL250-1000           ZNCLDL450-1000

ZNCLDL650-1000

 CE CERTIFICATE FOR HEATING MANTLE





Production Process of  Heating Mantle









FRQ



1 Are you a factory or trading company ?



A : We are a factory for mantles /stirrers/chiller /rotary evaporator .



2 .Where is your company location ? How can i  visit there ?



A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !



3.What the material  of your products ?



A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests



4. How can i  get some  sample ?





A. We are honored to offer sample for your evaluation
