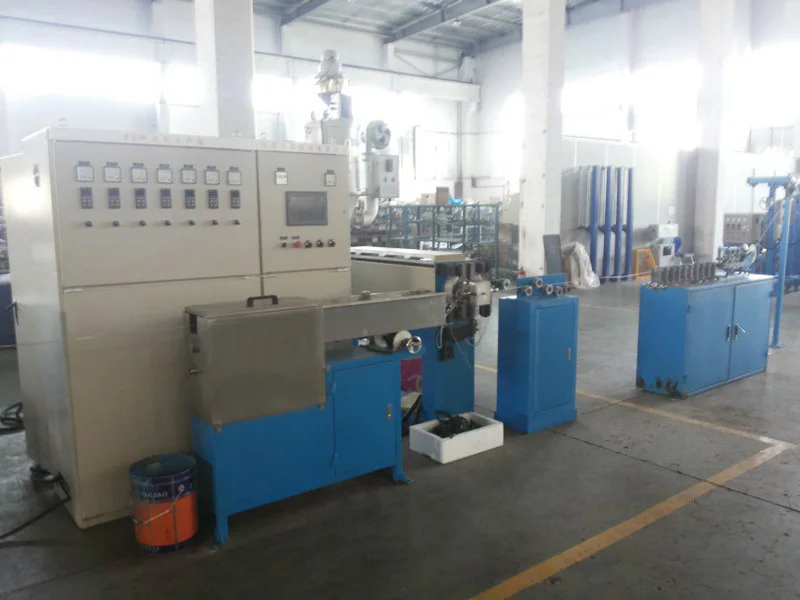

60mm NYLON PVC Production Line Cable Making Production Line/ electric copper wire cable extrusion machine / cable making machine
- Category: >>>
- Supplier: Shanghai Zeno Industry Co. Ltd.
Share on (60080497334):
Product Overview
Description
60mm NYLON PVC Production Line Cable Making Production Line/ electric copper wire cable extrusion machine / cable making machine
Product Description
It’s used for the insulation of wire &cable with PVC、LDPE、NYLON、TPU. Also it can be equipment with triple co-extrusion crosshead and double layer.
Main technical parameter | Screw Parameters | Extrusion Capacity (kg/h) | ||||||||||
Dia(mm) | L/D Ratio | Ratation Speed(r/min) | PVC | LDPE | PP | |||||||
JCJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | ||||||
JCJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | ||||||
JCJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | ||||||
JCJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | ||||||
JCJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | ||||||
JCJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | ||||||
JCJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | ||||||

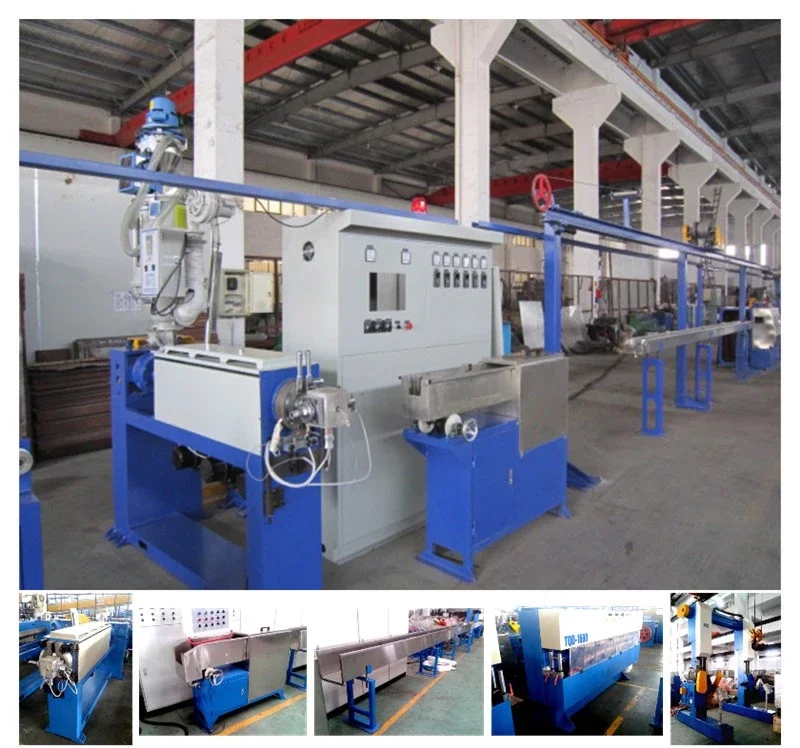

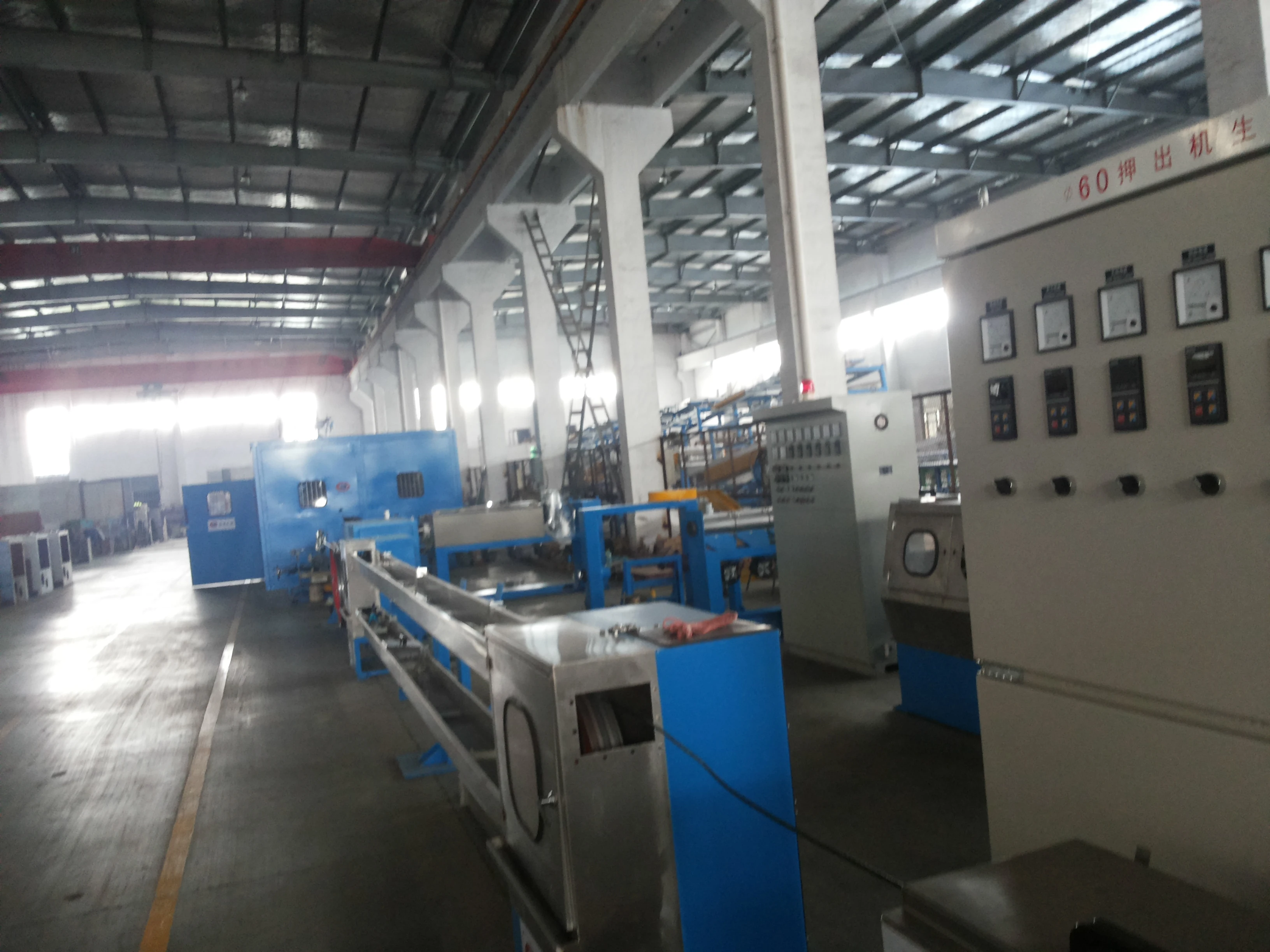

Production line consist+optional parts
pay off,main machine;cabinet,fixed trough,traction,take-upcaterpillar,sparking machine,diameter-testing laser gauge,LSZH
screw,gantry typetake-up and pay-off,end-shaft type take-up and pay off
pay off,main machine;cabinet,fixed trough,traction,take-upcaterpillar,sparking machine,diameter-testing laser gauge,LSZH
screw,gantry typetake-up and pay-off,end-shaft type take-up and pay off

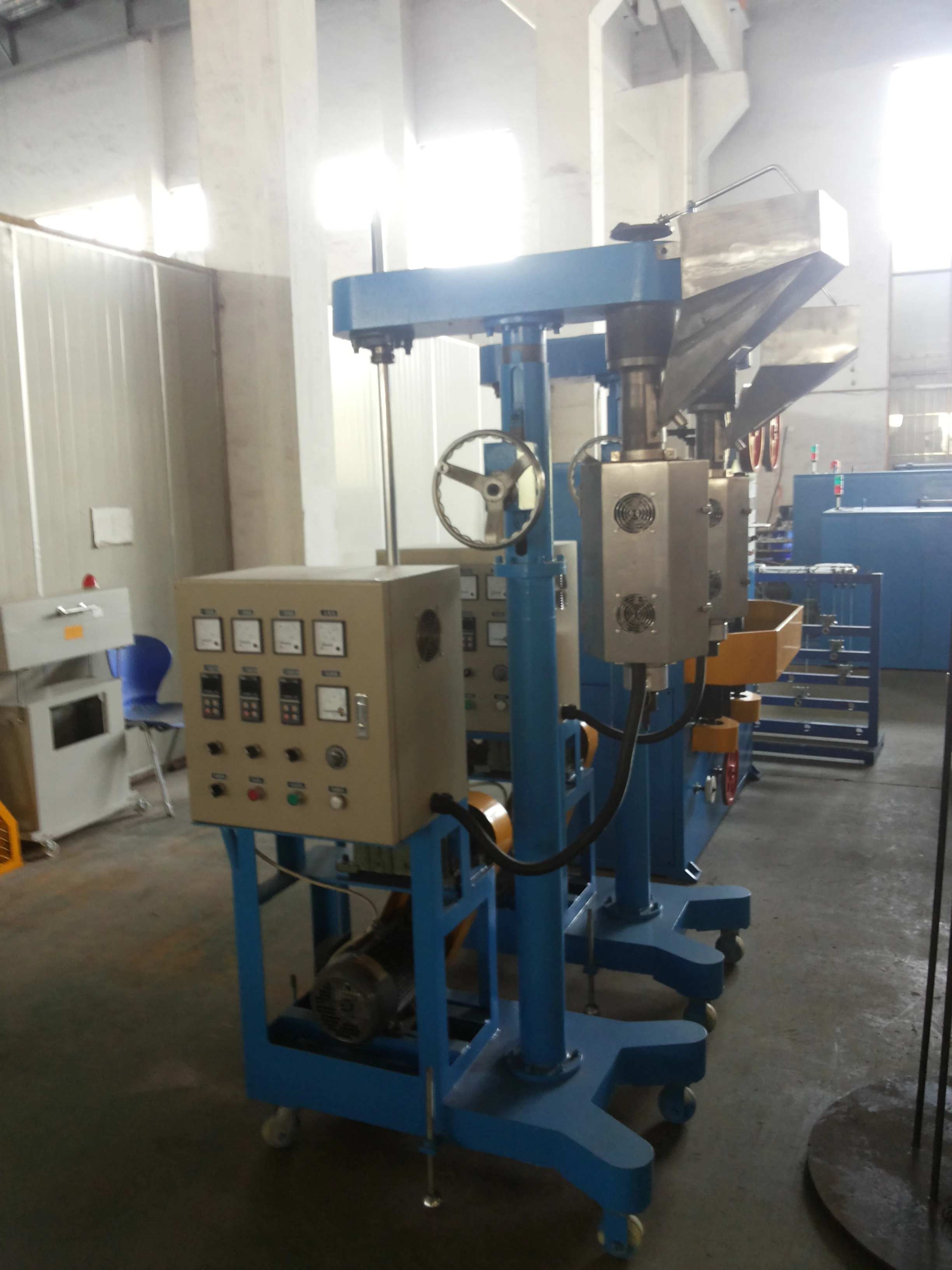

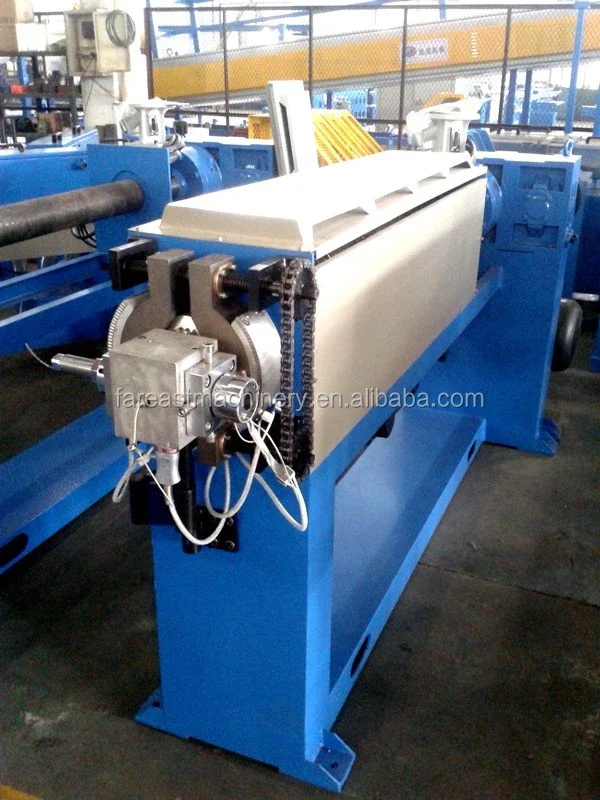

Main machine: extruder machine
Main machine: extruder machine
a. Screw Dia.: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 & 150mm
b. Suitable for free adjustable nose or adjustable nose
c. Suitable for free adjustable mould or adjustable mould
a. Screw Dia.: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 & 150mm
b. Suitable for free adjustable nose or adjustable nose
c. Suitable for free adjustable mould or adjustable mould

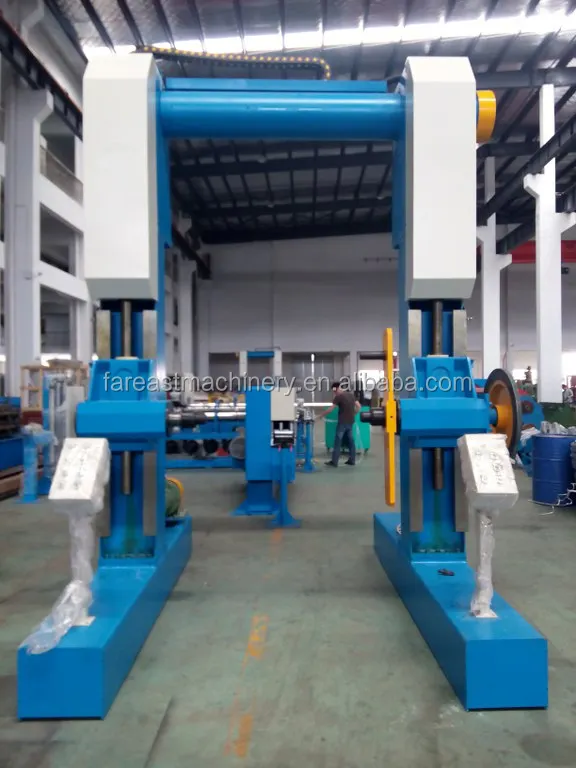

Take-up type: gantry take-up
Advantages:
a. large capacity cable storage
b. improve quality
c. easy to operate
a. large capacity cable storage
b. improve quality
c. easy to operate

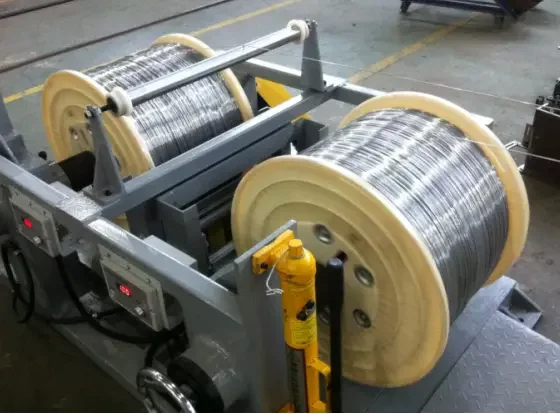

Dual heads 630 passive pay off
A. pay off bobbin size: Φ500-630mm B. Shaft clamping type:screw nut clamping type C. Machine stop automatically while wire broken
D. Install type: manual

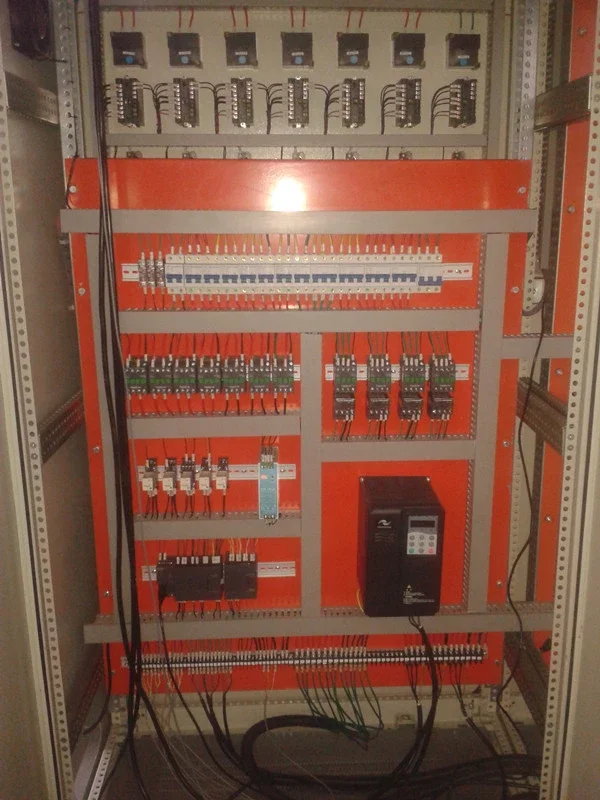

Main electric appliance brand:
1) PLC: SIEMENS
2) Bearing: NSK
3) Low voltage apparatus: SCHNEIDER
4) Thermostat & Meter counter: FOTEK

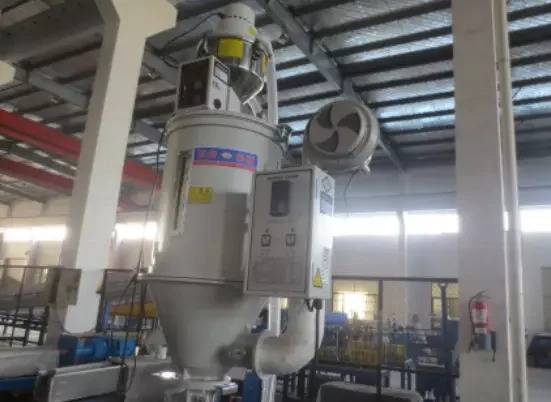

FAL-300 Suction feed machine
A. Type: SAL-300
B. Motor: Carbon Brush type:1000W
C. Sending capacity:200kg/h D. Hopper capacity:3L
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

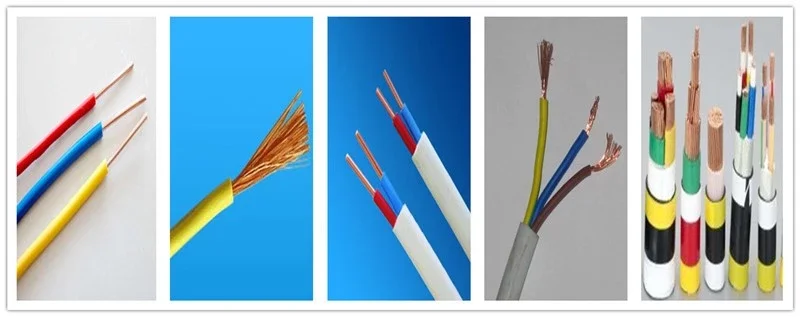

Finished Product
Packing&Shipping
Our Advantages
Company Introduction
Far East (China) Group Limited, we design and produce metal casting equipment, wire drawing equipment, and cable production
machinery of the highest quality. We pride ourselves on our various strengths that begin with product design and end with our
excellent after-sale services to make sure that our customers are satisfied with their metal machinery. Feel free to browse our
site and contact us if you have any additional questions about our company or products.
machinery of the highest quality. We pride ourselves on our various strengths that begin with product design and end with our
excellent after-sale services to make sure that our customers are satisfied with their metal machinery. Feel free to browse our
site and contact us if you have any additional questions about our company or products.
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
A:I am newer on this field, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How about the spare part?
Q: We can offer you a spare parts list for your reference.
A : Which industries are mainly targeted at Far East's equipment?
Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How about the spare part?
Q: We can offer you a spare parts list for your reference.
A : Which industries are mainly targeted at Far East's equipment?
Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.
