1. Gas-fired burner. 2. One/Two-stage working. 3. Air-gas mixing at blast-pipe. 4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe. 5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler. 6. Single stage manual flow adjustment. 7. Two stage Minimum and maximum air flow regulation for first and second stage by means of
electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
8. One flange and one insulating seal for boiler fastening. 9. Combustion air intake with air flow adjustment device. 10.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers. 11.Monophase electric motor to run fan. 12.Flame presence check by ionisation electrode. 13.Electrical plant protection rating IP40

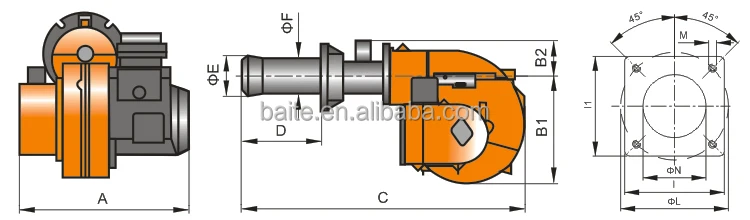

Technology parameter & drawing
Power (KW)
Model
Power Supply
Motor Power (KW)
Packing Size ( Lx Px H mm )
Net. Weight (kg)
60~300
BT30G/GR
230V 50Hz
0.37
850x530x395
27
Model
A
B1
B2
C
D
E
F
N
L
I (I1)
M
mm
mm
mm
mm
mm
Φmm
Φmm
Φmm
Φmm
mm
M
BT30G/GR
422
263
102
800
170~300
135
133
145
200~245
215
4-M2
Model
Art No.
Art No.
BT30G/GR
201 22 105
201 22 202

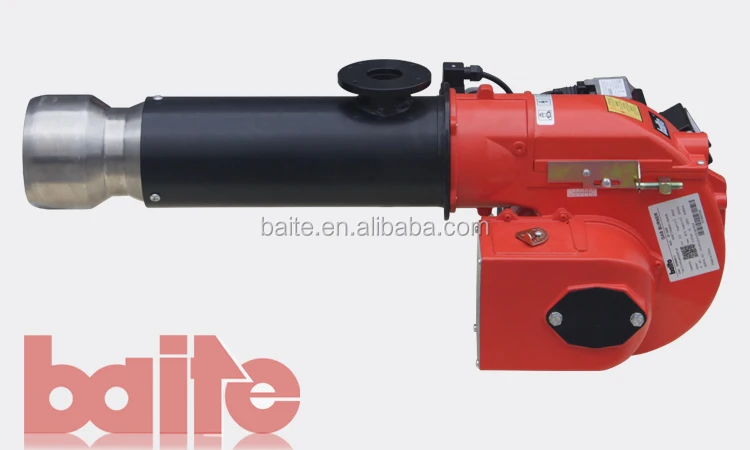

Product Images
