Multi Apartment building Video intercom system

Product Overview

Description

Multi Apartment building Video intercom system

Features:



Aluminum alloy panel of indoor unit, fashionable and luxury.

7"color TFT LCD without radiation, low power consumption and high definition.

IR Camera with Night Vision.

Electric lock-control function.

Handfree intercom.

Monitoring the outside of the door.

16 kinds of door bell rings.

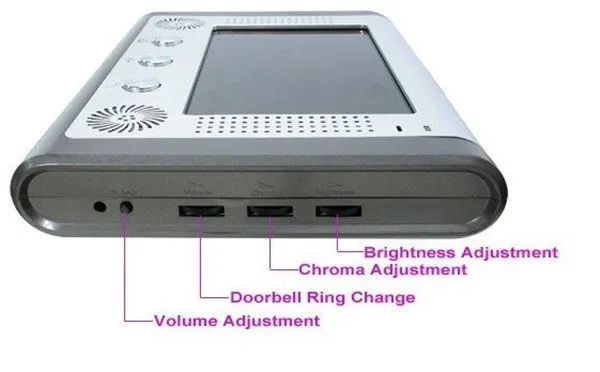

Volume, brightness and contrast adjustable.

Easy installation by yourself with adapter and cable we provide in this kit

Special design for 3 homes,

it absolutely can fully meet 3 homes' needs.





Specification:





· Model: SY802MC13

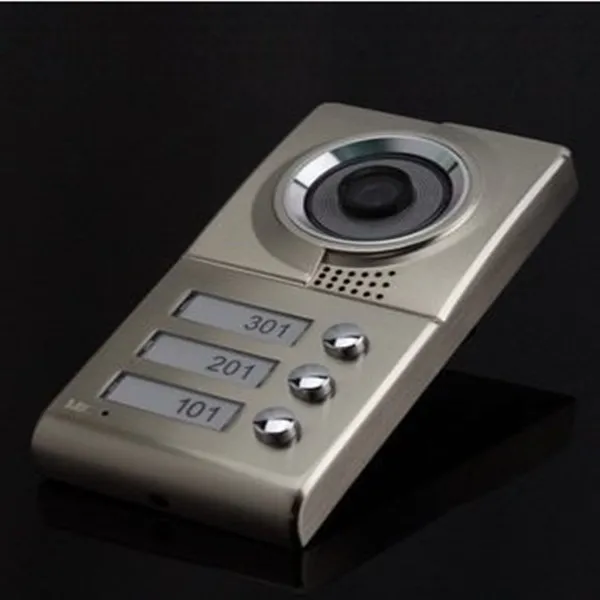

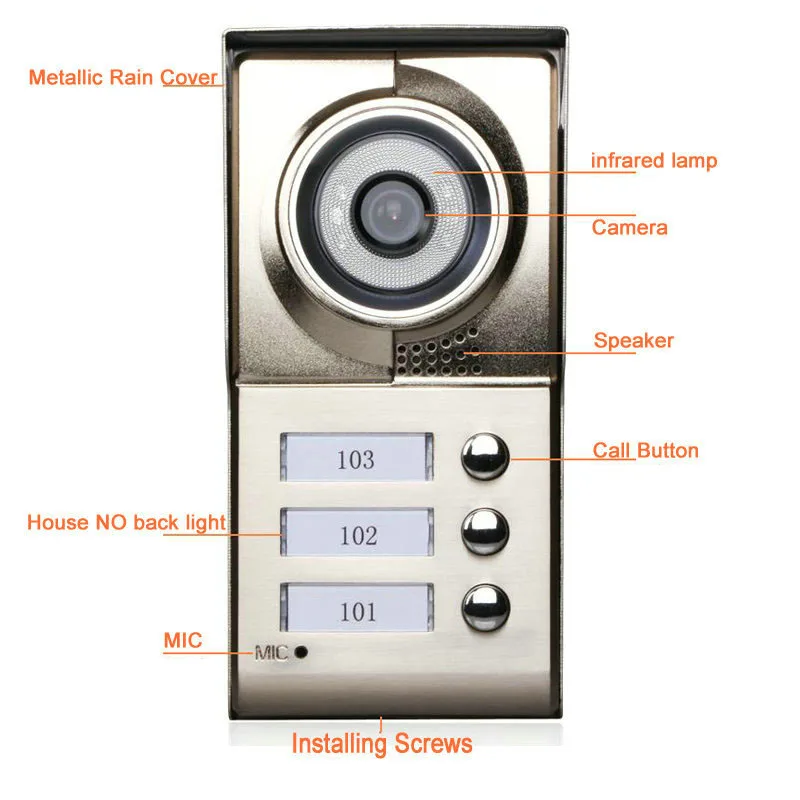

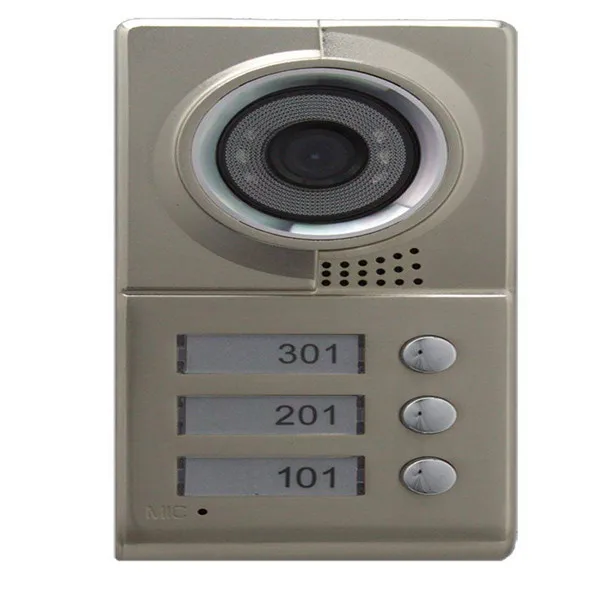

· Outdoor Camera



· Night Vision: IR lights, visible within 5 meters



· Vision Angle: 92º Wide Angle



· Resolution: > 420 TV Line



· Plus Control: Automatically



· Power Consumption: Standby: 0.1W; Unlocking: 12W



· Working temperature: -10℃~50℃



· Installation: Wall mounted



· Size: 127*95*34mm



· Material: Aluminum alloy



· Net Weight: 0.25Kg

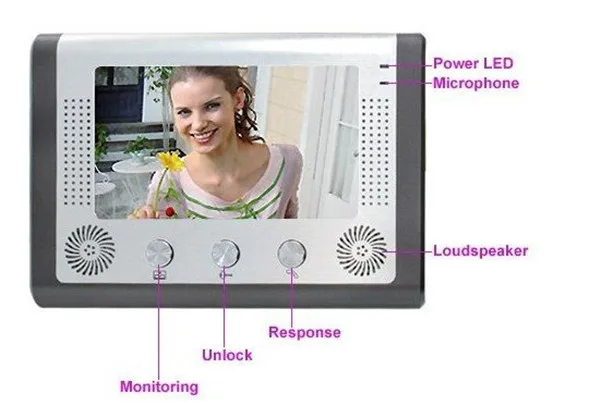

· Indoor Monitor



· Model No.: SY802



· Screen: 7 inch wide angle TFT LCD, 16:9 Display



· Resolution: 480*234



· Power input: AC100V-240V 50Hz-60Hz



· Power output: DC 15V



· Current output: 1200mAh



· Delay Calling time: 120s ±10%



· Delay Monitoring time: 40s ±10%



· Valid Distance: 50M (4x0.65 mm2)



· Power Consumption: Standby: 0.5W; Working: 8W



· Transmitting Distance of Image: about 200m



· Viewing Angle: 65º



· Adapter Input: AC100~ 240V, 50/60Hz



· Adapter Output: DC 15V



· Working Temperature: -10℃~50℃



· Standby Temperature: -20℃~60℃



· Installation: Wall mounted/lift on desk



· Material: Aluminum alloy

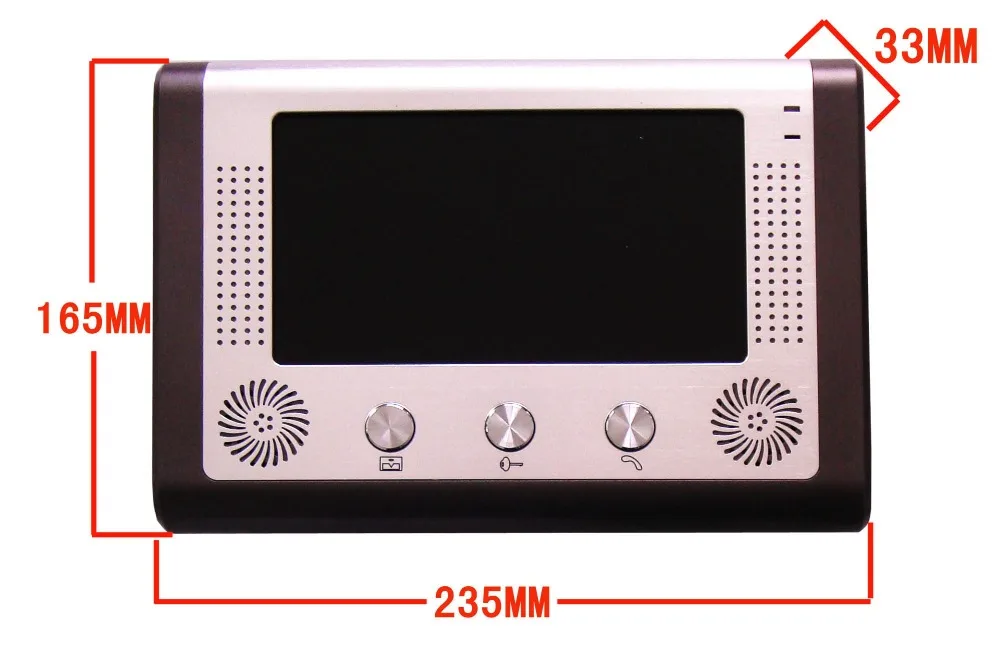

· Size: 235.5*165.5*32mm



· Net Weight: 0.55Kg

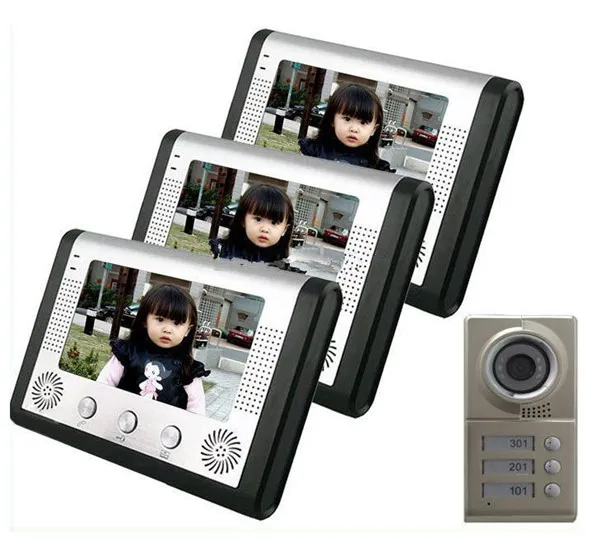

Package:





1 x Outdoor Unit (Camera)



3 x Indoor Unit (Monitor)



3 x DC15V Adapter



3 x 5m 6-core Connection Cable



1 x Manual
