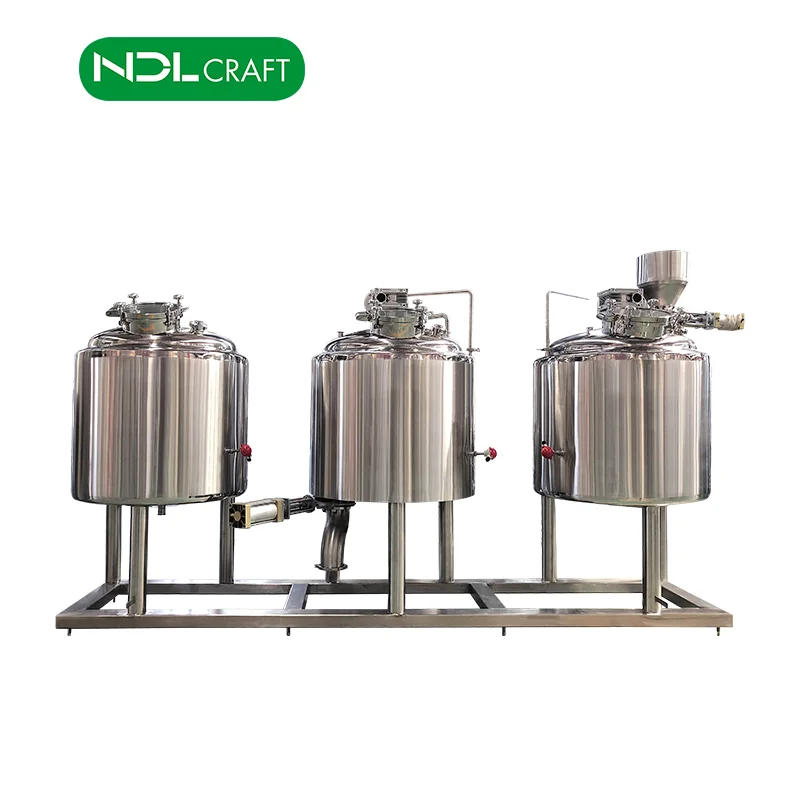

Mashing equipment / saccharification system / 500L stainless steel beer mash tank
Product Description
500l brewery equipment standard configurations for reference:
model
500l brewery equipment
malt mill
300kg/h
Saccharification system
500l
plate- type heat exchanger
6m2
steam boiler
100kg/h
fermentation tank
6x1000l
bright beer tank
2x1000l
yeast adding tank
10l
ice water tank
1500-2000l
Refrigerating unit
5P
CIP cleaning system
50l
control system
semi-automatic or PLC control system
500L Brewhouse Can Be Combined In Different Ways:
Model1:
A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.
Model2:
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool.
Model3:
A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
500L Fermentation System:
Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. NDL Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermenters to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.
Built with AISI 304 stainless steel 5-year limited manufacturer's warranty Dished head and conical bottom Insulated with Polyurethane foam Double-acting air vent valve (below 100HL) Pressure and anti-vacuum valve (100HL and above) CIP with spray ball and blow-off arms Temp, sensor, sample valve, and butterfly valves Shadowless manway 2" bottom drain outlet 6" hop port Rotating racking arm
Quality Control:
Related Parts
There are Control System, Milling System, Cooling System, CIP System, Serving System and etc.
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
Exhibition
NDL Craft attend the Exhibition all over the world, such as USA, Franch, Germany, Brazil, Australia etc, hope to see you at the Exhibition, dear all!
Sales Cases
NDL Craft is a brewing equipment manufacturer and brewing technology engineering company that provides turnkey projects throughout the world.
New design:the company can design according to CE PED standards and ASME design codes
Localized after service: the company has set up three overseas branches located in the United States, the United Kingdom and Canada, as well as localized technology, sales and operation teams in Europe and the United States
New production: the company deploys a series of advanced production and testing equipment, modern production workshop of nearly 30,000 square meters, which organize production according to European and American technical and quality standards.
New Function: Programing system to achieve automatic control
