film processor for the Laser photo plotter,film developing machine
- Category: >>>
- Supplier: Changsha Suny Electronic Technology Limited
Share on (60081536301):
Product Overview
Description
Changsha Suny Electronic Technology Co.,Limited is a Professional manufacturer of the PCB production field. We have the factory in changsha of hunan, we can provide the:
1:PCB making machines
2:PCB etching machine
3:PCB through hole mahine
4:Completely PCB production line
5:Set up Small PCB factory
6:PCB prototyping laboratory
SUNY with more than 10 years experienced engineer team,we can povide the professional technical support as well as the overseas installation and training.
SUNY can provide all the related consumables and raw materials for the PCB machines and the PCB production line.
SUNY with the professional showing room in china, we provide the free installation and training service in china.
Our PCB making machine video:
https://www.youtube.com/watch?v=sQZVaeKhogs
Products: Full automatic film-developing machine
Model:SUNY-ZCP500
Specification:
1. Usage: automatic developing of laser plotting film;
2. Developing process: automatic constant temperature level transmission developing;
3. Maximum developing width: 550 mm;
4. Developing speed: 300-1000 mm/min;
5. Thickness of developed films: 0.08~0.3mm;
6. Process time: 80~240s;
7. Adjusting range of developing time: 20~40s;
8. Adjusting range of solution temperature: 20-40°C;
9. Adjusting range of drying temperature: 30-55°C;
10. Range of adding amount: 30~300 ml/time;
11. Medicine-loading amount of medicine slot: developer: 11 L fixative: 11 L;
12. Power supply: AC220V 50Hz/2KW;
13. Overall dimension: 1243mm×882mm×1057mm;
14. Weight: 160 KG.
Our stardand package:

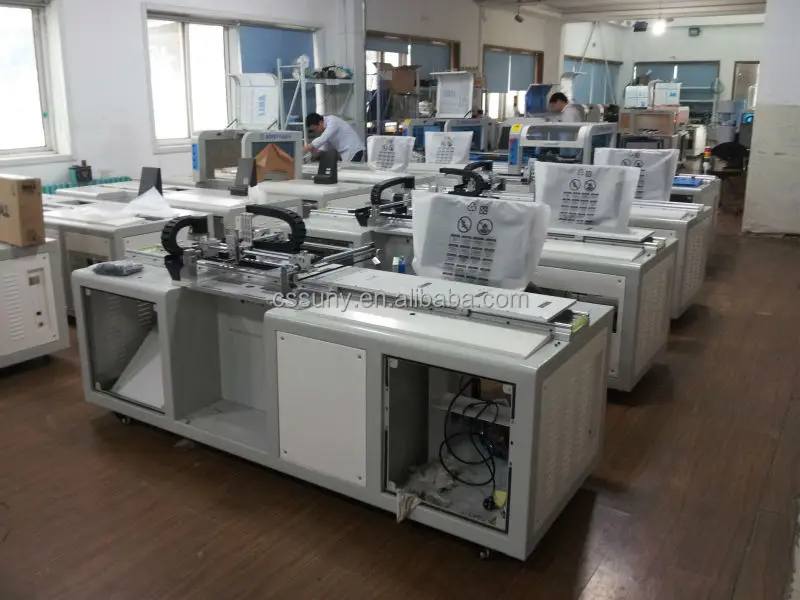

Our factory:
Welcome to contact us for more products!!!!! We provide the on-site training and overseas training!!!
