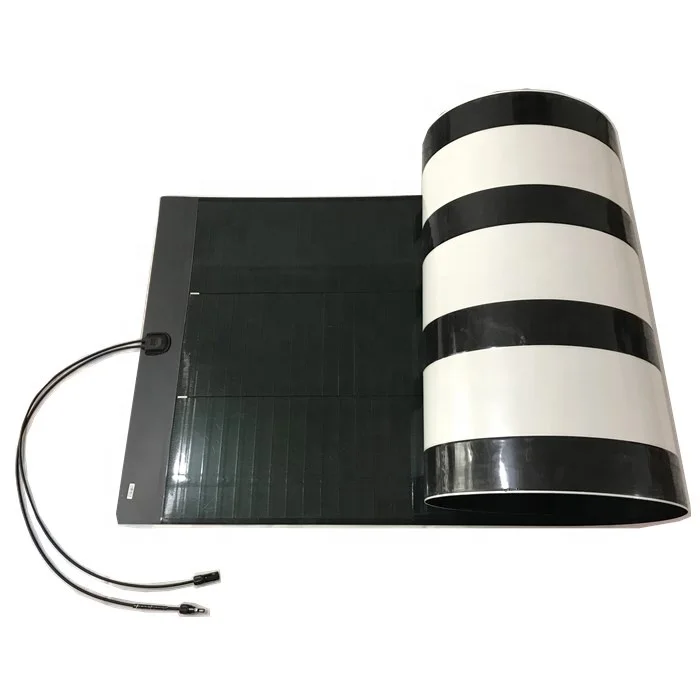

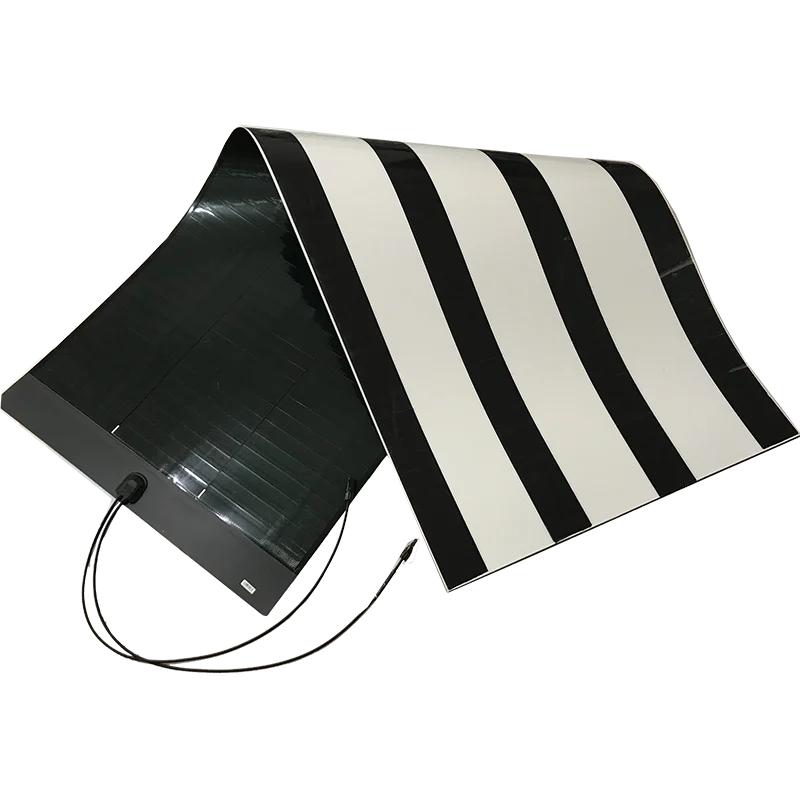

280W thin film flexible solar panel CIGS
- Category: >>>
- Supplier: Jinan Lin Quan Import And Export Co. Ltd.
Share on (60081990115):
Product Overview
Description
Product Description
MiaSolé unique solar cells and modules are the key to the world’s most powerful lightweight flexible thin-film CIGS solar modules. These modules are ideal for a wide variety of applications not suitable for fragile, heavy, rigid silicon modules.
FLEX-03N, 260W,270W,280W,290W CIGS flexible solar panel
Advantages as follows:
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations(such as snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.

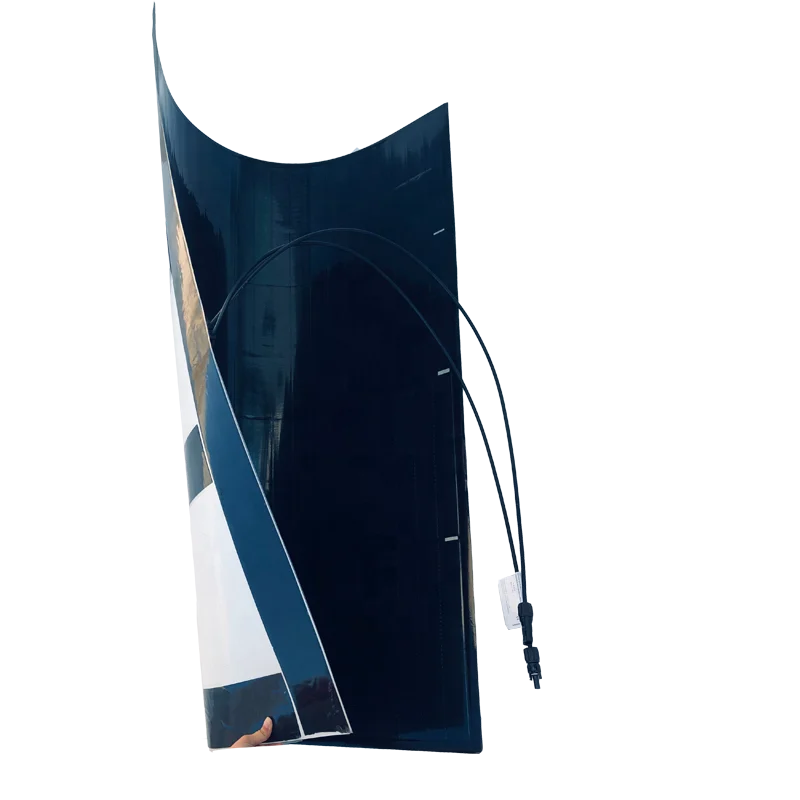

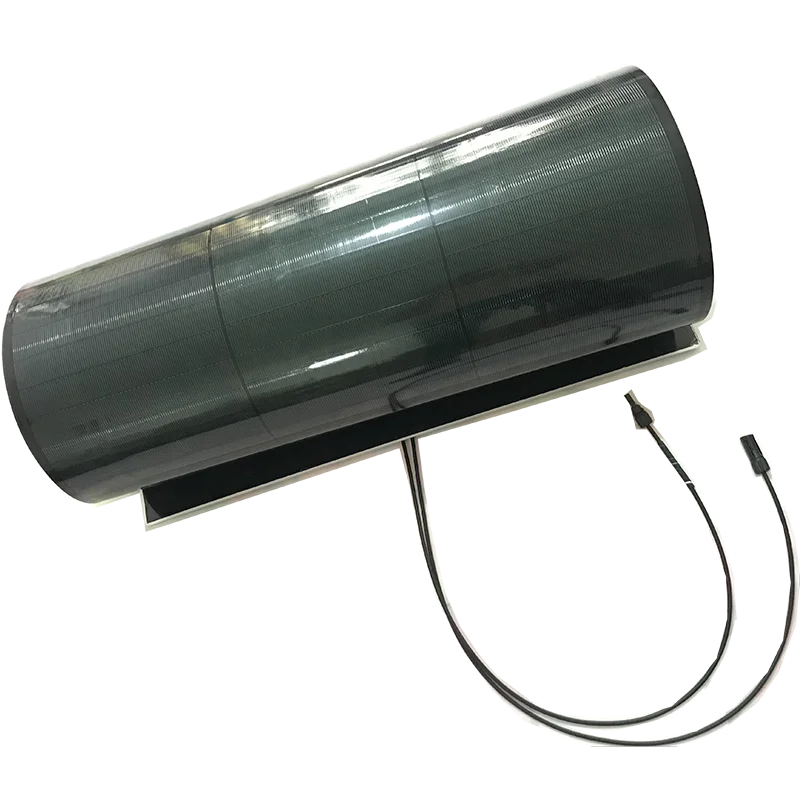

4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to
traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to
traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
Specification
FLEX-03NL-260W | FLEX-03NL-270W | FLEX-03NL-280W | FLEX-03NL-290W | ||||
Cpacity rating(Pmax) | 260W | 270W | 280W | 290W | |||
Tolerance of Pmax(%) | +10 / -0% | +10 / -0% | +10 / -0% | +10 / -0% | |||
Module aperture area efficiency(%) | 14.4% | 15.0% | 15.5% | 16.1% | |||
Maximum Power Voltage(Vmpp) | 67.3V | 68.3V | 69.3V | 70.3V | |||
Maximum Power Current(Impp) | 3.88A | 3.96A | 4.04A | 4.13A | |||
Open Circuit Voltage(Voc) | 86.2V | 86.8V | 87.3V | 87.9V | |||
Short Circuit Current(Isc) | 4.70A | 4.70A | 4.70A | 4.70A | |||
Maximum Series Fuse Rating(A) | 10A | 10A | 10A | 10A | |||
Maximum System Voltage(IEC/UL) | 1000/1000 | ||||||
Dimension(mm) | 5910 mm Length* 348 mm Width * 2.5 mm Thickness | ||||||
Maximum at J-Box(mm) | 17 mm | ||||||
Weight(Module without adhesive) | 3.6 KG | ||||||
Weight(Module with adhesive) | 4.3 KG | ||||||
Weight/Area (Module without adhesive) | 1.7 kg/m2 | ||||||
Weight/Area (Module with adhesive) | 2.1 kg/m2 | ||||||
Junction Box Type | IP 68 | ||||||
Cable connections | Amphenol H4 (MC4 compatible) | ||||||
Cell type | Copper Indium Gallium Diselenide (CIGS) | ||||||
Warranty | 5 year workmanship, 10/25 year power output | ||||||
Certification | UL 1703, IEC 61646, IEC 61730, cUL 1703, IEC 62716 | ||||||
Features
KEY FEATURES
\u0084Record efficiency levels in a flexible form factor
\u0084Low installed weight at less than 2.4 kg/m2 (<0.5lb/ft2)
\u0084No penetrations, ballast or racking required
\u0084Applicable for high wind load and high seismic hazard areas
\u0084Bypass diodes reduce PV system shading losses
\u0084Directly bonds to many approved surfaces
\u0084Low installed weight at less than 2.4 kg/m2 (<0.5lb/ft2)
\u0084No penetrations, ballast or racking required
\u0084Applicable for high wind load and high seismic hazard areas
\u0084Bypass diodes reduce PV system shading losses
\u0084Directly bonds to many approved surfaces
RELIABILITY AND SAFETY
\u0084 IEC 61646. IEC 61730, IEC 62716, IEC 61701 (Salt Spray)
\u0084 UL 1703, cUL 1703
\u0084For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or C
WARRANTY
\u00845–year workmanship
\u008410/25 year warranty against power loss
\u0084 IEC 61646. IEC 61730, IEC 62716, IEC 61701 (Salt Spray)
\u0084 UL 1703, cUL 1703
\u0084For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or C
WARRANTY
\u00845–year workmanship
\u008410/25 year warranty against power loss
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Strong Carton
Strong carton+ Pallet
Wooden case or pack it according to your requirement.
Application
CIGS FLEXIBLE SOLAR PANEL application
Membrane Roof Systems
Metal Roofing Systems
Geomembrane Covers for Water Reservoirs and Landfills
Carport
Marine/boat/ship.....
Company Profie
ABOUT US:
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.
Production base situated in Zibo, Shandong, CHINA, UNISOLAR has become the leading exporter for powerful, lightweight, shatterproof and flexible solar cells. The innovative solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
